BMW R 80GSBasic (1996 – 97)

BMW R 80GSBasic (1996 - 97)

The BMW R 80 GS Basic is a testament to the enduring legacy of the air-cooled flathead boxer engine. Produced exclusively in 1997, this ultimate model boasts a distinctive white and blue color scheme, accompanied by a blue-framed high fender and White Power rear shock.

The R 80 GS Basic inherits the technical data and additional equipment of its R 80 GS predecessor, but with a few notable omissions. Gone are the side stand, hand guards, fly screen, and crash bars, making this model a more stripped-back affair.

A testament to BMW’s ingenuity, the R 80 GS Basic provides a unique opportunity for enthusiasts to experience the “old” boxer engine in a new light. With its smaller tank borrowed from the old ST, this bike offers a refreshing change of pace for those seeking a more authentic, laid-back riding experience.

Key Specifications

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder
Engine Capacity797.5 cc / 48.7 cu in.
Max Power37 kw / 50 hp
Max Torque61Nm / 6.2 kgf-m / 44 ft lb @ 5000 rpm
Fuel Tank Capacity19.5L / 5.1 US gal
Weight (Wet/Kerb)462 lbs / 210 kg
Seat Height33.5 inches / 850 mm
BMW R 80GSBasic (1996 - 97)

All Specifications

Make & Model

ModelBMW R 80GSBasic
Year1996 – 97

Engine

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder
Displacement797.5 cc / 48.7 cu in.
Bore x Stroke84.8 x 70.6 mm
Compression Ratio8.2:1
Max Horsepower37 kw / 50 hp
Max Torque61Nm / 6.2 kgf-m / 44 ft lb @ 5000 rpm
Engine Management System2 x Bing constant depression carburetors
Lubrication SystemWet sump
Cooling SystemAir cooled

Performance

Top Speed170.4 km/h / 106 mph

Transmission

ClutchDry single plate, with diaphragm spring
Gearbox5 Speed
Gear Ratios1st 4.40 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50:1
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeDouble loop tubular frame with bolt on rear section
Front Suspension∅40mm Marzocchi telescopic hydraulic forks.
Front Suspension Travel8.8 inches / 225 mm
Rear SuspensionBMW Paralever swinging arm
Rear Suspension Travel7.0 inches / 180 mm

Wheels & Brakes

Front Tire Size90/90 x 21S
Rear Tire Size13/80 x 17S
Front BrakesSingle ∅285mm disc
Rear Brakes∅200mm Drum

Dimension & Weights

Seat Height33.5 inches / 850 mm
Wheelbase59.6 inches / 1514 mm
Ground Clearance200mm / 7.87 in
Fuel Tank Capacity19.5L / 5.1 US gal
Wet (kerb/curb) Weight462 lbs / 210 kg

Features

  • Two-valve boxer engine
  • 798 cc drivetrain used until 1994 in the R 80 GS
  • Round valve covers dating back to 1969
  • Cylinder heads from the R 100 Classic and R 100 GS Paris/Dakar
  • 50 horsepower
  • Air cooled flathead engine
  • Paralever swingarm
  • 19.5 liter gas tank
  • Weight savings from using the smaller tank
  • White and blue paint scheme
  • No side stand
  • No hand guards
  • No fly screen
  • No “crash” bars
  • High fender
  • White Power rear shock

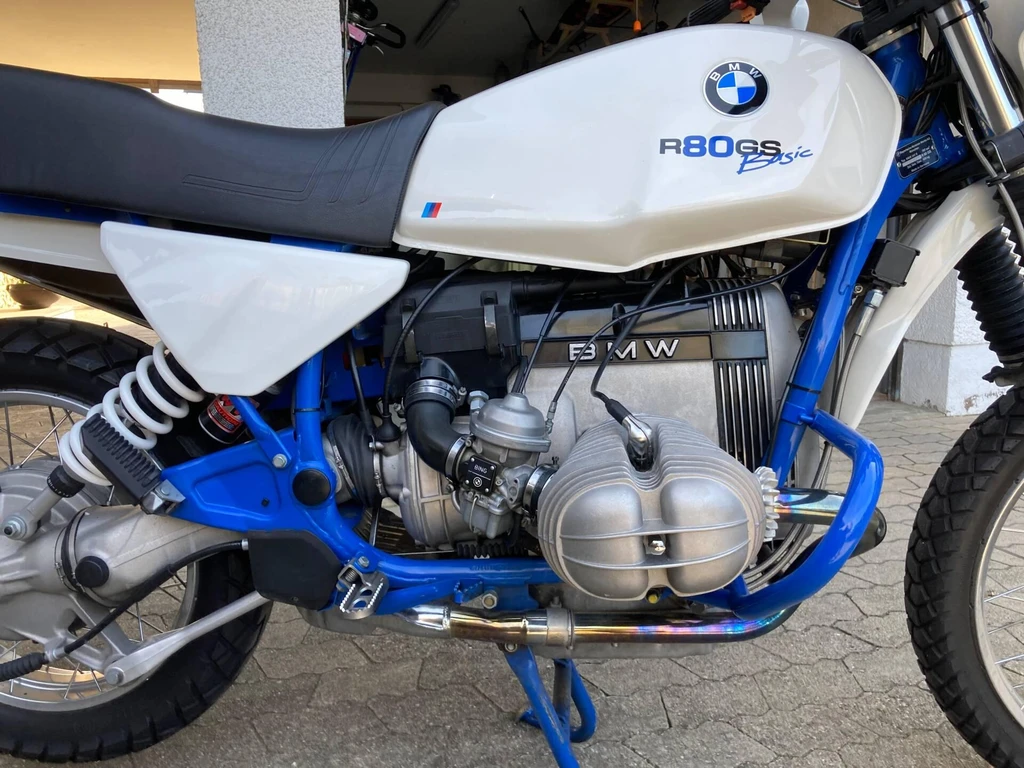

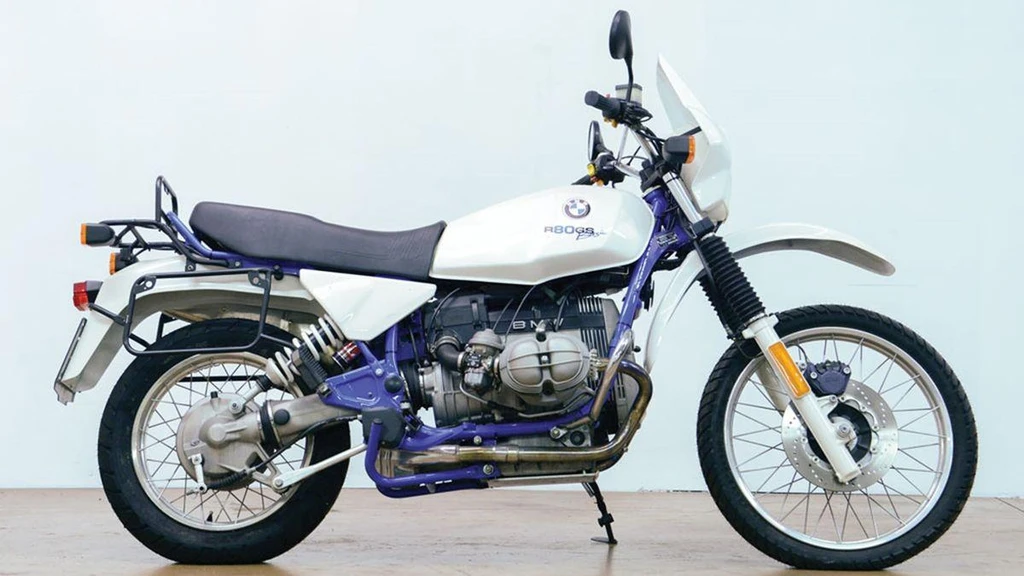

BMW R 80GSBasic (1996 - 97)

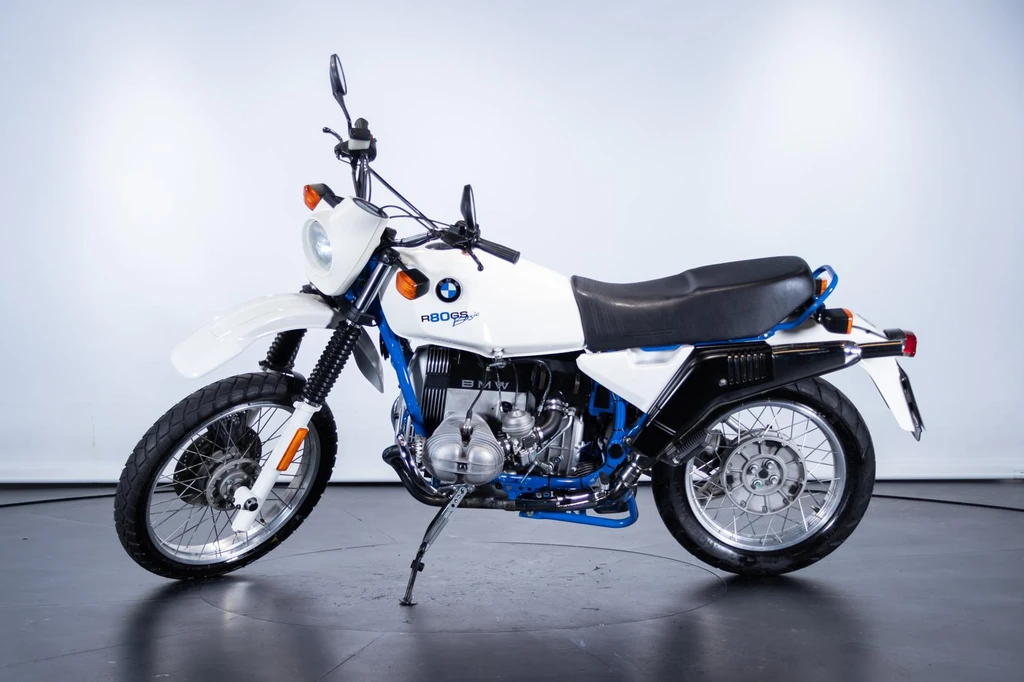

BMW R 80GSBasic (1996 - 97)

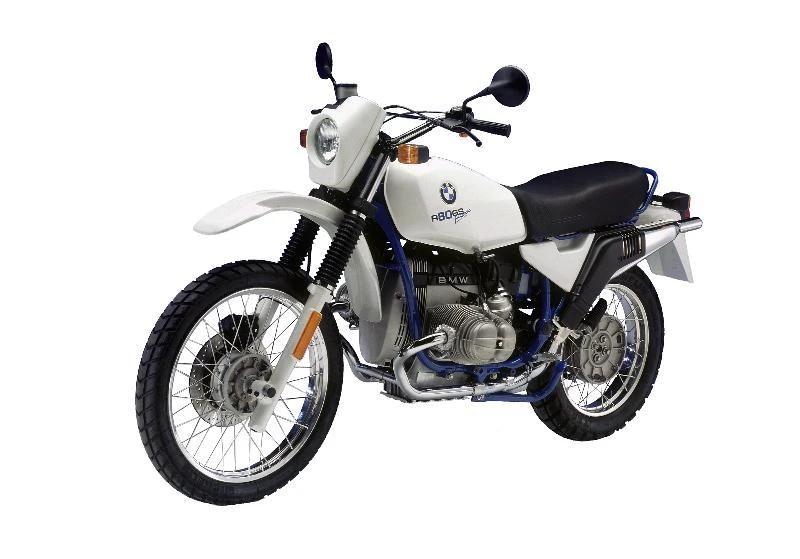

BMW R 80GSBasic (1996 - 97)
