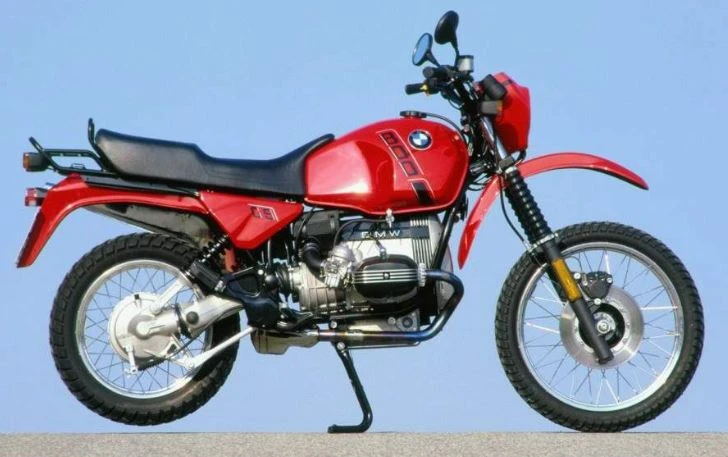

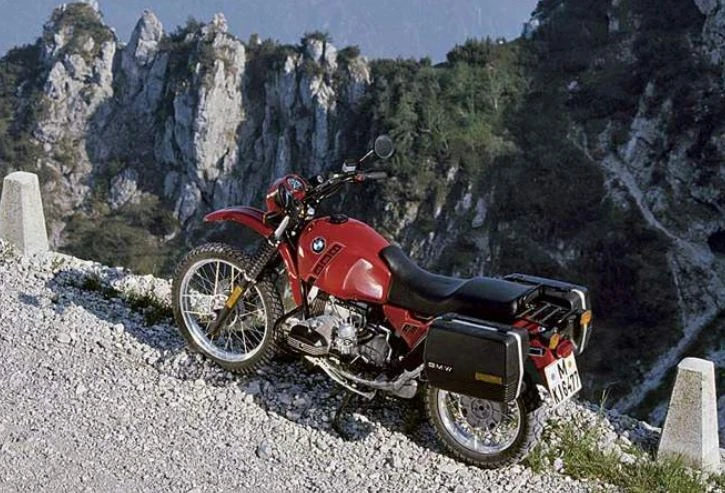

BMW R 80GS (1988)

BMW R 80GS (1988)

The BMW R 80GS is a testament to the German marque’s commitment to producing rugged, dependable motorcycles that can conquer the toughest off-road terrain. This revamped bike boasts a new rear suspension, the Paralever, which replaces the monolever, and a name change that reflects its newfound focus on Sport.

The engine is where the R 80GS truly comes alive, with a 798cc, air-cooled, two-cylinder unit producing 50 horsepower at 6,500 rpm and 61 Nm of torque at 3,750 rpm. The ride is characterized by a smooth, predictable feel, with the Paralever suspension soaking up bumps and irregularities with ease.

Whether you’re carving through twisties or tackling the toughest off-road trails, the R 80GS is the perfect companion. Its lightweight chassis and 210kg curb weight make it agile and responsive, while the 24-liter fuel tank and tool box under the seat ensure you’re always prepared for the long haul. With its robust engine, capable suspension, and rugged styling, the BMW R 80GS is the ultimate adventure machine, ready to take you wherever the road – or trail – may lead.

Key Specifications

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder
Engine Capacity797.5 cc / 48.7 cu in.
Max Power37 kw / 50 hp
Max Torque61Nm / 6.2 kgf-m / 44 ft lb @ 5000 rpm
Fuel Tank Capacity24L / 6.3 US gal
Weight (Wet/Kerb)462 lbs / 210 kg
Seat Height33.5 inches / 850 mm
BMW R 80GS (1988)

All Specifications

Make & Model

ModelBMW R 80GS
Year1988

Engine

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder
Displacement797.5 cc / 48.7 cu in.
Bore x Stroke84.8 x 70.6 mm
Compression Ratio8.2:1
Max Horsepower37 kw / 50 hp
Max Torque61Nm / 6.2 kgf-m / 44 ft lb @ 5000 rpm
Engine Management System2 x Bing constant depression carburetors
Lubrication SystemWet sump
Cooling SystemAir cooled

Performance

Top Speed170.4 km/h / 106 mph

Transmission

ClutchDry single plate, with diaphragm spring
Gearbox5 Speed
Gear Ratios1st 4.40 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50:1
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeDouble loop tubular frame with bolt on rear section
Front Suspension∅40mm Marzocchi telescopic hydraulic forks.
Front Suspension Travel8.8 inches / 225 mm
Rear SuspensionBMW Paralever swinging arm
Rear Suspension Travel7.0 inches / 180 mm

Wheels & Brakes

Front Tire Size90/90 x 21S
Rear Tire Size13/80 x 17S
Front BrakesSingle ∅285mm disc
Rear Brakes∅200mm Drum

Dimension & Weights

Seat Height33.5 inches / 850 mm
Wheelbase59.6 inches / 1514 mm
Ground Clearance200mm / 7.87 in
Fuel Tank Capacity24L / 6.3 US gal
Wet (kerb/curb) Weight462 lbs / 210 kg

Features

  • New rear suspension with paralever design
  • Monolever replaced by paralever
  • Rear wheel now secured by 4 lugnuts
  • Oil-cooler on R100GS, strangely placed on right engine protection bar
  • Small windshield on R100GS
  • R80GS engine: 798 cm, 84.8mm x 70.6mm, 50 hp at 6500 rpm, 61 Nm at 3750 rpm
  • R100GS engine: 980 cm, 94mm x 70.6mm, 60 hp at 6500 rpm, 76 Nm at 3750 rpm
  • Rear frame with small rack
  • Fork upgraded to 40mm Marzocchi
  • Front brake remains unchanged
  • Centerstand design with curved pedals
  • Wheels: 17” rear diameter, rim-mounted spokes
  • Tubeless tire possible
  • Small external tachometer and clock on dashboard
  • Dual petcocks on tank
  • Tool box under seat
  • Stainless steel exhaust with black cover plate
  • 12v/25Ah battery instead of 12v/16Ah
  • No kickstarter, available as add-on
  • Weight: 210 kg
