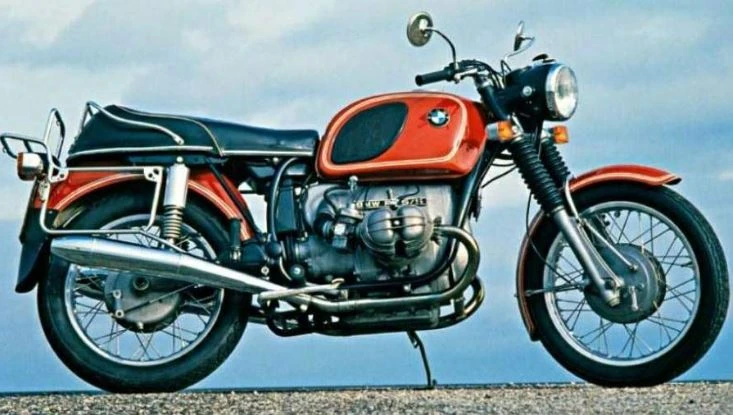

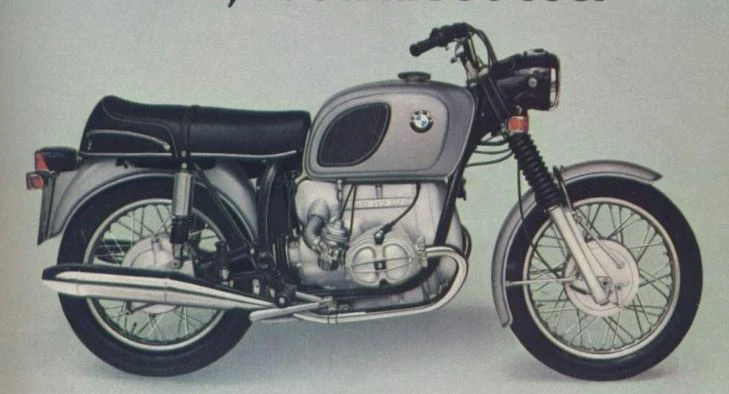

The BMW R 75/5, introduced in 1969, marked a significant departure from the company’s traditional sidecar-hauling machines. This new generation of motorcycles embodied BMW’s efforts to appeal to the growing sport bike market while maintaining the reliability and comfort of its touring enthusiasts. With a powerful 745cc engine, the R 75/5 boasted a smooth and linear power delivery, making it an ideal choice for both short and long-distance riding.
The R 75/5’s engine character was defined by its strong mid-range torque, allowing riders to effortlessly navigate twisty roads and maintain a comfortable pace on the highway. The constant vacuum (CV) carburetors, paired with a 32mm choke, provided a precise and responsive throttle, further enhancing the riding experience.
As one of the largest displacement machines in its class, the R 75/5 was designed to deliver exceptional performance and comfort, making it an excellent choice for riders seeking a premium touring experience.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Engine Capacity
745 cc / 45.5 cu in.
Max Power
36.8 kw / 50 hp
Max Torque
60 Nm / 6.1 kgf-m / 44 ft lb @ 5000 rpm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 75/5
Year
1969
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Displacement
745 cc / 45.5 cu in.
Bore x Stroke
82 x 70.6 mm
Compression Ratio
9.0:1
Max Horsepower
36.8 kw / 50 hp
Max Torque
60 Nm / 6.1 kgf-m / 44 ft lb @ 5000 rpm
Engine Management System
2 x Bing constant depression carbutetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic hydraulic forks
Rear Suspension
Long swinging arm with strut. 125mm wheel travel
Wheels & Brakes
Front Tire Size
3.25 – S19
Rear Tire Size
4.00 – S18
Front Brakes
200mm Drum
Rear Brakes
200mm Drum
Dimension & Weights
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Features
New generation of motorcycles with modern features
