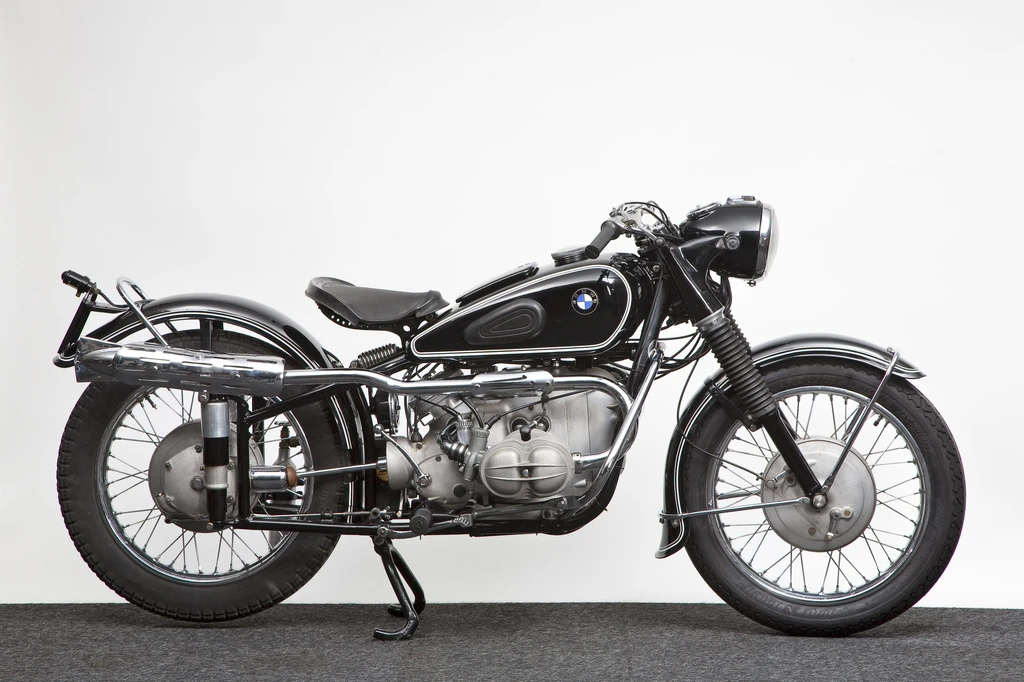

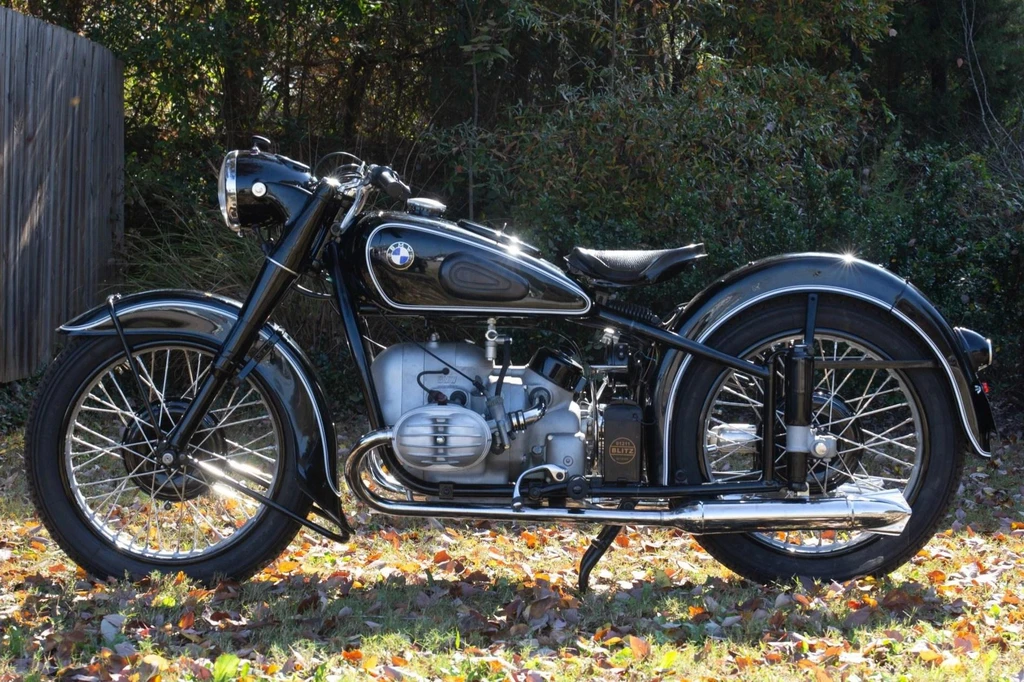

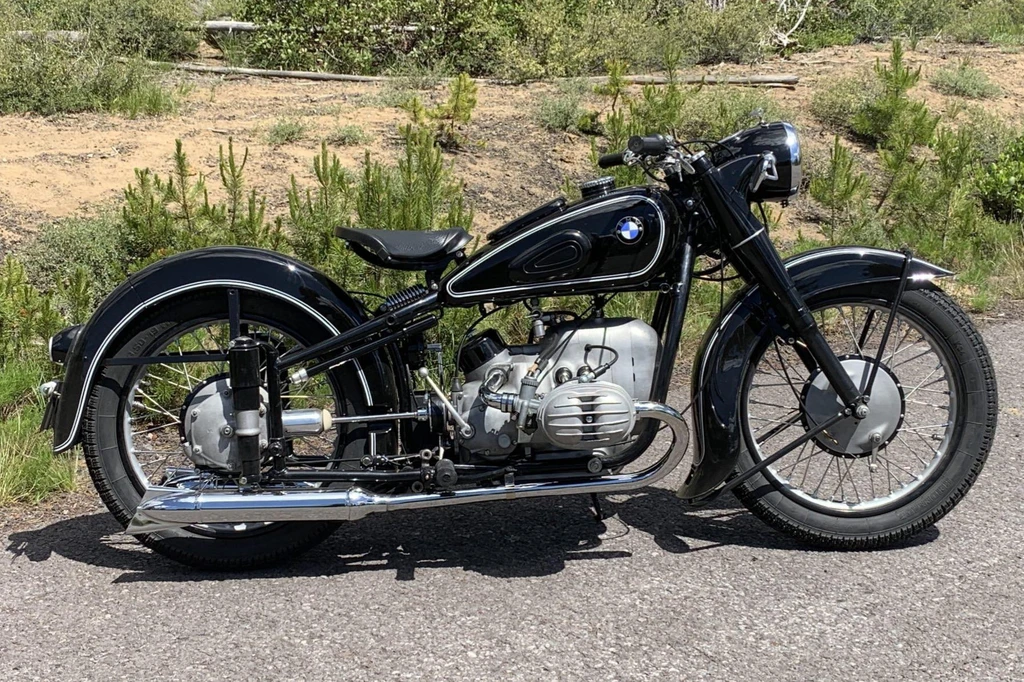

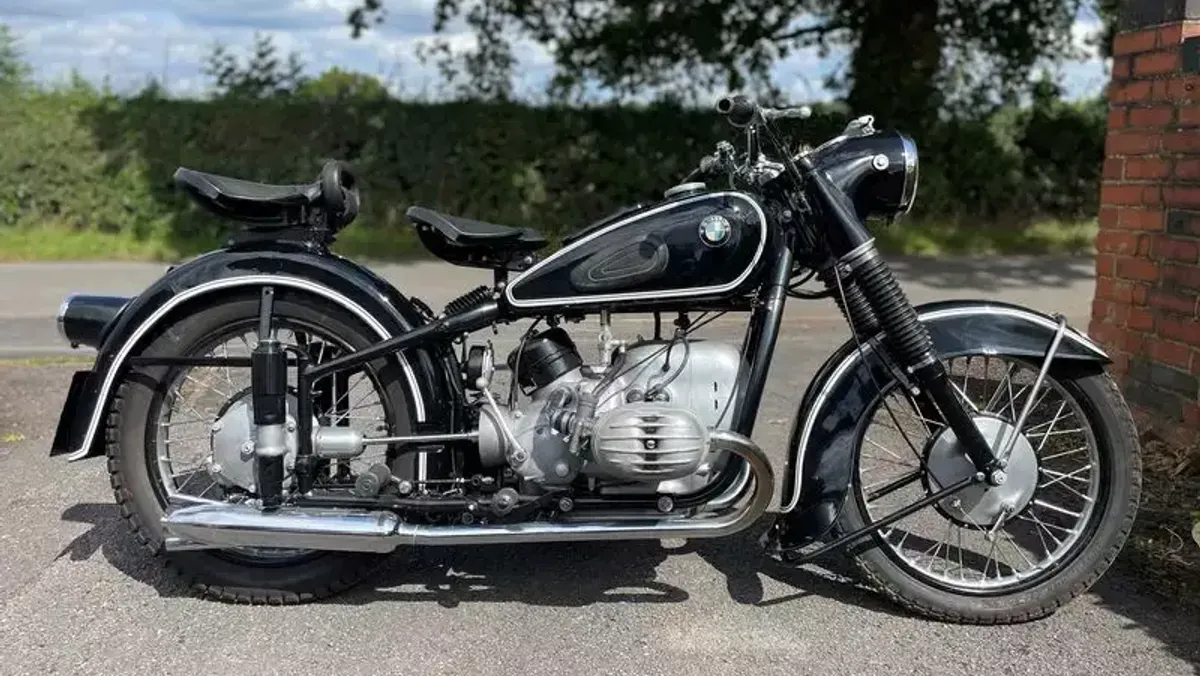

The BMW R 67, a paragon of post-war engineering excellence, embodies the quintessential spirit of 1950s motorcycle design. Its robust chassis, crafted from high-quality steel, provides the foundation for a riding experience that is both responsive and refined.
Under the tank, the R 67’s 650cc boxer twin engine roars to life, its characteristic “heartbeat” rhythm a testament to its unique character. With a maximum power output of 25 horsepower and a top speed of 120 km/h, this engine is more than capable of handling the demands of modern motorcycling.
But it’s not just the engine that sets the R 67 apart – its suspension system, featuring telescopic front forks with hydraulic damping and plunger type springs, ensures a smooth ride even on the most rugged terrain. With coil compression springs and rubber deflection stops adding to the overall stability, the R 67 is an exceptional machine that rewards its rider with an unparalleled sense of control and agility.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Engine Capacity
594 cc / 36.2 cu in
Max Power
25 hp @ 5500 rpm
Fuel Tank Capacity
17 liters /4.4 US gal
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 67
Year
1951
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Displacement
594 cc / 36.2 cu in
Bore x Stroke
72 x 73 mm
Compression Ratio
5.6:1
Max Horsepower
25 hp @ 5500 rpm
Engine Management System
2 xBing 1/24/15 – 1/24/16 carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Single plate, dry
Gearbox
4 Speed
Gear Ratios
1st 3.6 / 2nd 2.28 / 3rd 1.7 / 4th 1.3
Final Drive
Shaft
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Double loop steel tubular frame
Front Suspension
Telescopic front fork with hydraulic damping; plunger type
Rear Suspension
Spring with coil compression springs and rubber deflection stops
Wheels & Brakes
Front Tire Size
3.50 -19″
Rear Tire Size
3.50 -19″
Front Brakes
∅200mm Drum duplex full hub
Rear Brakes
∅200mm Drum simplex full hub
Dimension & Weights
Fuel Tank Capacity
17 liters /4.4 US gal
Features
Telescopic front fork with hydraulic damping
Plunger type Spring with coil compression springs
Rubber deflection stops
