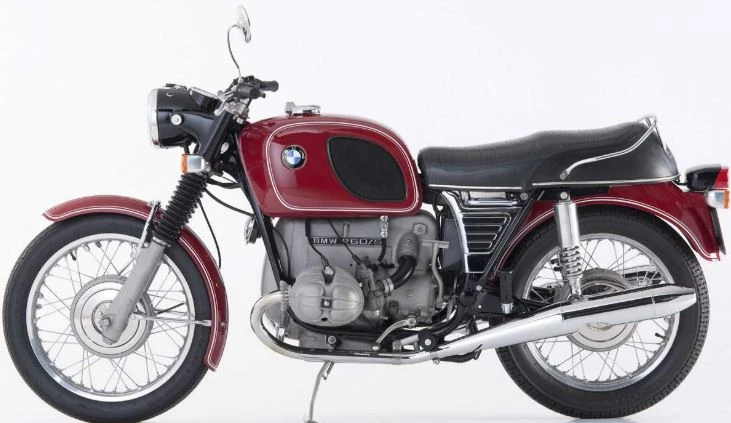

The BMW R 60/5, a quintessential embodiment of German engineering and design, roars onto the scene with its powerful 594cc twin-cylinder boxer engine. This stalwart machine boasts a distinctive 4-speed transmission, with gear ratios carefully crafted to deliver a seamless and engaging riding experience. Its robust double loop tubular frame, with a bolt-on rear section, provides the perfect blend of agility and stability, making it an absolute joy to navigate twisty roads and sweeping corners.
The R 60/5’s engine character is nothing short of captivating, with a distinctive boxer rumble that’s music to the ears of any motorcycle enthusiast. Whether cruising down the highway or carving through mountain passes, this BMW is sure to leave a lasting impression.
The BMW R 60/5 is an iconic motorcycle that embodies the perfect blend of performance, style, and substance, making it a true classic that will continue to thrill riders for generations to come.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder
Engine Capacity
36.6 cubic inches / 599 cc
Max Power
29.5 kw / 40 hp
Max Torque
36 ft-lb / 49 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 60/5
Year
1972 – 73
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder
Displacement
36.6 cubic inches / 599 cc
Bore x Stroke
73.5 x 70.6 mm
Compression Ratio
9.2:1
Max Horsepower
29.5 kw / 40 hp
Max Torque
36 ft-lb / 49 nm
Engine Management System
2 x Bing slide carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry single plate, with diaphragm spring
Gearbox
4 Speed
Gear Ratios
1st 3.896 / 2nd 2.578 / 3rd 1.875 / 4th 1.50:1
Final Drive
Shaft
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Double loop tubular frame with bolt on rear section
Front Suspension
Telescopic hydraulic forks
Rear Suspension
Long swinging arm with strut
Rear Suspension Travel
4.9 inches / 125 mm
Wheels & Brakes
Front Tire Size
3.25 – S19
Rear Tire Size
4.00 – S18
Front Brakes
200mm Drum
Rear Brakes
200mm Drum
Dimension & Weights
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Features
Double loop tubular frame
Bolt on rear section
1st gear ratio: 3.896
2nd gear ratio: 2.578
3rd gear ratio: 1.875
4th gear ratio: 1.50:1
