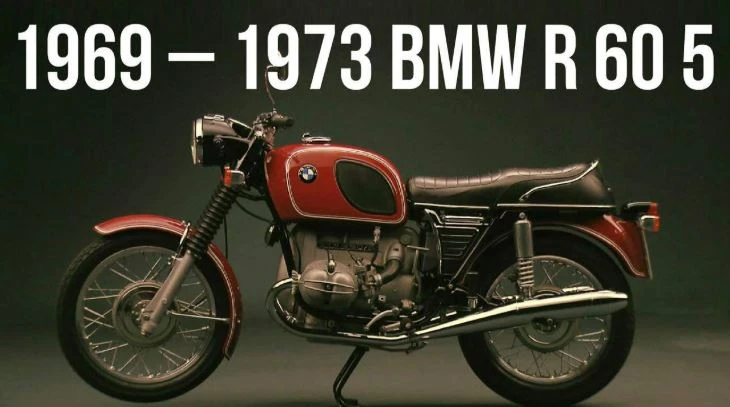

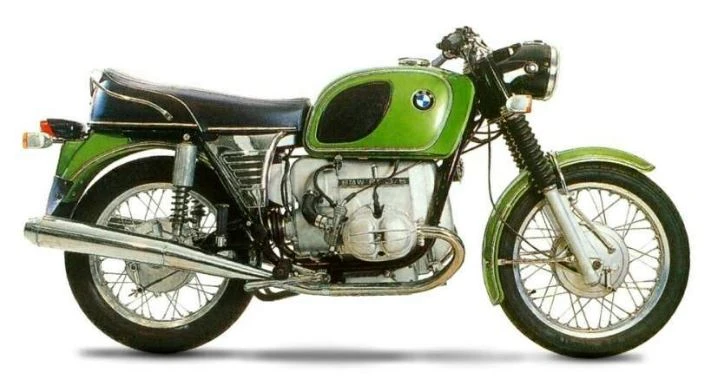

The BMW R 60/5, a quintessential product of the 1970s, embodies the manufacturer’s bold shift towards a more sport-oriented yet still touring-capable motorcycle. Powering this machine is a 599cc boxer twin engine, boasting a distinctive 1:3.896 first gear and 1:1.50 fourth gear ratio. The engine’s character is one of smooth, low-revving torque, making it an ideal companion for both city streets and winding country roads.
A double-loop tubular frame forms the backbone of the R 60/5, with a bolt-on rear section providing added stability. This blend of traditional craftsmanship and modern engineering yields a motorcycle that is both rugged and refined. Whether navigating twisty mountain passes or cruising down the highway, the R 60/5 promises a riding experience that is equal parts engaging and effortless.
Riding the R 60/5 is an exercise in harmony, the boxer twin engine singing a soothing melody as it propels the motorcycle forward with ease. Whether you’re a seasoned enthusiast or a newcomer to the world of motorcycling, the BMW R 60/5 is an exceptional machine that rewards attention and care.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Engine Capacity
599 cc / 36.6 cu in.
Max Power
29.5 kw / 40 hp
Max Torque
49 Nm / 5.0 kgf-m / 36 ft lb @ 5000 rpm
Fuel Tank Capacity
24 liters / 6.3 US gal
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 60/5
Year
1971 – 73
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Displacement
599 cc / 36.6 cu in.
Bore x Stroke
73.5 x 70.6 mm
Compression Ratio
9.2:1
Max Horsepower
29.5 kw / 40 hp
Max Torque
49 Nm / 5.0 kgf-m / 36 ft lb @ 5000 rpm
Engine Management System
2 x Bing slide carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry single plate, with diaphragm spring
Gearbox
4 Speed
Gear Ratios
1st 3.896 / 2nd 2.578 / 3rd 1.875 / 4th 1.50:1
Final Drive
Shaft
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Double loop tubular frame with bolt on rear section
Front Suspension
Telescopic hydraulic forks
Rear Suspension
Long swinging arm with strut
Rear Suspension Travel
125 mm / 4.9″
Wheels & Brakes
Front Tire Size
3.25 – S19
Rear Tire Size
4.00 – S18
Front Brakes
∅200mm Drum
Rear Brakes
∅200mm Drum
Dimension & Weights
Fuel Tank Capacity
24 liters / 6.3 US gal
Features
Double loop tubular frame
Bolt on rear section
1.875 / 4th 1.50:1 gear ratio
Concentric float carburetors (R50/5 and R60/5)
Constant vacuum (CV) carburetors (R75/5)
32mm choke
Electric starter motor (R60/5 and R75/5, optional on R50/5)
4-1/2 gallon tank (with chrome side panels, introduced in 1972)
6-1/2 gallon tank (original)
Matching chrome battery covers (with stripes painted black or blue)
One-piece seat grab bars (introduced in 1973)
Two-piece seat grab bars (earlier models)
412 pounds curb weight (R50/5)
423 pounds curb weight (R60/5 and R75/5)
498cc displacement (R50/5)
599cc displacement (R60/5)
745cc displacement (R75/5)
