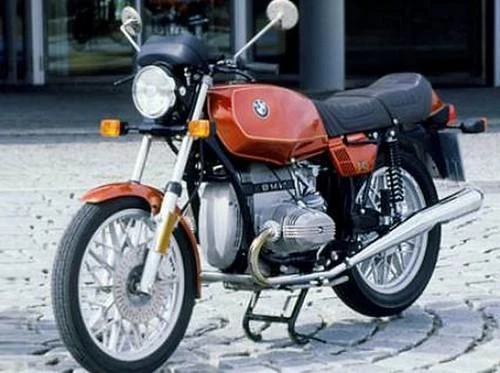

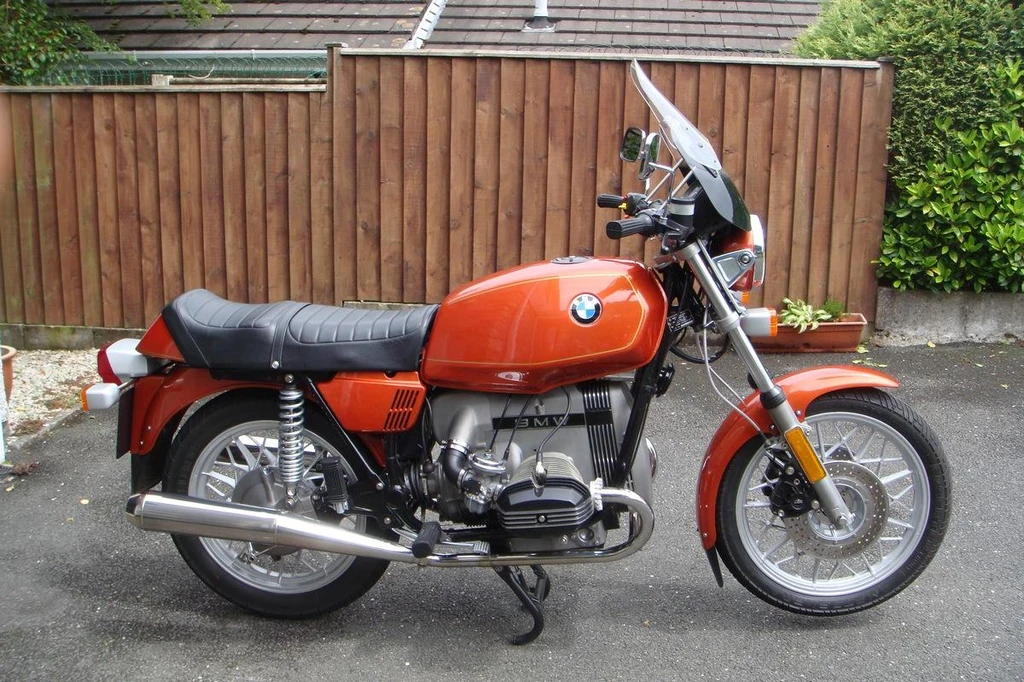

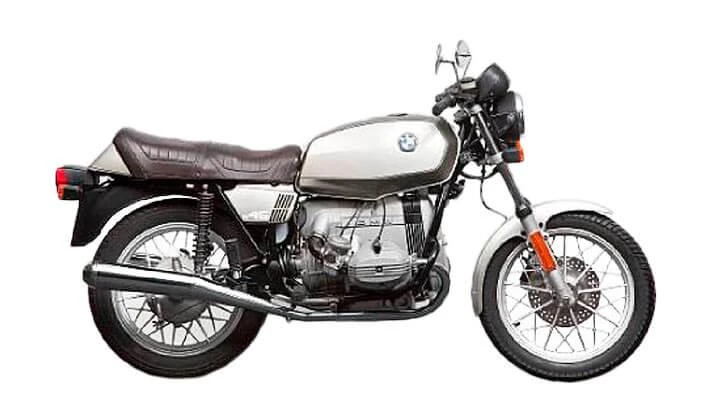

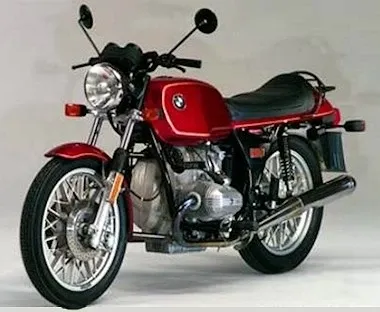

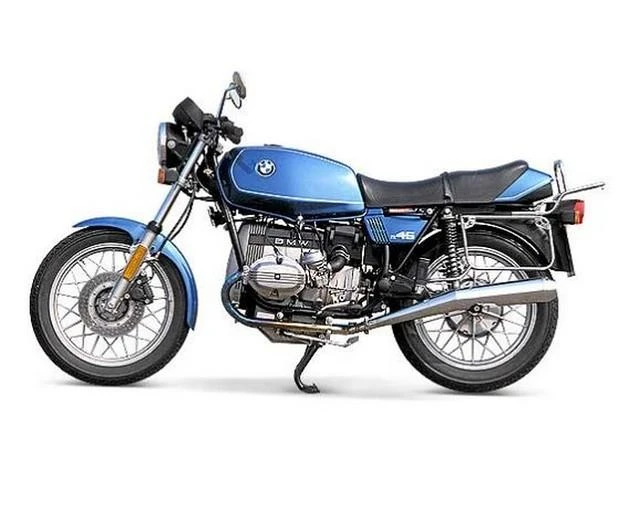

The BMW R 45: a compact, yet potent addition to the BMW family. Its oversquare engine, featuring a fiat-twin configuration with pushrods and rockers, delivers a smooth and efficient ride.
Two stages of tune are available, producing 26bhp for the German market and 35bhp for the rest of the world. The export version boasts a peak power of 7250rpm and maximum torque of 27.51 ft-lbs at 5500rpm.
The R 45’s performance may not be its strongest suit, but it will reach a top speed of approximately 95mph. In contrast, its fuel efficiency is impressive, with an average of 55-60mpg achievable. The bike’s 4.8-gallon fuel tank and five-speed gearbox with shaft drive make it well-suited for touring. Standard features include cast-alloy wheels, audible warnings for the indicators, twin mirrors, electric starter, and a plug for an intercom device. The R 45’s exceptional finish comes at a price, however, with the smallest BMW produced being more expensive than many 750s.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Engine Capacity
453 cc / 27.6 cu in.
Max Power
20 kw / 27 hp
Max Torque
37.5 Nm / 3.82 kgf-m / 27.65 lb-ft @ 5000 rpm
Fuel Tank Capacity
5.8 US gallons / 22.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 45
Year
1978 – 79
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, pushrod operated 2 valves per cylinder.
Displacement
453 cc / 27.6 cu in.
Bore x Stroke
70 x 61.5 mm
Compression Ratio
9.2:1
Max Horsepower
20 kw / 27 hp
Max Torque
37.5 Nm / 3.82 kgf-m / 27.65 lb-ft @ 5000 rpm
Engine Management System
2 x Bing V65 carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
Telescopic hydraulic forks
Front Suspension Travel
175 mm / 6.9″
Rear Suspension
Long swinging arm with adjustable strut
Wheels & Brakes
Front Tire Size
1.85 – B18
Rear Tire Size
2.50 – B18
Front Brakes
2 x 260mm Disc, 2 piston caliper.
Rear Brakes
Single 200mm drum
Dimension & Weights
Fuel Tank Capacity
5.8 US gallons / 22.0 L
Dry Weight
185 kg / 408 lbs
Features
Oversquare engine
26bhp for the German market, 35bhp for the rest of the world
Peak power at 7250rpm, maximum torque at 5500rpm
Fiat-twin configuration engine
Valves operated by pushrods and rockers
5-speed gearbox
Shaft drive
Single cross-drilled disc at the front
Powerful drum at the rear
Cast-alloy wheels
Audible warnings for the indicators
Twin mirrors
Electric starter
Plug for fitting an intercom device
4.8 gallon fuel tank
Excellent fuel consumption, 55-60mpg average
Top speed of approximately 95mph
473cc engine
Hefty 4251b weight
