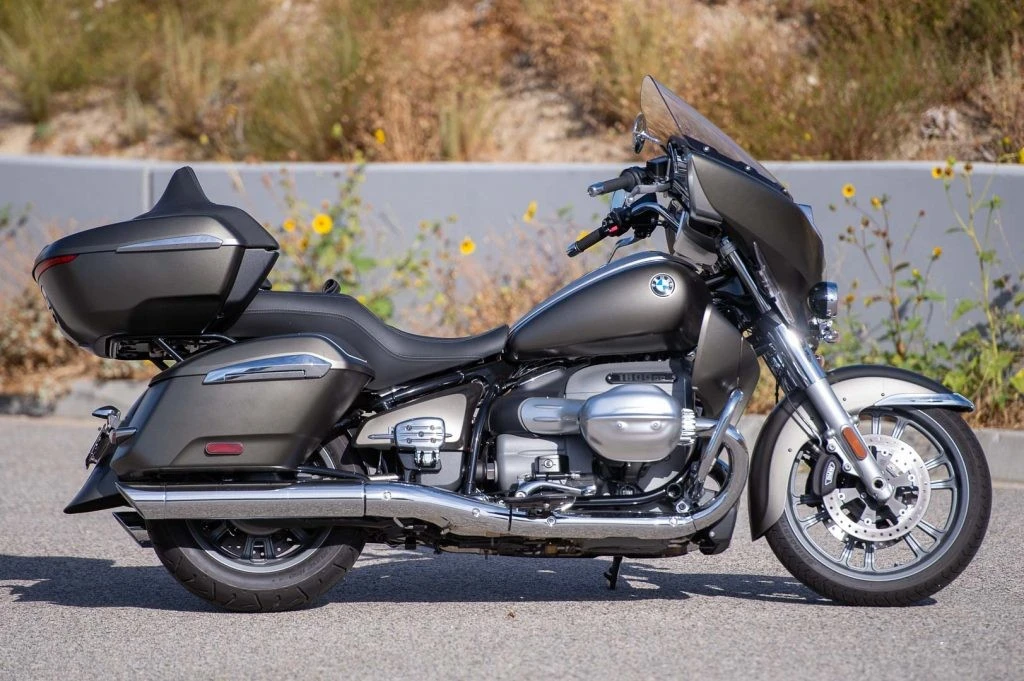

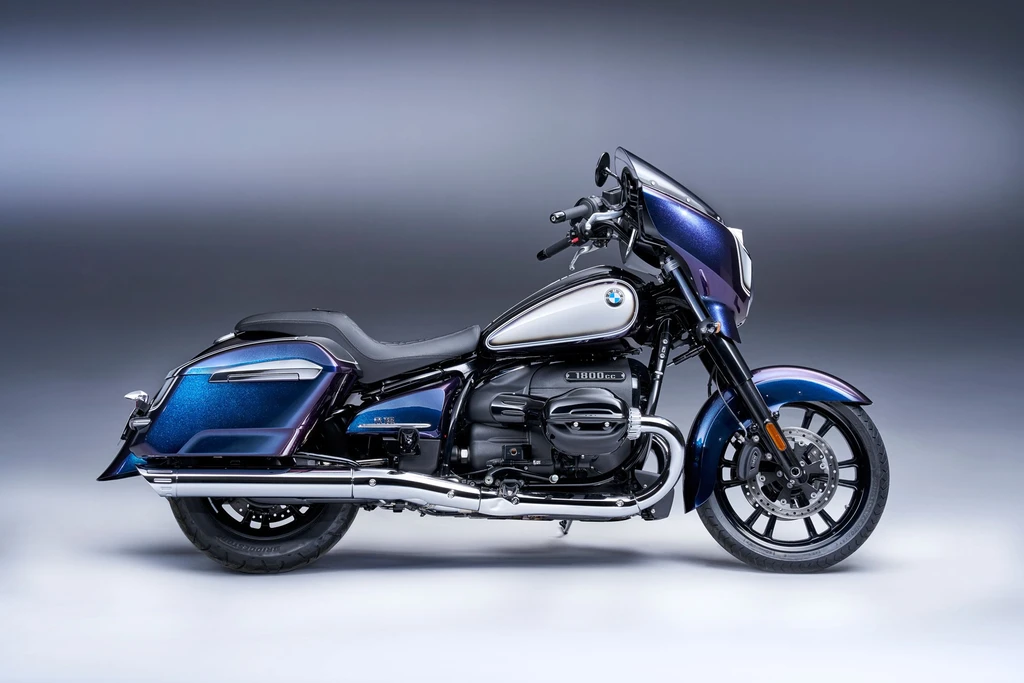

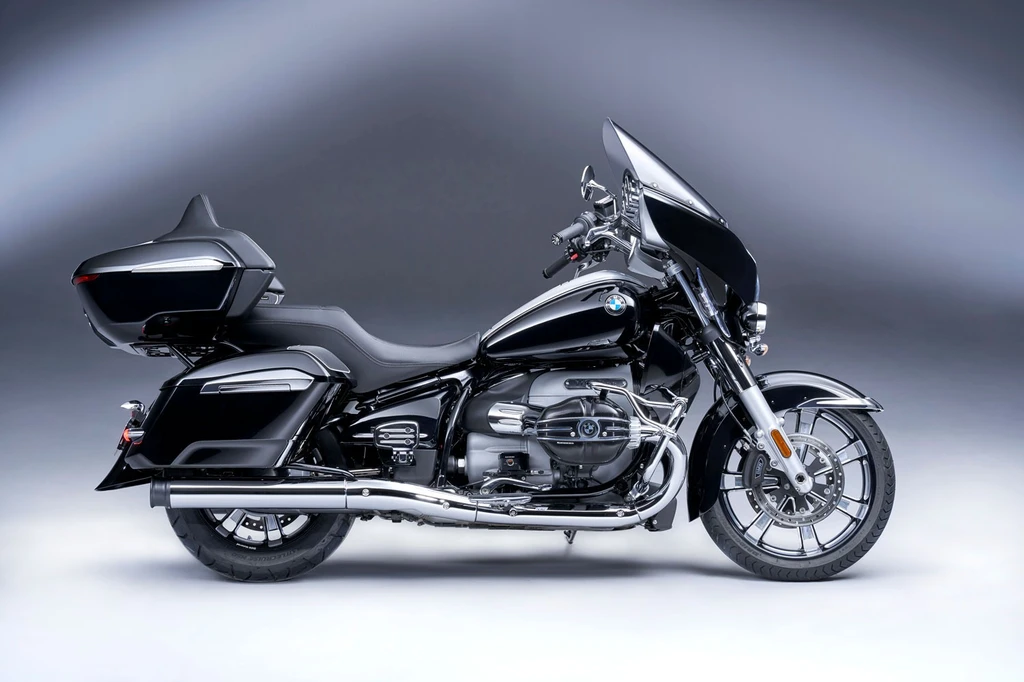

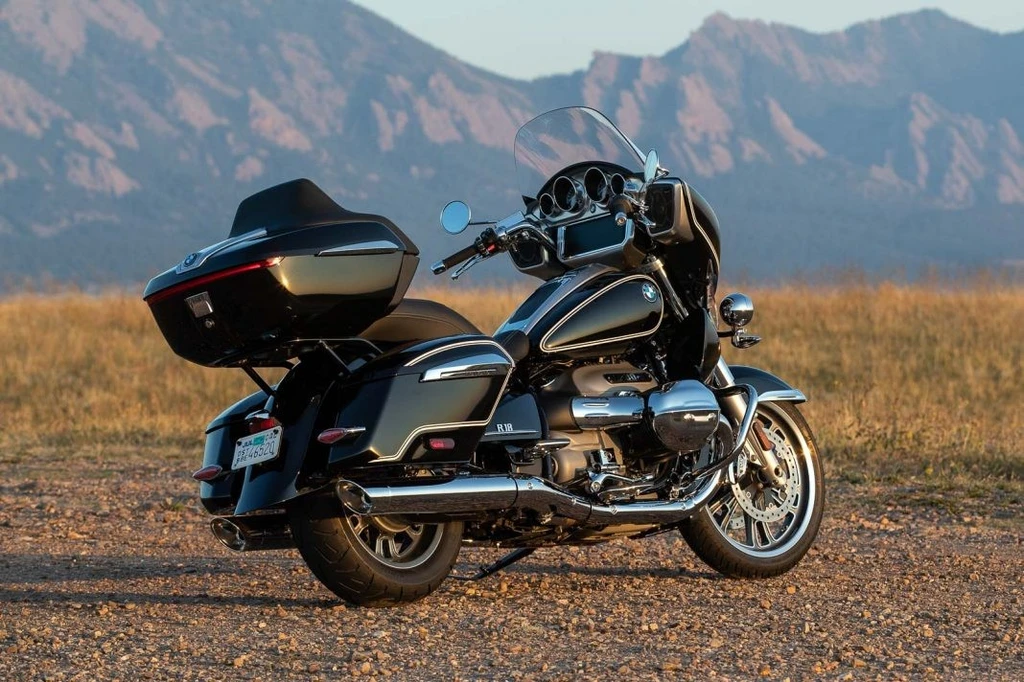

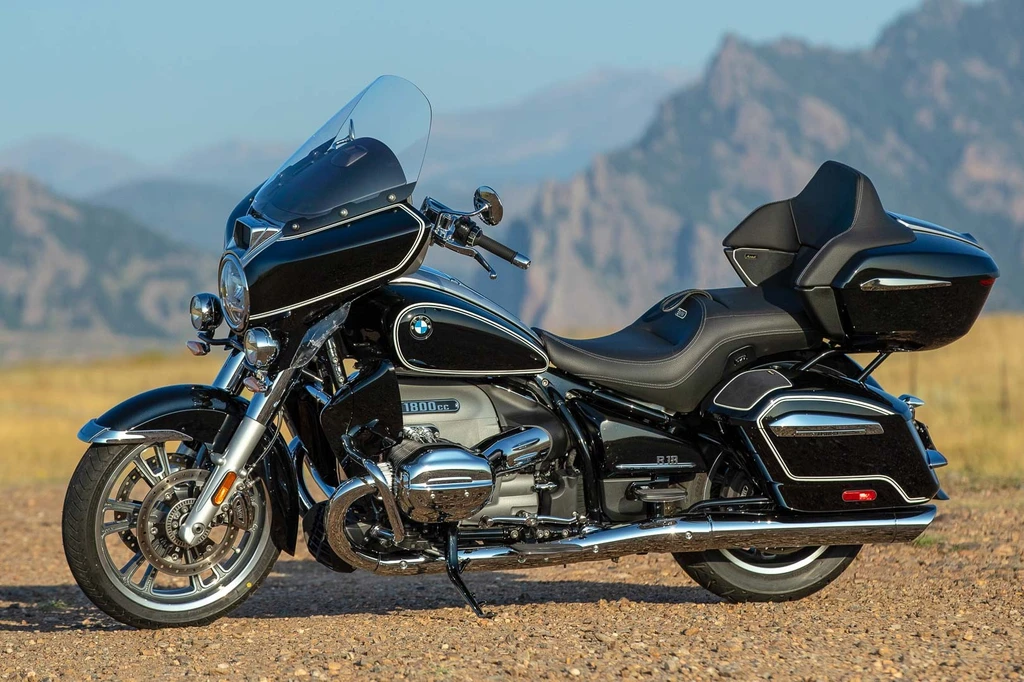

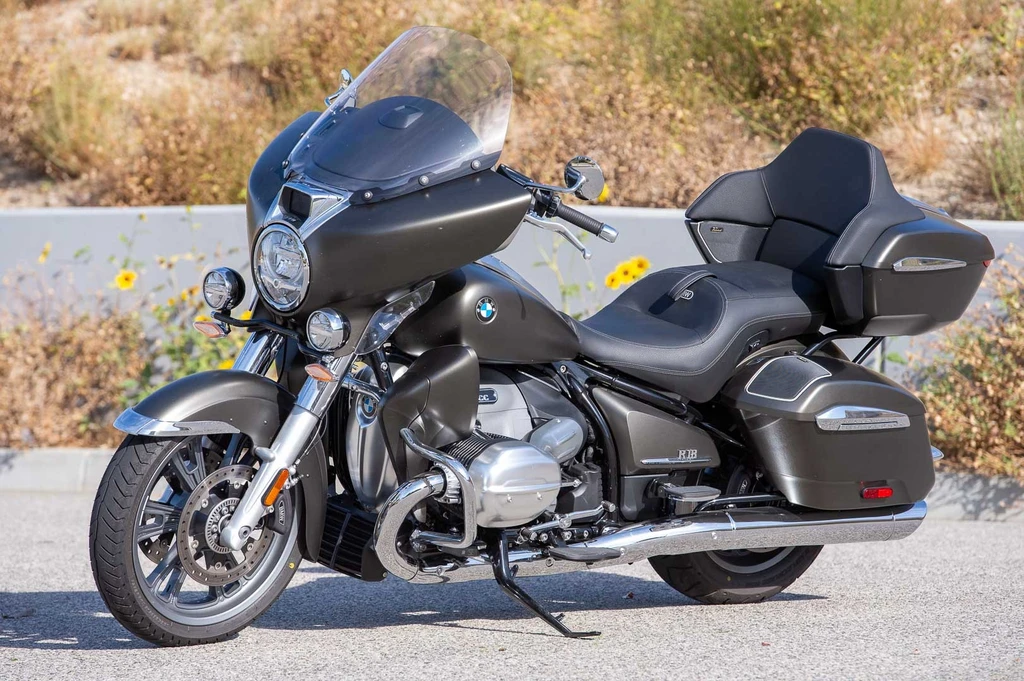

The BMW R 18 Transcontinental embodies the quintessential Grand American Tourer, a luxurious traveling companion that embodies BMW Motorrad’s tradition of excellence. Powered by the mighty Big Boxer engine, this iconic machine promises a comfortable and powerful ride for miles.
Its unmistakable front end, complete with a tall windscreen, is a masterclass in design, while the automatic load compensation feature ensures an adaptive riding experience tailored to your every need.
As part of the R 18 family, the Transcontinental seamlessly combines classic chassis concepts with exclusive equipment and stylish design. Whether you’re embarking on long-distance solo rides or cruising with pillion and luggage, this magnificent machine is perfectly suited for American-style touring.
With its array of premium features – including a high wind shield, analog round instruments, and 10.25-inch TFT display – the R 18 Transcontinental redefines the boundaries of luxury and adventure on two wheels.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer,Pushrod-actuated OHVwith two camshafts, 4 valves per cylinder
Engine Capacity
110 cubic inches / 1802 cc
Max Power
67 kw / 91 hp
Max Torque
116 ft-lb / 158 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Weight (Wet/Kerb)
941.3 lbs / 427 kg
Seat Height
29.1 inches / 740 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 18 Transcontinental
Year
2022
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer,Pushrod-actuated OHVwith two camshafts, 4 valves per cylinder
Displacement
110 cubic inches / 1802 cc
Bore x Stroke
107.1 X 100 mm
Compression Ratio
9.6:1
Max Horsepower
67 kw / 91 hp
Max Torque
116 ft-lb / 158 nm
Lubrication System
Wet sump
Cooling System
Air/water cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Hydraulically activated single-disc dry clutch
Gearbox
6-speed shifting claw transmission in separate transmission housing
Final Drive
Shaft
Electrical & Electronics System
Battery
12 V /26 Ah, maintenance-free
Starter
Electric, 1.5 kW
ABS
BMW Motorrad Integral ABS (part-integral)
Chassis & Suspension
Frame Type
Steel double-sided swinging arm with central spring strut
Front Suspension
49 mm Telescopic fork, Non-adjustable
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Steel double-sided swinging arm with central spring strut
Rear Suspension Travel
4.7 inches / 120 mm
Trail
62.7
Wheels & Brakes
Wheels
Cast aluminium
Front Wheel/Rim Size
3.5 x 19
Front Tire Size
120/70 R19
Rear Wheel/Rim Size
5.0 x 16
Rear Tire Size
180/65 B16
Front Brakes
2x 300mm discs, 4-piston fixed caliper
Rear Brakes
Single 300mm disc, 4-piston fixed caliper
ABS
BMW Motorrad Integral ABS (part-integral)
Dimension & Weights
Overall Length
2640 mm / 103.9 in
Overall Width
970 mm / 38.2 in
Overall Height
1500 mm / 59.0 in
Seat Height
29.1 inches / 740 mm
Wheelbase
66.7 inches / 1695 mm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Wet (kerb/curb) Weight
941.3 lbs / 427 kg
Features
Four stroke, two cylinder horizontally opposed Boxer engine
Pushrod-actuated OHV with two camshafts
4 valves per cylinder
Closed-loop 3-way catalytic converter, EURO 5 exhaust standard
Steel double-sided swinging arm with central spring strut
Automatic load compensation feature
Prepared for customizing
Front fairing with high wind shield, wind deflector and flaps
Cockpit with four analogue round instruments and 10.25 inch TFT colour display
Additional headlamp
Marshall sound system
Engine protection bars
Cases
Top case
Seat heating
Chrome trim
Silver metallic engine
Low windshield (R 18 B only)
Slimmer seat (R 18 B only)
Matt black metallic engine (R 18 B only)
