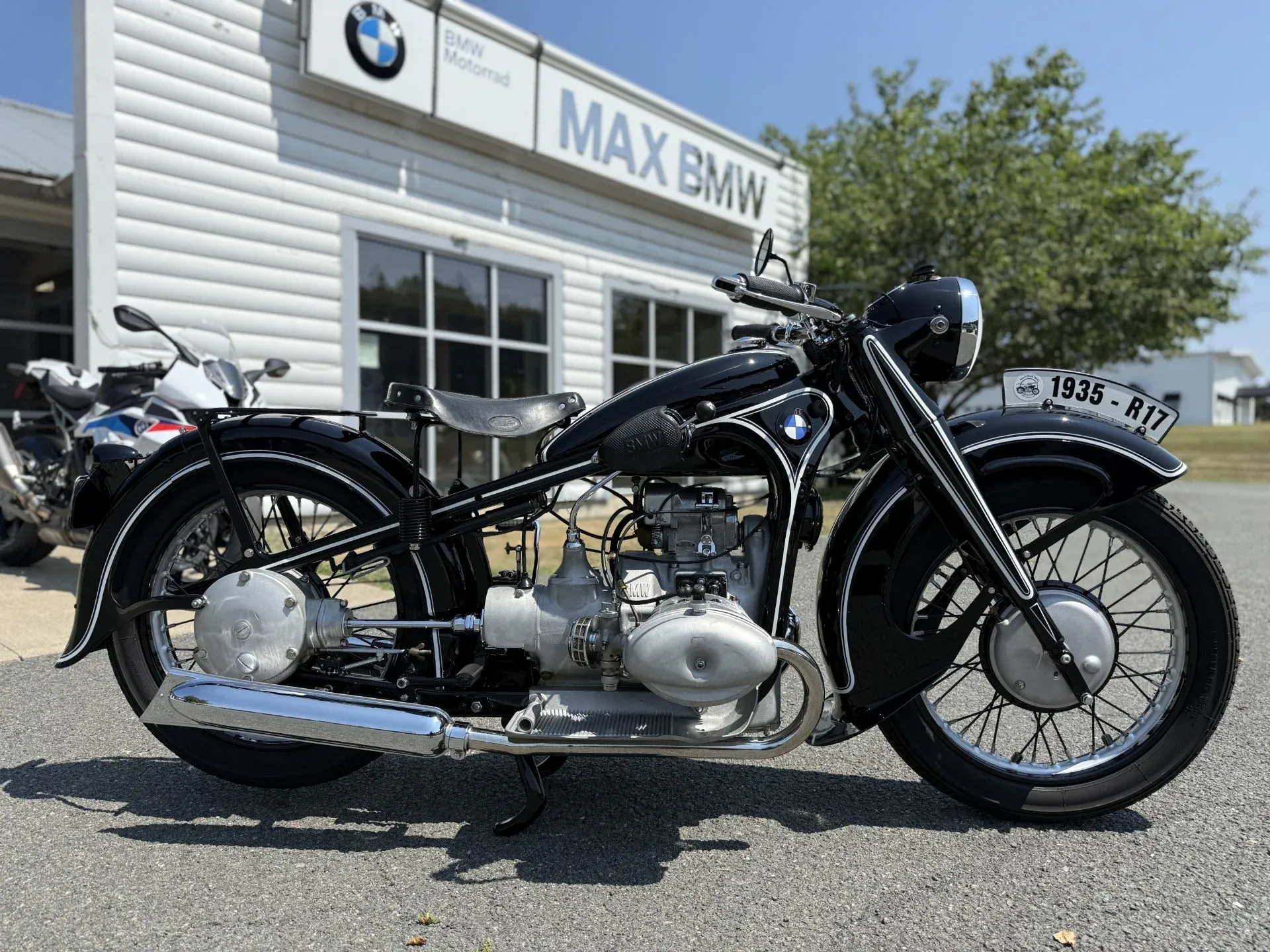

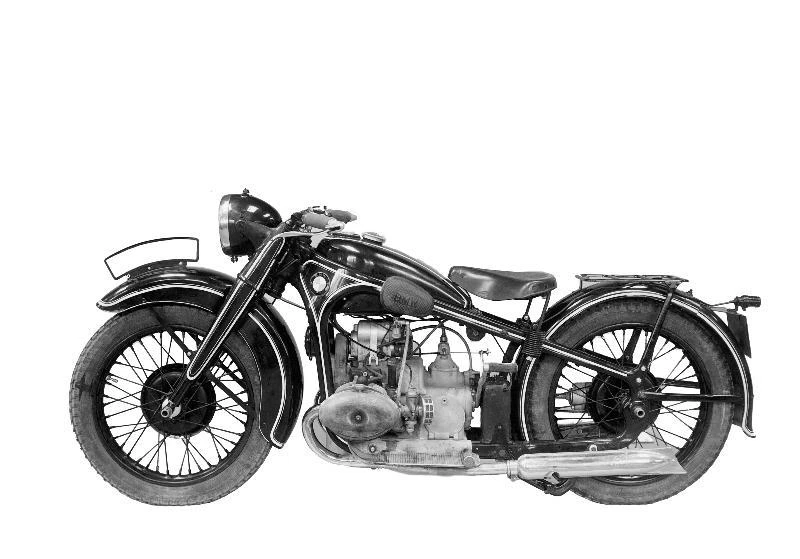

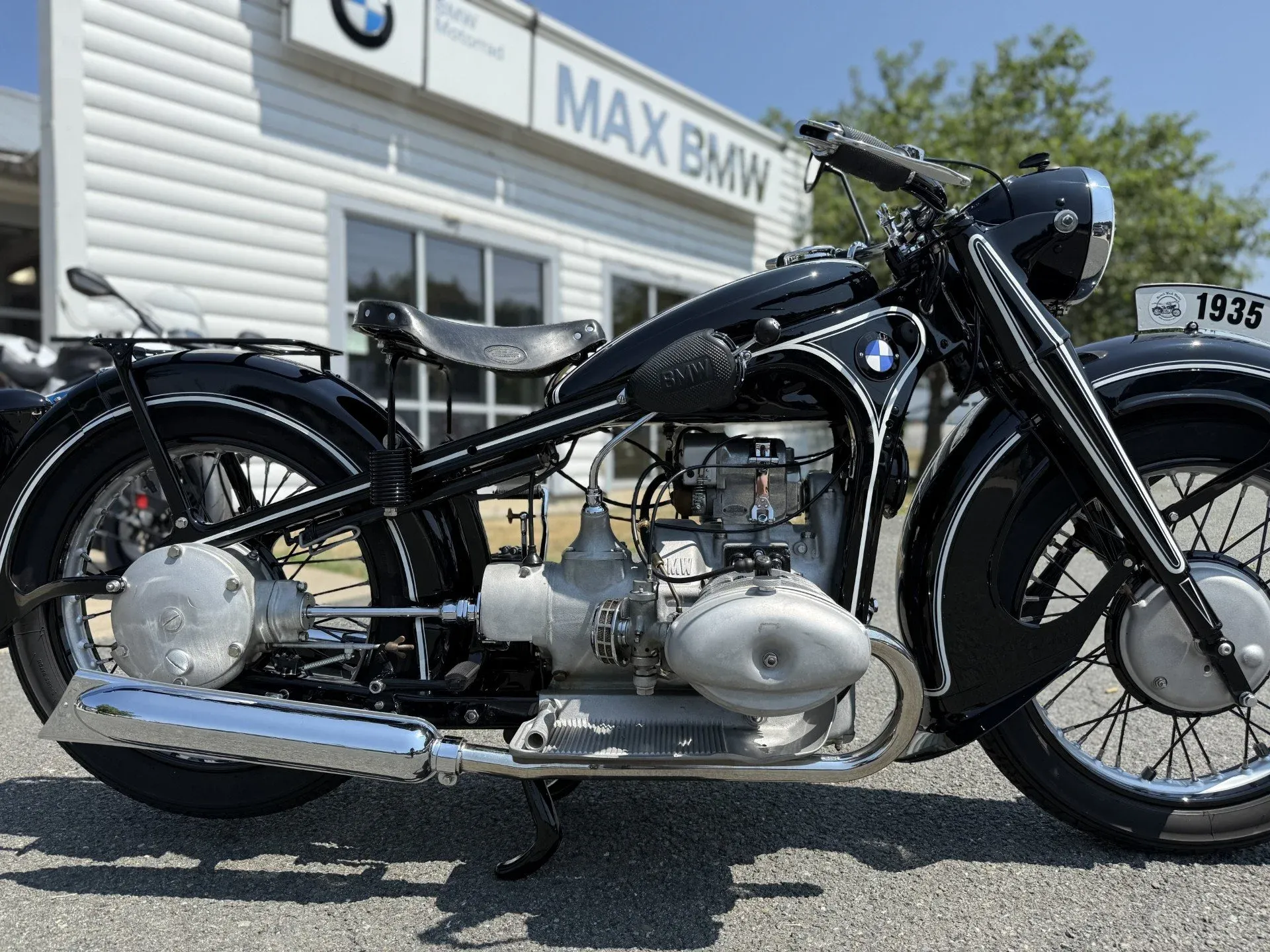

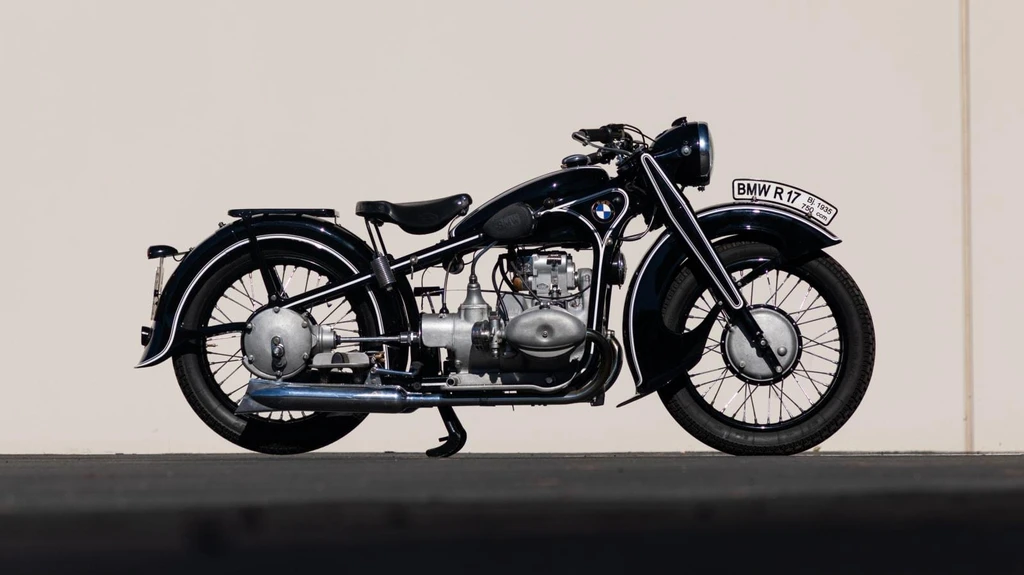

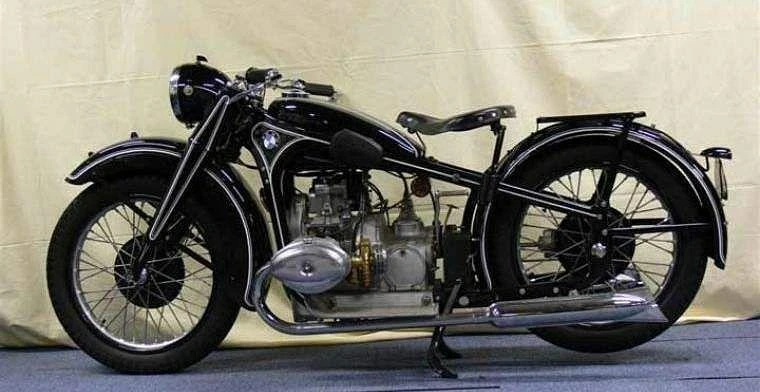

The BMW R 17, a true marvel of engineering and design, born from the innovative spirit of BMW’s early years. Produced in limited numbers, only 450 units were crafted between 1935 and 1937, making this rare motorcycle a true collector’s item. The R 17’s 33 horsepower twin-carburetor engine, producing a mighty 33bhp at 5,000rpm, was a force to be reckoned with on the roads of its time.
Its hydraulic-damped telescopic front fork and four-speed gearbox set a new standard for motorcycles, showcasing BMW’s commitment to innovation and performance. The R 17 was a head-turner, not only for its powerful engine but also for its sleek design, often paired with a Steib sidecar that evoked the elegance of Zeppelin airships.
For enthusiasts and collectors, the BMW R 17 is a treasure to behold, a testament to the brand’s rich history and dedication to creating exceptional motorcycles. It’s a reminder that sometimes, the most extraordinary things are those that are produced in the smallest numbers, and the BMW R 17 is a true gem that will continue to captivate and inspire riders for generations to come.
Key Specifications
Engine Type
Four stroke,two cylinder flat twin, OHV, 2 valves per cylinder.
Engine Capacity
735 cc / 44.9 cu in.
Max Power
24.6 kw / 33 hp
Fuel Tank Capacity
14 L / 3.7 US gal
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 17
Year
1935 – 1937
Engine
Engine Type
Four stroke,two cylinder flat twin, OHV, 2 valves per cylinder.
Displacement
735 cc / 44.9 cu in.
Bore x Stroke
63 x 68 mm
Compression Ratio
6.5:1
Max Horsepower
24.6 kw / 33 hp
Engine Management System
2 x Carburetor Amal 76/424
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Double plates, dry
Gearbox
4 Speed
Gear Ratios
1st 3.18 / 2nd 2.06 / 3rd 1.42 / 4th 1.09:1
Final Drive
Shaft
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Twin loop pressed steel frame
Front Suspension
Telescopic fork
Rear Suspension
Rigid, spring loaded saddle
Wheels & Brakes
Front Tire Size
3.50×19″
Rear Tire Size
3.50 x 19″
Rear Brakes
∅200mm Drum
Dimension & Weights
Fuel Tank Capacity
14 L / 3.7 US gal
Features
Produced in only 450 units over a two-year period
Supersports model with 33 hp
Outpaced by R68 in 1972
Often found with Steib sidecars
Few R17s left worldwide
Introduced hydraulic telescopic front fork
Four-speed gearbox
First BMWs to feature a four-speed gearbox
Twin-carburettor, overhead-valve engine
Produced 33bhp at 5,000rpm
Most powerful BMW roadster until R68 introduction
Priced at 2,040 Reichsmarks
Most expensive German motorcycle of its day
