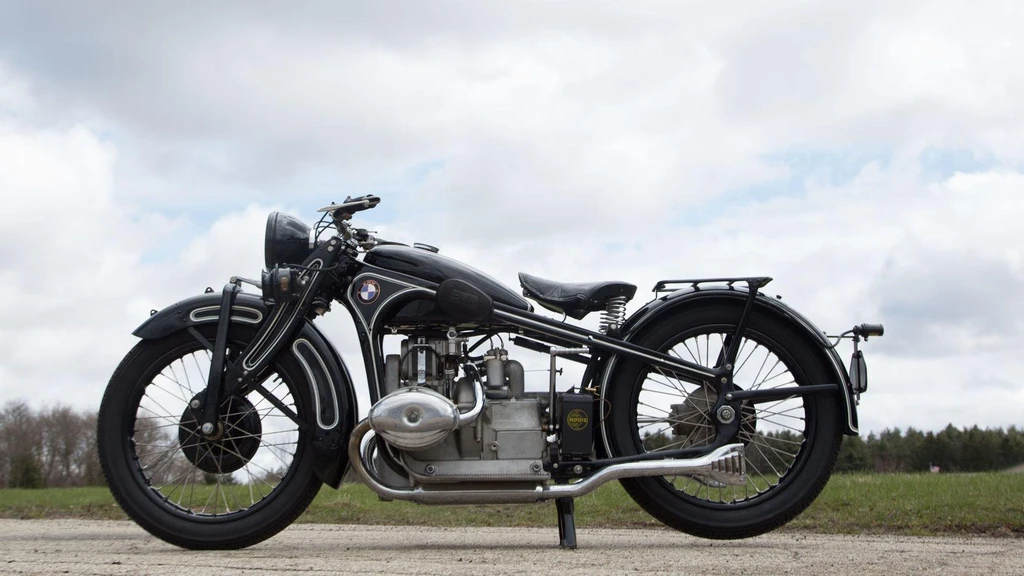

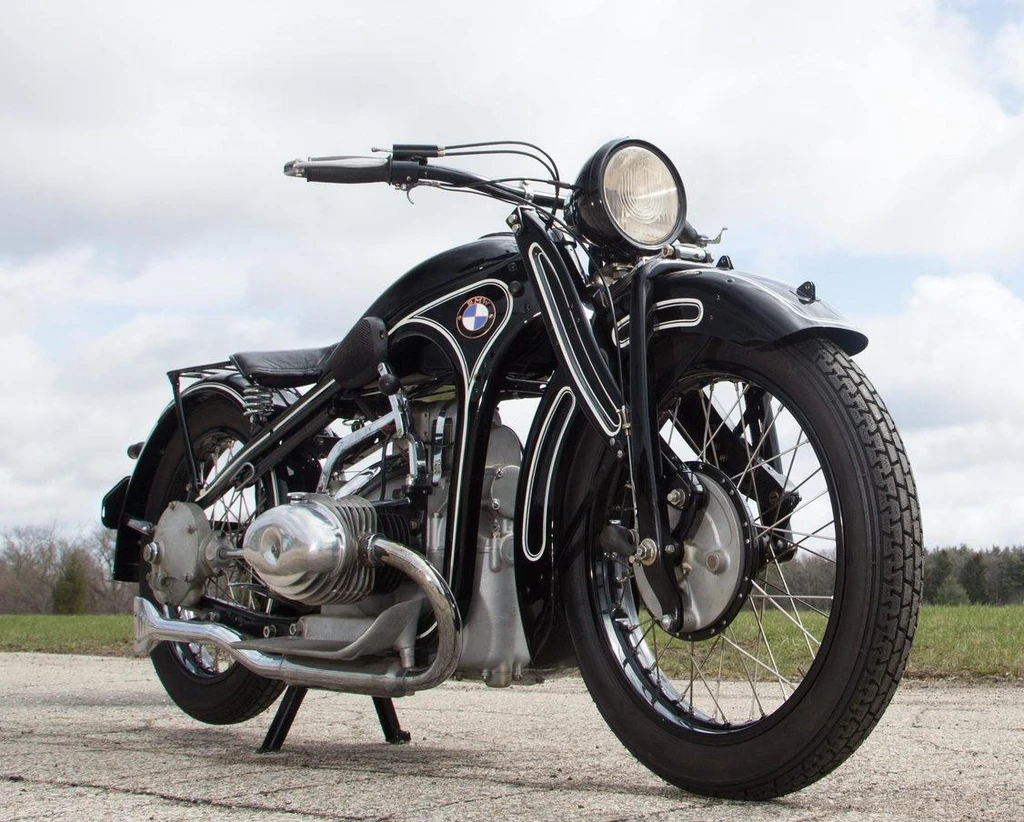

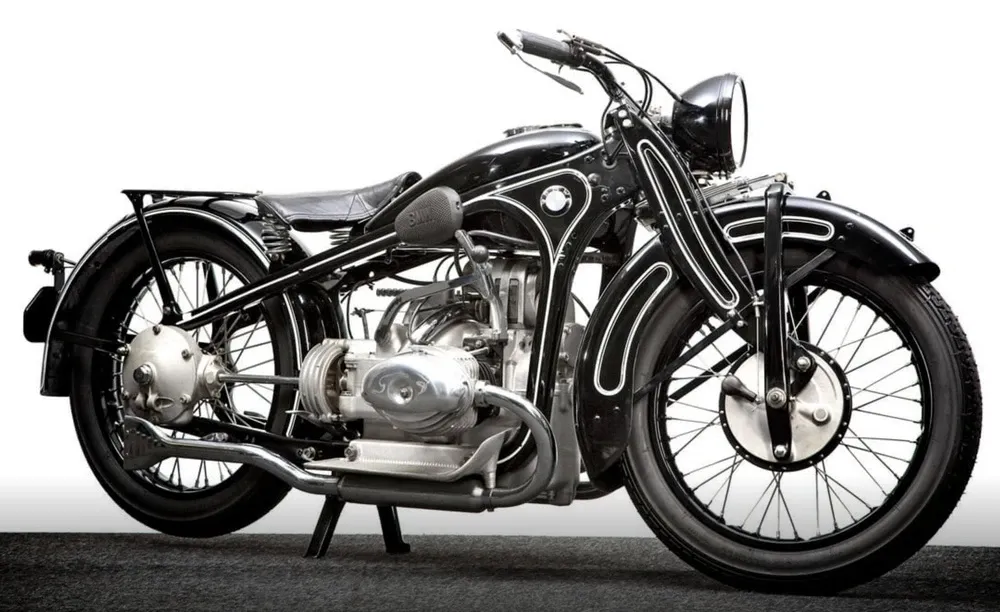

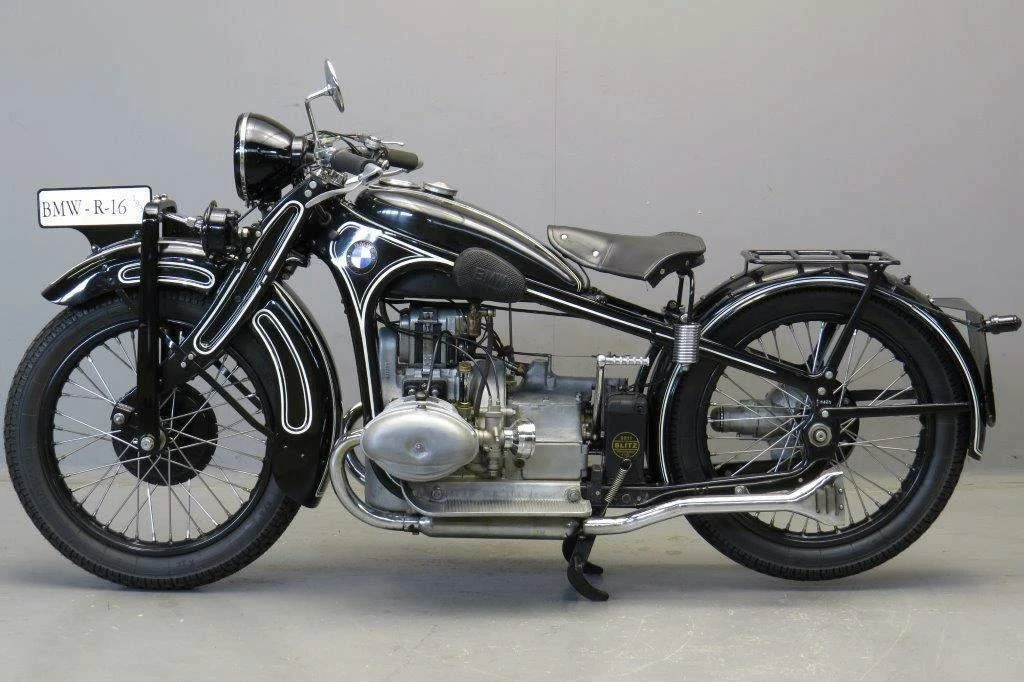

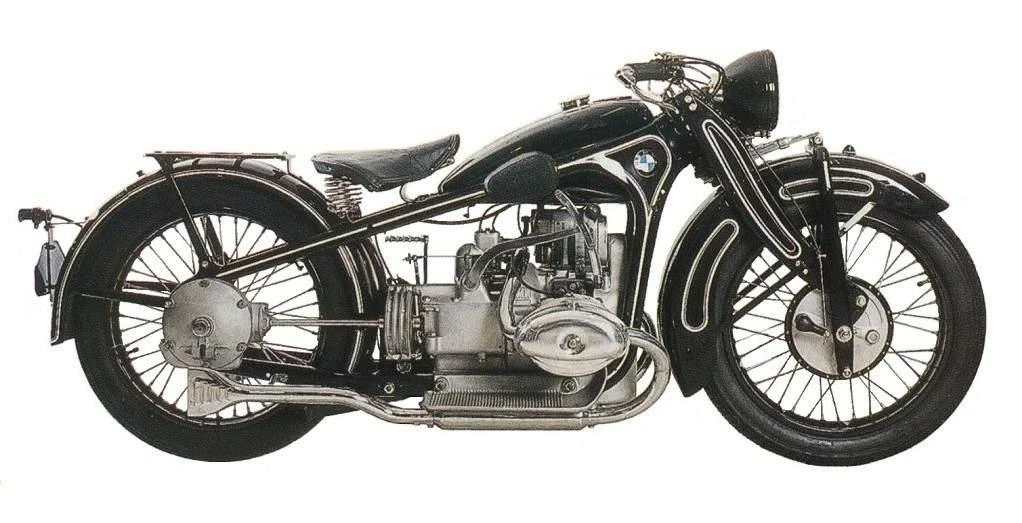

The BMW R 16, a motorcycle legend born from the tumultuous era of the late 1920s. Its engine, a marvel of engineering, roars to life with the Bosch magneto generator D2L or magneto ignition FF2, delivering a unique and characterful riding experience.
With its robust design and raw power, the BMW R 16 is an exhilarating companion for any adventurous rider. Its engine’s unique characteristics are on full display, providing a thrilling blend of acceleration and handling that will leave even the most seasoned riders grinning from ear to ear.
Whether carving through twisty mountain roads or cruising down the open highway, the BMW R 16 is an experience unlike any other. Its timeless design and unwavering performance have stood the test of time, making it an iconic motorcycle that continues to captivate riders to this day.
Key Specifications
Engine Type
Four stroke,two cylinder flat twin, OHV, 2 valves per cylinder.
Engine Capacity
735 cc / 44.9 cu in.
Max Power
18.6 kw / 25 hp
Fuel Tank Capacity
14 L / 3.7 US gal
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 16
Year
1929 – 1934
Engine
Engine Type
Four stroke,two cylinder flat twin, OHV, 2 valves per cylinder.
Displacement
735 cc / 44.9 cu in.
Bore x Stroke
63 x 68 mm
Compression Ratio
6.75:1
Max Horsepower
18.6 kw / 25 hp
Engine Management System
1 carburetor Type BMW Spezial ∅26 mm (1932: 2 x carburettor Amal type 6/011 RH & LH)
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Double plates, dry
Gearbox
3 Speed
Gear Ratios
1st 2.83 / 2nd 1.55 / 3rd 1.08:1
Final Drive
Shaft
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Twin loop pressed steel frame
Front Suspension
Plate spring, 9 laminae
Rear Suspension
Rigid, spring loaded saddle
Wheels & Brakes
Front Tire Size
3.50×19″
Rear Tire Size
3.50 x 19″
Rear Brakes
Cardan brake
Dimension & Weights
Fuel Tank Capacity
14 L / 3.7 US gal
Features
Bosch magneto generator D2L
magneto ignition FF2
