The BMW R 1200RT LC Iconic Limited Edition is a testament to the marque’s rich heritage, celebrating a century of innovation and excellence. Powered by a four-stroke, two-cylinder Boxer engine with a balancer shaft, this potent machine delivers a unique blend of performance and character. The DOHC configuration and four valves per cylinder ensure a silky-smooth power delivery, while the six-speed constant-mesh gearbox with helical cut gears provides seamless gear transitions.
For 2016, only 100 examples of this iconic bike will be available, each featuring a unique paint scheme inspired by the 1970s ‘Lava Rot’ R 100 RT. The Candy Burgundy Smoked Effect finish is a true showstopper, while the red-stitched black seat with embossed Iconic 100 Logo adds a touch of sophistication. But it’s not just about looks – the Dynamic Package, which includes Hill Start Control, Headlight Pro, Riding Mode Pro, and Daytime Riding Lights, makes this bike a true tourer’s delight. And with the added convenience of an Audio System and Top Box, the BMW R 1200RT LC Iconic Limited Edition is the ultimate companion for any rider. This bike embodies the perfect blend of style, substance, and riding experience, making it a true collector’s item for any motorcycle enthusiast.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer with balancer shaft, DOHC, 4 valves per cylinder
Engine Capacity
71.4 cubic inches / 1170 cc
Max Power
92 kw / 125 hp
Max Torque
92 ft-lb / 125 nm
Fuel Tank Capacity
6.6 US gallons / 25.0 L
Weight (Wet/Kerb)
604 lbs / 274 kg
Seat Height
31.5 inches / 805 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

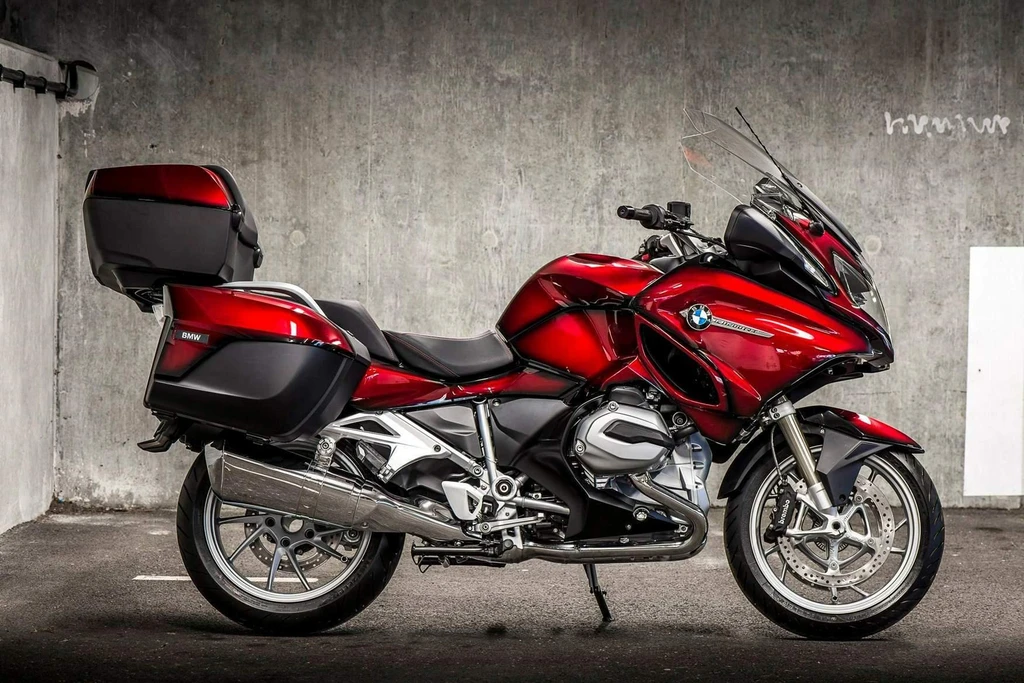

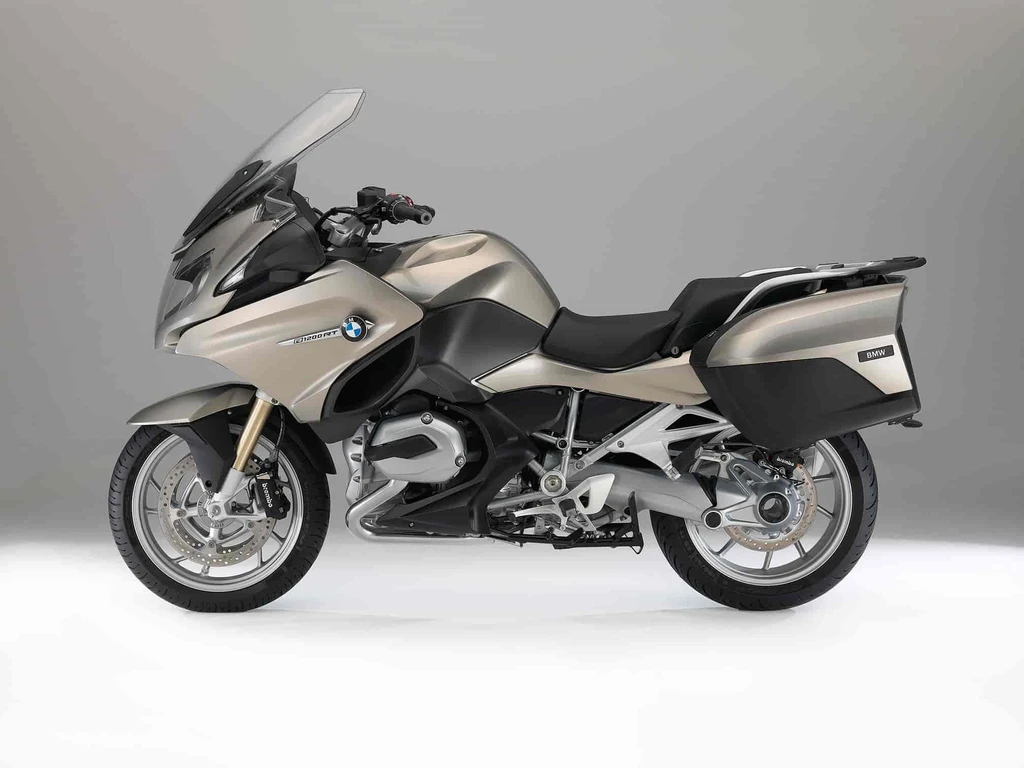

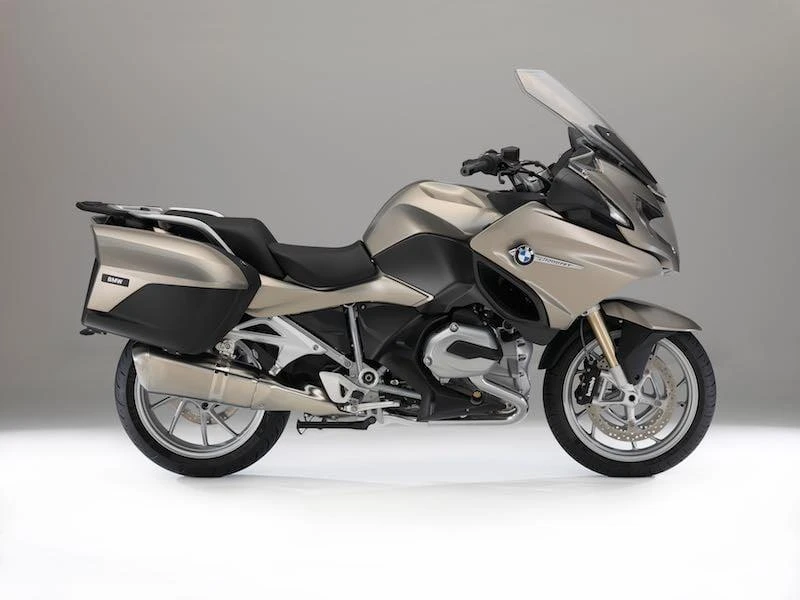

BMW R 1200RT LC Iconic Limited Edition
Year
2016
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer with balancer shaft, DOHC, 4 valves per cylinder
Displacement
71.4 cubic inches / 1170 cc
Bore x Stroke
101 x 73 mm
Compression Ratio
12.5:1
Max Horsepower
92 kw / 125 hp
Max Torque
92 ft-lb / 125 nm
Engine Management System
Electronic fuel injection with ride-by-wire throttle system, 52mm throttle valveEmission control Closed-loop 3-way catalytic converter
Lubrication System
Wet sump
Cooling System
Air/Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi-plate wet clutch, hydraulically operated
Gearbox
6 Speed, constant-mesh gearbox with helical cut gears
Cast aluminum single-sided swing arm with BMW EVO Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) via handwheel, rebound damping adjustable via handwheel
Trail
63.6
Wheels & Brakes
Wheels
Cast aluminium wheels
Front Wheel/Rim Size
3.50 x 17
Front Tire Size
120/70 ZR17
Rear Wheel/Rim Size
5.50 x 17
Rear Tire Size
180/55 ZR17
Front Brakes
2 x 320mm Discs, 4 piston callipers
Rear Brakes
Single 276mm disc, 2 piston floating caliper
ABS
BMW Motorrad Integral ABS (part-integral)
Dimension & Weights
Seat Height
31.5 inches / 805 mm
Wheelbase
58.5 inches / 1485 mm
Fuel Tank Capacity
6.6 US gallons / 25.0 L
Wet (kerb/curb) Weight
604 lbs / 274 kg
Features
Four stroke, two cylinder horizontally opposed Boxer with balancer shaft
