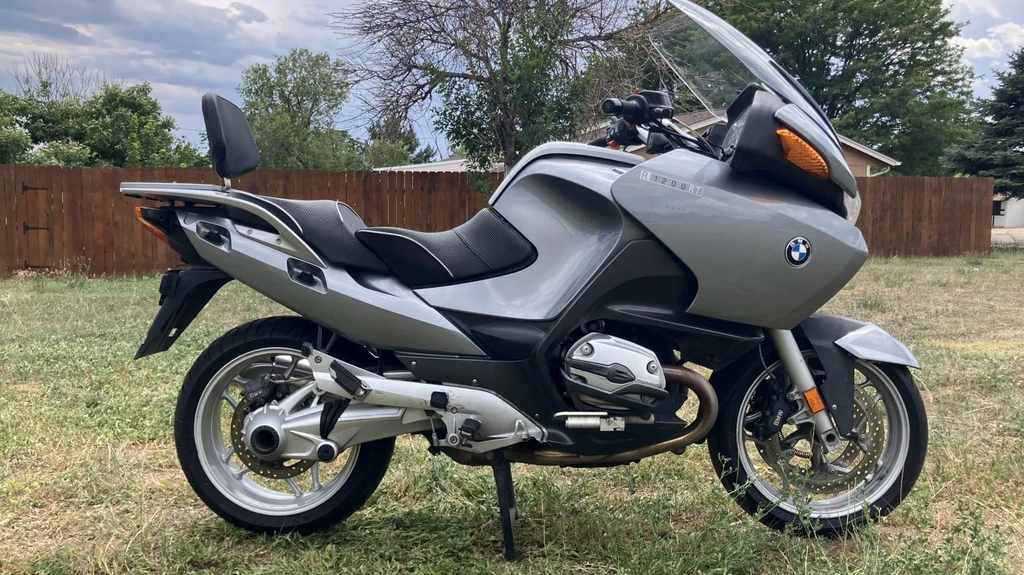

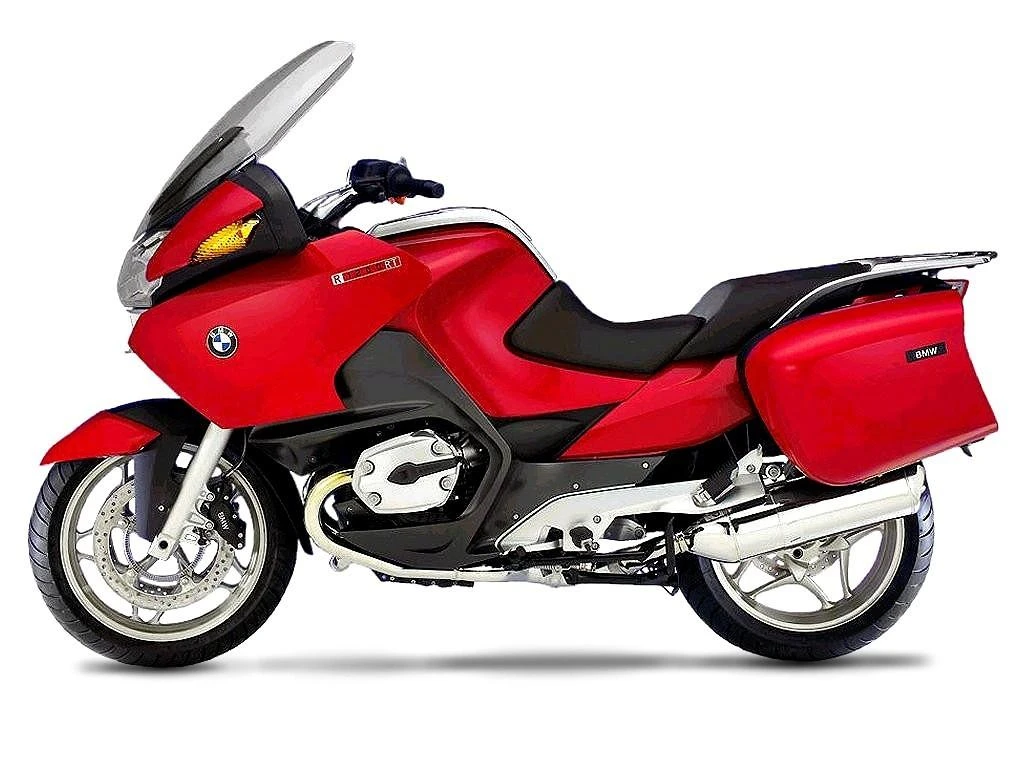

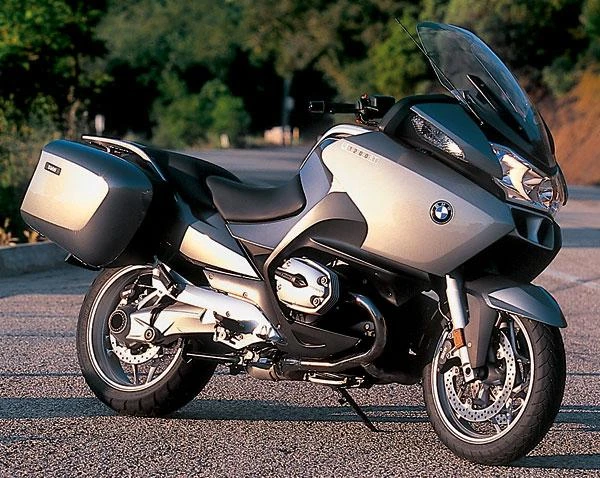

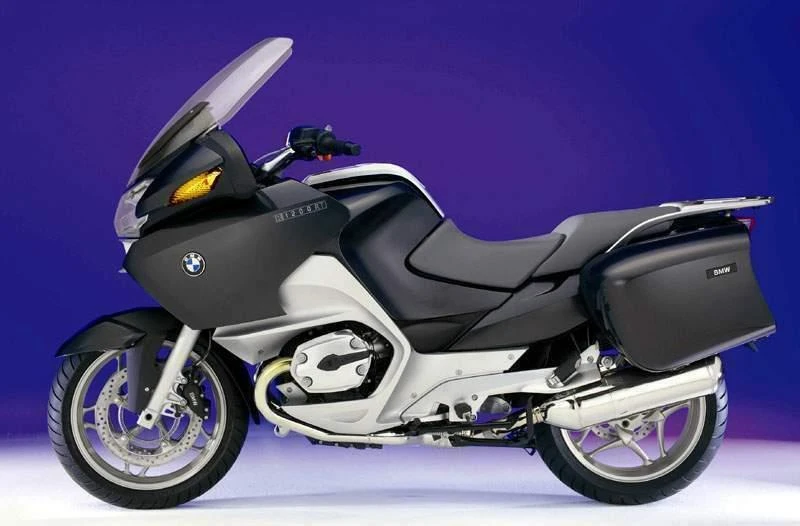

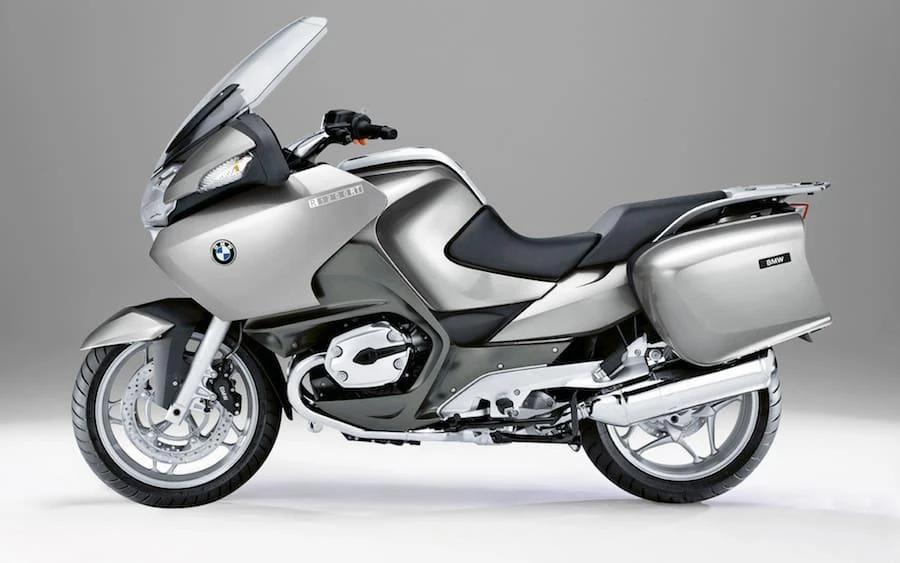

The BMW R 1200RT is a game-changing motorcycle that embodies the perfect blend of style, comfort, and performance. Dramatic new bodywork sets it apart from its predecessor, while providing improved aerodynamics and a generous still-air pocket for the rider. The integrated rearview mirrors and turn signals expertly manage airflow around the rider’s hands, ensuring a smooth and fatigue-free experience.
The R 1200RT’s engine is a powerhouse, delivering a thrilling riding experience with its 1170cc displacement and 85 horsepower. The large engine-oil cooler and optimized surface contours ensure superior nighttime illumination, making long-distance riding a breeze.
Riding the R 1200RT is like gliding on air, with its ergonomic profile providing the ideal seat-handlebar-footpeg relationship for long-range touring. The split saddle allows for two-position adjustment of the rider’s portion, ensuring a comfortable and upright riding position. Whether you’re cruising down the highway or navigating twisty roads, the R 1200RT is the ultimate touring motorcycle that will leave you feeling exhilarated and refreshed, every time you ride.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Engine Capacity
1170 cc / 71.4 cu in
Max Power
81 kw / 110 hp
Max Torque
115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm
Fuel Tank Capacity
27 Liters / 7.1 US gal
Weight (Wet/Kerb)
570.9 lbs / 259 kg
Seat Height
32.2 inches / 820 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 1200RT
Year
2005
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
System Enclosed driveshaft with two universal joints
Electrical & Electronics System
Battery
12 V / 14 Ah, maintenance-free
Starter
Electric
Chassis & Suspension
Frame Type
Three-section frame consisting of front and rear section, load bearing engine-gearbox unit
Front Suspension
BMW Motorrad Telelever, stanchion diameter 35mm, central spring strut, rebound damping electronically adjustable with standard ESA
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Die-cast aluminium single-sided swinging arm with BMW Motorrad EVO-Paralever, spring preload hydraulically adjustable to continuously variable levels by means of electronically adjustable ESA, rebound damping with standard ESA
Rear Suspension Travel
5.3 inches / 135 mm
Trail
63.8
Wheels & Brakes
Wheels
Cast aluminium
Front Wheel/Rim Size
3.50 x 17
Front Tire Size
120/70 ZR17
Rear Wheel/Rim Size
5.50 x 17
Rear Tire Size
180/60 ZR17
Front Brakes
2 x 320mm Discs, 4 piston callipers
Rear Brakes
Single 265mm disc, 2 piston caliper
Dimension & Weights
Seat Height
32.2 inches / 820 mm
Wheelbase
58.4 inches / 1485 mm
Ground Clearance
155 mm / 6.1 in
Fuel Tank Capacity
27 Liters / 7.1 US gal
Wet (kerb/curb) Weight
570.9 lbs / 259 kg
Dry Weight
229 kg / 485.0 lbs
Features
Dramatically styled new bodywork
Improved aerodynamics for better rider and passenger comfort
Integrated rearview mirrors/turn-signals
Taller and wider windscreen for improved rider protection and passenger weather protection
Prominent split grill for engine-cooling air
“Freeform” headlight with geometrically optimized surface contours
Halogen H7 bulbs for improved nighttime illumination
Ergonomic profile based on the R 1150 RT
Ideal seat-handlebar-footpeg relationship for long-range touring
Comfortable, upright riding position
Split saddle with two-position adjustment for rider’s portion
Two-position adjustable seat height: 32.3 or 33.1 inches
Lower seat available: 30.7 or 31.5 inches
Resculpted seats and legroom for reduced reach to the ground
Dynamic new bodywork for effective air flow around rider and passenger
Electrically adjustable windshield
Rail mounting system for optional tank bag
Standard 32-liter hard saddlebags with new four-point mounting systems
Weather-resistant seals and locks keyed to ignition key
Integrated luggage rack
Optional topcases: 28 or 49 liters
