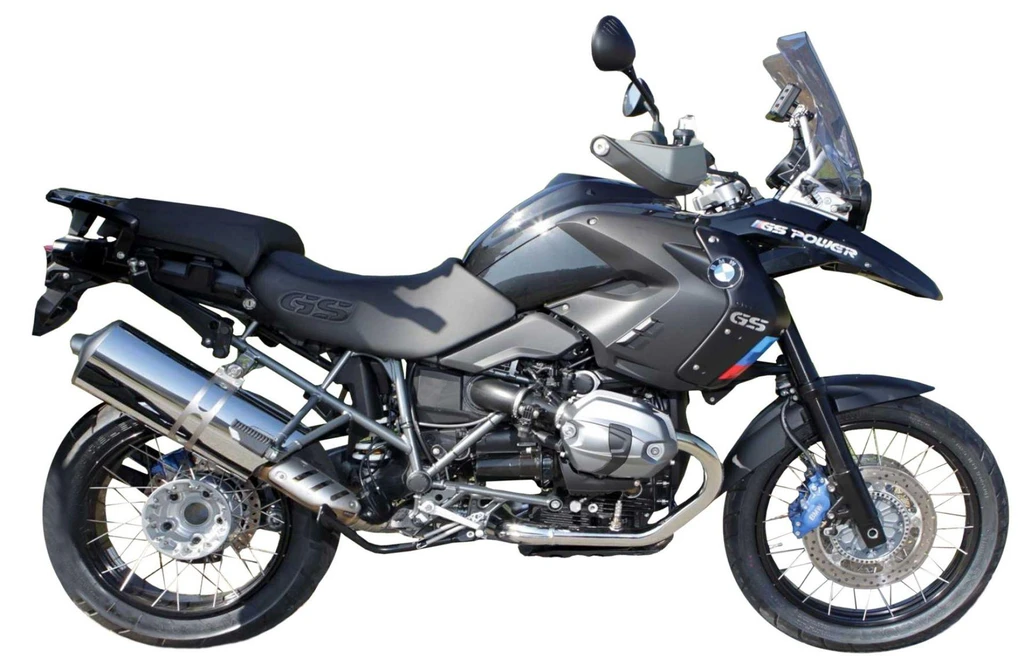

The BMW R 1200GS Tom Luthi Limited Edition is a masterclass in refinement and performance. Powered by a smooth and potent four-stroke, two-cylinder Boxer engine, this exceptional adventure bike delivers a thrilling riding experience. The Telelever suspension provides excellent control and agility, while the Die-cast aluminium single-sided swinging arm ensures stability and precision.
The Limited Edition’s engine is perfectly tuned to provide a unique character, with a 125 horsepower output and 92 lb-ft of torque. The result is a bike that is both exhilarating and comfortable, with a perfect balance of power and control.

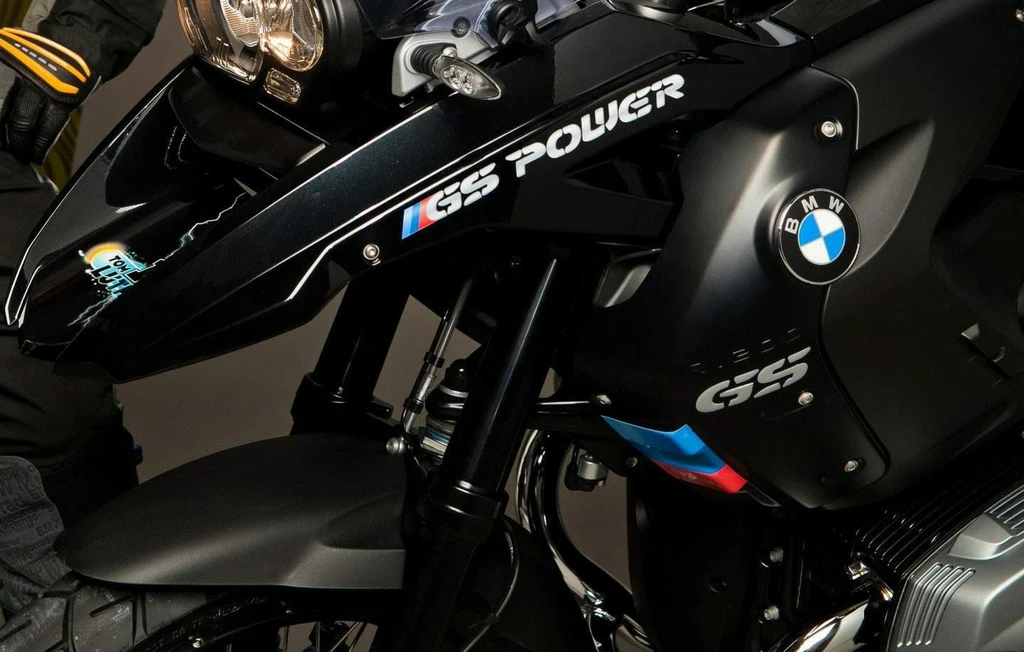

Each of the 100 individually numbered units of the Tom Luthi Limited Edition R 1200GS is a testament to BMW’s commitment to excellence and exclusivity. With its sleek black color scheme, distinctive blue brake caliper, and unique trim details, this bike is a true head-turner. Whether you’re carving through twisties or conquering long-distance adventures, the Tom Luthi Limited Edition R 1200GS is the ultimate riding companion.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder
Engine Capacity
1170 cc / 71.4 cub in.
Max Power
81 kw / 110 hp
Max Torque
120 Nm / 12.2 kgf-m / 88 lb-ft @ 6000 rpm
Fuel Tank Capacity
5.2 US gallons / 20.0 L
Weight (Wet/Kerb)
525 lbs / 238 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 1200GS Tom Luthi Limited Edition
Year
2012
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder
Displacement
1170 cc / 71.4 cub in.
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Max Horsepower
81 kw / 110 hp
Max Torque
120 Nm / 12.2 kgf-m / 88 lb-ft @ 6000 rpm
Engine Management System
BMS-K+, ∅50mm throttle butterfly
Cooling System
Air/oil cooled
Exhaust
Fully-controlled three-way catalytic converter
Performance
Top Speed
206.8 km/h / 129 mph.
*n/a – information not provided by manufacturer
Transmission
Clutch
Single-plate dry clutch, ∅180mm
Gearbox
6 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Tubular steel frame, load-bearing power unit
Front Suspension
Telelever, stanchion diameter ∅41mm, central spring strut, spring preload 9 times mechanically adjustable
Front Suspension Travel
7.5 inches / 190 mm
Rear Suspension
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rear Suspension Travel
7.9 inches / 200 mm
Wheels & Brakes
Front Tire Size
110/80 ZR19
Rear Tire Size
150/70 ZR17
Front Brakes
2 x ∅305mm discs, 4 piston caliper. Optional: BMW Motorrad Integral ABS
Rear Brakes
Single ∅265mm disc 2 piston caliper. Optional: BMW Motorrad Integral ABS
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
