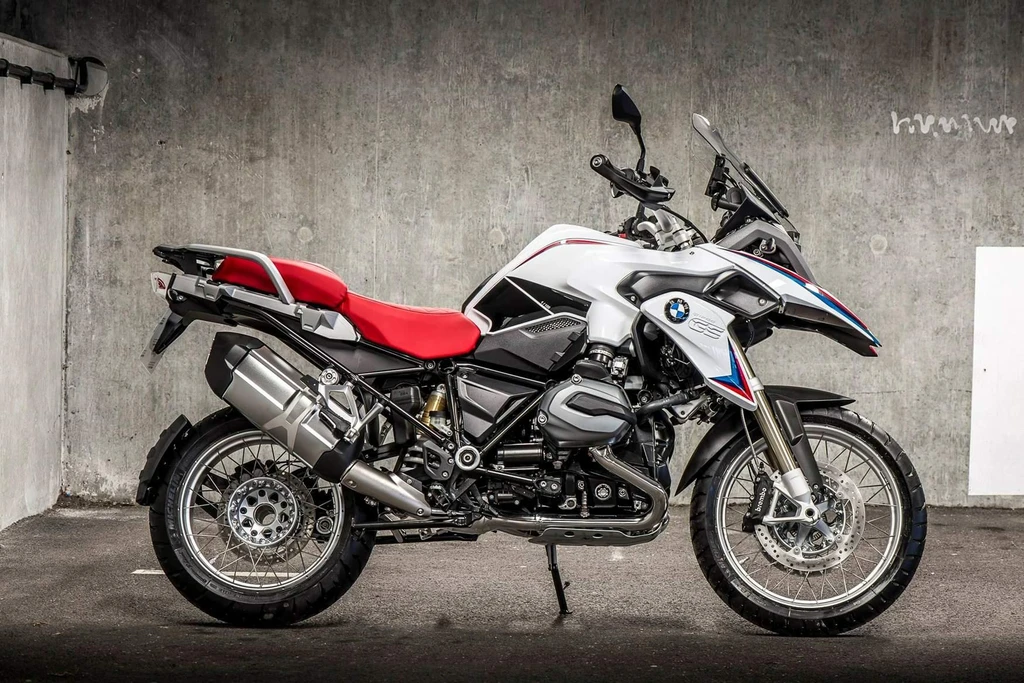

BMW R 1200GS LC Adventure Iconic Limited Edition (2016)
The BMW R 1200GS LC Adventure Iconic Limited Edition is a testament to the brand’s 100-year legacy. Powered by a four-stroke, two-cylinder horizontally opposed Boxer engine, this motorcycle delivers a unique blend of power and character. With a DOHC configuration and 4 valves per cylinder, the engine produces a smooth and linear power delivery, while the 40mm intake and 34mm exhaust provide a distinctive sound and feel.
The motorcycle’s riding experience is further enhanced by its advanced braking system, featuring 305mm twin disc brakes with BMW Motorrad Integral ABS, as well as a single 275mm disc with a 2-piston caliper, both with standard, part-integral, and disengageable ABS.

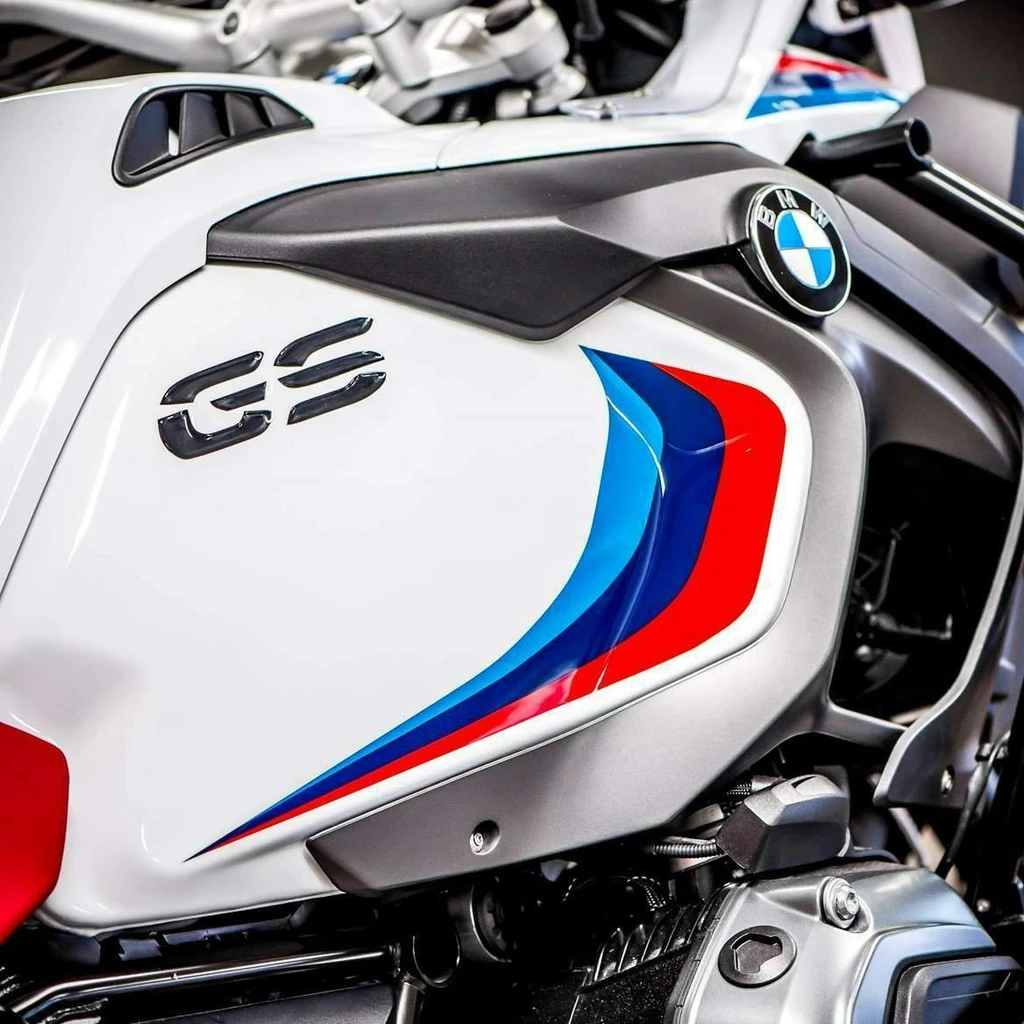

This limited edition model is part of a four-bike series celebrating the 100th anniversary of BMW Motorrad, and only 100 examples of each bike will be produced. The BMW R 1200GS LC Adventure Iconic Limited Edition features a unique AlpineCustom Paint Work, inspired by the 1980s Dakar models, and comes equipped with a range of premium features, including Gear Shift Assist Pro, Cross Spoke Wheels, and a Black Powder Coating on the crash bars, luggage carrier, and heel plates.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm
Engine Capacity
1170 cc / 71.4 cub in.
Max Power
92 kw / 125 hp
Max Torque
125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm
Fuel Tank Capacity
7.9 US gallons / 30.0 L
Weight (Wet/Kerb)
573 lbs / 260 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 1200GS LC Adventure Iconic Limited Edition
Year
2016
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm
Displacement
1170 cc / 71.4 cub in.
Bore x Stroke
101 x 73 mm
Compression Ratio
12.5:1
Max Horsepower
92 kw / 125 hp
Max Torque
125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm
Engine Management System
Throttle valve 52 mmCarburetion BMS-XEmission control Closed-loop 3-way catalytic converter
BMW Motorrad Telelever; diameter 37 mm, central spring strut
Front Suspension Travel
8.3 inches / 210 mm
Rear Suspension
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring preload hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Rear Suspension Travel
8.7 inches / 220 mm
Trail
64.5
Wheels & Brakes
Front Wheel/Rim Size
3.00 x 19
Front Tire Size
120/70 R19
Rear Wheel/Rim Size
4.50 x 17
Rear Tire Size
170/60 R17
Front Brakes
2x 305mm Hydraulically actuated twin disc brake, BMW Motorrad Integral ABS (standard, part intergal, disengageable)
Rear Brakes
Single 275mm disc 2 piston caliper, BMW Motorrad Integral ABS (standard, part intergal, disengageable)
