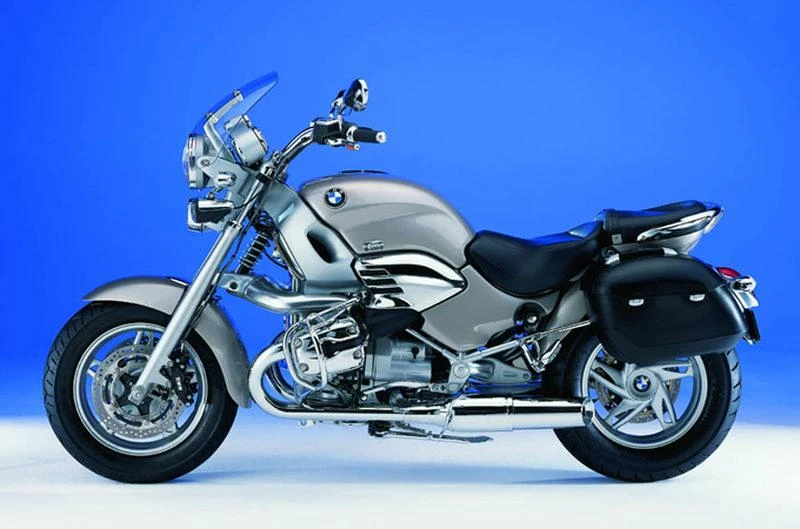

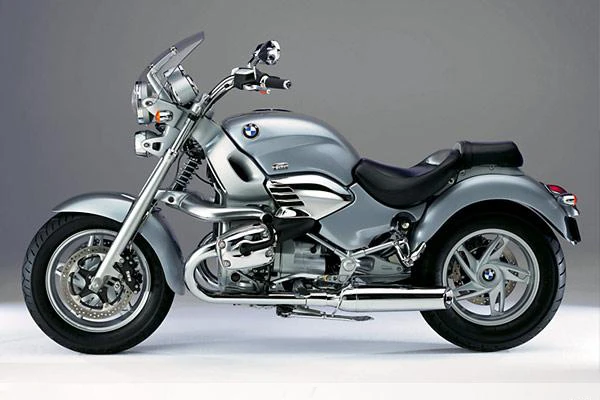

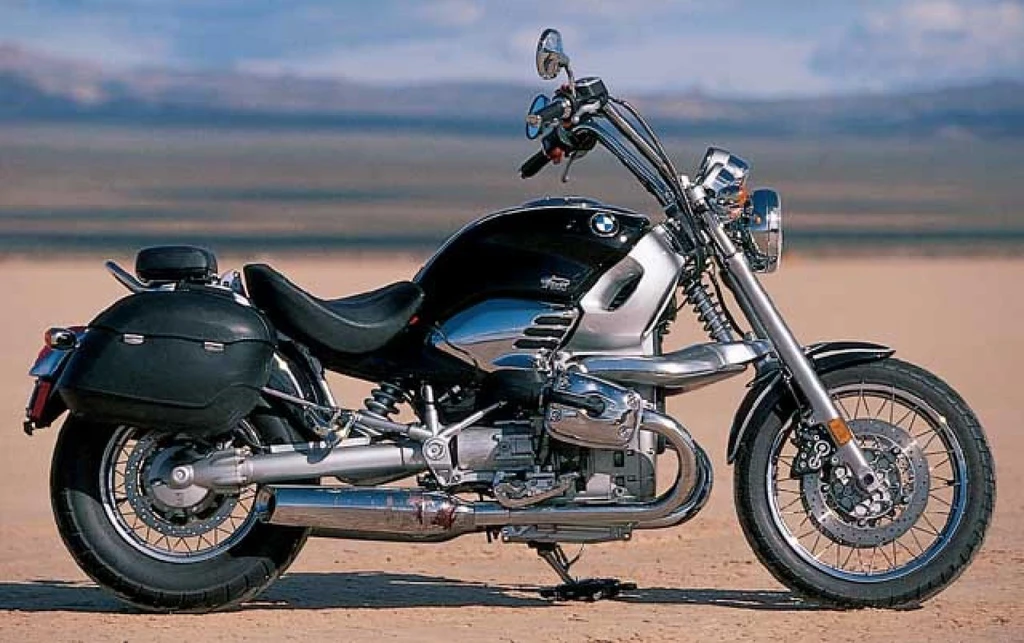

The BMW R 1200CAvantgarde, a striking departure from BMW’s traditional lines, embodies the essence of a cruiser motorcycle. Its 1170cc, 61 horsepower engine provides a smooth and refined ride, perfect for long journeys on the open road. With its distinctive design and reduced chrome accents, the Avantgarde exudes a sophisticated, minimalist aesthetic. Whether cruising or carving through twisties, the R 1200CAvantgarde delivers a thrilling experience, its responsive handling and precise control making it a joy to ride.
Key Specifications
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Engine Capacity
1170 cc / 71.4 cu in.
Max Power
44.5 kw / 61 hp
Max Torque
98 Nm / 10.0 kgf-m / 72.27 lb-ft @ 3000 rpm
Fuel Tank Capacity
17.5 Litres / 4.5 gal
Weight (Wet/Kerb)
565 lbs / 255 kg
Seat Height
29.1 inches / 740 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
BMW R 1200CAvantgarde
Year
2003 – 2005
Engine
Engine Type
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Motorrad Telelever, stanchion ∅35mm, central strut
Front Suspension Travel
5.7 inches / 145 mm
Rear Suspension
Die cast aluminium single sided swinging arm with BMW Motorrad Monolever, WAD strut (travel related damping), spring preload adjustable to continuously variable levels by means of hydraulic handwheel.
Rear Suspension Travel
4.3 inches / 110 mm
Trail
86mm / 3.4 in
Wheels & Brakes
Front Tire Size
100/90-18
Rear Tire Size
170/80-15
Front Brakes
2 x ∅305mm discs, 4 piston calipers
Rear Brakes
Single ∅285mm disc, 2 piston caliper
Dimension & Weights
Seat Height
29.1 inches / 740 mm
Wheelbase
64.9 inches / 1650 mm
Ground Clearance
172 mm / 6.77 in
Fuel Tank Capacity
17.5 Litres / 4.5 gal
Wet (kerb/curb) Weight
565 lbs / 255 kg
Dry Weight
236 kg /482 lbs
Features
Cruiser riding posture
Passenger seat that folds up to become a driver backrest
Adjustable backrest with three different angles
1,170 cc engine
61 hp engine
Four-stroke engine
Load-bearing engine
Threesection composite frame
Front and rear sections
Aluminum wheels
Speedster style windshield
Fog lamps
White indicator lenses
Single seat option
Passenger seat and foot pegs option
Extended rake front end
Braided brake hoses
Vertically stacked headlight
Tachometer
Analog-style clock
Digital instrument panel
