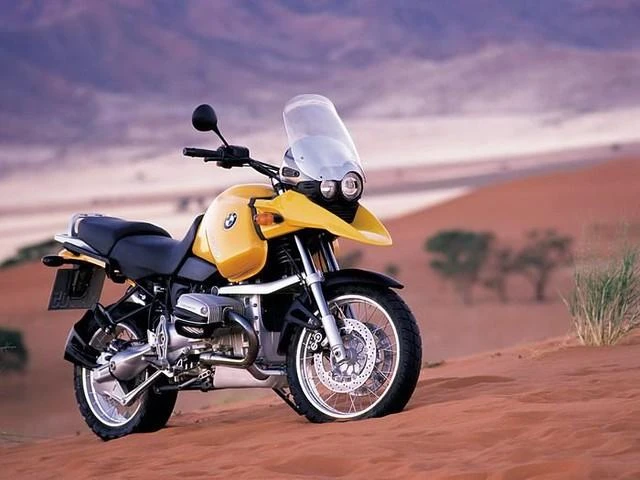

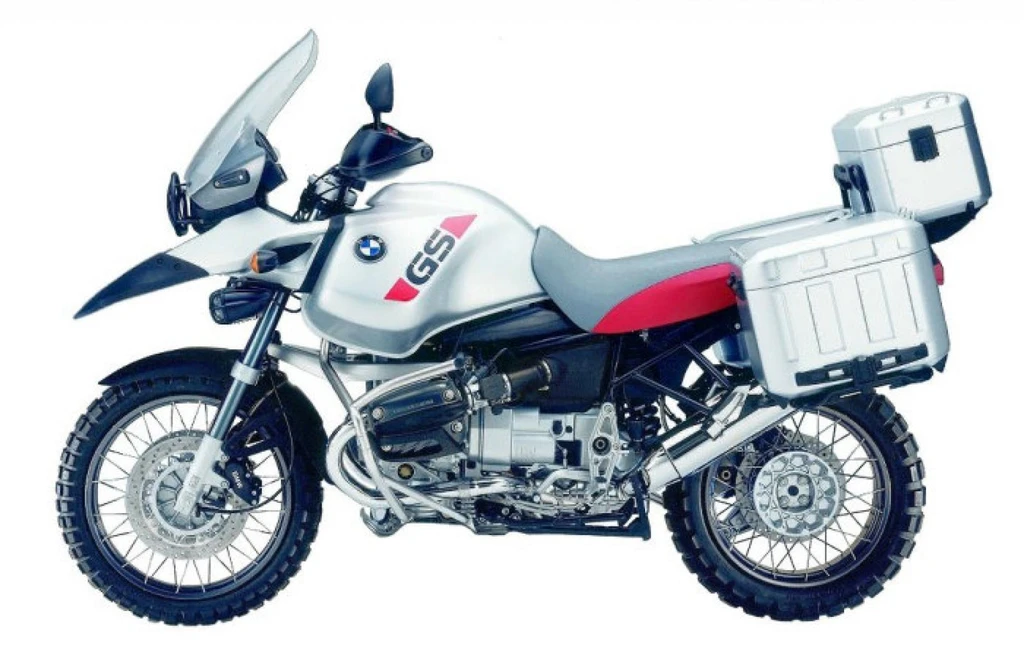

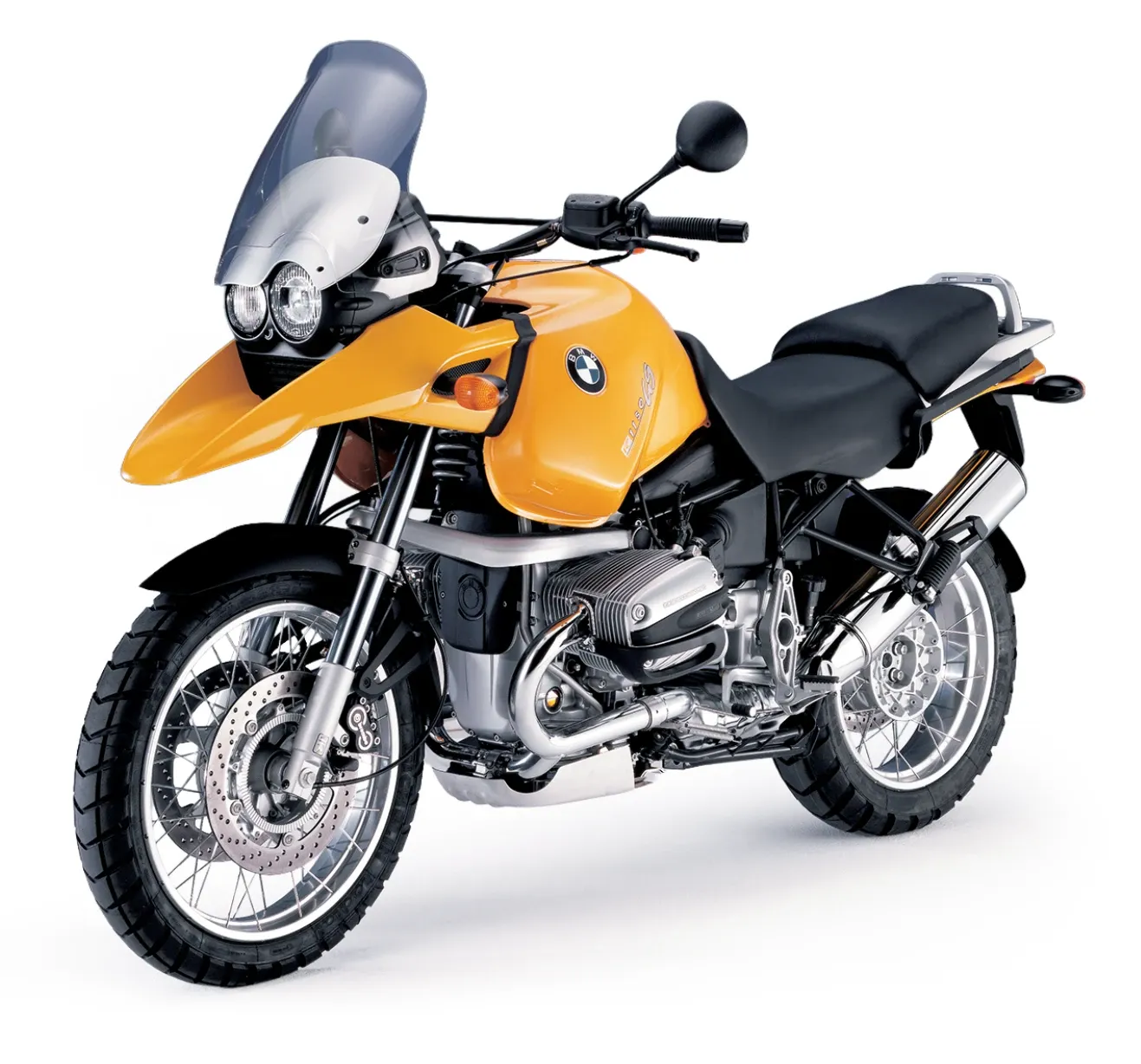

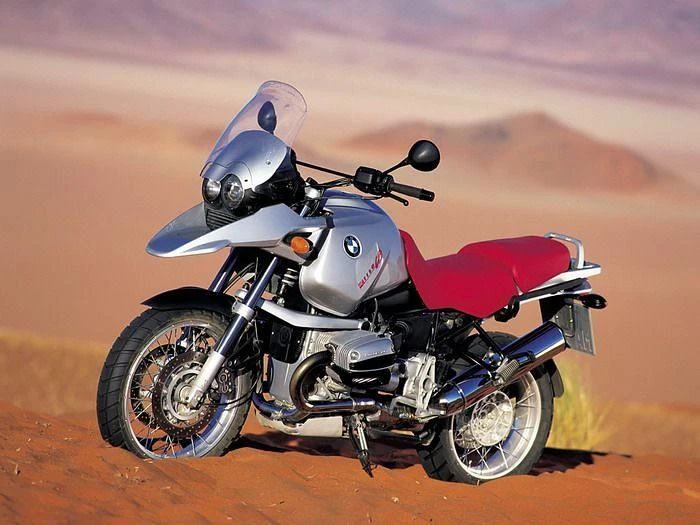

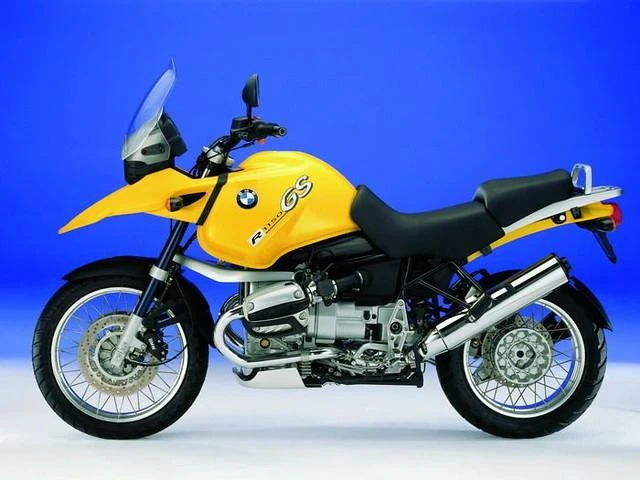

BMW R 1150GS (2003)

The BMW R 1150GS is a behemoth of a machine, blending the best of touring and off-road capabilities in a single, potent package. Powered by a four-stroke, two-cylinder Boxer engine, it produces a staggering 62.5 kW of power at 6750 rpm, with a rear-wheel drive figure of 58.9 kW.

The Telelever and Paralever suspension systems work in harmony to provide a smooth, long-travel ride, while the strong brakes and ABS system offer exceptional stopping power. With its commanding riding position and wide bars, the GS is a joy to ride, its massive weight seemingly melting away as you carve through corners with confidence.

On the move, the 1150 engine’s strong, torquey power delivery is a revelation, making light work of even the most challenging terrain. The six-speed gearbox, complete with overdrive, makes long-distance cruising a breeze, and the pillion accommodation is more than generous. The result is a machine that’s at once both a capable off-roader and a comfortable tourer, making the BMW R 1150GS an uncompromising and unforgettable riding experience.

Key Specifications

Engine Type	Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Engine Capacity	1130 cc / 69 cu in
Max Power	62.5 kw / 85 hp
Max Torque	98 Nm / 10.0 kgf-m / 71 lb-ft @ 5250 rpm
Fuel Tank Capacity	5.8 US gallons / 22.0 L
Weight (Wet/Kerb)	549 lbs / 249 kg

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW R 1150GS
Year	2003

Engine

Engine Type	Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Displacement	1130 cc / 69 cu in
Bore x Stroke	101 x 70.5 mm
Compression Ratio	10.3:1
Max Horsepower	62.5 kw / 85 hp
Max Torque	98 Nm / 10.0 kgf-m / 71 lb-ft @ 5250 rpm
Engine Management System	Bosch Motronic MA 2.4 Fuel injection
Lubrication System	Wet sump
Cooling System	Air/Oil cooled

Performance

Top Speed

193.1 km/h / 120 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Single disc dry clutch, hydraulically operated
Gearbox	6 Speed
Final Drive	Shaft

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Three section composite frame consisting of front & rear section, load bearing engine
Front Suspension	Light. Telelever with central spring strut, progressive coil spring, twin-tube gas-filled shock,
Front Suspension Travel	8.2 inches / 210 mm
Rear Suspension	Patented BMW Paralever swing arm & shaft drive, single shock with variable rebound and damping adjustments
Rear Suspension Travel	8.6 inches / 220 mm
Rake	26.2
Trail	121 mm / 4.8 in

Wheels & Brakes

Wheels	Cross spoke wheels
Front Wheel/Rim Size	2.50 x 19
Front Tire Size	110/80 R19
Rear Wheel/Rim Size	4.00 x 17
Rear Tire Size	150/70 R17
Front Brakes	2 x 304mm discs, 4 piston calipers
Rear Brakes	Single 276mm disc, 2 piston caliper

Dimension & Weights

Wheelbase	59.1 inches / 1.501 mm
Fuel Tank Capacity	5.8 US gallons / 22.0 L
Wet (kerb/curb) Weight	549 lbs / 249 kg
Dry Weight	228 kg / 503 lbs

Features

Four stroke, two cylinder horizontally opposed Boxer engine
4 valves per cylinder
62.5 kW / 85 hp @ 6750 rpm
58.9 kW / 79 hp @ 6750 rpm (rear tyre)
Telelever suspension system
Central spring strut
Progressive coil spring
Twin-tube gas-filled shock
Patented BMW Paralever swing arm
Shaft drive
Single shock with variable rebound and damping adjustments
Six-speed gearbox
Overdrive for low-rpm motorway cruising
ABS system available
Commanding riding position
Wide bars for fast, confident changes of direction
Pillion accommodation
Optional touring accessories available
Heated grips available
