BMW R 1100S (2003 – 2004)

BMW R 1100S (2003 - 2004)

The BMW R 1100S, a sports tourer that defies convention with its potent boxer engine and sleek, modern design. This four-stroke, two-cylinder horizontally opposed motor, featuring 4 valves per cylinder, unleashes a thrilling riding experience that’s as much at home on the open road as it is on the track.

The motor itself is a marvel, with a telelever front suspension system that provides unparalleled stability and a paralever rear suspension that’s adjustable to suit any riding style. And then there’s the engine, with its free-revving nature and addictive throttle response, making it impossible to resist the urge to push the limits of speed and agility.

As I spent 1250 miles testing the R 1100S on UK roads, French, Belgian, and German motorways, and the infamous Nurburgring circuit, I can confidently say that this bike is an absolute joy to ride, with its comfortable ergonomics, precise handling, and exhilarating performance.

Key Specifications

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Engine Capacity1085 cc / 66.2 cu in
Max Power71.4 kw / 98 hp
Max Torque97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm
Fuel Tank Capacity18Litres / US 4.76 gal
Weight (Wet/Kerb)520 lbs / 236 kg
Seat Height31.4 inches / 800 mm
BMW R 1100S (2003 - 2004)

All Specifications

Make & Model

ModelBMW R 1100S
Year2003 – 2004

Engine

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Displacement1085 cc / 66.2 cu in
Bore x Stroke99 x 70.5 mm
Compression Ratio11.3:1
Max Horsepower71.4 kw / 98 hp
Max Torque97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm
Engine Management SystemBosch fuel injection
Lubrication SystemWet sump
Cooling SystemAir/Oil cooled

Performance

Top Speed227 km/h / 141 mph

Transmission

ClutchDry, single plate
Gearbox6 Speed
Gear Ratios1st 2.050 / 2nd 1.600 / 3rd 1.270 / 4th 1.040 / 5th 0.900 / 6th 0.800
Final DriveShaft

Electrical & Electronics System

Battery12 V, 14 Ah (special equipment: 12V, 19 Ah)
StarterElectric

Chassis & Suspension

Frame TypeThree section composite frame consisting of front & rear section, load bearing engine
Front SuspensionMotorrad Telelever, stanchion diameter 35mm, central strut, rebound damping adjustable.
Front Suspension Travel4.3 inches / 110 mm
Rear SuspensionParalever, central strut, spring preload adjustable to continuously variable levels by mean of a hydraulic handwheel, rebound adjustable damping.
Rear Suspension Travel5.1 inches / 130 mm

Wheels & Brakes

WheelsDie cast aluminium wheels
Front Tire Size120/70-ZR17
Rear Wheel/Rim Size5.00 x 17″ (special equipment: 5.50 x 17″)
Rear Tire Size160/60-ZR18
Front Brakes2 x 320mm discs, 4 piston calipers
Rear BrakesSingle 276mm disc, 2 piston caliper

Dimension & Weights

Seat Height31.4 inches / 800 mm
Wheelbase58.2 inches / 1478 mm
Fuel Tank Capacity18Litres / US 4.76 gal
Wet (kerb/curb) Weight520 lbs / 236 kg
Dry Weight229 kg / 505 lbs

Features

  • Four stroke, two cylinder horizontally opposed Boxer motor
  • 4 valves per cylinder
  • Motorrad Telelever suspension with 35mm stanchion diameter
  • Central strut with rebound damping adjustment
  • Paralever shaft-drive with central strut and spring preload adjustment
  • Hydraulic handwheel for spring preload adjustment
  • Rebound adjustable damping
  • Built-in passenger grab rails
  • Non-adjustable handlebars
  • Non-adjustable footpegs
  • Twin under-seat exhausts
  • Funky headlights
  • Single-side swingarm
  • 1/2 body work for functional yet modern look
  • Large cylinders visible due to minimal bodywork
  • 1100cc engine
  • High-powered boxer motor

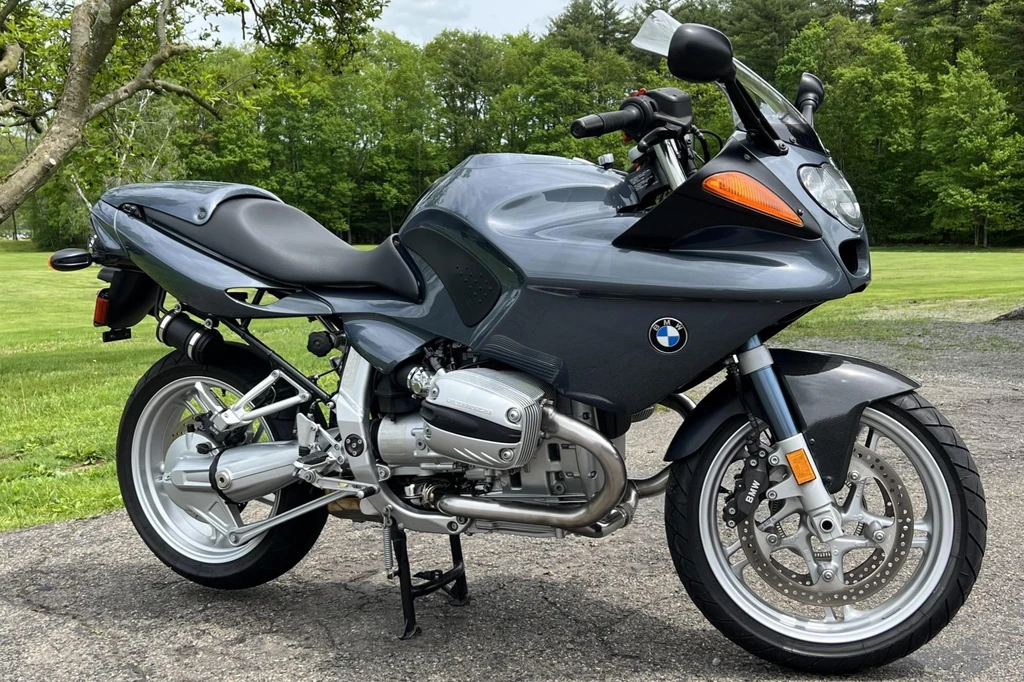

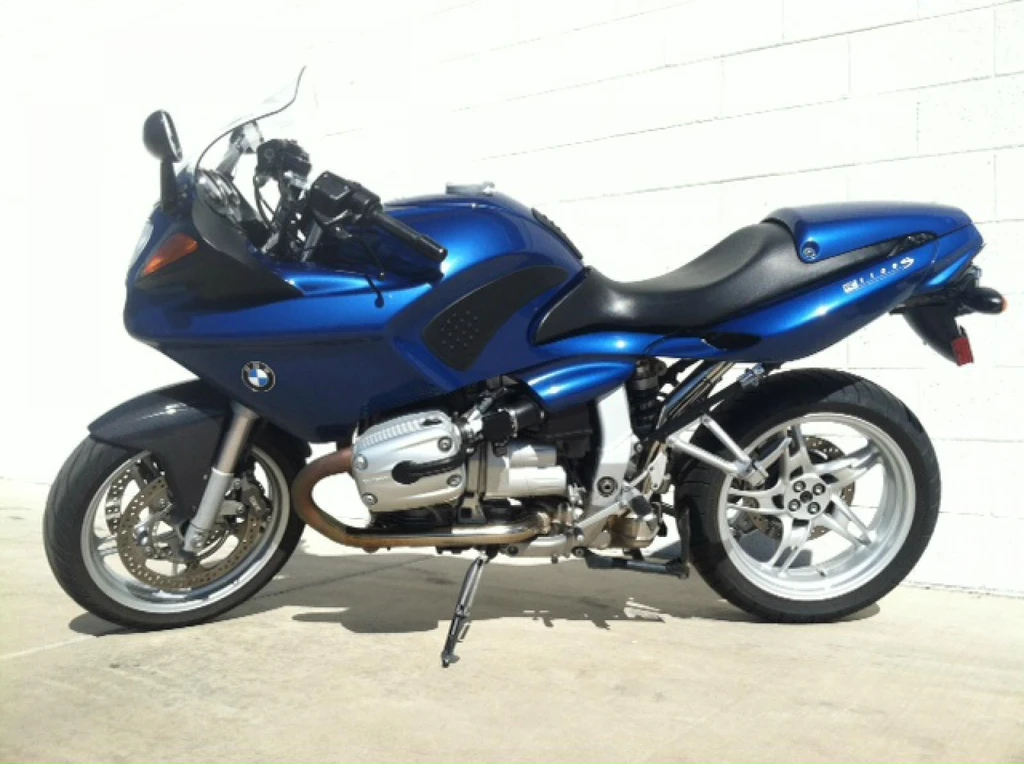

BMW R 1100S (2003 - 2004)

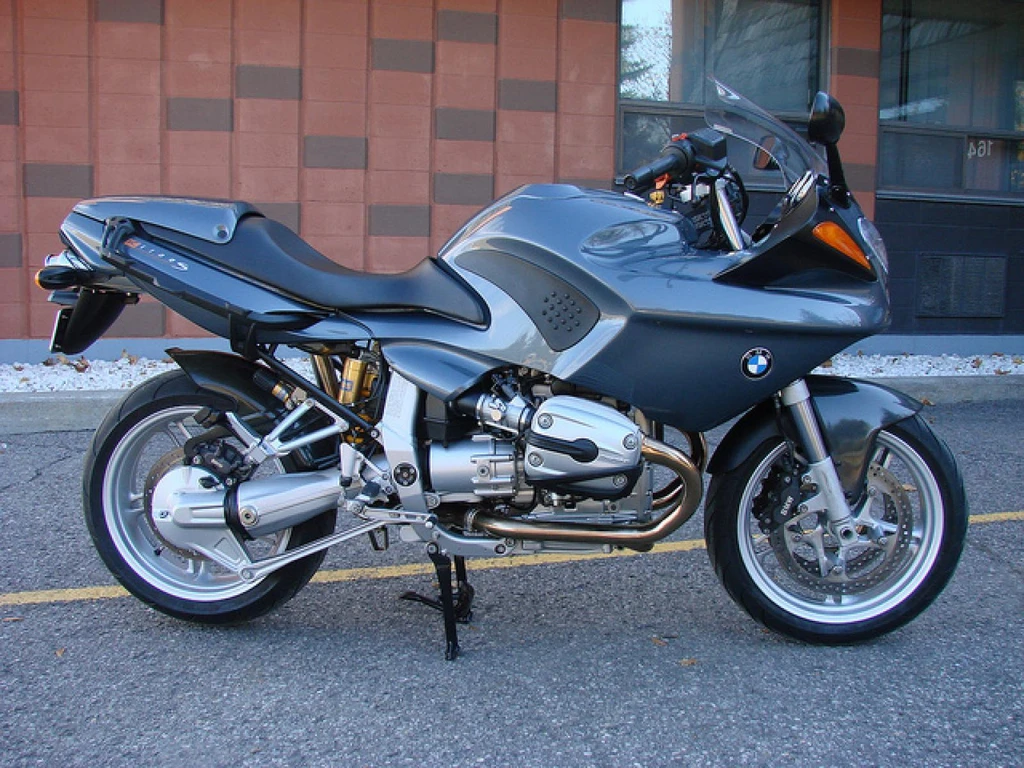

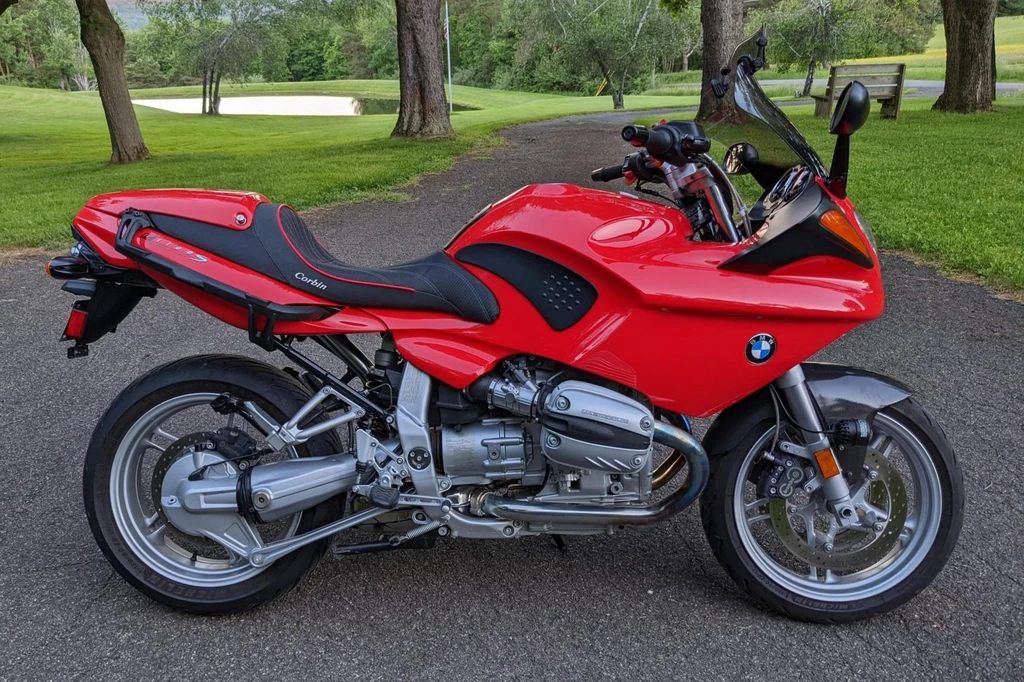

BMW R 1100S (2003 - 2004)

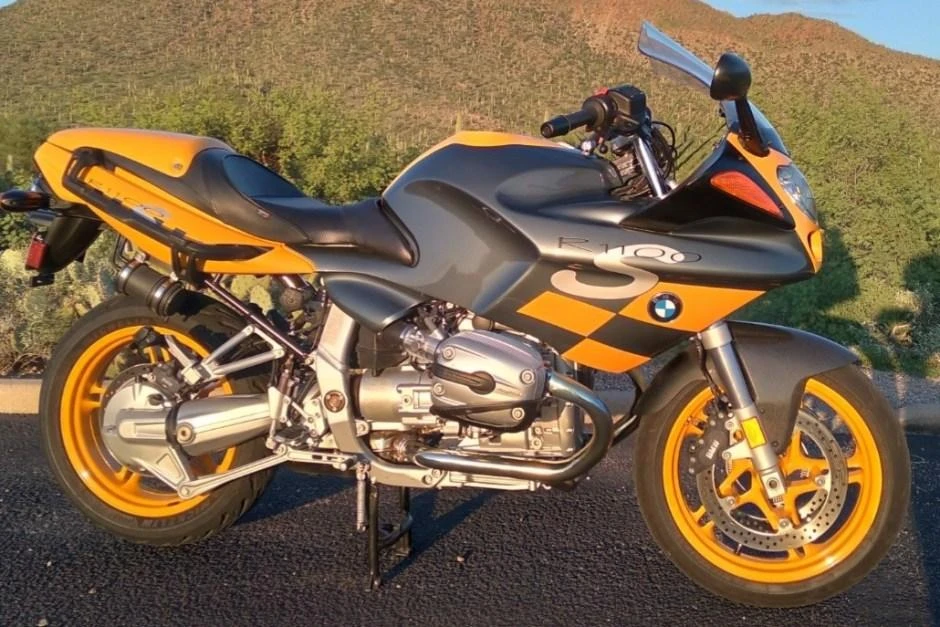

BMW R 1100S (2003 - 2004)

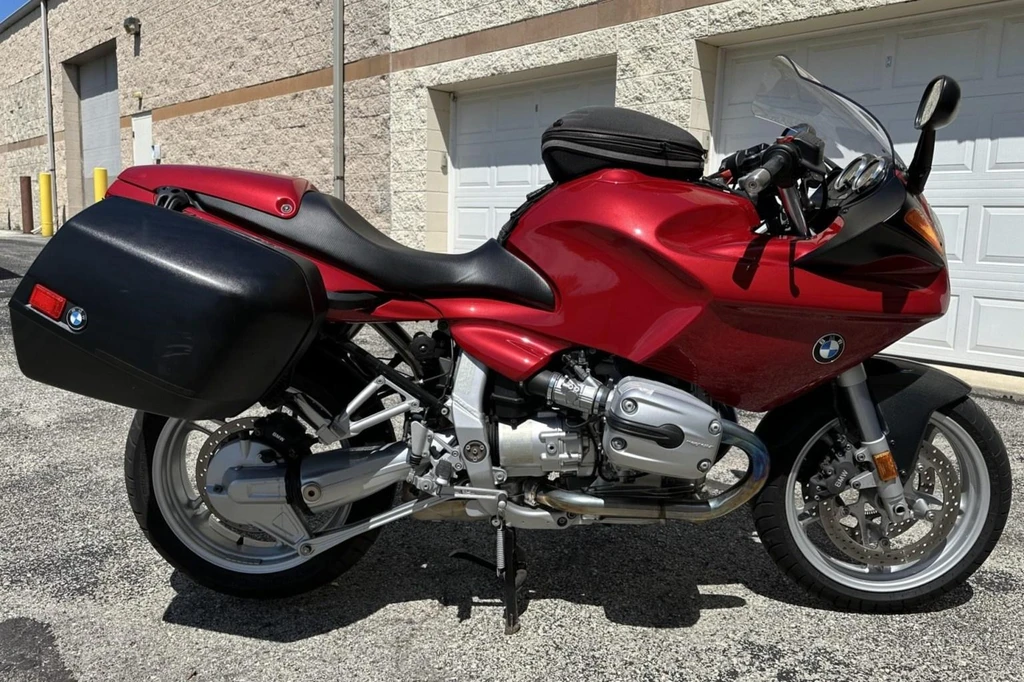

BMW R 1100S (2003 - 2004)
