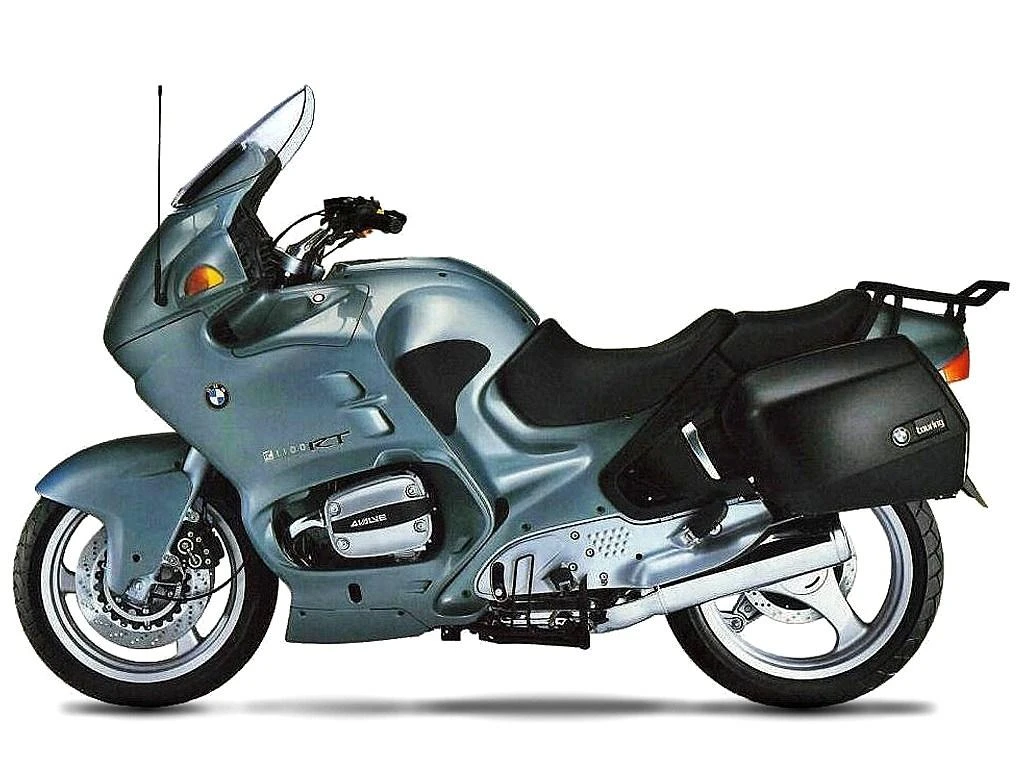

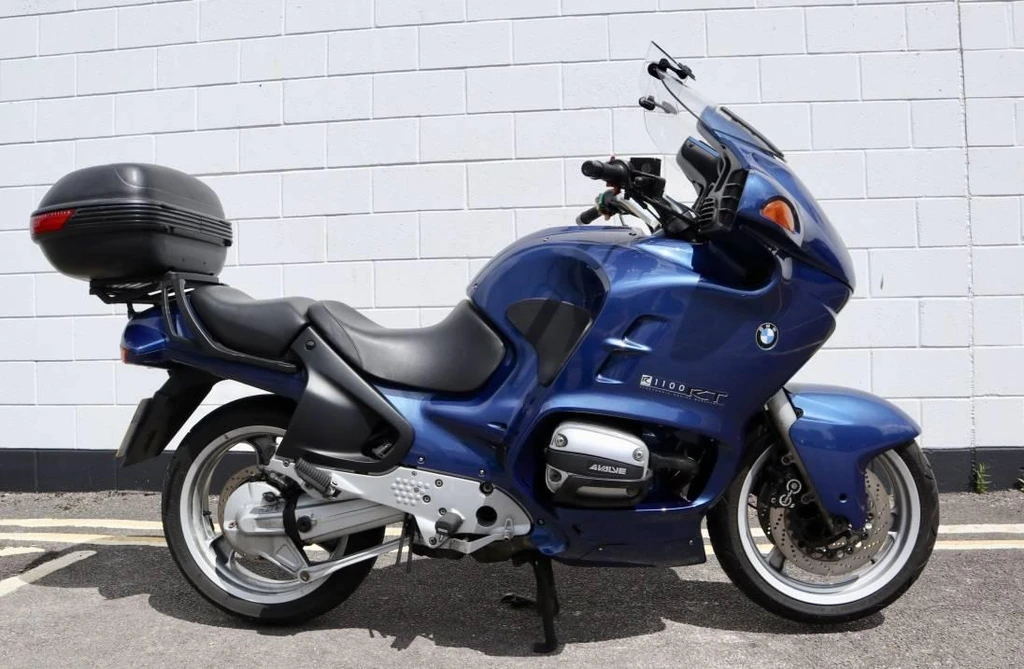

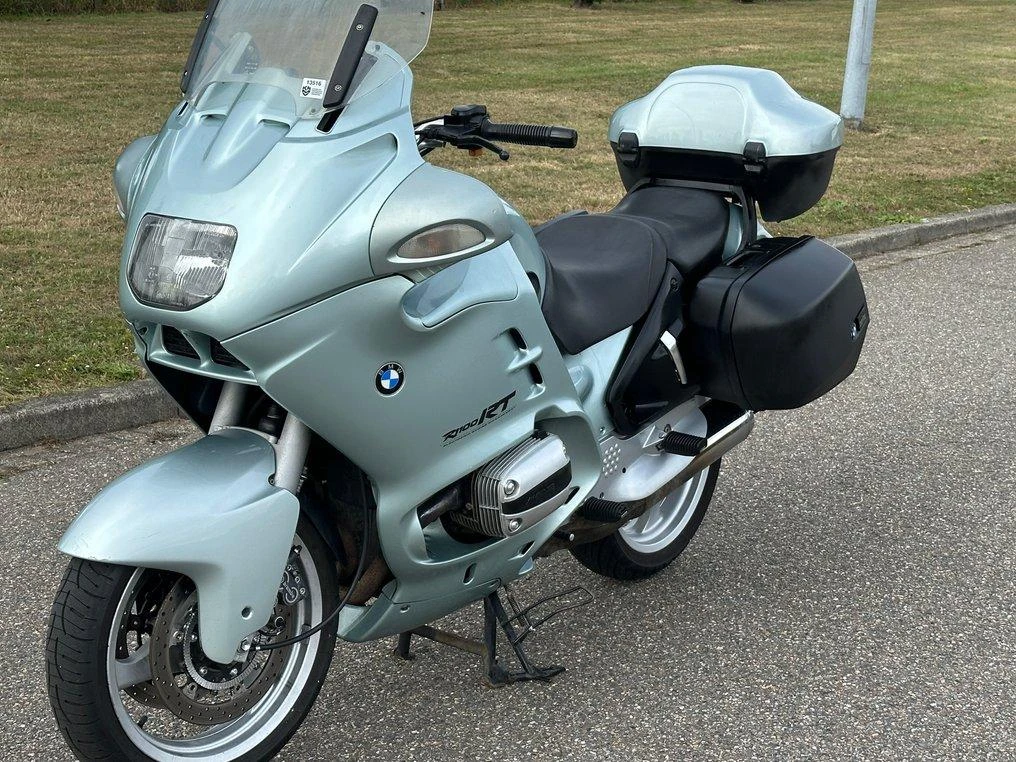

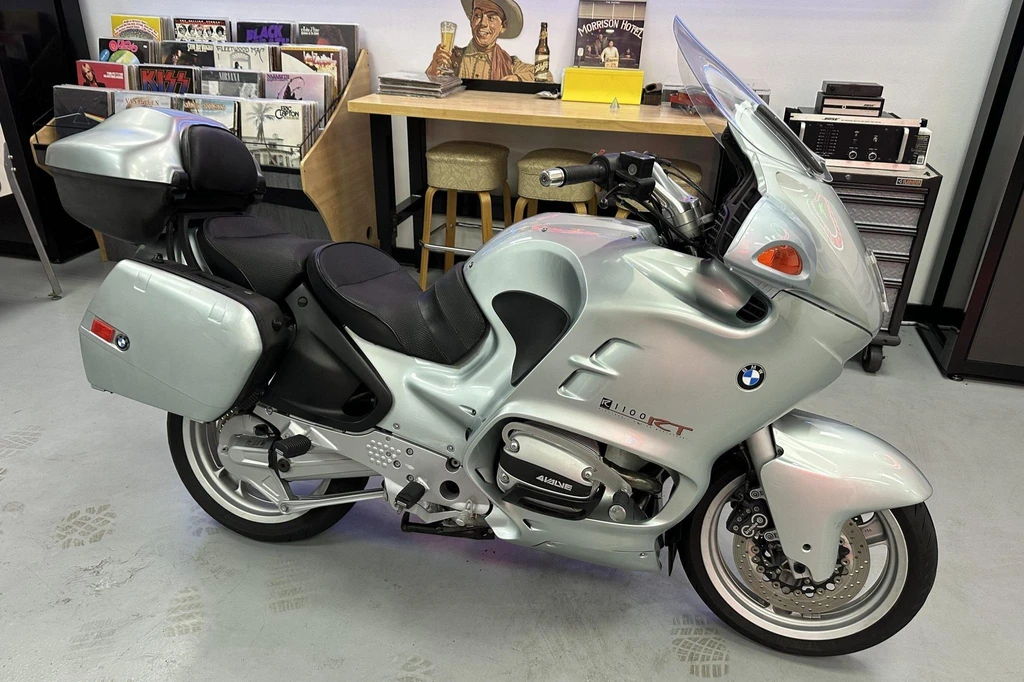

BMW R 1100RT (1998)

BMW R 1100RT (1998)

The BMW R 1100RT is a masterclass in touring motorcycle design, boasting a silky-smooth four-stroke, two-cylinder Boxer engine that delivers a potent blend of power and refinement. With four valves per cylinder and a Telelever suspension system featuring a central spring strut and linear-rate coil spring, this bike is engineered to devour miles with ease. The ride is further augmented by a Paralever swingarm and shaft drive, ensuring a silky-smooth ride even on the most spirited of road tours.

Its handling is equally impressive, with a Twin-tube gas-filled shock absorber at the rear, complete with variable rebound setting for customizable damping. Meanwhile, the seat height is adjustable, available in three different settings: 780mm, 800mm, or 820mm, catering to a wide range of riders. Whether you’re embarking on a leisurely Sunday cruise or a high-speed adventure, the BMW R 1100RT is the ultimate travel companion.

The BMW R 1100RT is the perfect blend of comfort, capability, and style, ensuring an unforgettable riding experience every time you hit the open road.

Key Specifications

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Engine Capacity1085 cc / 66.2 cu in
Max Power67.1 kw / 90 hp
Max Torque95 Nm / 9.7 kgf-m / 69 lb-ft.@ 5500 rpm
Fuel Tank Capacity23 Litres / US 6.1 gal
Weight (Wet/Kerb)622 lbs / 282 kg
Seat Height31.4 inches / 800 mm
BMW R 1100RT (1998)

All Specifications

Make & Model

ModelBMW R 1100RT
Year1998

Engine

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Displacement1085 cc / 66.2 cu in
Bore x Stroke99 x 70.5 mm
Compression Ratio10.7:1
Max Horsepower67.1 kw / 90 hp
Max Torque95 Nm / 9.7 kgf-m / 69 lb-ft.@ 5500 rpm
Engine Management SystemFuel injection
Lubrication SystemWet sump
Cooling SystemAir/Oil cooled

Performance

Top Speed203.3 km/h / 126.3 mph

Transmission

ClutchDry, single plate
Gearbox5 Speed
Gear Ratios1st 4.16 / 2nd 2.91 / 3rd 2.13 / 4th 1.74 / 5th 1.45:1
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSteel, backbone frame
Front SuspensionTelelever with central spring strut & linear-rate coil spring. Twin-tube gas-filled shock
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionParalever swingarm & shaft drive, single-tube gas-filled shock, variable rebound setting
Rear Suspension Travel5.3 inches / 135 mm

Wheels & Brakes

Front Tire Size120/70-ZR17
Rear Tire Size160/60-ZR18
Front Brakes2 x 305mm discs, 4 piston calipers
Rear BrakesSingle 276mm disc, 2 piston caliper

Dimension & Weights

Seat Height31.4 inches / 800 mm
Wheelbase58.5 inches / 1485 mm
Ground Clearance153 mm / 6.2 in
Fuel Tank Capacity23 Litres / US 6.1 gal
Wet (kerb/curb) Weight622 lbs / 282 kg
Dry Weight256 kg / 571 lbs

Features

  • Four-stroke engine
  • Two-cylinder horizontally opposed Boxer
  • 4 valves per cylinder
  • Telelever with central spring strut
  • Linear-rate coil spring
  • Twin-tube gas-filled shock absorber
  • Paralever swingarm
  • Shaft drive
  • Single-tube gas-filled shock absorber
  • Variable rebound setting
  • Ground clearance: 800mm / 31.4 in
  • Optional seat heights: 780 mm / 30.7 in, 820 mm / 32.3 in
