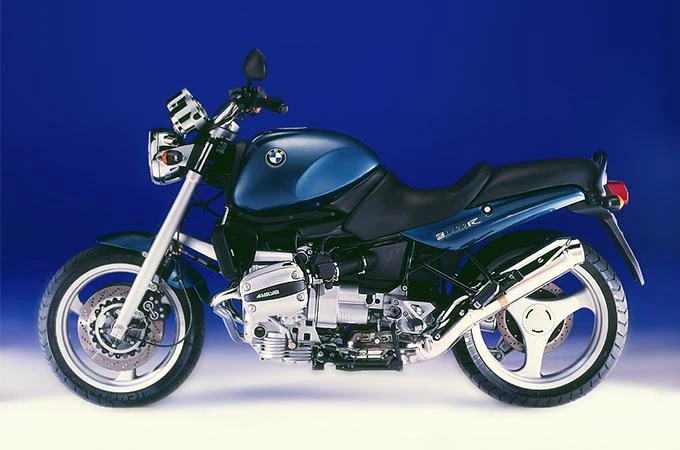

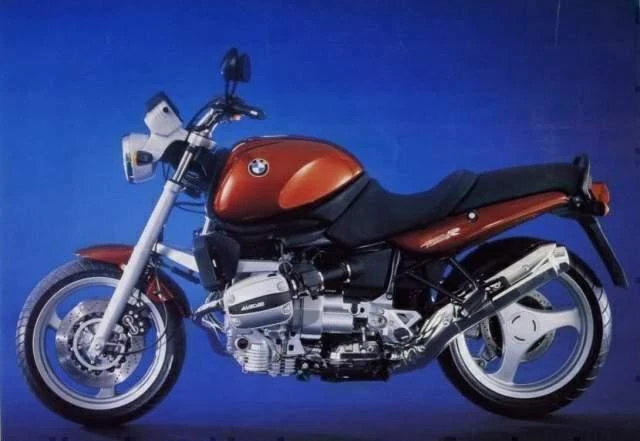

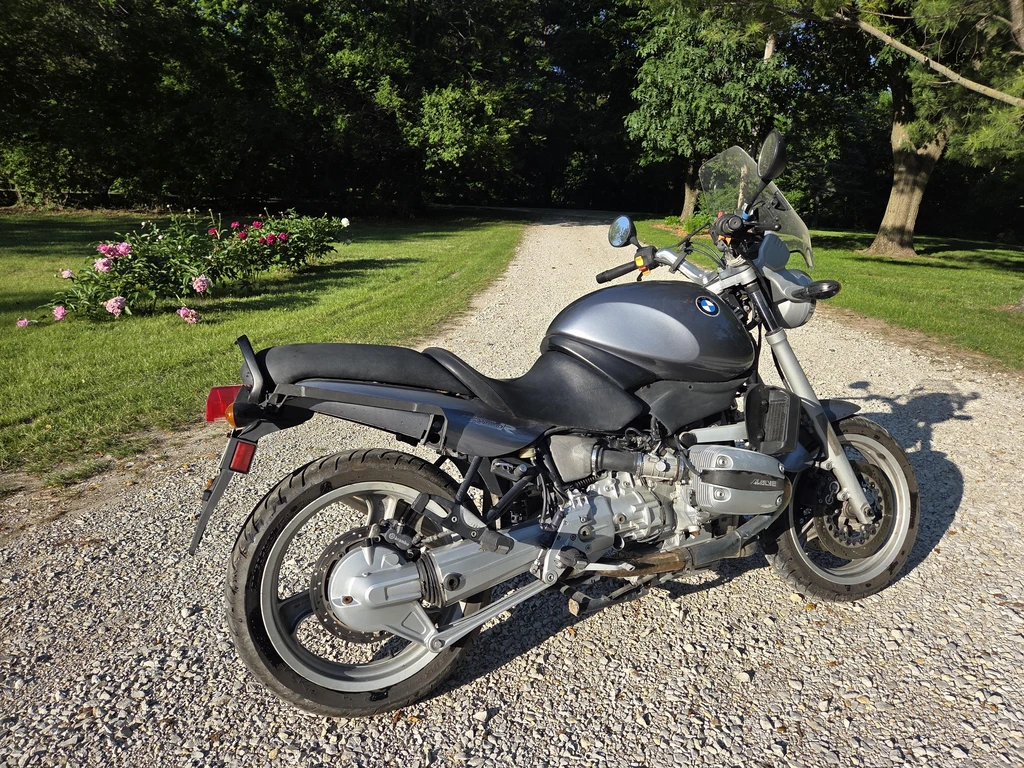

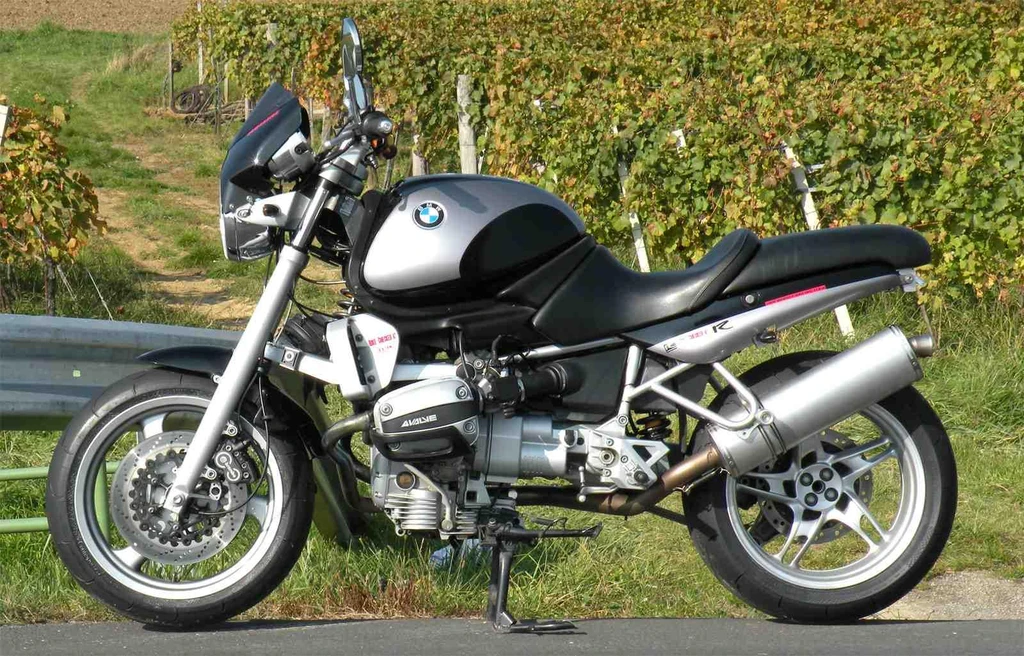

BMW R 1100R (1994 – 95)

BMW R 1100R (1994 - 95)

The BMW R 1100R, a naked version of the iconic Boxer, arrived in 1994 to a divided public. Its bold, minimalist design made a statement, and despite some initial hesitation, it won over many with its unique charm. Mechanically, the R 1100R is solid, with a Telelever front end and shaft drive providing a smooth ride.

Under its sleek bodywork, the R 1100R packs a punch with its four-stroke, two-cylinder Boxer engine, delivering a satisfying blend of torque and refinement. On the road, it exhibits the typical BMW traits of sure-footedness and ease of handling, making it a joy to carve through twisty roads.

With its wide, supportive seat and aggressive ergonomics, the R 1100R is designed for riders who crave excitement and a sense of freedom. While it may lack wind protection and long-distance comfort, it more than makes up for it with its infectious enthusiasm and engaging riding experience. And so, the BMW R 1100R stands as a testament to the brand’s commitment to creating motorcycles that are both functional and thrilling to ride.

Key Specifications

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Engine Capacity1085 cc / 66.2 cu in
Max Power56.4 kw / 75.6 hp
Max Torque97 Nm 9.9 kgf-m / 71.5 lb-ft @ 5250 rpm
Fuel Tank Capacity5.5 US gallons / 21.0 L
Seat Height30.7 inches / 780 mm
BMW R 1100R (1994 - 95)

All Specifications

Make & Model

ModelBMW R 1100R
Year1994 – 95

Engine

Engine TypeFour stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Displacement1085 cc / 66.2 cu in
Bore x Stroke99 x 70.5 mm
Compression Ratio10.7:1
Max Horsepower56.4 kw / 75.6 hp
Max Torque97 Nm 9.9 kgf-m / 71.5 lb-ft @ 5250 rpm
Engine Management SystemFuel injection
Lubrication SystemWet sump
Cooling SystemAir/Oil cooled

Performance

Top Speed203.7 km/h / 126.6 mph

Transmission

ClutchDry, single plate,
Gearbox5 Speed
Gear Ratios1st 4.16 / 2nd 2.91 / 3rd 2.13 / 4th 1.74 / 5th 1.45:1
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSteel, backbone frame
Front SuspensionTelelever with central spring strut & linear-rate coil spring. Twin-tube gas-filled shock
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionParalever swingarm & shaft drive, single-tube gas-filled shock, variable rebound setting
Rear Suspension Travel5.3 inches / 135 mm

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size160/60-18
Front Brakes2 x ∅305mm discs, 4 piston calipers
Rear BrakesSingle ∅276mm disc, 2 piston caliper

Dimension & Weights

Seat Height30.7 inches / 780 mm
Wheelbase58.5 inches / 1485 mm
Ground Clearance138 mm / 5.43 in
Fuel Tank Capacity5.5 US gallons / 21.0 L
Dry Weight235 kg / 517 lbs

Features

  • Telelever front end with central spring strut and linear-rate coil spring
  • Paralever swingarm with single-tube gas-filled shock
  • Variable rebound setting
  • Shaft drive
  • Twin-tube gas-filled shock
  • ABS (optional)
  • Four-stroke, two-cylinder horizontally opposed Boxer engine
  • 4 valves per cylinder
  • Oil coolers exposed for cooling
  • Fuel injectors exposed for visibility
  • Post-industrial design aesthetic
  • Machined aluminum and chrome instrument panel
  • Improved ergonomics with spread-out and comfy seating
  • Wide seat with great support
  • Rear seat accommodations
  • High bars
  • Windshield available as an accessory
  • Quick steering geometry
  • No-dive telelever front end
  • Excellent brakes
  • Power delivery at 7/10ths pace
  • Nimble and powerful commuter bike in city traffic
  • Lane-splitting difficulty due to wide protruding flat twin cylinders
