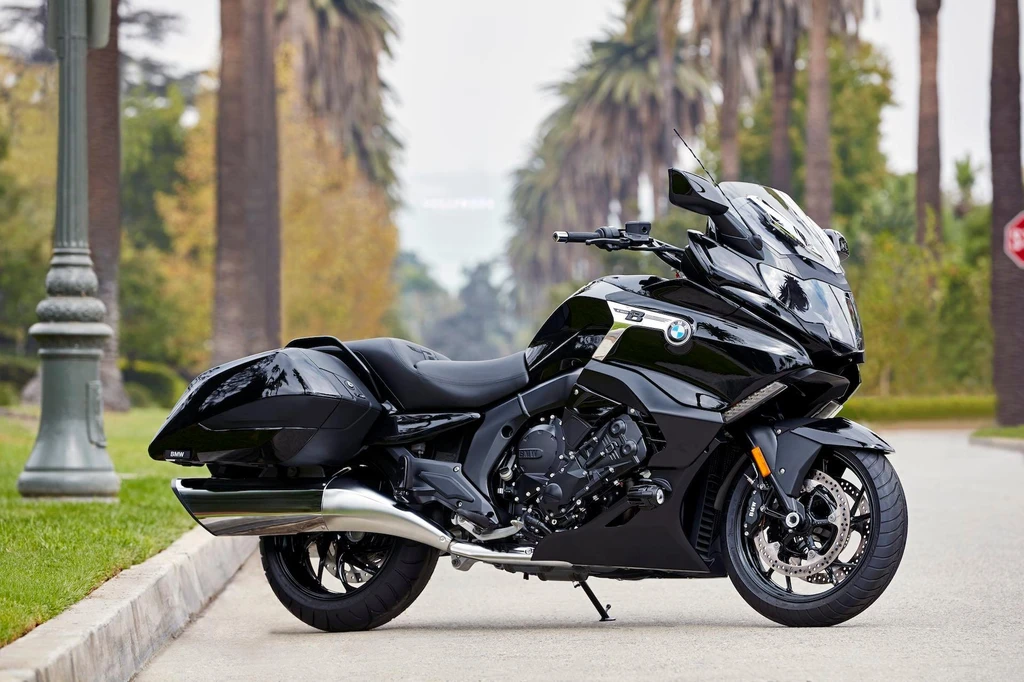

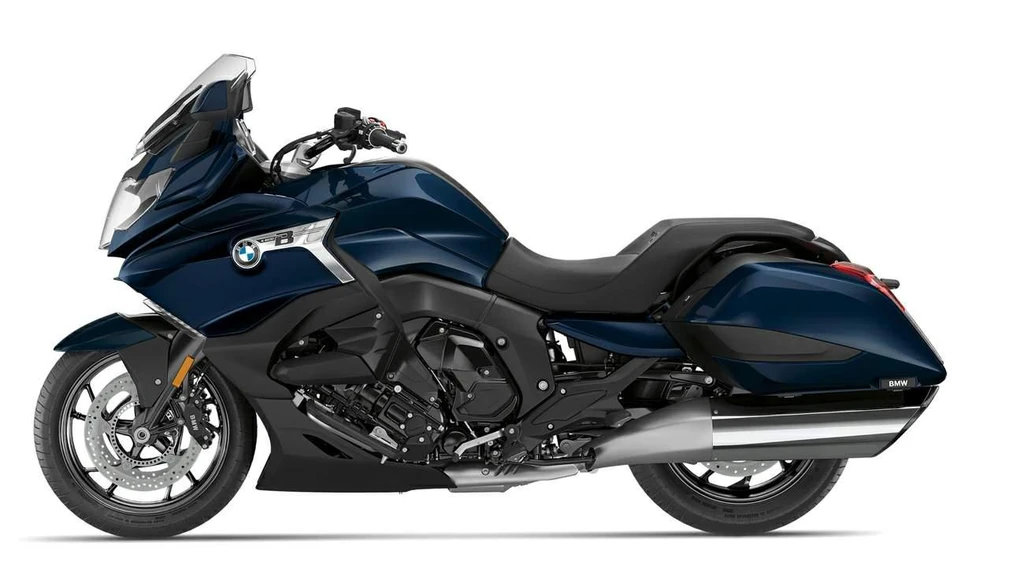

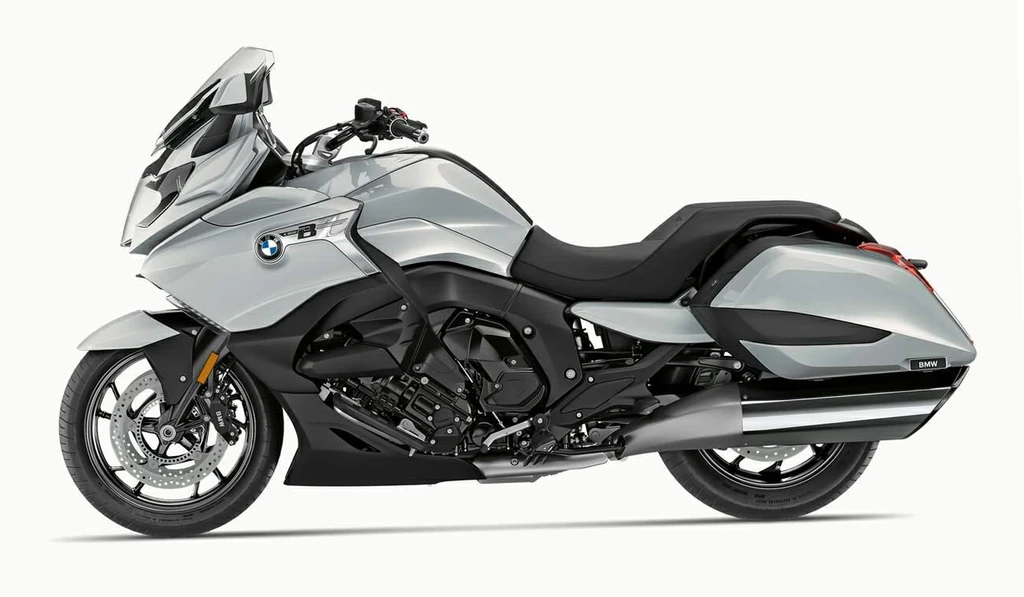

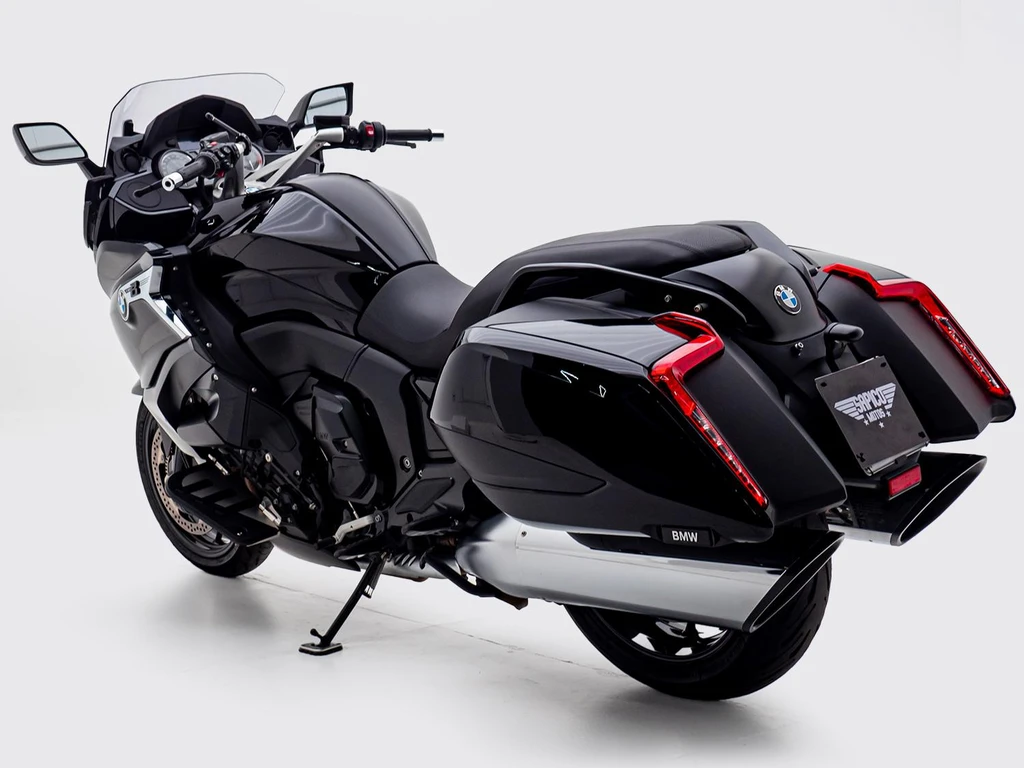

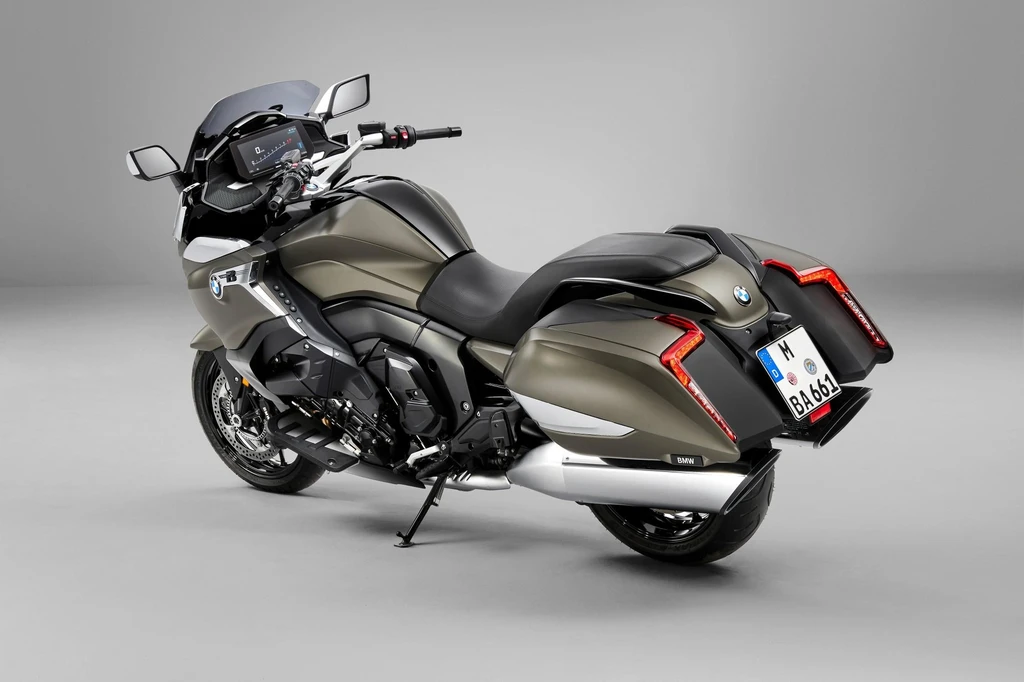

BMW K1600B Bagger (2019 - 2020)

The BMW K1600B Bagger is the ultimate touring companion for those who crave the open road. Its powerful 6-cylinder engine delivers an extraordinary smoothness and impressive power development, making every mile a joyride. The chopped windscreen and striking rear design ensure an unmistakable presence on the asphalt, while the innovative technology and high level of comfort make every ride a pleasure.

Cruising is the Bagger’s middle name, and the Hill Start Control Pro (HSC Pro) feature takes the convenience of hillside set-offs to a new level. The standard seat height has been reduced by 30mm to 750mm, making it even more accessible to a wider range of riders. The high seat is available as an optional equipment or accessory, offering an additional 30mm of height.

The K1600B’s design is a masterclass in relaxed dynamic elegance, with a low rear section and masculine color scheme that exudes a sense of rugged sophistication. The all-new all-black finish, complete with blackstorm metallic and chrome-plated silencers, is a stunning visual statement that sets the Bagger apart from the crowd. Whether you’re carving through twisties or cruising down the highway, the BMW K1600B Bagger is the ultimate touring motorcycle, and it’s ready to take you on the ride of a lifetime.

Key Specifications

Engine Type	Four stroke, transverse six cylinder, 4 valves per cylinder
Engine Capacity	1649 cc / 100.6 cu in.
Max Power	118 kw / 160.5 hp
Max Torque	175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Fuel Tank Capacity	7.0 US gallons / 26.5 L
Weight (Wet/Kerb)	740.7 lbs / 336 kg
Seat Height	30.7 inches / 780 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW K1600B Bagger
Year	2019 – 2020

Engine

Engine Type	Four stroke, transverse six cylinder, 4 valves per cylinder
Displacement	1649 cc / 100.6 cu in.
Bore x Stroke	72 x 67.5 mm
Compression Ratio	12.2:1
Max Horsepower	118 kw / 160.5 hp
Max Torque	175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Engine Management System	52mm Throttle valve diameter, BMS-X
Cooling System	Liquid cooled
Fuel	Premium unleaded (95 RON)

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiplate wet clutch, hydraulically activated
Gearbox	Constant-mesh 6-speed gearbox, helical cut
Gear Ratios	1st 2.23 / 2nd 1.641 / 3rd 1.319 / 4th 1.101 / 5th 0.926 / 6th 0.788
Final Drive	Shaft

Electrical & Electronics System

Battery	12 V / 19 Ah maintenance free
Starter	Electric
ABS	BMW Motorrad ABS (partial integral)

Chassis & Suspension

Frame Type	Bridge-type frame, cast aluminium, load-bearing engine
Front Suspension	Dual longitudinal control arm, Dynamic ESA semi-active suspension (road and dynamic modes)
Front Suspension Travel	4.9 inches / 115 mm
Rear Suspension	Paralever (single-sided swing arm), central spring strut, rebound/continuously variable, Dynamic ESA semi-active suspension (road and dynamic modes)
Rear Suspension Travel	5.3 inches / 135 mm
Trail	62.2

Wheels & Brakes

Wheels	Cast aluminium wheels
Front Wheel/Rim Size	3.0 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	6.00 x 17
Rear Tire Size	190/55 ZR17
Front Brakes	2 x 320mm discs, 4 piston calipers
Rear Brakes	Single 320mm disc, 2 piston caliper
ABS	BMW Motorrad ABS (partial integral)

Dimension & Weights

Overall Length	2324 m / 91.5 in
Overall Width	1000 mm / 39.4 in (incl. mirrors)
Overall Height	1465 mm / 57.7 in (excl. mirrors)
Seat Height	30.7 inches / 780 mm
Wheelbase	66.1 inches / 1680 mm
Fuel Tank Capacity	7.0 US gallons / 26.5 L
Wet (kerb/curb) Weight	740.7 lbs / 336 kg

Features

Bridge-type frame, cast aluminium, load-bearing engine
6 cylinders
Extraordinary running smoothness
Impressive power development
Chopped windscreen
Striking rear design
Hill Start Control Pro (HSC Pro) as standard
Automatic activation of HSC Pro when brakes are activated
Reduction of standard seat height to 750 mm
High seat available as optional equipment or accessory
Streamlining with low rear section and masculine colour scheme
All-black design
Drop-shaped silhouette
Fully chrome-plated silencers
Rear section with linear design
Rear frame reduces passenger seat height
Side cases with newly designed compartments and folding rear mudguard
Folding rear mudguard for easy dismantling of the rear wheel
High visual impact and effective wind and weather protection
Closely tailored dynamic windscreen
Wind deflectors protect riders’ hands
Mirrors match the design concept for a good view of the following traffic
