BMW K1600B Bagger (2017 – 2018)

BMW K1600B Bagger (2017 - 2018)

The new K1600B Bagger embodies the essence of motorcycling freedom and independence, with its sleek, streamlined design and potent 6-cylinder in-line engine producing a thrilling 118kW (160hp) of power.

As a high-performance, highly emotional and exclusive motorcycle, the K1600B Bagger is the epitome of elegance, power, and luxury on two wheels. Its characteristic drop-shaped silhouette, streamlining style, and deep-set side cases create a unique visual appeal that is both masculine and refined.

With its all-black finish and chrome-plated silencers, the K1600B Bagger exudes a sense of sophistication and style that is perfect for long highway cruises and weekend getaways. Whether you’re exploring the open road or carving up twisties, the K1600B Bagger is the ultimate touring companion, delivering an intense riding experience that will leave you breathless. The K1600B Bagger is a true masterpiece of motorcycle design and engineering, and a testament to the BMW Motorrad philosophy of creating motorcycles that inspire the human spirit.

Key Specifications

Engine TypeFour stroke, transverse six cylinder, 4 valves per cylinder
Engine Capacity1649 cc / 100.6 cu in.
Max Power118 kw / 160.5 hp
Max Torque175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Fuel Tank Capacity7.0 US gallons / 26.5 L
Weight (Wet/Kerb)740.7 lbs / 336 kg
Seat Height30.7 inches / 780 mm
BMW K1600B Bagger (2017 - 2018)

All Specifications

Make & Model

ModelBMW K1600B Bagger
Year2017 – 2018

Engine

Engine TypeFour stroke, transverse six cylinder, 4 valves per cylinder
Displacement1649 cc / 100.6 cu in.
Bore x Stroke72 x 67.5 mm
Compression Ratio12.2:1
Max Horsepower118 kw / 160.5 hp
Max Torque175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Engine Management System52mm Throttle valve diameter, BMS-X
Cooling SystemLiquid cooled
FuelPremium unleaded (95 RON)

Performance

Top Speedn/a

Transmission

ClutchMultiplate wet clutch, hydraulically activated
GearboxConstant-mesh 6-speed gearbox, helical cut
Gear Ratios1st 2.23 / 2nd 1.641 / 3rd 1.319 / 4th 1.101 / 5th 0.926 / 6th 0.788
Final DriveShaft

Electrical & Electronics System

Battery12 V / 19 Ah maintenance free
StarterElectric
ABSBMW Motorrad ABS (partial integral)

Chassis & Suspension

Frame TypeBridge-type frame, cast aluminium, load-bearing engine
Front SuspensionDual longitudinal control arm, Dynamic ESA semi-active suspension (road and dynamic modes)
Front Suspension Travel4.9 inches / 115 mm
Rear SuspensionParalever (single-sided swing arm), central spring strut, rebound/continuously variable, Dynamic ESA semi-active suspension (road and dynamic modes)
Rear Suspension Travel5.3 inches / 135 mm
Trail62.2

Wheels & Brakes

WheelsCast aluminium wheels
Front Wheel/Rim Size3.0 x 17
Front Tire Size120/70 ZR17
Rear Wheel/Rim Size6.00 x 17
Rear Tire Size190/55 ZR17
Front Brakes2 x 320mm discs, 4 piston calipers
Rear BrakesSingle 320mm disc, 2 piston caliper
ABSBMW Motorrad ABS (partial integral)

Dimension & Weights

Overall Length2324 m / 91.5 in
Overall Width1000 mm / 39.4 in (incl. mirrors)
Overall Height1465 mm / 57.7 in (excl. mirrors)
Seat Height30.7 inches / 780 mm
Wheelbase66.1 inches / 1680 mm
Fuel Tank Capacity7.0 US gallons / 26.5 L
Wet (kerb/curb) Weight740.7 lbs / 336 kg

Features

  • 6-cylinder in-line engine
  • 118 kW (160 hp) output
  • Bridge-type frame, cast aluminium
  • Load-bearing engine
  • Exclusive Bagger style
  • Drop-shaped silhouette
  • Streamlining style
  • Deep-set side cases
  • Integrated US American style rear lights
  • Chrome-plated silencers
  • Completely reconstructed rear section
  • Significantly reduced passenger seat height
  • Side cases with newly designed compartments
  • Folding rear mudguard
  • Slimmer side case covers
  • Deeper side case body
  • Closely tailored dynamic windscreen
  • Powerful and impressive fairing design
  • Effective wind and weather protection

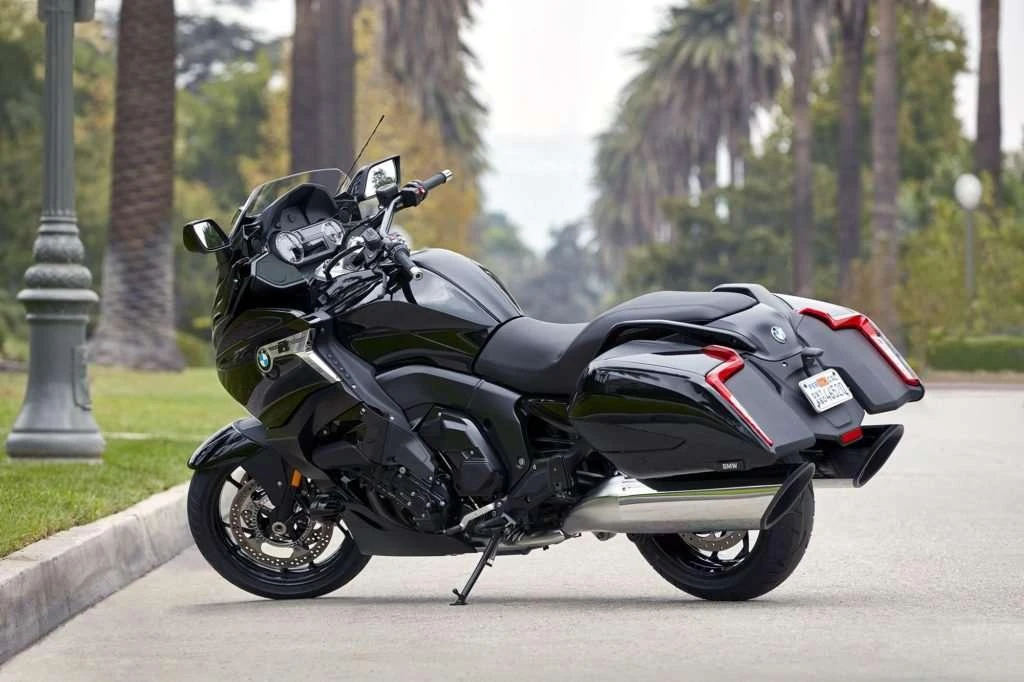

BMW K1600B Bagger (2017 - 2018)

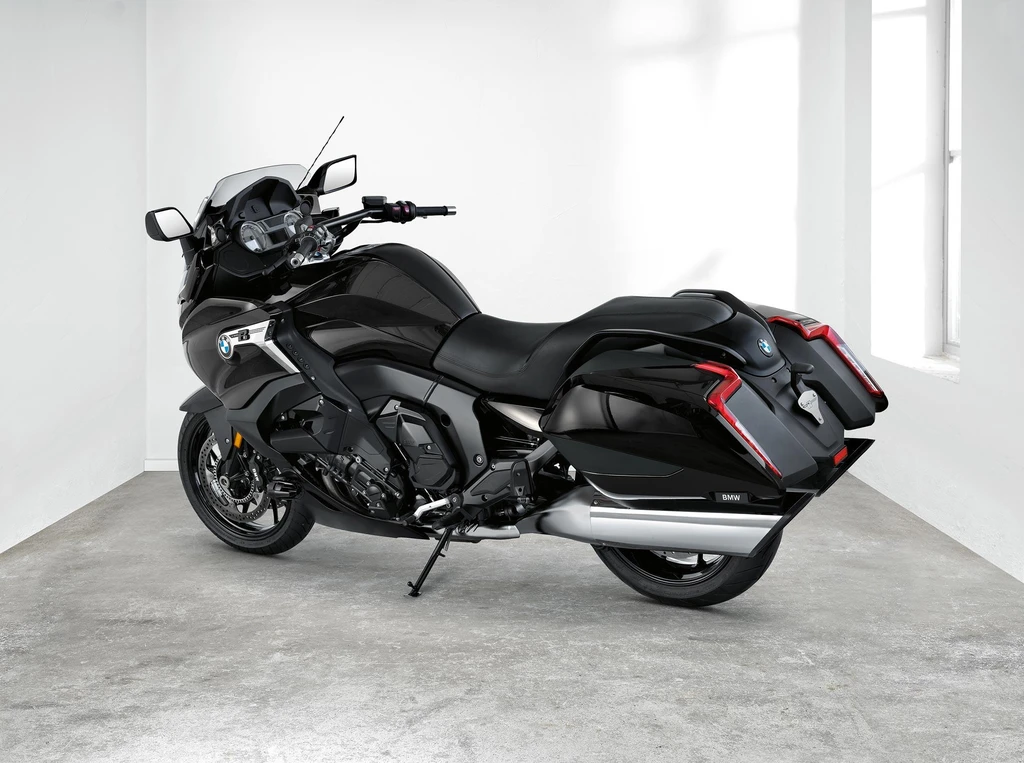

BMW K1600B Bagger (2017 - 2018)

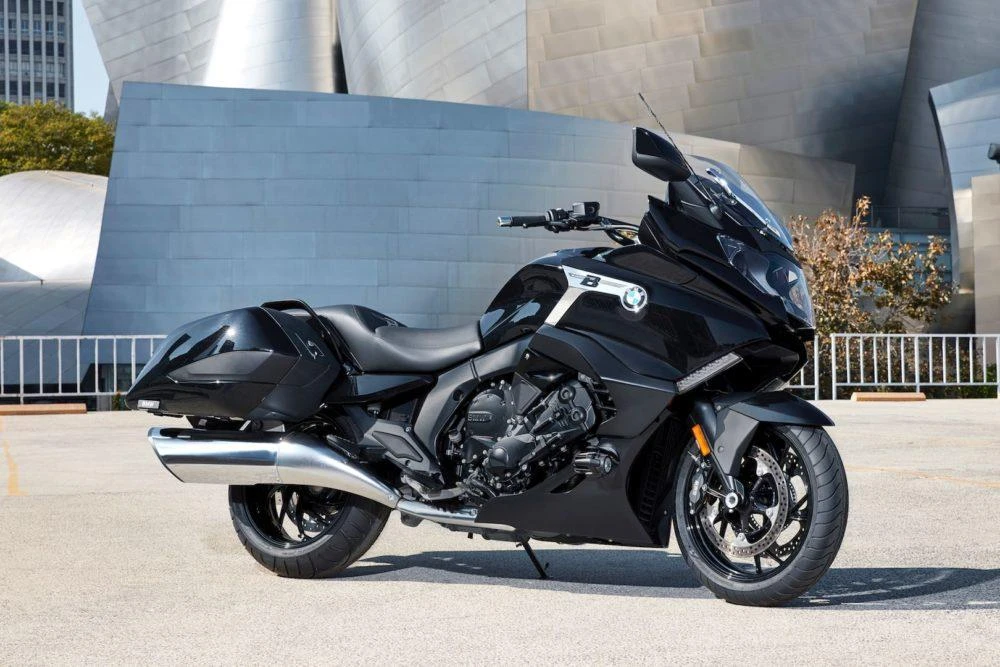

BMW K1600B Bagger (2017 - 2018)

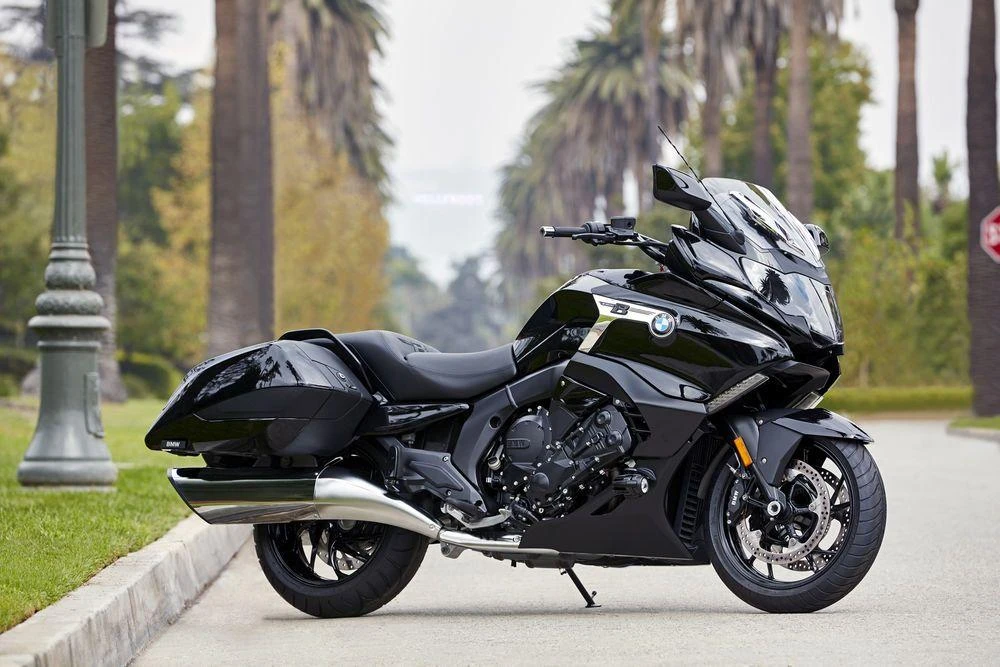

BMW K1600B Bagger (2017 - 2018)
