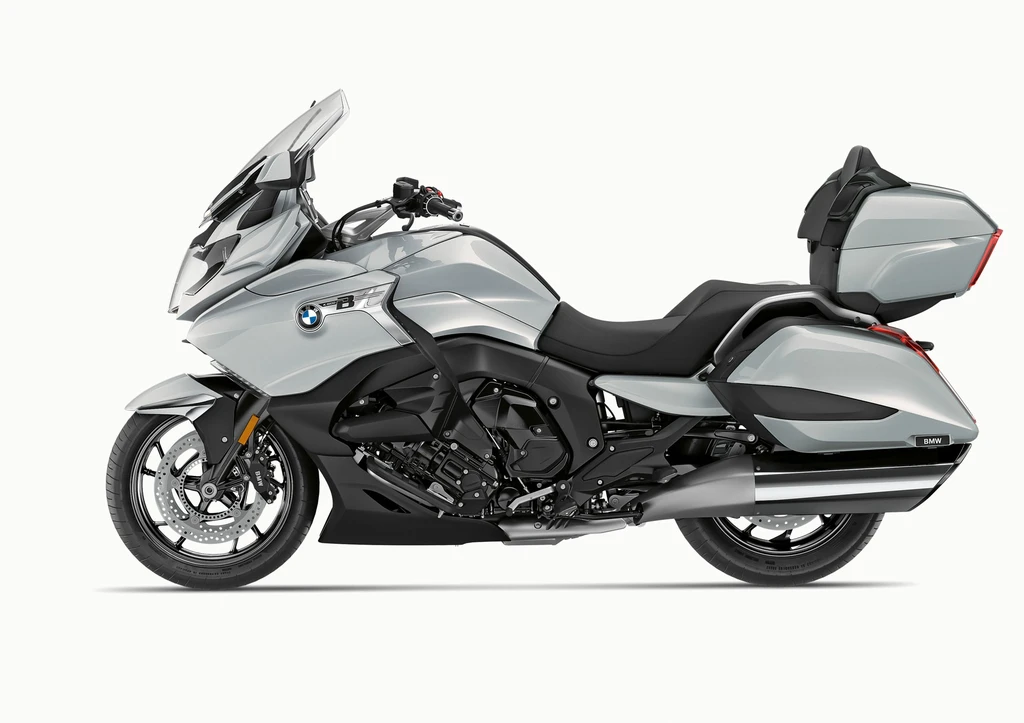

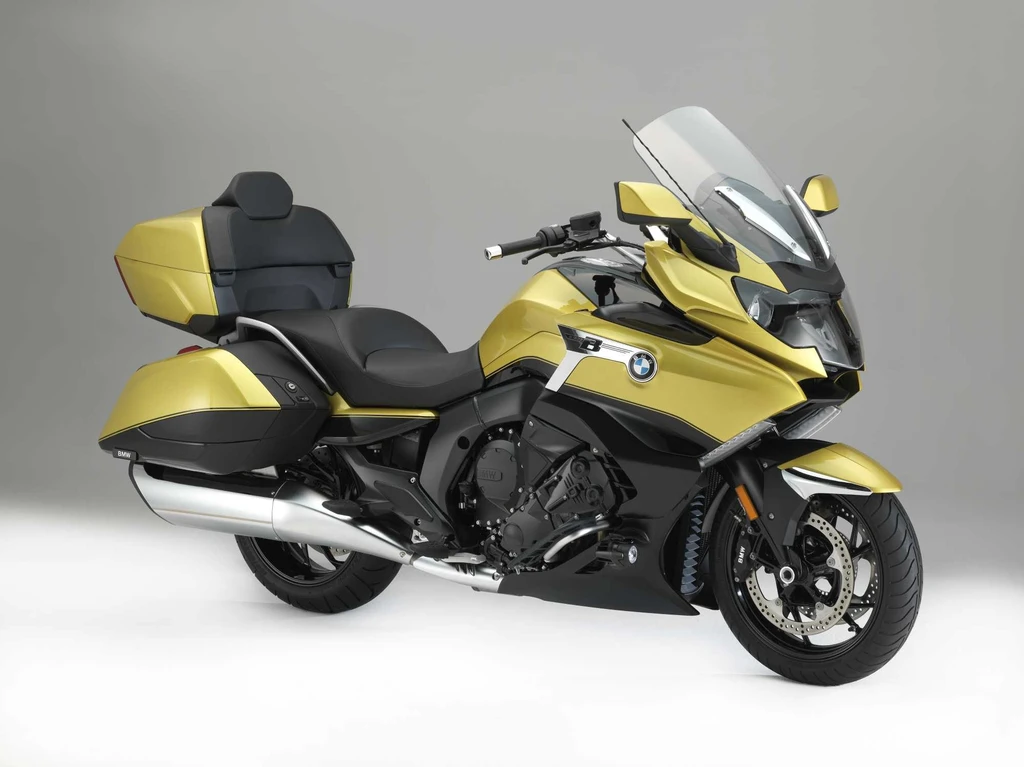

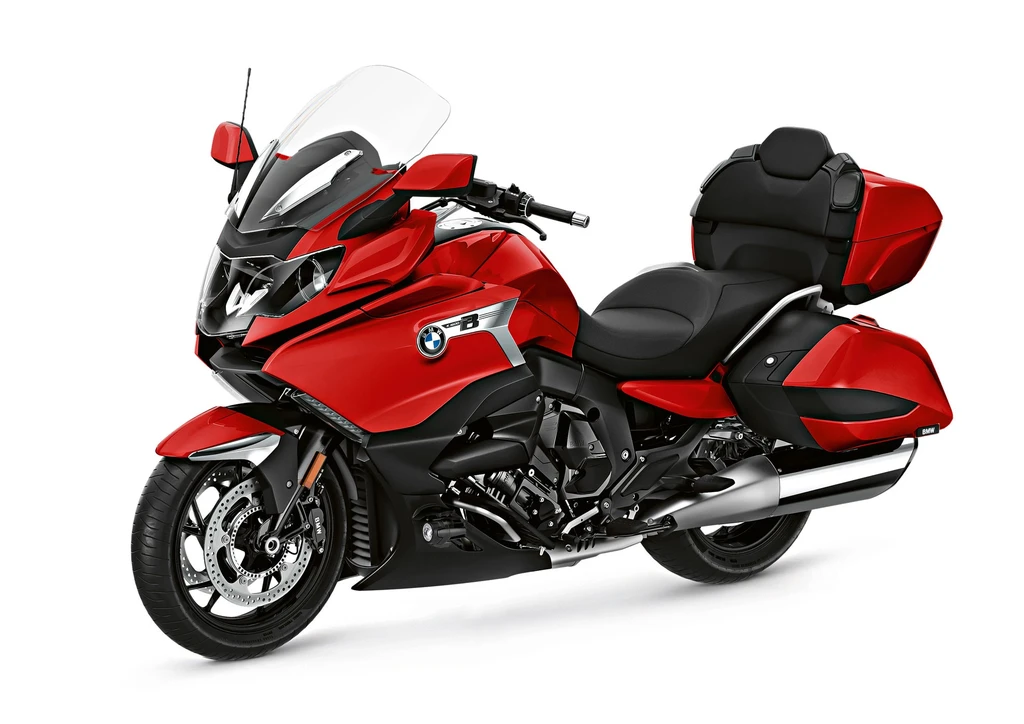

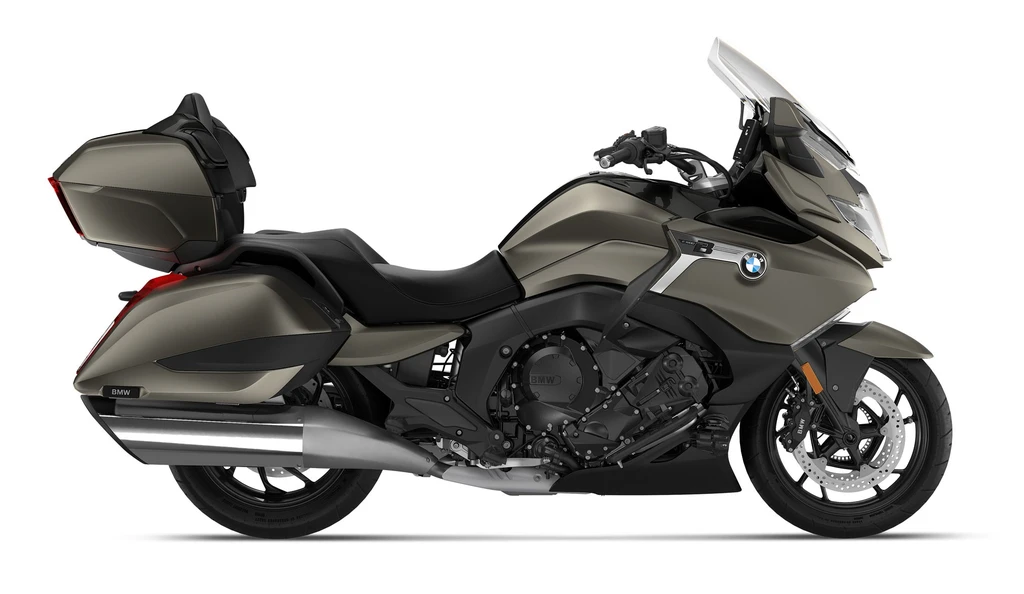

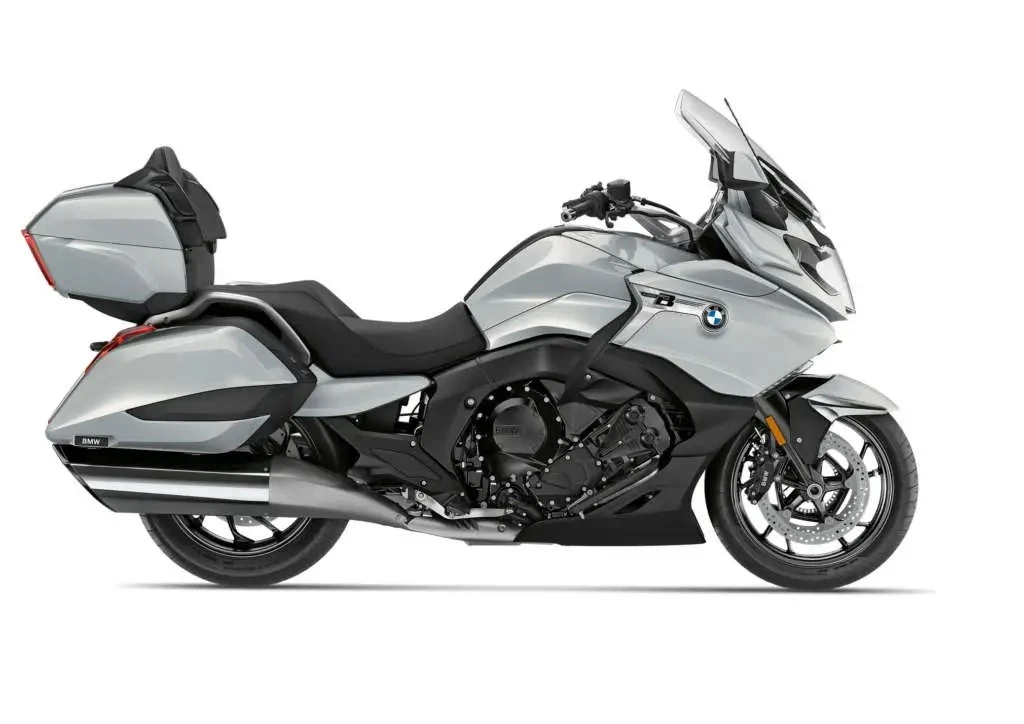

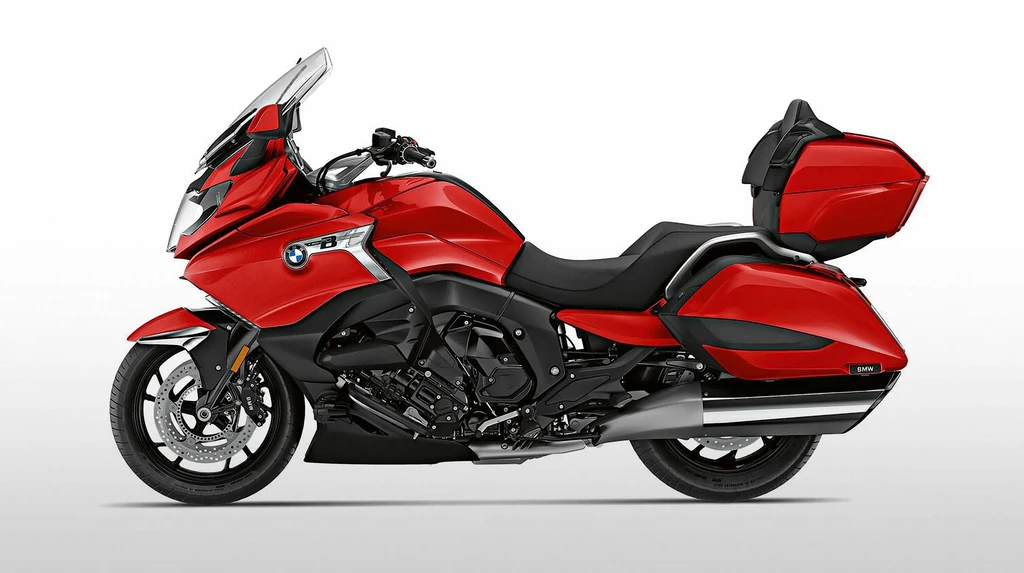

BMW K1600 Grand America (2020 - 2021)

The BMW K1600 Grand America is a masterclass in luxury touring motorcycles. Its bridge-type frame and cast aluminum construction provide the perfect platform for its potent 6-cylinder engine, which delivers an unparalleled smoothness and impressive power.

The Grand America’s design is nothing short of stunning, with a long, drop-shaped silhouette and deep, laid-back seat height that screams comfort. The addition of a top case with integrated passenger backrest and additional transport capacity makes it the perfect companion for long road trips.

But it’s not just about style – this bike has substance too. With 118 kW/160 hp at 7,750 rpm and a maximum torque of 175 Nm at 5,250 rpm, the Grand America can effortlessly devour even the longest routes. And with features like Dynamic ESA electronic suspension and reverse assist as standard, you’ll be riding in ultimate comfort and control.

The result is an authentic and harmonious American-style luxury touring motorcycle that’s equal parts style and substance. With its impressive performance, luxurious amenities, and sleek design, the BMW K1600 Grand America redefines what a touring bike can be: an unforgettable adventure on wheels.

Key Specifications

Engine Type	Four stroke, transverse six cylinder, 4 valves per cylinder
Engine Capacity	1649 cc / 100.6 cu in.
Max Power	118 kw / 160.5 hp
Max Torque	175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Fuel Tank Capacity	7.0 US gallons / 26.5 L
Weight (Wet/Kerb)	740.7 lbs / 336 kg
Seat Height	30.7 inches / 780 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW K1600 Grand America
Year	2020 – 2021

Engine

Engine Type	Four stroke, transverse six cylinder, 4 valves per cylinder
Displacement	1649 cc / 100.6 cu in.
Bore x Stroke	72 x 67.5 mm
Compression Ratio	12.2:1
Max Horsepower	118 kw / 160.5 hp
Max Torque	175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Engine Management System	52mm Throttle valve diameter, BMS-X
Cooling System	Liquid cooled
Fuel	Premium unleaded (95 RON)

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiplate wet clutch, hydraulically activated
Gearbox	Constant-mesh 6-speed gearbox, helical cut
Gear Ratios	1st 2.23 / 2nd 1.641 / 3rd 1.319 / 4th 1.101 / 5th 0.926 / 6th 0.788
Final Drive	Shaft

Electrical & Electronics System

Battery	12 V / 19 Ah maintenance free
Starter	Electric
ABS	BMW Motorrad ABS (partial integral)

Chassis & Suspension

Frame Type	Bridge-type frame, cast aluminium, load-bearing engine
Front Suspension	Dual longitudinal control arm, Dynamic ESA semi-active suspension (road and dynamic modes)
Front Suspension Travel	4.9 inches / 115 mm
Rear Suspension	Paralever (single-sided swing arm), central spring strut, rebound/continuously variable, Dynamic ESA semi-active suspension (road and dynamic modes)
Rear Suspension Travel	5.3 inches / 135 mm
Trail	62.2

Wheels & Brakes

Wheels	Cast aluminium wheels
Front Wheel/Rim Size	3.0 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	6.00 x 17
Rear Tire Size	190/55 ZR17
Front Brakes	2 x 320mm discs, 4 piston calipers
Rear Brakes	Single 320mm disc, 2 piston caliper
ABS	BMW Motorrad ABS (partial integral)

Dimension & Weights

Overall Length	2324 m / 91.5 in
Overall Width	1000 mm / 39.4 in (incl. mirrors)
Overall Height	1465 mm / 57.7 in (excl. mirrors)
Seat Height	30.7 inches / 780 mm
Wheelbase	66.1 inches / 1680 mm
Fuel Tank Capacity	7.0 US gallons / 26.5 L
Wet (kerb/curb) Weight	740.7 lbs / 336 kg

Features

Bridge-type frame
Cast aluminium load-bearing engine
6-cylinder in-line engine
118 kW/160 hp output at 7,750 rpm
Maximum torque of 175 Nm at 5,250 rpm
Top speed limited to 162 km/h or 101 mph
Electronic suspension Dynamic ESA
Damping modes Road and Cruise as standard
Reverse assist for effortless manoeuvring
Effective weather protection due to high windshield
Low rear frame
Passenger seat reduced by 70 millimetres
Ergonomically adapted footrest position
Footboards for relaxed feet forward rider seating position
Shift Assistant Pro for shifting up and down without clutch activation (optional)
Intelligent Emergency Call as an ex works option
ABS Pro
Dynamic Traction Control DTC
Xenon headlight
Heated grips
Seat heating
