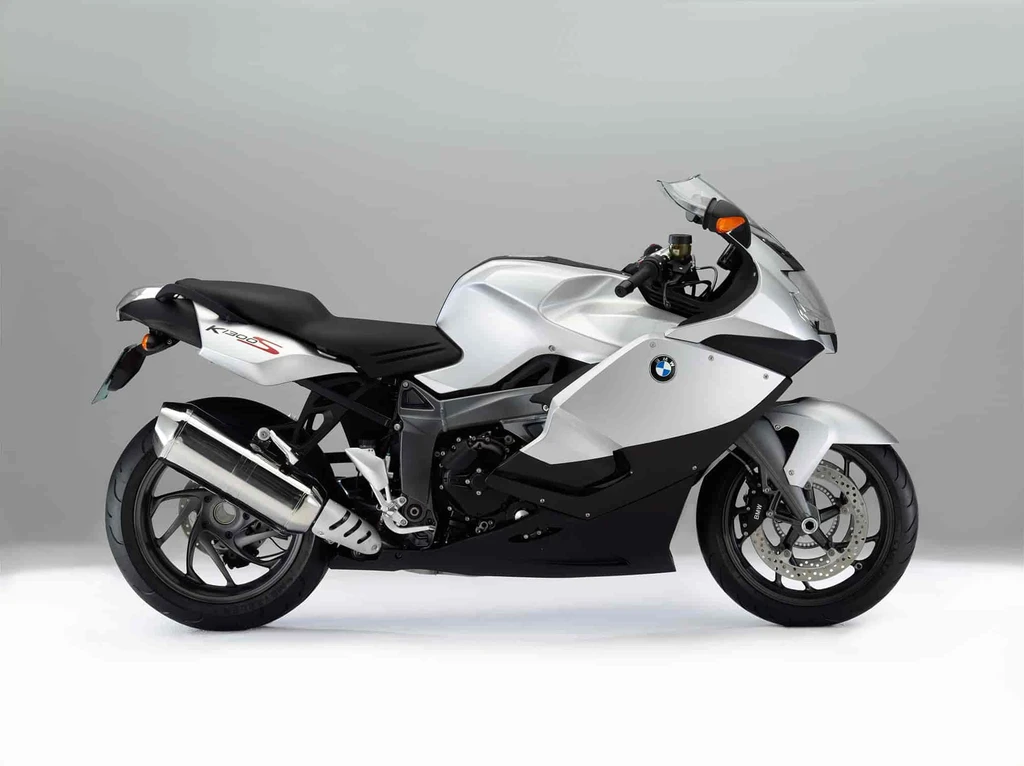

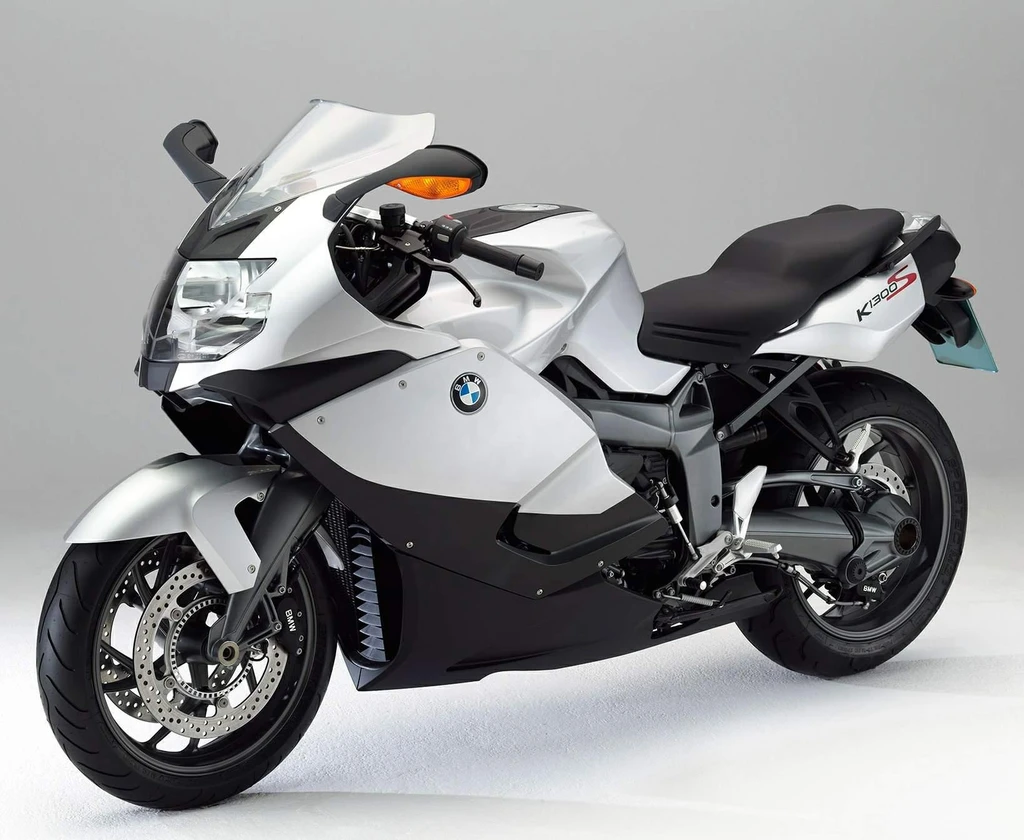

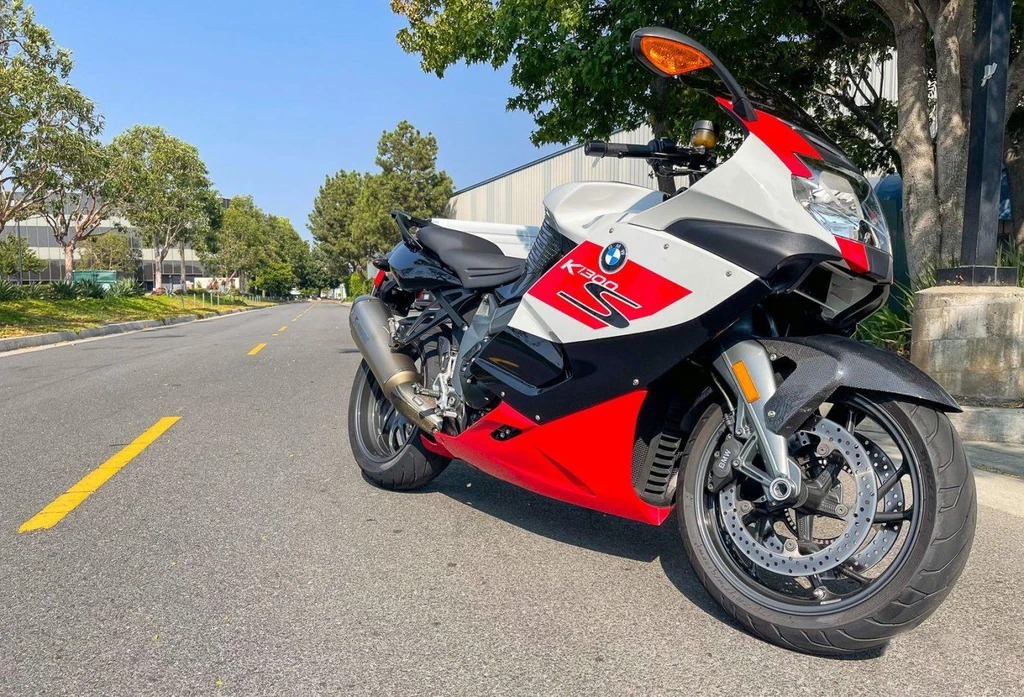

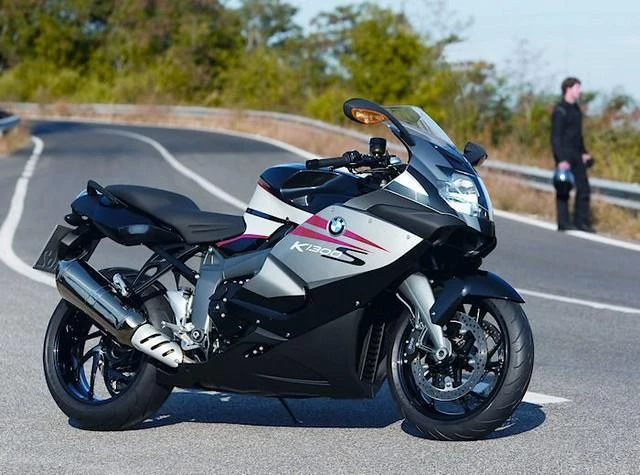

BMW K 1300S (2014)

The BMW K 1300S – a motorcycle that defies categorization. With its in-line 4-cylinder engine delivering 175 horsepower and 103 ft-lb of torque, this bike is a force to be reckoned with on the road. Yet, its smooth power delivery and excellent everyday suitability make it equally at home on a quick trip or a long journey.

Its 1,293cc engine is a technological marvel, producing a throaty sound from its hexagonal tube exhaust and boasting fuel consumption and emission values that would put many smaller machines to shame. With its standard ABS and optional ASC and ESA, safety is never compromised.

Ride the K 1300S and experience the ultimate sports tourer – a bike that combines supreme power with understated sophistication. The thrill of its acceleration and instant response across the rev range are just the beginning.

Key Specifications

Engine Type	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Engine Capacity	1298 cc / 79.2 cu in.
Max Power	127 kw / 173 hp
Max Torque	140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm
Fuel Tank Capacity	5.0 US gallons / 19.0 L
Weight (Wet/Kerb)	550 lbs / 254 kg
Seat Height	32.3 inches / 820 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW K 1300S
Year	2014

Engine

Engine Type	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Displacement	1298 cc / 79.2 cu in.
Bore x Stroke	80 x 64.3 mm / 3.15 x 2.53 in
Compression Ratio	13.0:1
Max Horsepower	127 kw / 173 hp
Max Torque	140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm
Engine Management System	Electronic fuel injection, Digital Motor Electronics with integrated knock control (BMS-K)
Lubrication System	Dry sump
Cooling System	Liquid cooled

Performance

Top Speed

276.6 km/h / 171.9 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiple-plate clutch in oil bath, hydraulically operated
Gearbox	6 Speed
Gear Ratios	1st 2.398 / 2nd 1.871 / 3rd 1.525 / 4th 1.296 / 5th 1.143 / 6th 1.015:1
Final Drive	Shaft

Electrical & Electronics System

Battery	12V / 14AH, maintenance free
Starter	Electric

Chassis & Suspension

Frame Type	Bridge frame, aluminium, load-bearing engine
Front Suspension	BMW Motorrad Duolever, central spring strut, Paralever; central spring strut with lever system
Rear Suspension	Cast aluminium single swing arm with BMW Motorrad, spring pre-tension with infinite hydraulic adjustment
Trail	104.4 mm / 4.1 in

Wheels & Brakes

Wheels	Cast aluminium
Front Wheel/Rim Size	3.50 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	6.00 x 17
Rear Tire Size	190/55 ZR17
Front Brakes	2x 320mm discs, 4 piston calipers
Rear Brakes	Single 265mm disc, 2 piston caliper

Dimension & Weights

Seat Height	32.3 inches / 820 mm
Wheelbase	62.4 inches / 1585 mm
Fuel Tank Capacity	5.0 US gallons / 19.0 L
Wet (kerb/curb) Weight	550 lbs / 254 kg
Dry Weight	228 kg / 503 lbs

Features

Electronic fuel injection
Digital Motor Electronics with integrated knock control (BMS-K)
175 hp engine
103 ft-lb of torque
1,293 cc engine
Throaty sound from a hexagonal tube exhaust
Catalytic converter and exhaust valve
Fuel consumption and exhaust emission values
ABS as standard
ASC (Traction Control) and ESA (Electronic Suspension Adjustment) optional
Gear shift assistant
2D HP dashboard
Quieter engine operation compared to previous model
Improved delivery of power from low to high speeds
Smooth and homogeneous power delivery
Improved transmission and engine combination
Adjustable brakes with servo-assistance
Powerful and fully adjustable brakes
Effective ABS system as standard
