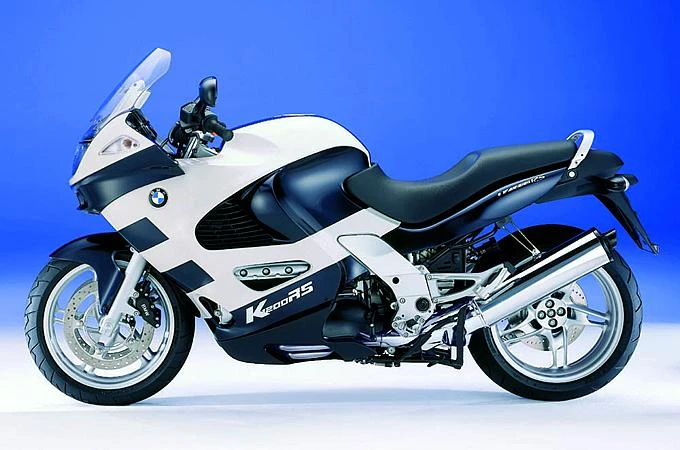

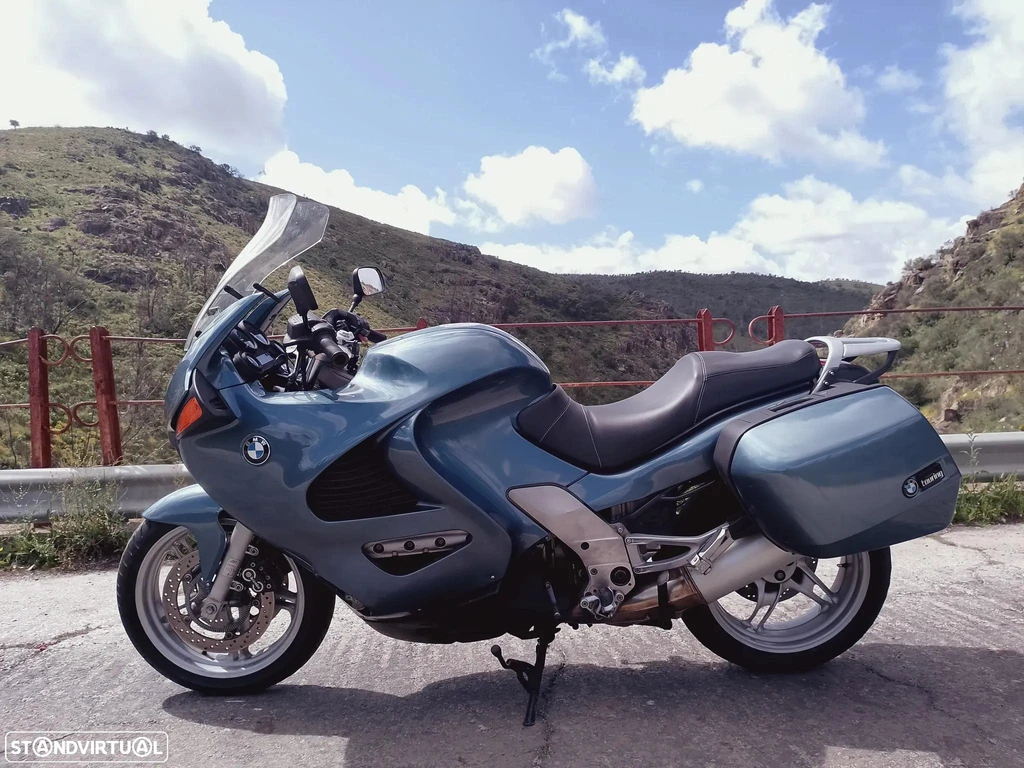

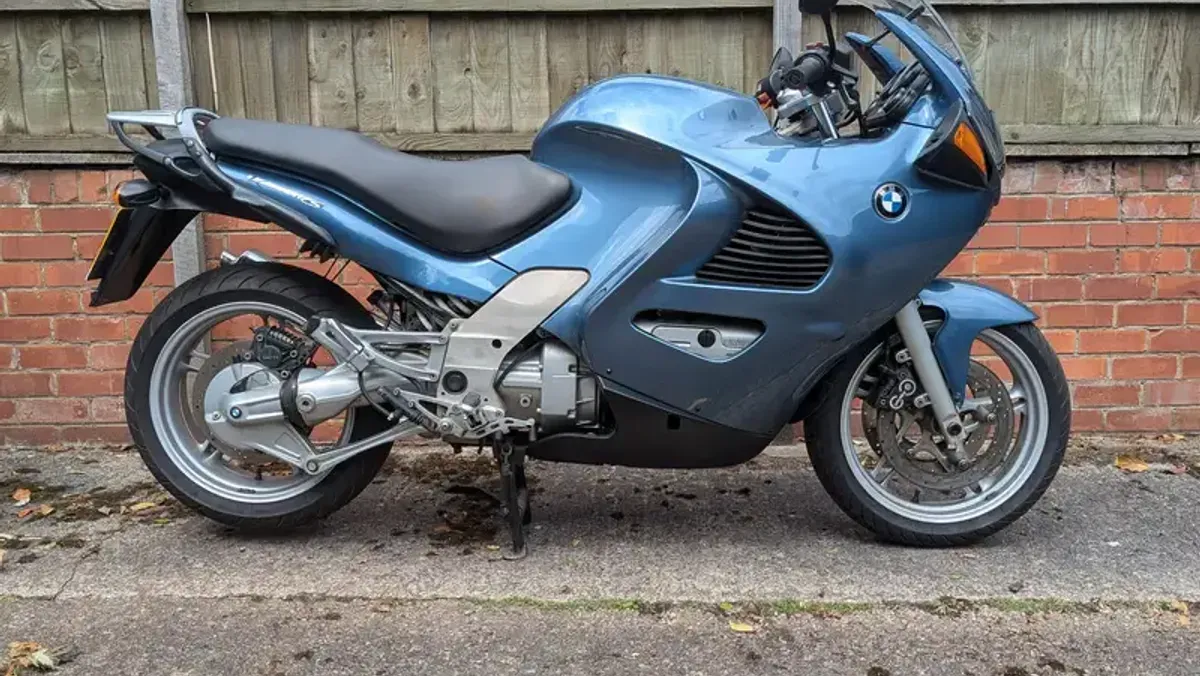

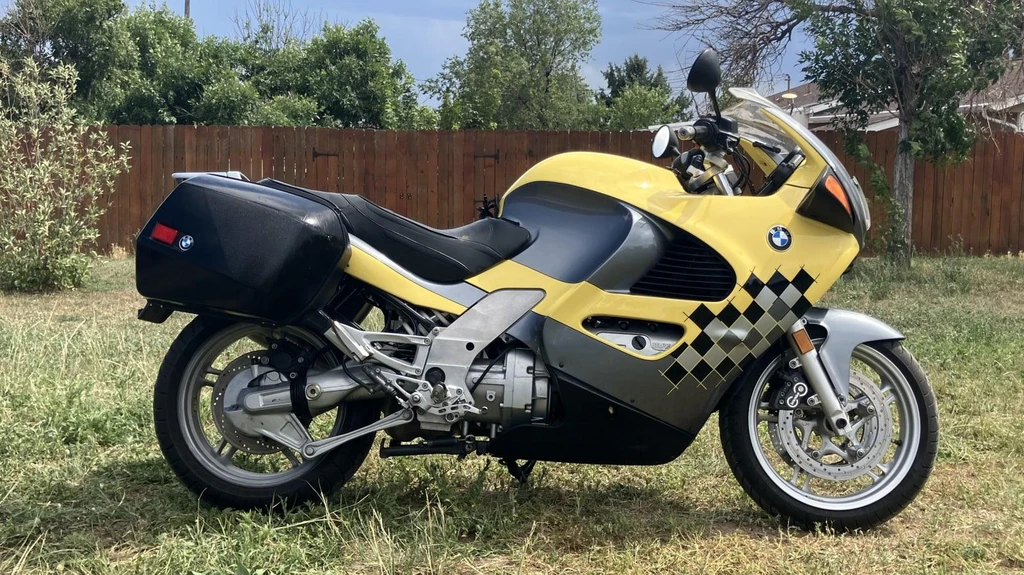

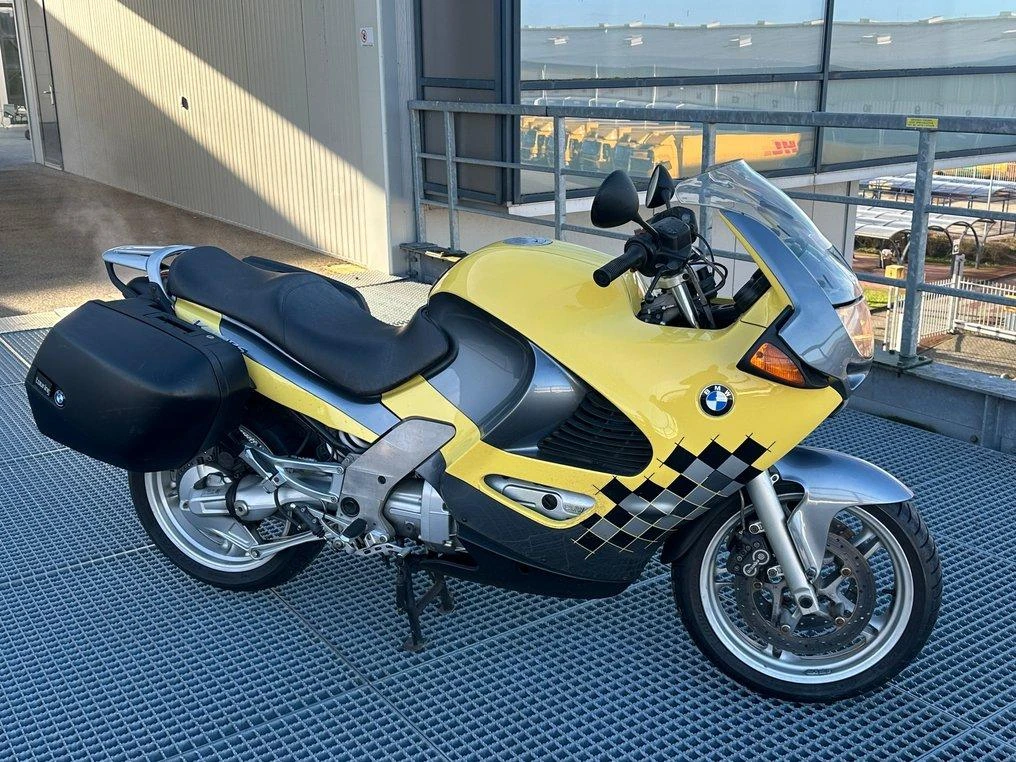

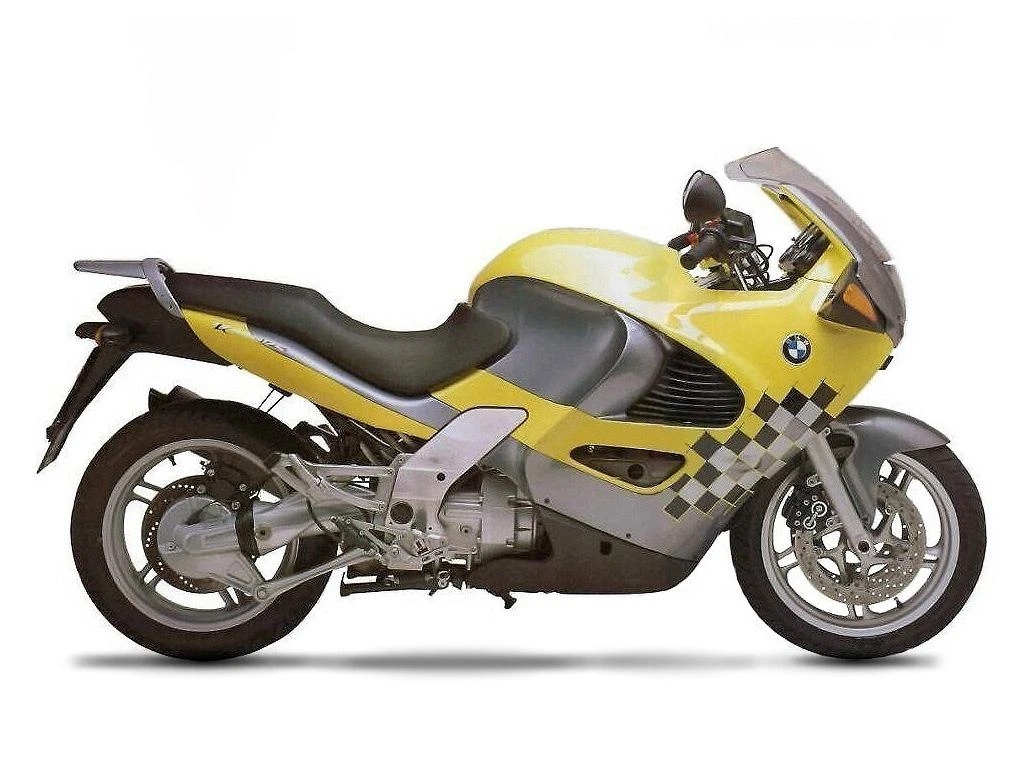

BMW K 1200RS (1997 – 98)

BMW K 1200RS (1997 - 98)

The BMW K 1200RS, a behemoth of a sports tourer that stormed the market in 1997, boasting the most powerful engine of its time. The inline-four, 1171cc powerplant unleashes 97kW (130bhp) of fury, its horizontal layout nestled at the bottom of the bike for optimal mass centralization.

A Bosch Motronic fuel injection system and catalytic converter ensure impeccable emissions control, while the 16-valve engine breathes new life into the legendary K series. The fairing, a sleek aerodynamic cocoon, shields both rider and pillion from the elements, with adjustable components to accommodate riders of various sizes.

At the front, the Telelever suspension system takes the strain, isolating suspension forces from braking forces to deliver unparalleled stability and comfort. The Paralever rear suspension completes the package, providing a smooth, controlled ride even in the most extreme conditions.

The BMW K 1200RS is a masterpiece of engineering, a true heavyweight sports tourer that redefined the riding experience. It’s a machine that demands to be ridden hard, and rewards its rider with an unforgettable blend of power, precision, and poise.

Key Specifications

Engine TypeFour stroke, horizontal in line four cylinder, DOHC, 4 valves per cylinder
Engine Capacity1171 cc / 71.4 cu in
Max Power97 kw / 130 hp
Max Torque115 Nm / 11.7 kgf-m / 85 lb-ft @ 6750 rpm
Fuel Tank Capacity22 L / 5.8 US gal
Weight (Wet/Kerb)617 lbs / 280 kg
Seat Height303 inches / 800 mm
BMW K 1200RS (1997 - 98)

All Specifications

Make & Model

ModelBMW K 1200RS
Year1997 – 98

Engine

Engine TypeFour stroke, horizontal in line four cylinder, DOHC, 4 valves per cylinder
Displacement1171 cc / 71.4 cu in
Bore x Stroke70.5 x 75 mm
Compression Ratio11.5:1
Max Horsepower97 kw / 130 hp
Max Torque115 Nm / 11.7 kgf-m / 85 lb-ft @ 6750 rpm
Engine Management SystemElectronic intake pipe injection
Cooling SystemLiquid cooled

Performance

Top Speed246 km/h / 153 mph

Transmission

ClutchSingle-disc dry clutch, hydraulically operated
Gearbox6 Speed
Gear Ratios1st 2.045 / 2nd 1.600 / 3rd 1.267 / 4th 1.038 / 5th 0.900 / 6th 0.829:1
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeBridging frame consisting of die-cast aluminium, engine decoupled from vibration through bearings
Front SuspensionTelelever, stanchion diameter ∅35 mm, central strut
Rear SuspensionDie cast aluminium single sided swinging arm with BMW Motorrad Paralever, central strut, spring preload and rebound damping adjustable

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size170/60 ZR18
Front Brakes2 x ∅320mm discs, 4 piston calipers
Rear BrakesSingle ∅285mm disc, 2 piston caliper

Dimension & Weights

Seat Height303 inches / 800 mm
Fuel Tank Capacity22 L / 5.8 US gal
Wet (kerb/curb) Weight617 lbs / 280 kg
Dry Weight266 kg / 586 lbs

Features

  • 1171cc four-cylinder engine
  • Inline-four engine mounted horizontally
  • Bosch Motronic electronic fuel-injection
  • Catalytic converter for emissions control
  • 97kW (130bhp) power output
  • 16-valve engine design
  • Full sports-touring fairing
  • Adjustable screen, seat, handlebars, and footpegs
  • Telelever front suspension system
  • Cast aluminium strut for front suspension
  • Paralever single-sided shaft-drive rear suspension
  • ABS EVO front brakes
  • Optional heated grips and luggage systems
  • 285kg (6271b) dry weight
  • 4, 6, and 1 cylinder ratios for transmission
  • 3, 4, and 5 gear ratios for transmission
