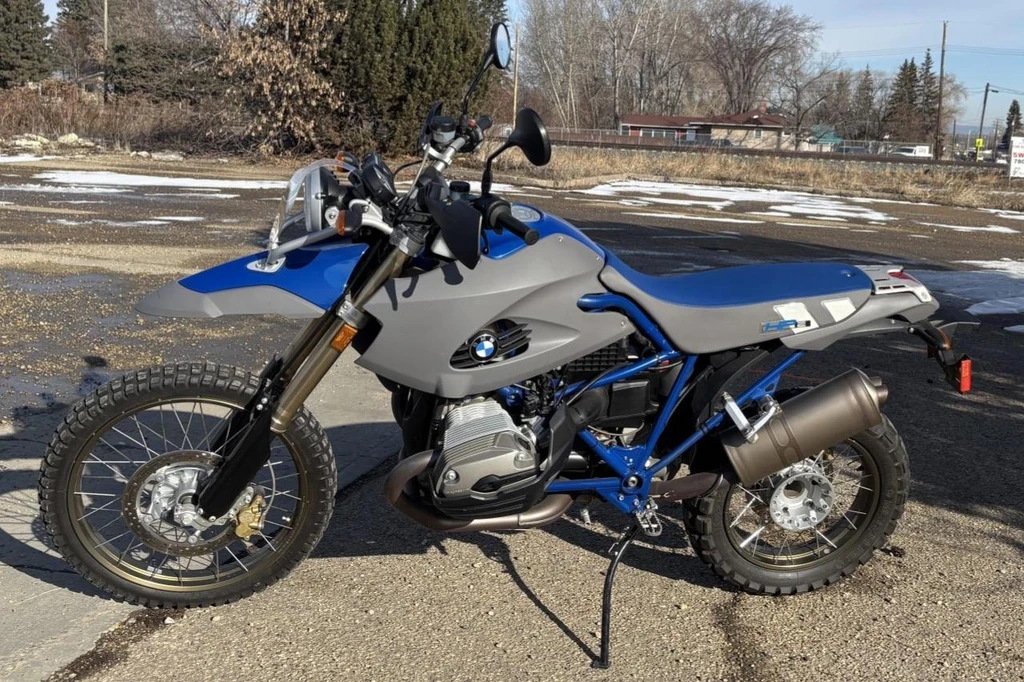

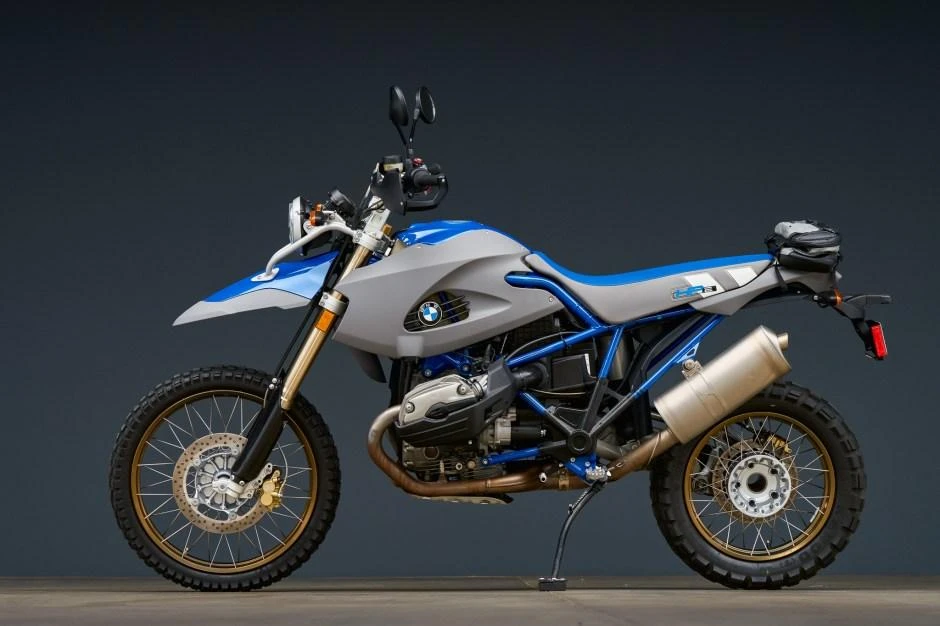

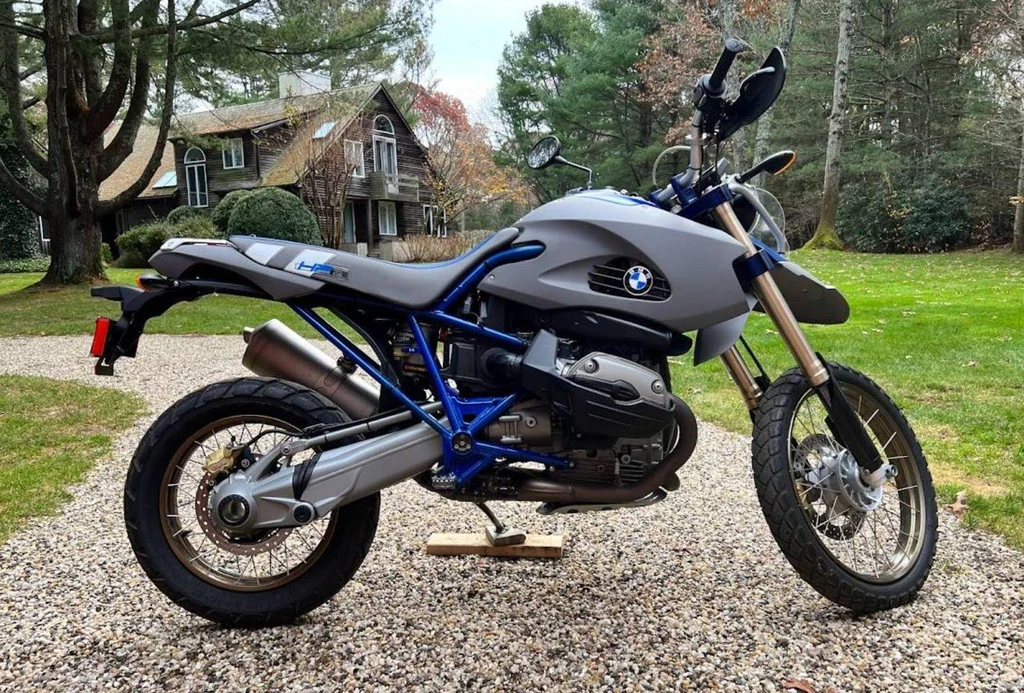

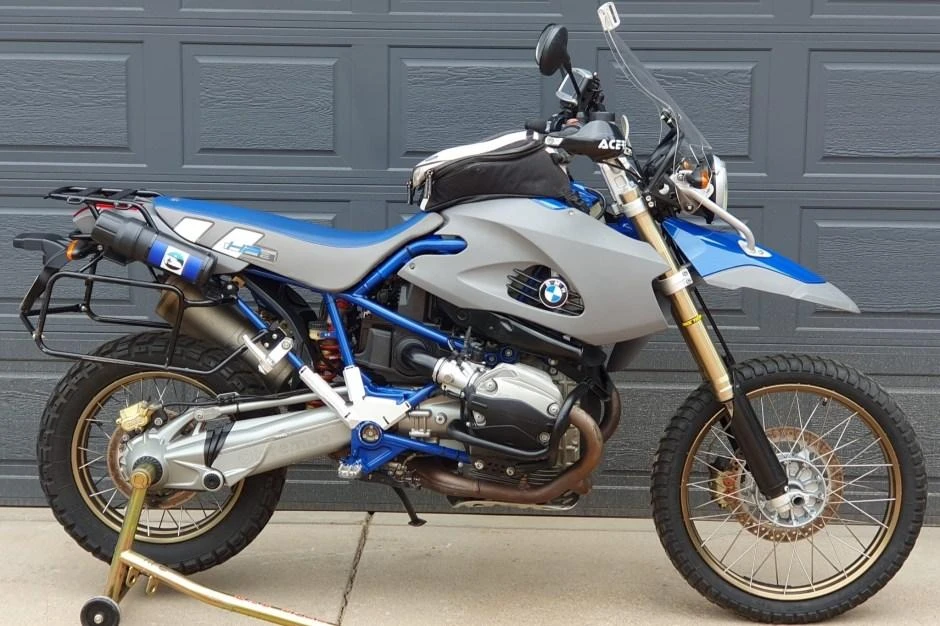

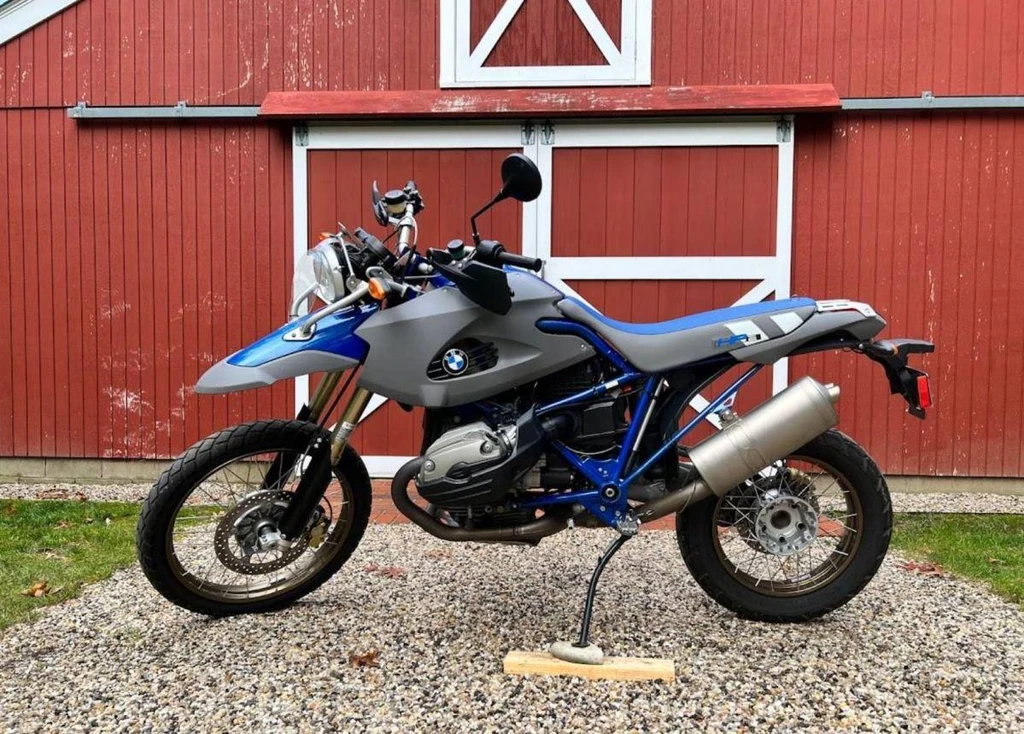

BMW HP2 Enduro (2006)

The HP2 Enduro is a beast of a bike, with a monstrous 105bhp engine and a lightweight body that tips the scales at just 386lbs dry.

The air/oil-cooled Boxer engine is a masterclass in engineering, with four valves per cylinder and a raucous exhaust note that’s music to the ears of any off-road enthusiast.

But the HP2 is more than just a powerhouse – it’s also a precision instrument, with a suspension setup that’s been finely tuned for maximum grip and control, and a chassis that’s been designed to withstand even the most extreme off-road conditions.

With its WAD upside-down fork and BMW’s innovative air damping system on the rear, this bike is a marvel of engineering that’s as capable off-road as it is on-road. And yet, despite its rugged demeanor, the HP2 is also a joy to ride, with a playful handling and a high-performance power unit that makes it a blast to ride on twisty roads.

The HP2 Enduro is the ultimate off-road Boxer, and it’s a testament to BMW’s commitment to building motorcycles that are as capable as they are stylish.

Key Specifications

Engine Type	Four stroke, two cylinder horizontally opposed Boxer air/oil-cooled, 4 Valves per cylinder
Engine Capacity	1170 cc / 71.5 cub. in.
Max Power	77 kw / 105 hp
Max Torque	115 Nm / 11.7 kgf-m / 84.8 lb-ft @ 5500 rpm
Fuel Tank Capacity	3.4 US gallons / 13.0 L

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW HP2 Enduro
Year	2006

Engine

Engine Type	Four stroke, two cylinder horizontally opposed Boxer air/oil-cooled, 4 Valves per cylinder
Displacement	1170 cc / 71.5 cub. in.
Bore x Stroke	101 x 73 mm
Compression Ratio	11.0:1
Max Horsepower	77 kw / 105 hp
Max Torque	115 Nm / 11.7 kgf-m / 84.8 lb-ft @ 5500 rpm
Engine Management System	Fuel Injection ∅47mm ThrottlebutterflyBMS-K
Lubrication System	Wet sump

Performance

Top Speed

210 km/h / 130.5 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Singleplatedryclutch,180mmdiameter
Gearbox	6 Speed
Gear Ratios	1st 2.28 / 2nd 1.58 / 3rd 1.26 / 4th 1.03 / 5th 0.90 / 6th 0.81:1
Final Drive	Shaft

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Steel tubular space frame, non-load-bearing engine
Front Suspension	45mm UPSD Gabe
Front Suspension Travel	10.6 inches / 270 mm
Rear Suspension	BMW Paralever
Rear Suspension Travel	9.8 inches / 250 mm
Trail	127 mm / 5.0 in

Wheels & Brakes

Front Wheel/Rim Size	1.85 x 21 cross spoke
Front Tire Size	90/90 R21S
Rear Wheel/Rim Size	2.5 x 17 cross spoke
Rear Tire Size	140/80 R17S
Front Brakes	2 x ∅304mm discs, 4 piston caliper
Rear Brakes	Single 265mm disc 2 piston caliper

Dimension & Weights

Overall Length	2350 mm / 92.5 in
Overall Width	880 mm / 34.6 in
Overall Height	1266 mm / 49.8 in
Fuel Tank Capacity	3.4 US gallons / 13.0 L

Features

105 bhp powerful Boxer engine
4 Valves per cylinder
Air/oil-cooled engine
Horizontally opposed two cylinder design
386 lbs dry weight
Lightweight body
Race-ready suspension
WAD upside down fork
BMW motorcycle air damping system
Rear air/spring/damper system
World-first achievement in rear air/spring/damper system
Optimized engine for minimum weight
Entire drivetrain laid out for offroad use
Consistent lightweight engineering
Ergonomic design
Perfect riding position
High-performance power unit
Low centre of gravity
Supreme riding pleasure on and off road
