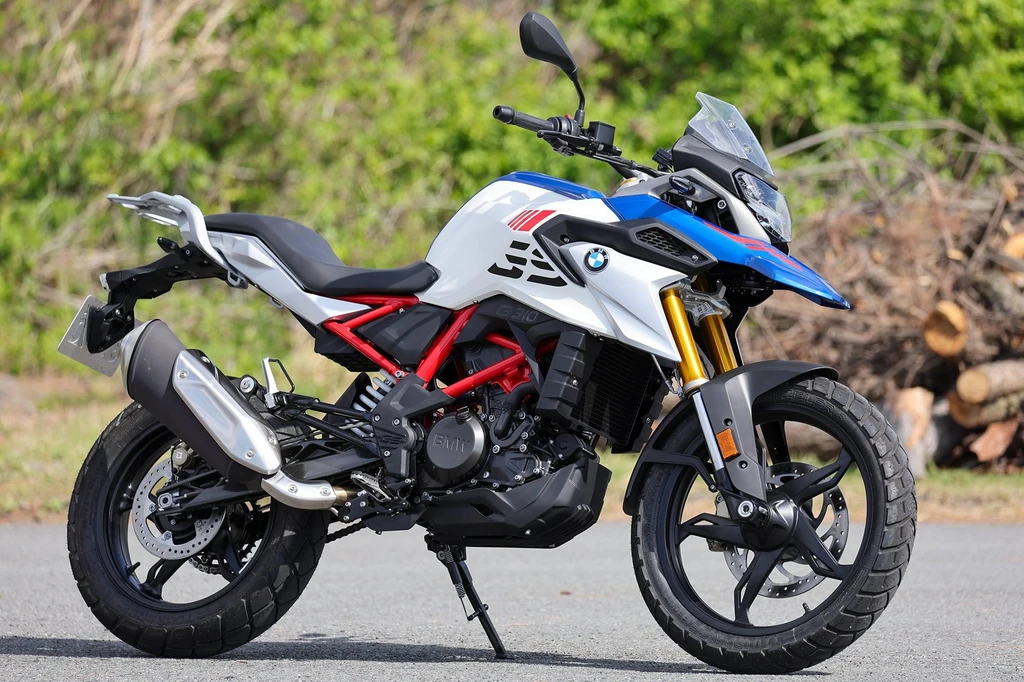

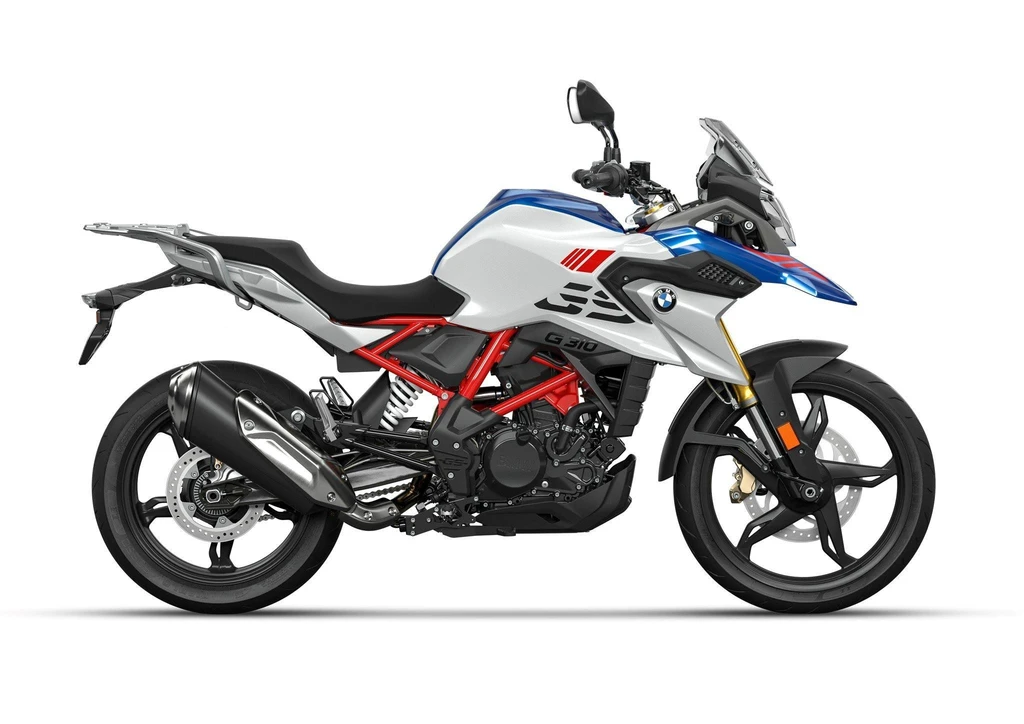

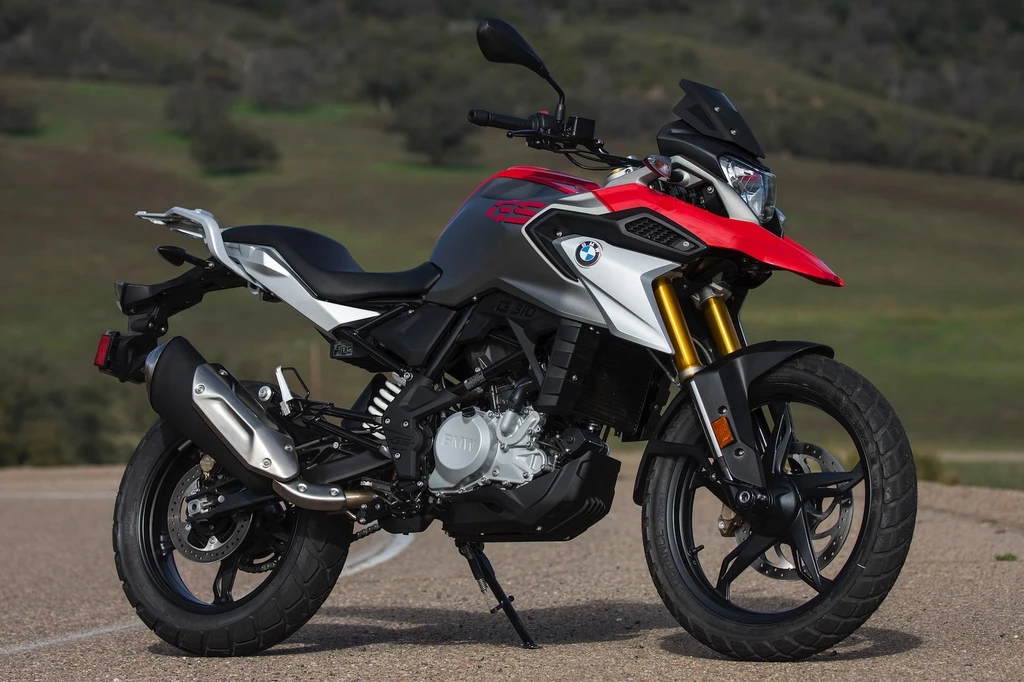

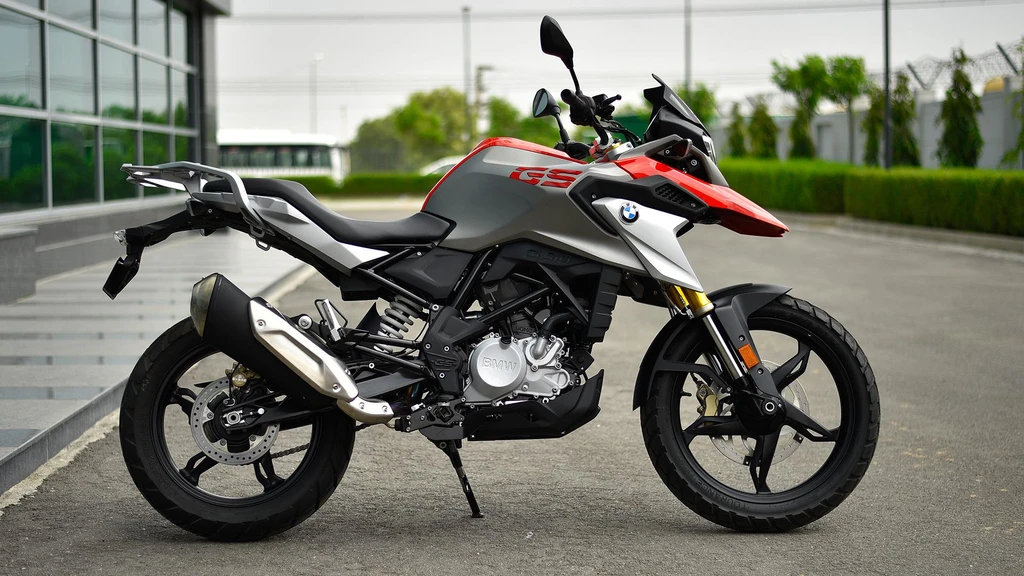

BMW G 310GS (2018)

The BMW G 310 GS embodies the promise of GS – perfect functioning, reliability, and robustness – in a compact, yet mature and comfortable package. This highly contemporary product boasts unparalleled versatility in its segment, effortlessly navigating city traffic and light terrain with equal aplomb. Its nimble and agile nature makes it the perfect companion for everyday adventures.

With its characteristic high front fender, striking flyline, and short, high rear, the G 310 GS wears its GS heritage proudly. Its compact proportions, short wheelbase, and 19-inch front wheel promise an upright posture and agile riding response, making it at home on roads around the world.

The 313 cc liquid-cooled single-cylinder engine, shared with the G 310 R, is the heartbeat of this remarkable motorcycle. Delivering a perfect blend of dynamic riding fun and broad usability, this innovative engine features four valves, two overhead camshafts, and electronic fuel injection. With its compact size and global adaptability, the BMW G 310 GS is poised to redefine the entry-level segment. The BMW G 310 GS is the ultimate riding companion for everyday adventures, anywhere in the world.

Key Specifications

Engine Type	Four stroke, rRearward-canted single-cylinder, DOHC, 4 valves
Engine Capacity	19.1 cubic inches / 313 cc
Max Power	25 kw / 34 hp
Max Torque	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Fuel Tank Capacity	2.9 US gallons / 11.0 L
Weight (Wet/Kerb)	385.8 lbs / 175 kg
Seat Height	32.9 inches / 835 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW G 310GS
Year	2018

Engine

Engine Type	Four stroke, rRearward-canted single-cylinder, DOHC, 4 valves
Displacement	19.1 cubic inches / 313 cc
Bore x Stroke	80 x 62.1 mm
Compression Ratio	10.6:1
Max Horsepower	25 kw / 34 hp
Max Torque	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Engine Management System	Electronic fuel injection, BMS-E2
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	Single, closed-loop 3-way catalytic converter

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiple-discs in oil bath, mechanically operated
Gearbox	Synchromesh 6-speed transmission, integrated in the motor housing
Final Drive	Chain

Electrical & Electronics System

Battery	12 V / 8 Ah, Maintenance free
Starter	Electric
ABS	BMW Motorrad ABS

Chassis & Suspension

Frame Type	Tubular steel frame with bolted rear frame
Front Suspension	41mm Upside-down fork
Front Suspension Travel	7.1 inches / 180 mm
Rear Suspension	Solid die-cast aluminum swingarm, directly hinged monoshock, adjustable preload
Rear Suspension Travel	7.1 inches / 180 mm
Trail	63.3

Wheels & Brakes

Front Wheel/Rim Size	Cast aluminium, 5-spoke, 2.50 x 19
Front Tire Size	110/80 – R19
Rear Wheel/Rim Size	Cast aluminium, 5-spoke, 4.0 x 17
Rear Tire Size	150/70 – R17
Front Brakes	Single 300mm disc, 4-piston fixed caliper, radially bolted
Rear Brakes	Single 240mm disc, single-piston floating caliper
ABS	BMW Motorrad ABS

Dimension & Weights

Overall Length	2075 mm / 81.7 in
Overall Width	80 mm / 34.6 in (incl. mirrors)
Overall Height	1230 mm / 48.2 in (excl. mirrors)
Seat Height	32.9 inches / 835 mm
Wheelbase	55.9 inches / 1420 mm
Fuel Tank Capacity	2.9 US gallons / 11.0 L
Wet (kerb/curb) Weight	385.8 lbs / 175 kg

Features

Typical GS design with high front fender and striking flyline
Compact proportions with short wheelbase and 19-inch front wheel
Upright posture with extended spring travel for agile riding response
Designed for world market with diverse fuel qualities and emissions standards
313 cc liquid-cooled single-cylinder engine with four valves and two overhead camshafts
Electronic fuel injection with intake at the front and outlet at the rear
Tilted cylinder with positive consequences for bike architecture
Output of 25 kW (34 hp) at 9 500 rpm
Maximum torque of 28 Nm at 7 500 rpm
Low unladen weight of 169.5 kilograms according to DIN
Perfectly designed BMW GS ergonomics for relaxed motorcycling fun
Simple and secure switches and controls
Relaxed seating position for carefree motorcycling pleasure on and off road
Suitable for everyday riding and adventures in light terrain

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
