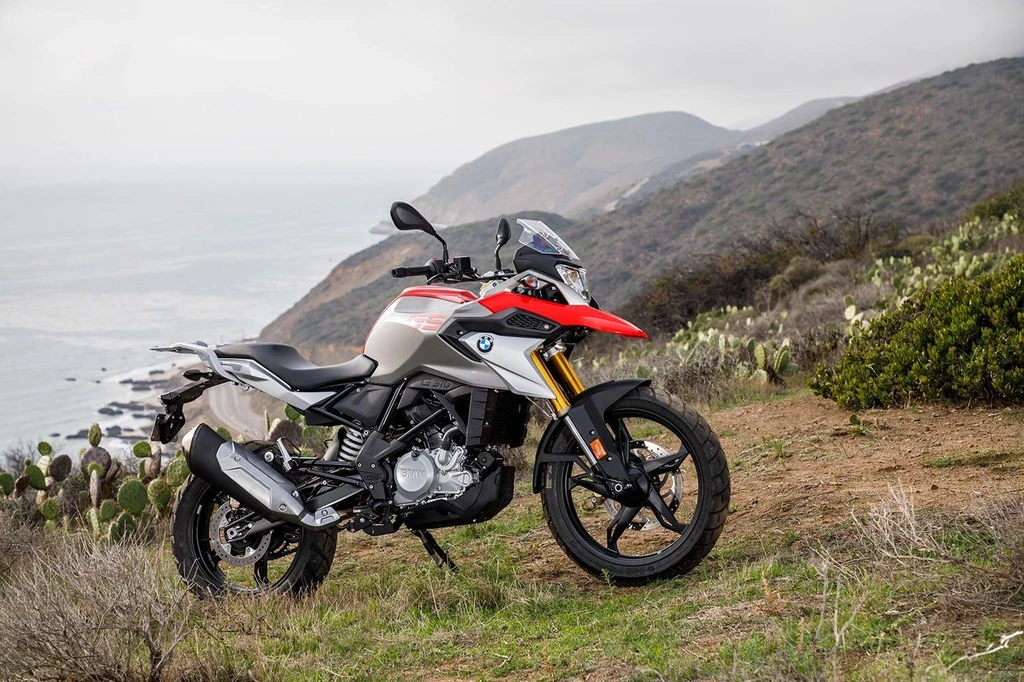

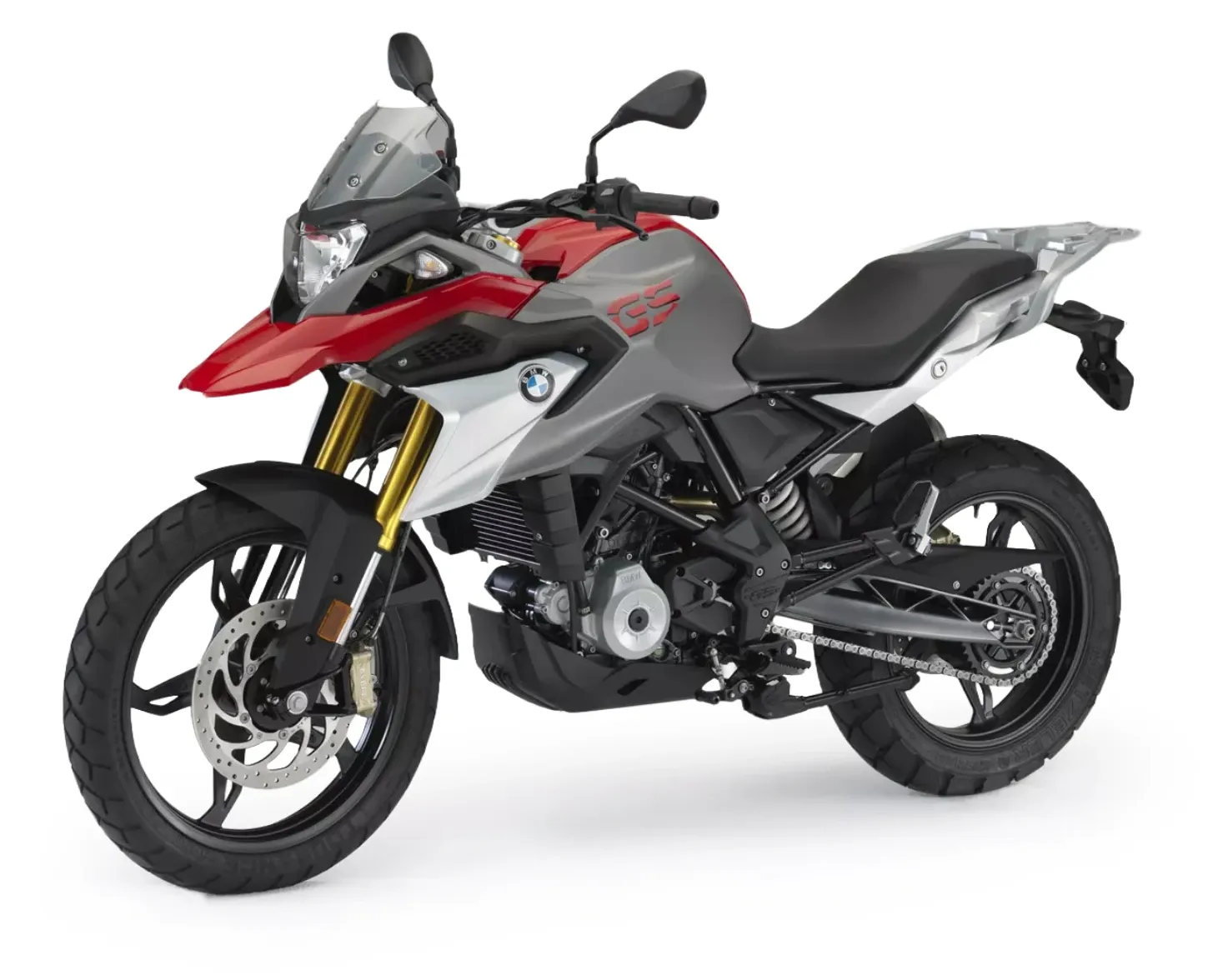

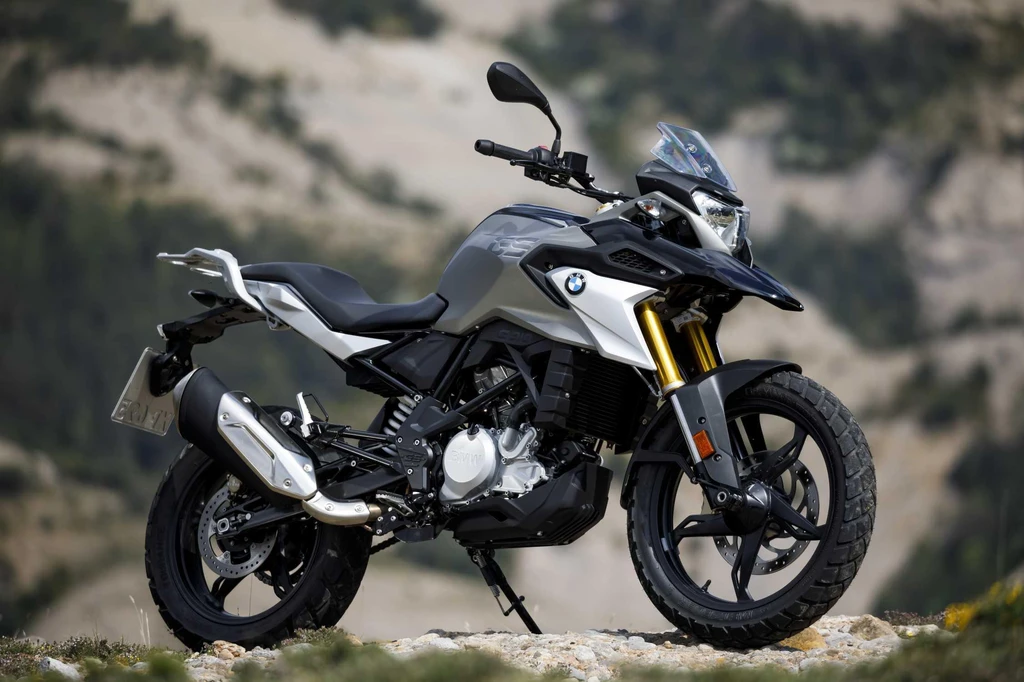

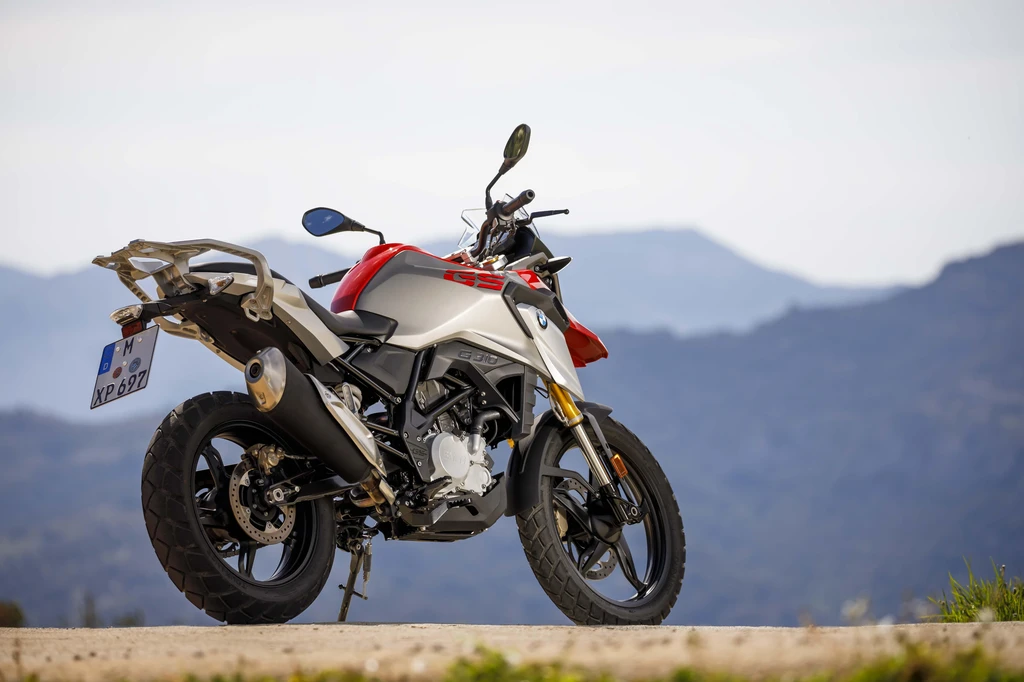

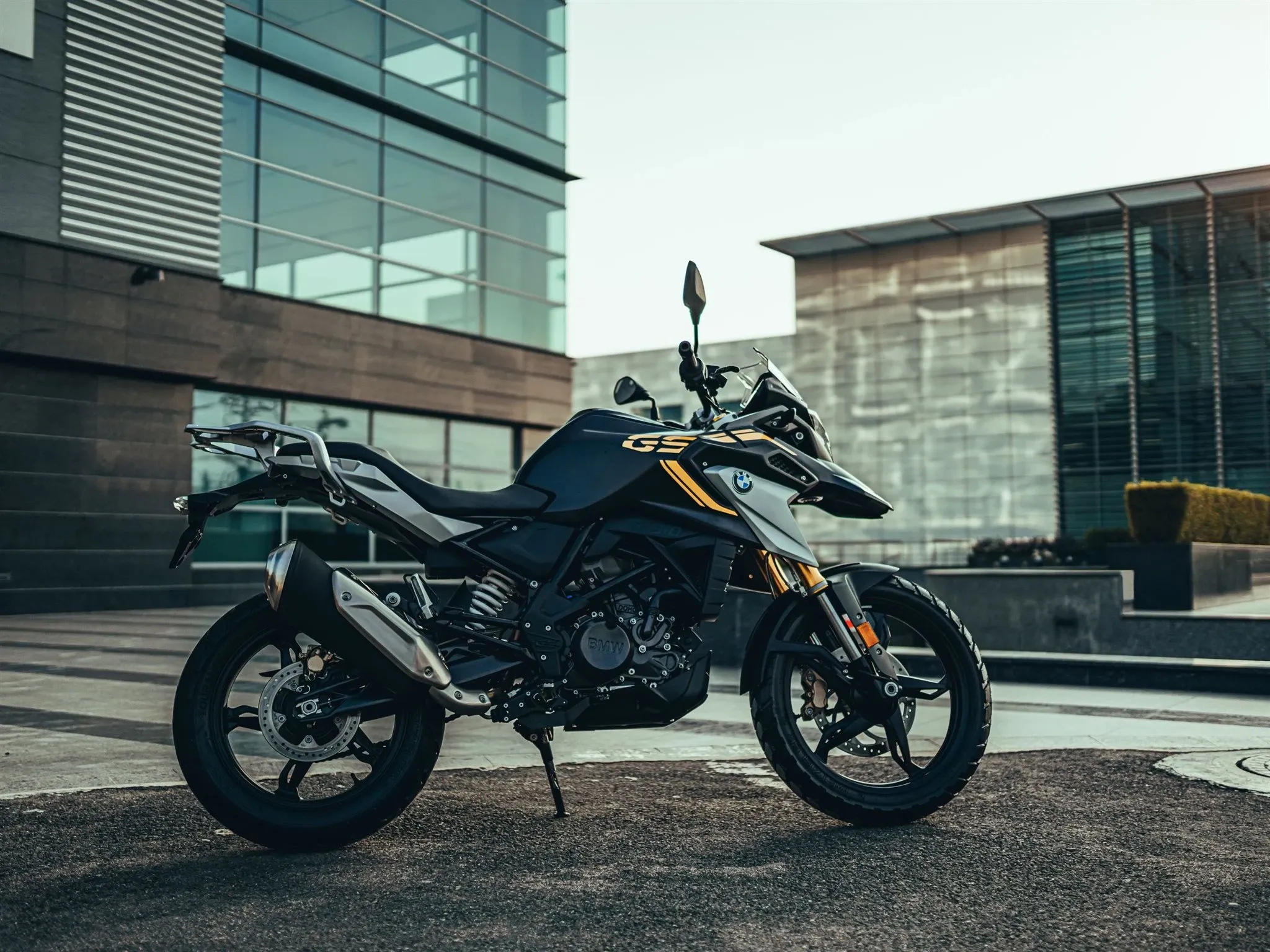

BMW G 310GS (2017)

The BMW G 310 GS invites you to embark on a daily adventure, turning the mundane into the extraordinary. With its confident and carefree demeanor, it navigates urban jungles and countryside roads with equal ease, promising a thrilling ride for every kind of traveler.

The relaxed, slightly raised riding position allows for effortless control, as every challenge comes into perfect view. Typical GS design elements, such as the flyline and protective windscreen, combine with renowned ergonomics to create an immersive experience on any terrain.

Whether you’re commuting through the city or exploring rural roads, the G 310 GS delivers pure riding joy. Its striking color variations and high-quality design elements make it a head-turner in the urban jungle. With its light and confident handling, the G 310 GS is the perfect companion for daily adventures.

Key Specifications

Engine Type	Four stroke, rRearward-canted single-cylinder, DOHC, 4 valves
Engine Capacity	19.1 cubic inches / 313 cc
Max Power	25 kw / 34 hp
Max Torque	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Fuel Tank Capacity	2.9 US gallons / 11.0 L
Weight (Wet/Kerb)	385.8 lbs / 175 kg
Seat Height	32.9 inches / 835 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW G 310GS
Year	2017

Engine

Engine Type	Four stroke, rRearward-canted single-cylinder, DOHC, 4 valves
Displacement	19.1 cubic inches / 313 cc
Bore x Stroke	80 x 62.1 mm
Compression Ratio	10.6:1
Max Horsepower	25 kw / 34 hp
Max Torque	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Engine Management System	Electronic fuel injection, BMS-E2
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	Single, closed-loop 3-way catalytic converter

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiple-discs in oil bath, mechanically operated
Gearbox	Synchromesh 6-speed transmission, integrated in the motor housing
Final Drive	Chain

Electrical & Electronics System

Battery	12 V / 8 Ah, Maintenance free
Starter	Electric
ABS	BMW Motorrad ABS

Chassis & Suspension

Frame Type	Tubular steel frame with bolted rear frame
Front Suspension	41mm Upside-down fork
Front Suspension Travel	7.1 inches / 180 mm
Rear Suspension	Solid die-cast aluminum swingarm, directly hinged monoshock, adjustable preload
Rear Suspension Travel	7.1 inches / 180 mm
Trail	63.3

Wheels & Brakes

Front Wheel/Rim Size	Cast aluminium, 5-spoke, 2.50 x 19
Front Tire Size	110/80 – R19
Rear Wheel/Rim Size	Cast aluminium, 5-spoke, 4.0 x 17
Rear Tire Size	150/70 – R17
Front Brakes	Single 300mm disc, 4-piston fixed caliper, radially bolted
Rear Brakes	Single 240mm disc, single-piston floating caliper
ABS	BMW Motorrad ABS

Dimension & Weights

Overall Length	2075 mm / 81.7 in
Overall Width	80 mm / 34.6 in (incl. mirrors)
Overall Height	1230 mm / 48.2 in (excl. mirrors)
Seat Height	32.9 inches / 835 mm
Wheelbase	55.9 inches / 1420 mm
Fuel Tank Capacity	2.9 US gallons / 11.0 L
Wet (kerb/curb) Weight	385.8 lbs / 175 kg

Features

Unmistakeably a GS design
Robust and diverse construction
Typical GS ergonomics
Raised sitting position for perfect survey of the road
Intensive riding enjoyment on any surface
Fresh and striking color variations
High-quality design elements for additional protection
Balanced arrangement of handlebars, footrests, and operating elements
180 mm spring travel on the rear wheel
Upside-down fork with 19 front wheel
Steel grille bridge frame for riding stability
Easy and precise steering
One-cylinder engine with cylinder angled to the rear and rotated 180 degrees
Lower center of gravity for improved handling
Effective combustion and secondary air system for Euro IV compliance
Special engine configuration for low consumption
313 ccm engine displacement
25 kW / 34 hp at 9,500 RPM
Dual-channel ABS as standard
Luggage carrier as standard
