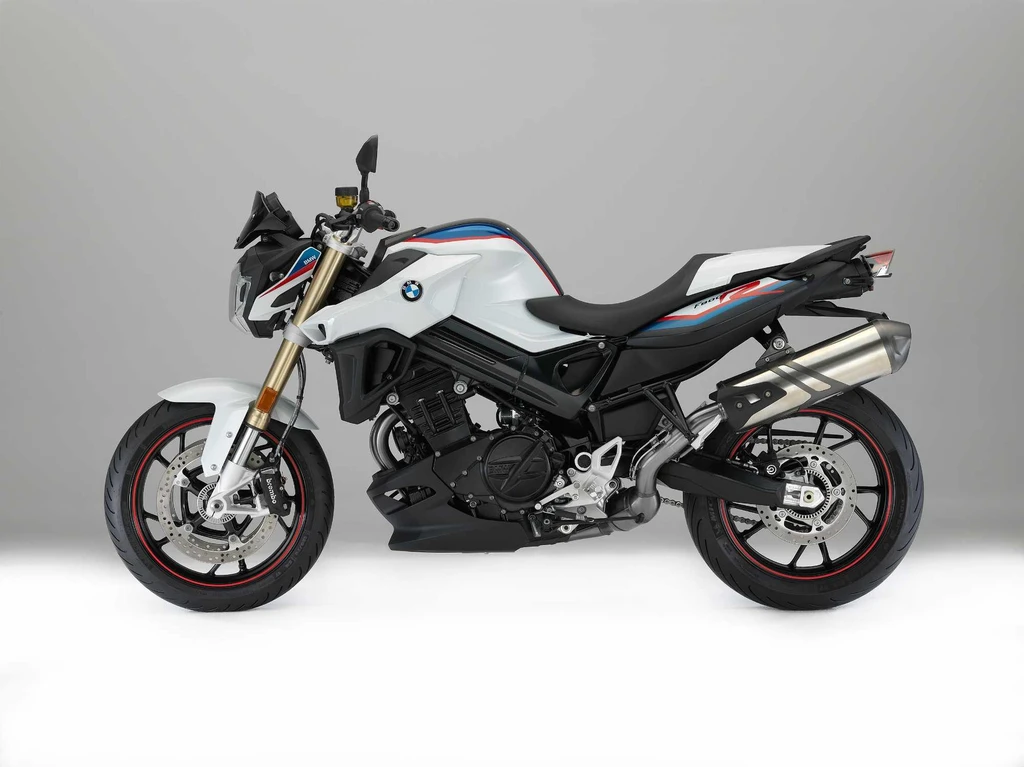

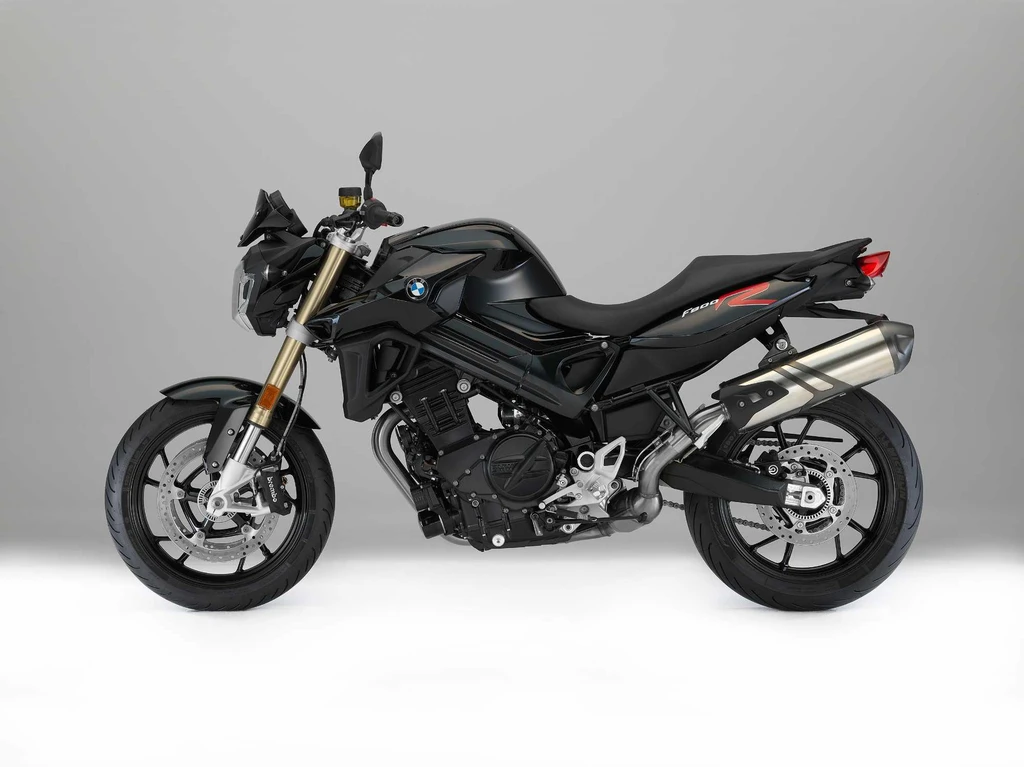

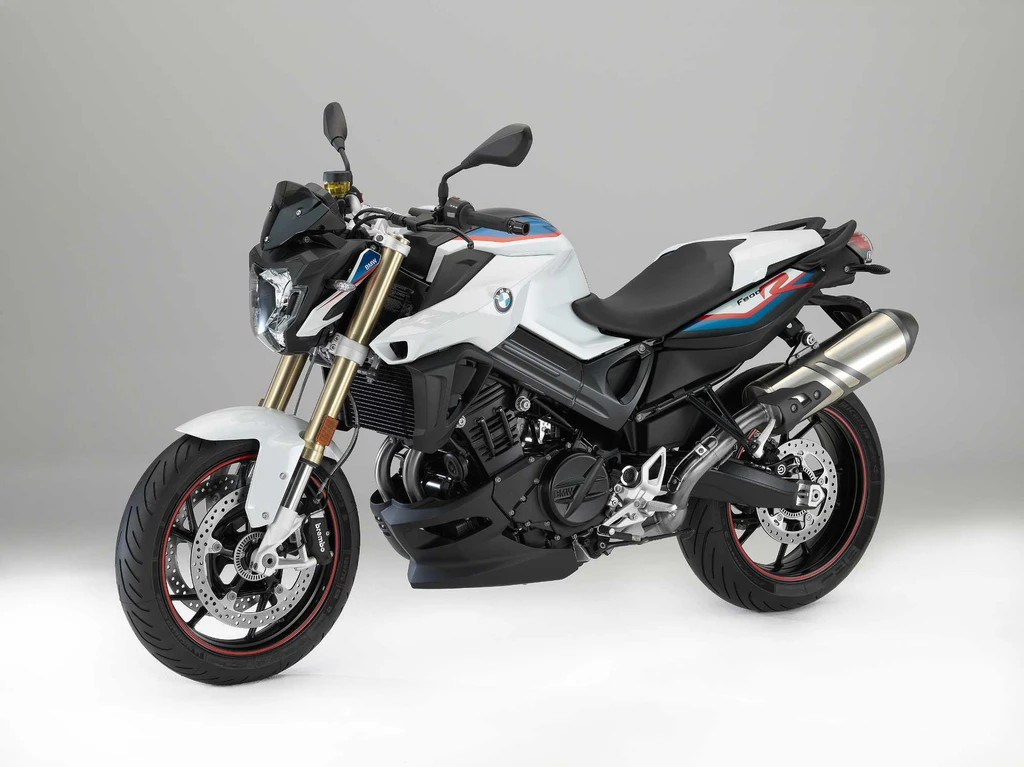

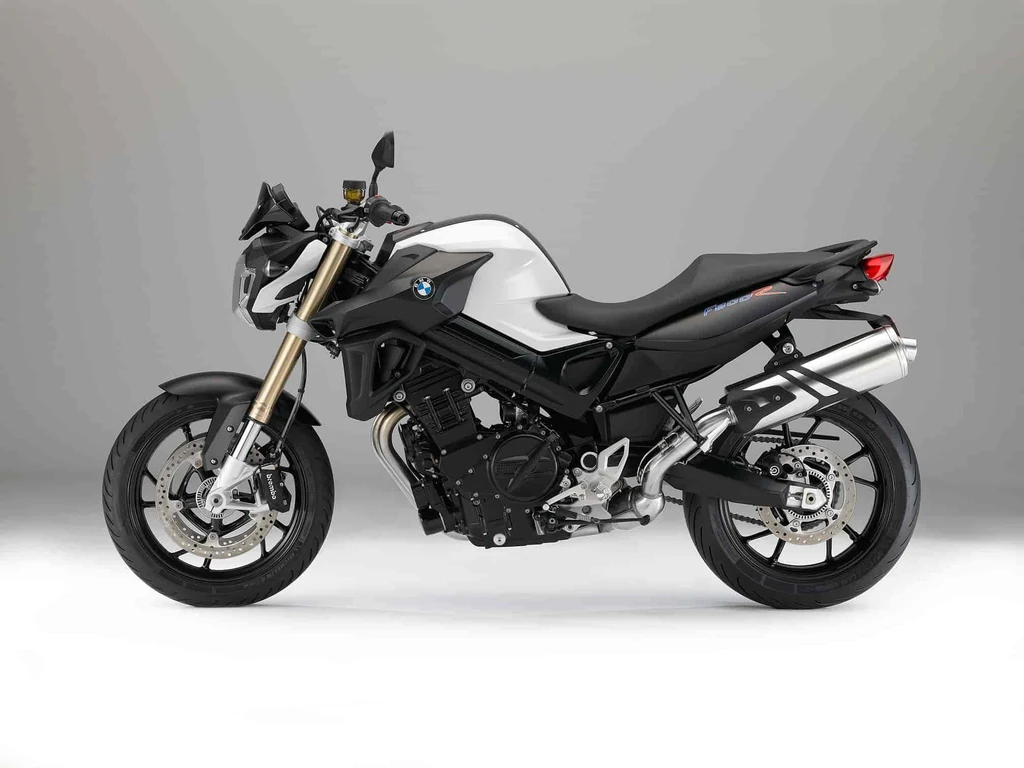

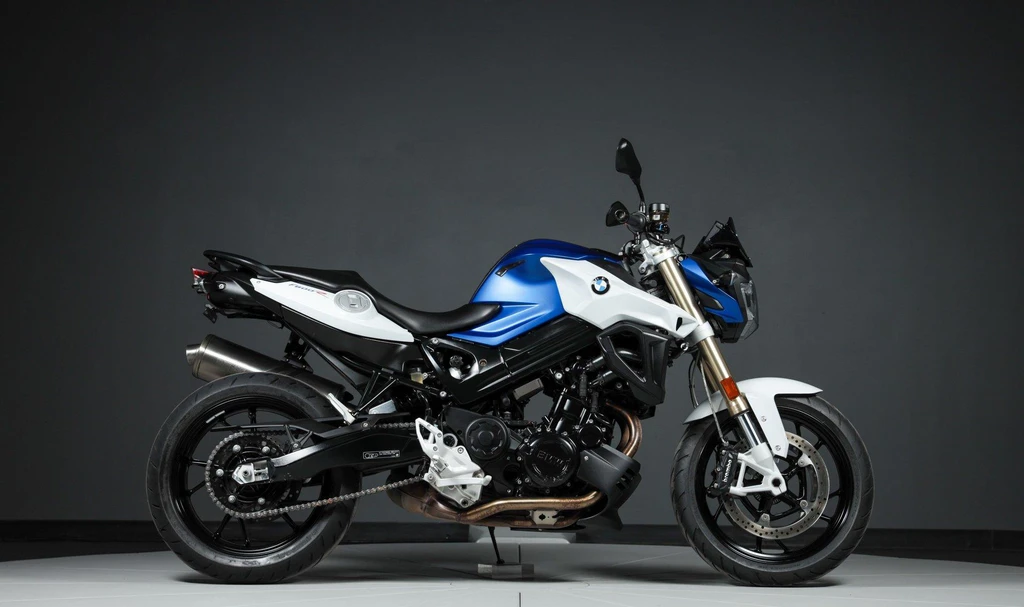

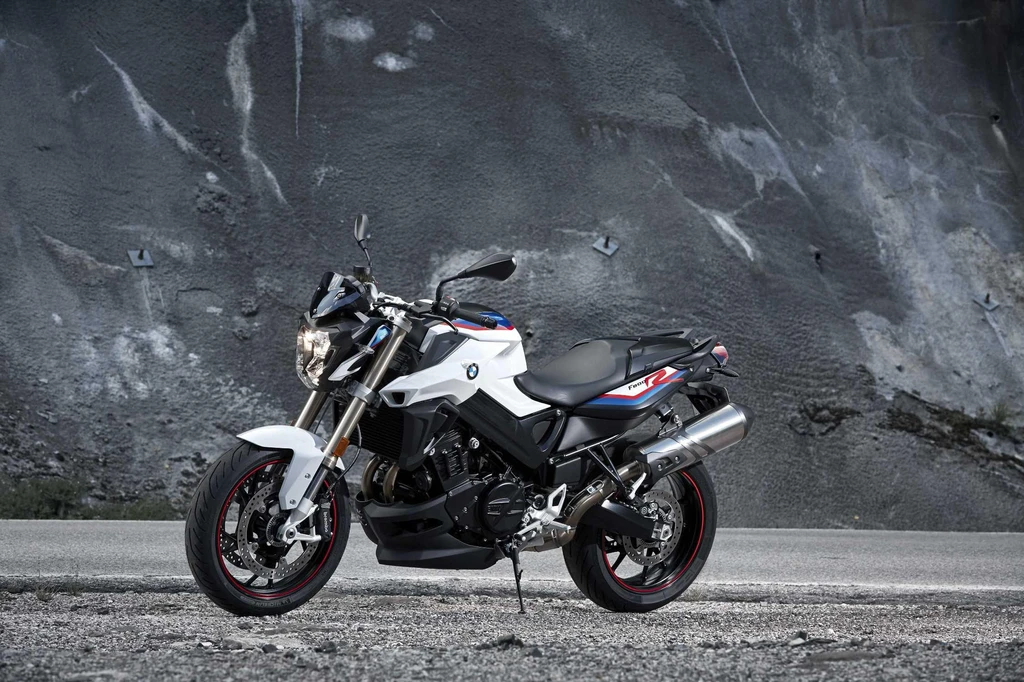

BMW F 800R (2016)

The BMW F 800R is a dynamic roadster that embodies the essence of a thrilling ride. Its liquid-cooled four-valve twin-cylinder engine now boasts 90 horsepower at 8,000 rpm, offering even greater sprinting ability and retaining its impressive pulling power.

The new F 800R’s agile handling is further enhanced by its updated suspension components and optimized ergonomics. The upside-down fork and hydraulic double-disc brake with radial brake callipers provide exceptional stability and stopping power.

The result is a riding experience that is both exhilarating and accessible, making it an ideal choice for novice riders and seasoned enthusiasts alike. With its distinctive design, advanced safety features, and impressive performance, the BMW F 800R is ready to conquer the roads with authority.

Key Specifications

Engine Type	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	798 cc / 47.7 cub. in.
Max Power	64 kw / 87 hp
Max Torque	86 Nm / 8.8 kgf-m / 63 lbs/ft @ 6000 rpm
Fuel Tank Capacity	4.2 US gallons / 16.0 L
Weight (Wet/Kerb)	439 lbs / 199 kg
Seat Height	31.5 inches / 800 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW F 800R
Year	2016

Engine

Engine Type	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Displacement	798 cc / 47.7 cub. in.
Bore x Stroke	82 x 75.8 mm
Compression Ratio	12.0:1
Max Horsepower	64 kw / 87 hp
Max Torque	86 Nm / 8.8 kgf-m / 63 lbs/ft @ 6000 rpm
Engine Management System	Electronic injection, digital engine electronics (BMS-KP)
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	Closed-loop 3-way catalytic converter, emission standard

Performance

Top Speed

218 km/h / 135.5 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch in oil bath, mechanically operated
Gearbox	6 Speed
Gear Ratios	1st 2.462 / 2nd 1.750 / 3rd 1.381 / 4th 1.227 / 5th 1.130 / 6th 1.042: 1
Final Drive	Chain

Electrical & Electronics System

Battery	12 V / 14 Ah, maintenance-free
Starter	Electric

Chassis & Suspension

Frame Type	Bridge frame made aluminium, load-supporting engine
Front Suspension	43mm Telescopic fork
Front Suspension Travel	4.9 inches / 125 mm
Rear Suspension	Cast aluminium double-sided swing arm, central, suspension strut, spring pre-tension by means of hand
Rear Suspension Travel	4.9 inches / 125 mm
Rake	25
Trail	91 mm / 3.6 in.

Wheels & Brakes

Wheels	Cast aluminium
Front Tire Size	120/70 ZR17
Rear Tire Size	180/55 ZR17
Front Brakes	2 x 320mm discs, 4 piston calipers
Rear Brakes	Single 265mm disc, 1 piston caliper

Dimension & Weights

Seat Height	31.5 inches / 800 mm
Fuel Tank Capacity	4.2 US gallons / 16.0 L
Wet (kerb/curb) Weight	439 lbs / 199 kg
Dry Weight	177 kg / 390 lbs

Features

Liquid-cooled four-valve twin-cylinder engine
798 cc displacement
66 kW (90 hp) output at 8,000 rpm
86 Nm (63 lb-ft) peak torque at 5,800 rpm
Shortened ratios for first and second gear
ABS as standard
ASC (Automatic Stability Control) optional
ESA (Electronic Suspension Adjustment) optional
Upside-down fork for front suspension
Hydraulic double-disc brake with radial brake callipers
New seat with lower height (790 mm)
New handlebars with tapered aluminium design
New rider foot pegs
Symmetrical main headlight arrangement
New body features with dynamic design
Lighter wheels with dynamic design
New range of colours
Optional output reduced to 35 kW (48 hp)
