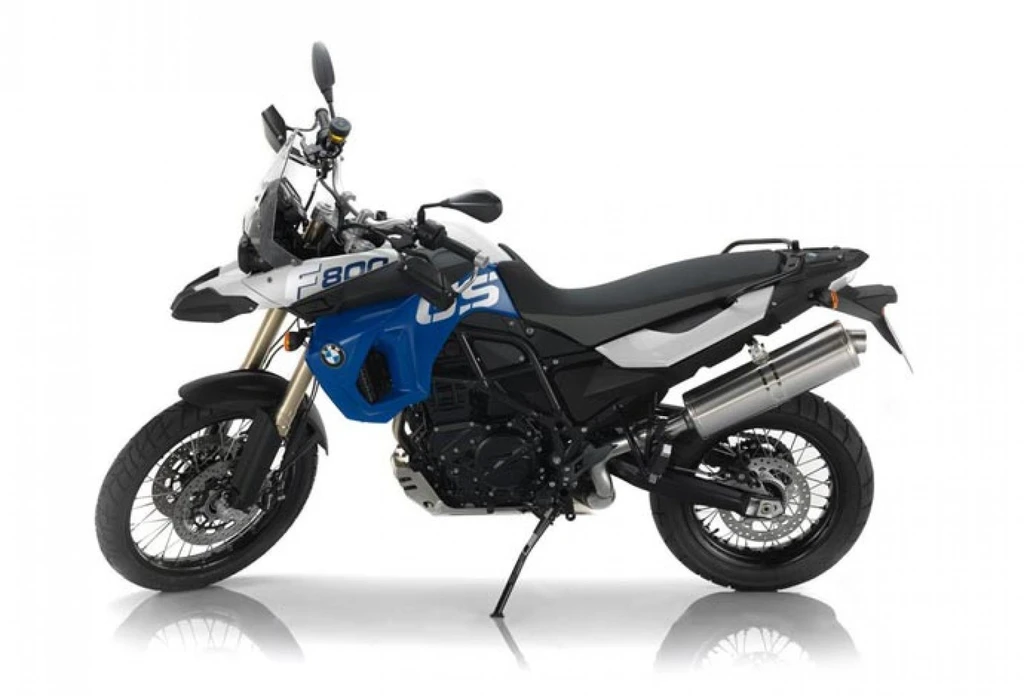

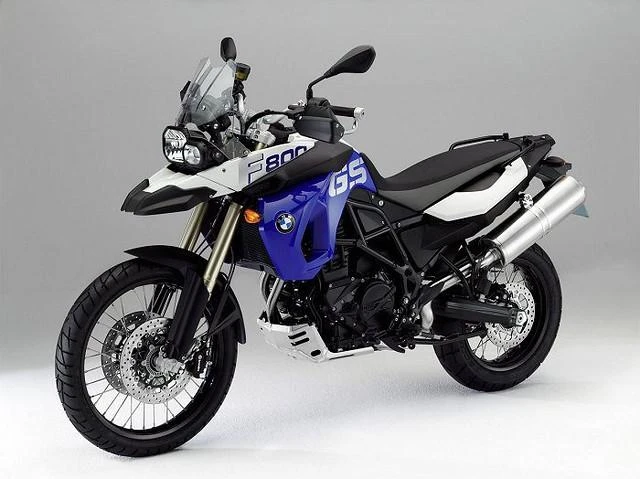

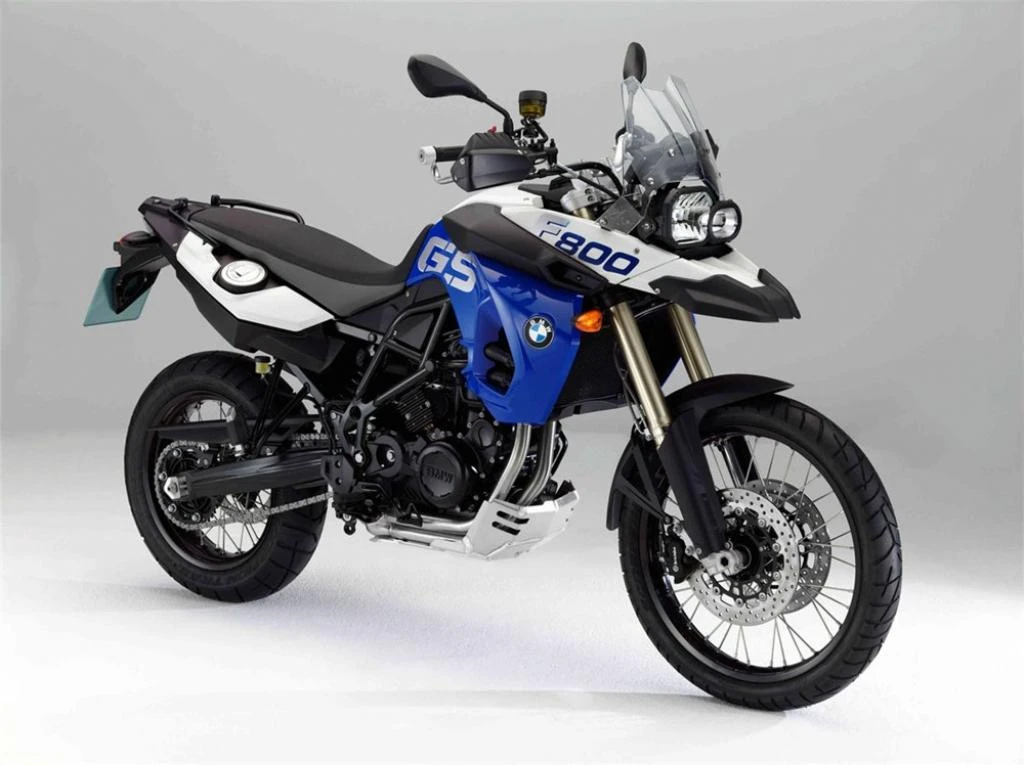

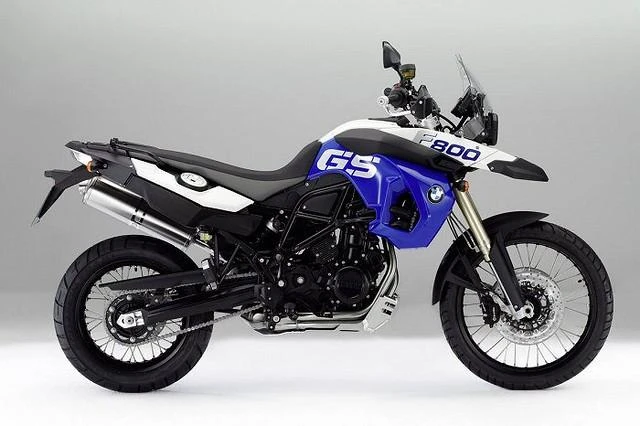

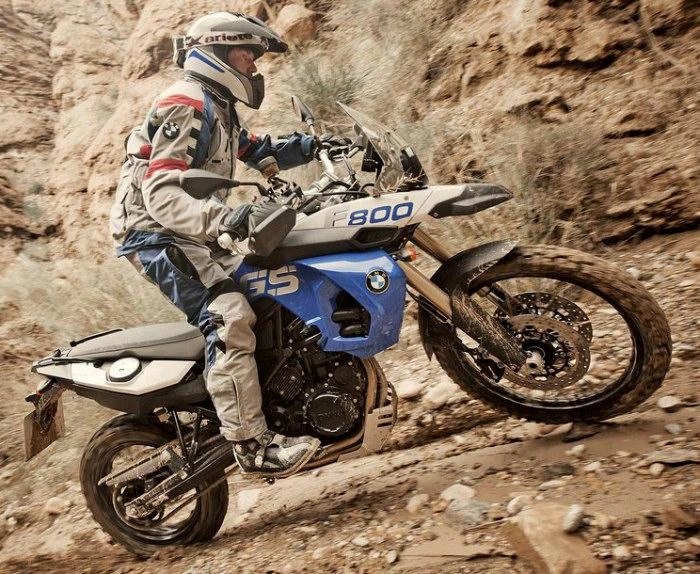

BMW F 800GS Trophy (2012)

BMW F 800GS Trophy (2012)

The BMW F 800GS Trophy embodies the spirit of adventure and performance, born from the biennial BMW GS Trophy event. This special edition bike boasts a unique paint scheme, combined with distinctive styling elements such as large hand protectors and an aluminum engine guard.

The F 800GS Trophy is powered by an 800cc engine, delivering an impressive 85 horsepower and 83 Nm of torque, all while weighing in at just 200 kg. State-of-the-art engine management ensures both fuel efficiency and an exhilarating riding experience, complete with a powerful sound management system.

With its robust 21-inch front wheel and 17-inch rear wheel, the F 800GS Trophy excels both on and off the beaten path. The generous spring travel and adapted chassis make it perfectly suited for navigating rough terrain, while the dual disc brakes and optional ABS provide unparalleled stopping power. Whether you’re a seasoned adventurer or just starting out, the F 800GS Trophy is the ultimate enduro machine, ready to take on any challenge that comes its way.

Key Specifications

Engine TypeFour stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity798 cc / 47.7 cub. in.
Max Power62.5 kw / 85 hp
Max Torque80 Nm / 8.2 kgf-m / 59 lb-ft @ 5750 rpm
Fuel Tank Capacity4.2 US gallons / 16.0 L
Weight (Wet/Kerb)456 lbs / 207 kg
Seat Height34.6 inches / 880 mm
BMW F 800GS Trophy (2012)

All Specifications

Make & Model

ModelBMW F 800GS Trophy
Year2012

Engine

Engine TypeFour stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Displacement798 cc / 47.7 cub. in.
Bore x Stroke82 x 75.8 mm
Compression Ratio12.0:1
Max Horsepower62.5 kw / 85 hp
Max Torque80 Nm / 8.2 kgf-m / 59 lb-ft @ 5750 rpm
Engine Management SystemElectronic intake injection, ∅45mm throttle bodies

Performance

Top Speed199.0 km/h / 124 mph

Transmission

ClutchMultiplate-platein oil bath
Gearbox6 Speed
Gear Ratios1st 2.46 / 2nd 1.75 / 3rd 1.38 / 4th 1.17 / 5th 1.04 / 6th 0.96
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular frame in steal partly carrying the engine
Front Suspension∅43mm Marzocchi upside down forks
Front Suspension Travel9.1 inches / 230 mm
Rear SuspensionDouble strut swing arm aluminium coast in one piece
Rear Suspension Travel8.5 inches / 215 mm
Rake26
Trail117 mm / 9.1 in.

Wheels & Brakes

WheelsWire spoke
Front Tire Size90/90 – 21 54V
Rear Tire Size150/70 – 17 69V
Front Brakes2 x ∅300mm discs, 4 piston calipers
Rear BrakesSingle ∅265mm disc, 2 piston caliper

Dimension & Weights

Seat Height34.6 inches / 880 mm
Fuel Tank Capacity4.2 US gallons / 16.0 L
Wet (kerb/curb) Weight456 lbs / 207 kg
Dry Weight177.8 kg / 392 lbs

Features

  • 800 cc machine with 85 bhp of horsepower
  • 83 Nm of torque
  • Weight of around 200 kg
  • State-of-the-art engine management
  • Economical fuel consumption
  • Powerful sound management
  • Space frame with high torsional stiffness
  • Large airbox and fuel tank under the seat
  • 21-inch wheel at the front
  • 17-inch wheel at the rear
  • Dual disc at the front and single disc at the rear
  • Optional ABS
  • Generous spring travel for off-road use
  • Lightweight design
  • Parallel twin engine
  • 85 charging horses
  • 62 lbs/feet of torque
  • Dry weight of just 392 lbs
  • Six-speed gear box
  • Switchable ABS
  • Wide foot rests
  • 4.2 gallon tank located under the seat
  • Low center of gravity
