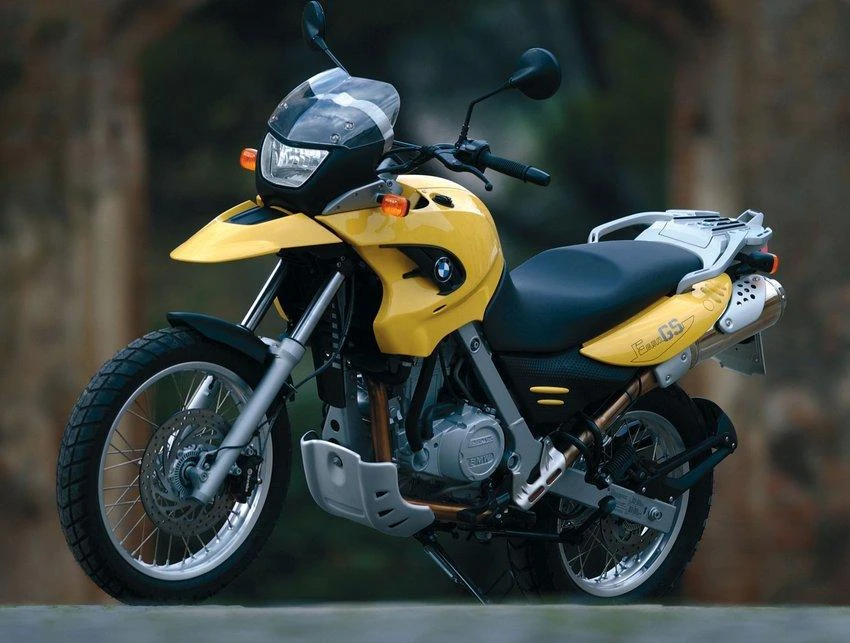

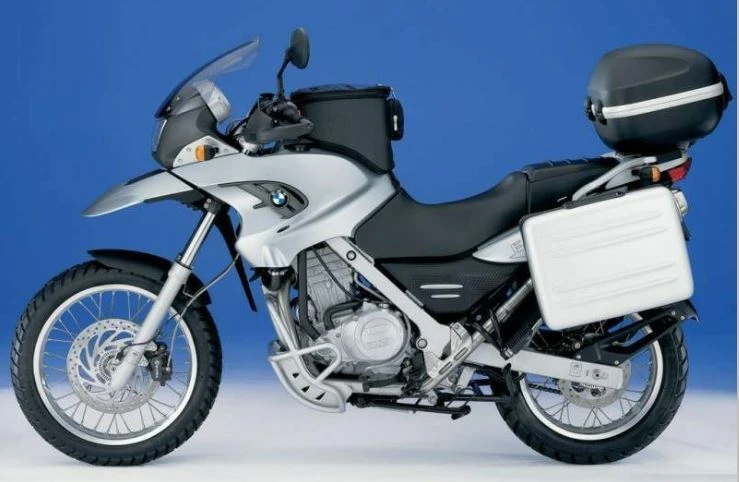

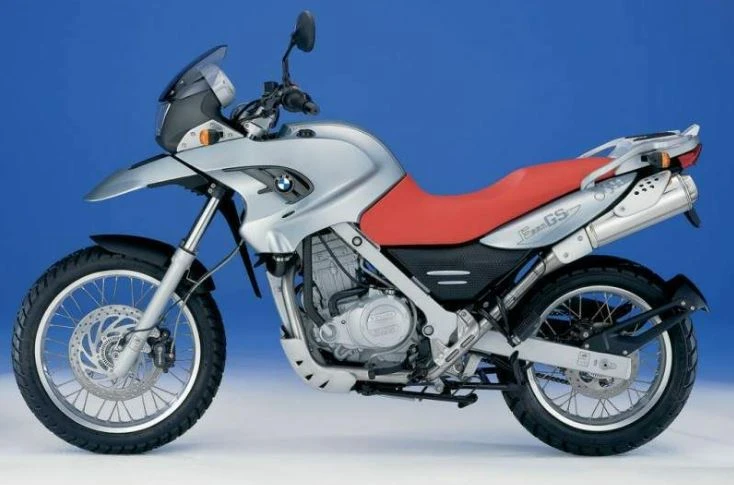

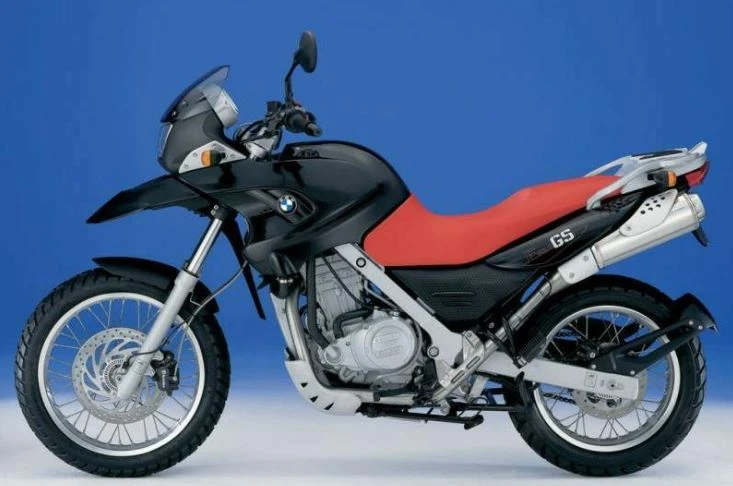

BMW F 650GS (2005)

The BMW F 650GS is a masterclass in motorcycle design, blending the best of road and off-road capabilities in a single, exhilarating package. At the heart of this versatile bike lies a four-stroke, single-cylinder engine, boasting four valves per cylinder and a continuously adjustable suspension system.

With its steel-tube frame and revised engine, the F 650GS has been refined to perfection, offering a smooth and efficient ride on both pavement and dirt. The addition of an underseat fuel tank lowers the center of gravity, while long-travel suspension soaks up even the most punishing road bumps.

But what truly sets the F 650GS apart is its ability to please both experienced and beginner riders alike, making it an ideal choice for those who crave adventure without sacrificing on-road comfort. Whether you’re navigating treacherous mountain passes or cruising through city streets, the F 650GS is the perfect companion for any riding enthusiast.

Key Specifications

Engine Type	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Engine Capacity	652 cc / 39.8 cub. in.
Max Power	37.3 kw / 50 hp
Max Torque	60 Nm / 6.12 kgf-m / 44.25 lb-ft. @ 5200 rpm
Fuel Tank Capacity	4.6 US gallons / 17.3 L
Seat Height	30.7 inches / 780 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW F 650GS
Year	2005

Engine

Engine Type	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Displacement	652 cc / 39.8 cub. in.
Bore x Stroke	100 x 83mm
Compression Ratio	11.5:1
Max Horsepower	37.3 kw / 50 hp
Max Torque	60 Nm / 6.12 kgf-m / 44.25 lb-ft. @ 5200 rpm
Engine Management System	Fuel induction
Lubrication System	Dry sump
Cooling System	Liquid cooled

Performance

Top Speed

183.4 km/h / 114 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiple-disc clutch in oil bath, mechanically operated
Gearbox	5 Speed
Gear Ratios	1st 2.75 / 2nd 1.75 / 3rd 1.31 / 4th 1.05 / 5th 0.88:1
Final Drive	Chain

Electrical & Electronics System

Battery	12V / 12Ah
Starter	Electric

Chassis & Suspension

Frame Type	Bridge-type steel section frame with bolted-on rear section
Front Suspension	41mm Telescopic fork with stabilizer bridge
Front Suspension Travel	6.6 inches / 170 mm
Rear Suspension	Spring setting and rebound stage damping continuously adjustable
Rear Suspension Travel	6.4 inches / 165 mm
Trail	60.8

Wheels & Brakes

Wheels	Wire spoke wheels
Front Tire Size	100/90-19
Rear Tire Size	130/80-17
Front Brakes	Single ∅300mm disc, 2 piston caliper
Rear Brakes	Single ∅240mm disc, 1 piston caliper

Dimension & Weights

Overall Length	2175 mm / 85.6 in.
Overall Width	910 mm / 35.8 in.
Overall Height	1265 mm / 49.8 in.
Seat Height	30.7 inches / 780 mm
Fuel Tank Capacity	4.6 US gallons / 17.3 L
Dry Weight	176 kg / 388 lbs.

Features

Four stroke, single cylinder engine
DOHC engine with 4 valves per cylinder
Continuously adjustable spring setting and rebound stage damping
New engine management system for reduced pollution and improved smoothness
Dual sport-road/off-road design
Steel-tube frame
Long-travel suspension
Tough bashplate protects the bottom of the engine
Single disc brakes front and rear
Optional ABS anti-lock system
Centrestand
Clock
Twin underseat silencers made of stainless steel
Underseat fuel tank for lower center of gravity
Adjustable clutch lever with incremental span adjustments
Adjustable brake lever
Multiple seat options for different heights
Low seat option (29.5 inches / 750mm)
High seat option (additional legroom for taller riders)
Compact dimensions due to slender engine and underseat fuel tank

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
