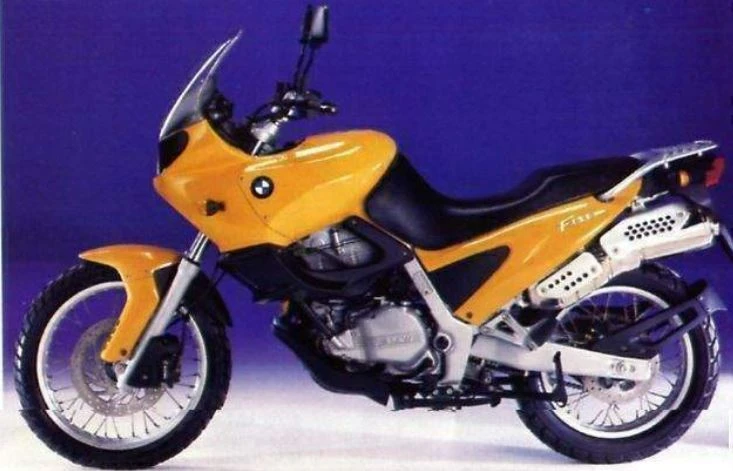

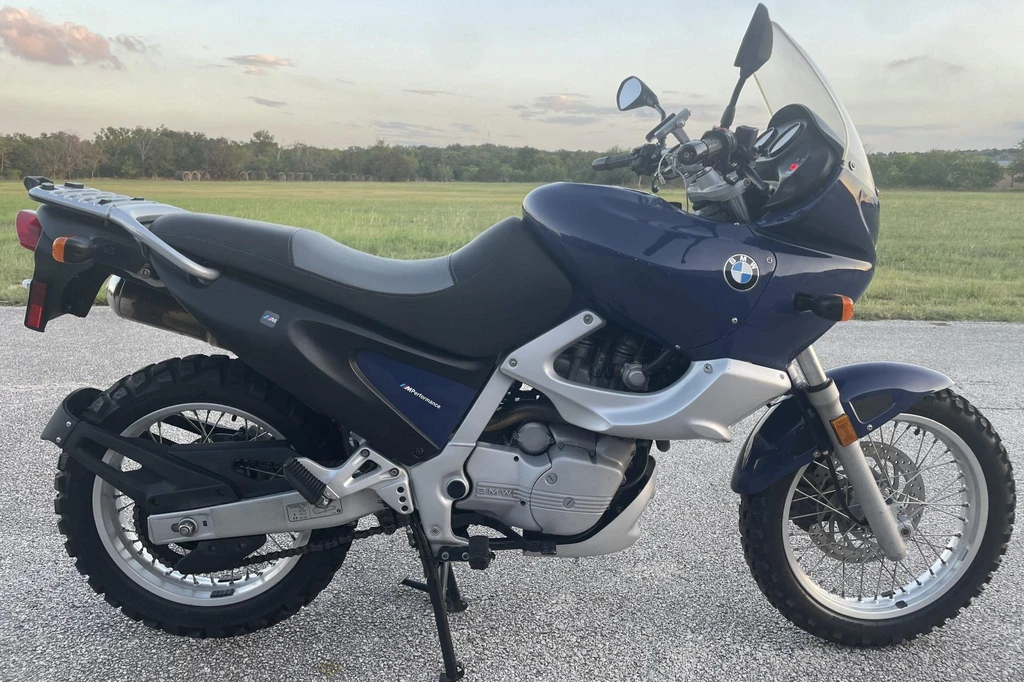

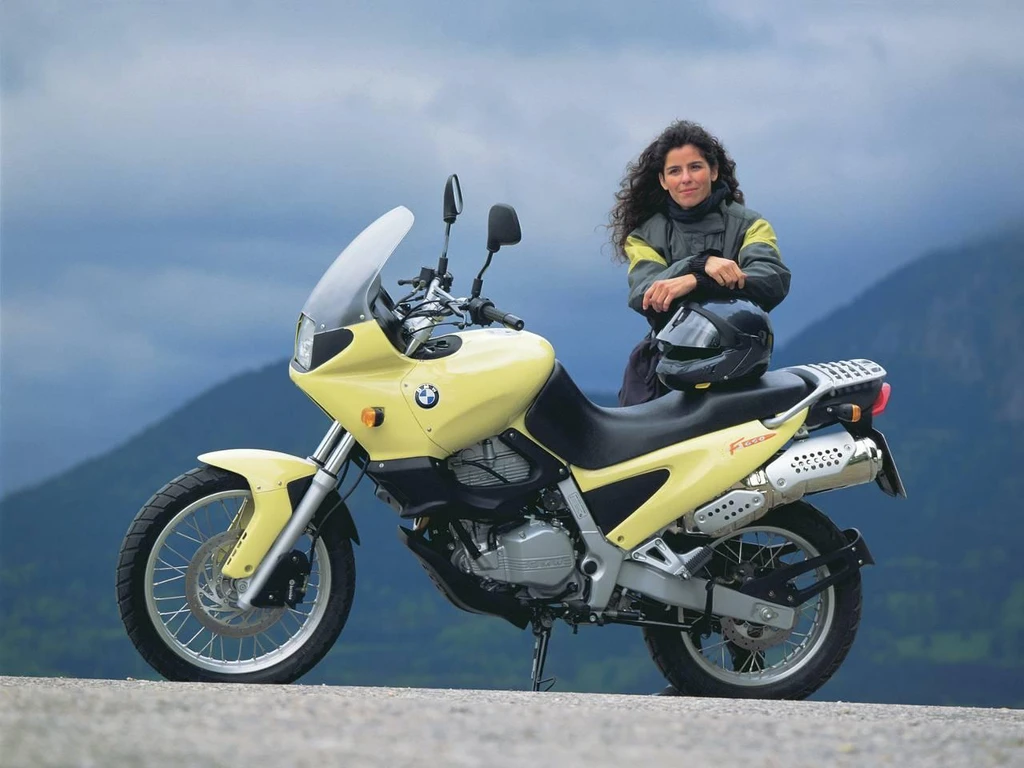

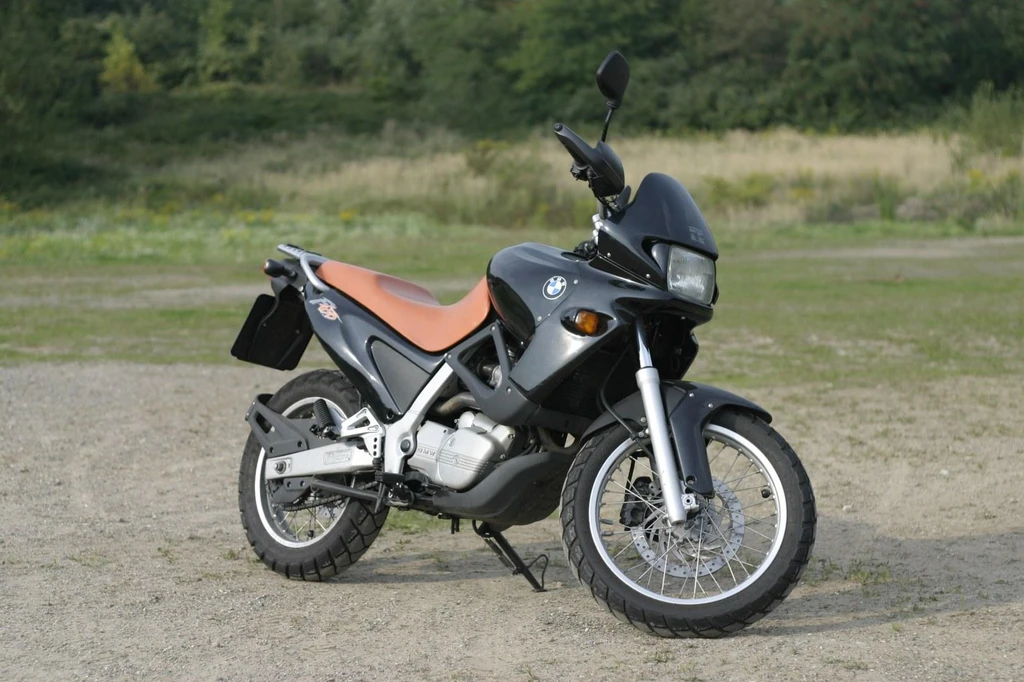

BMW F 650 Funduro (1997)

The wait is finally over for North American riders eager to experience the thrill of a BMW single-cylinder motorcycle. The 1997 F650 Funduro is a game-changer, offering a unique blend of accessibility and excitement.

With its 652cc liquid-cooled Rotax engine, the F650 Funduro delivers a smooth and responsive ride, perfect for beginners or those seeking a more laid-back motorcycling experience. Its DOHC, four-valve per cylinder configuration ensures exceptional power and refinement.

The F650 Funduro’s lightweight chassis and excellent ergonomics make it an incredibly versatile bike, capable of tackling a wide range of riding conditions and terrain with ease. Whether cruising through twisties or commuting through city streets, this bike is sure to bring a smile to your face.

The result of a collaborative effort between BMW, Rotax, and Aprilia, the F650 Funduro is a testament to the power of innovative partnership, and it’s an absolute joy to ride. With its unbeatable combination of performance, handling, and value, the BMW F650 Funduro is a must-ride for anyone looking to experience the thrill of motorcycling.

Key Specifications

Engine Type	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Engine Capacity	652 cc / 39.8 cub. in.
Max Power	35 kw / 48 hp
Max Torque	57 Nm / 5.8 kgf-m / 42 lb-ft. @ 5200 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	421 lbs / 191 kg
Seat Height	31.9 inches / 810 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	BMW F 650 Funduro
Year	1997

Engine

Engine Type	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Displacement	652 cc / 39.8 cub. in.
Bore x Stroke	100 x 83mm
Compression Ratio	8.8:1
Max Horsepower	35 kw / 48 hp
Max Torque	57 Nm / 5.8 kgf-m / 42 lb-ft. @ 5200 rpm
Engine Management System	2 x ∅33mm Mikuni carbs
Lubrication System	Dry sump

Performance

Top Speed

165.2 km/h / 102.7 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi plate in oil
Gearbox	5 Speed
Gear Ratios	1st 2.75 / 2nd 1.75 / 3rd 1.31 / 4th 1.05 / 5th 0.88:1
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Single loop tubular with bolt on trussing
Front Suspension	∅41mm Telescopic forks non adjustable.
Front Suspension Travel	6.7 inches / 170 mm
Rear Suspension	Rising rate monoshock preload adjustable.
Rear Suspension Travel	6.5 inches / 165 mm

Wheels & Brakes

Front Wheel/Rim Size	2.5 x 19
Front Tire Size	100/90 -19
Rear Wheel/Rim Size	3.0 x 17
Rear Tire Size	130/80 -17
Front Brakes	Single ∅300mm disc 2piston caliper
Rear Brakes	Single ∅210mm disc 1 piston caliper

Dimension & Weights

Overall Length	2180 mm / 86.2 in.
Overall Width	880 mm / 34.6 in.
Overall Height	1220 mm / 48 in.
Seat Height	31.9 inches / 810 mm
Ground Clearance	800 mm / 31.5 in.
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	421 lbs / 191 kg
Dry Weight	173 kg / 381.4 lbs

Features

Four stroke single cylinder DOHC engine
4 valves per cylinder
652cc engine
Lightweight chassis
Great ergonomics
Tremendous flexibility
Rotax liquid-cooled five-valve single engine
Square-section steel frame
Engine oil carried in top tube
Engine as a stressed-member for increased rigidity
41mm forks with 6.69 inches of travel
Single shock with hydraulic damping
Hydraulic disc brakes
Dual seat with storage compartment
Instrument cluster with analog gauges
Tachometer
Odometer
Fuel gauge
Clock
