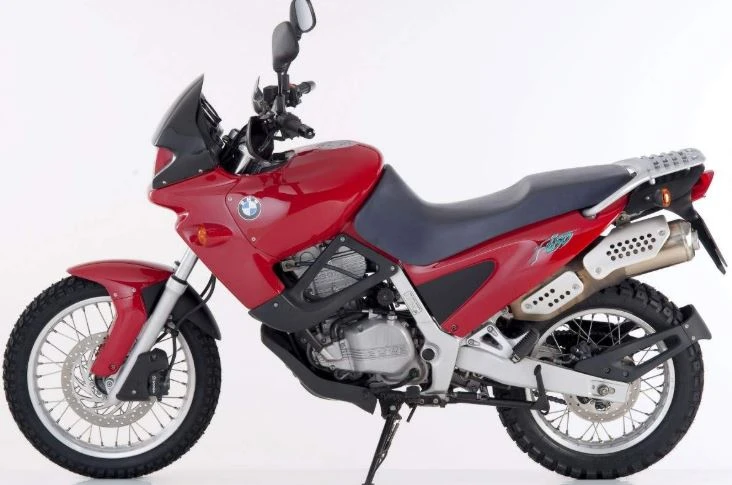

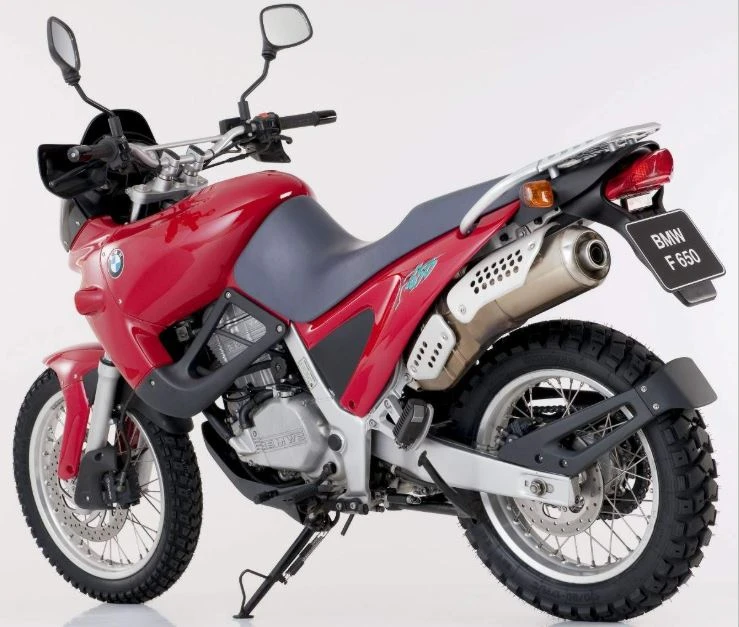

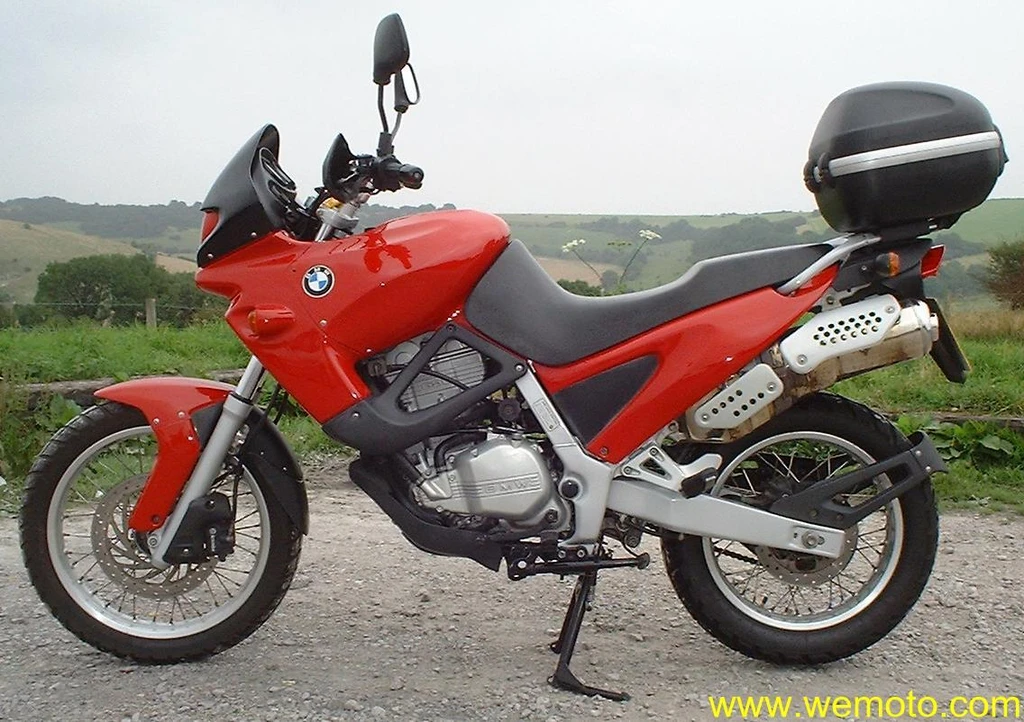

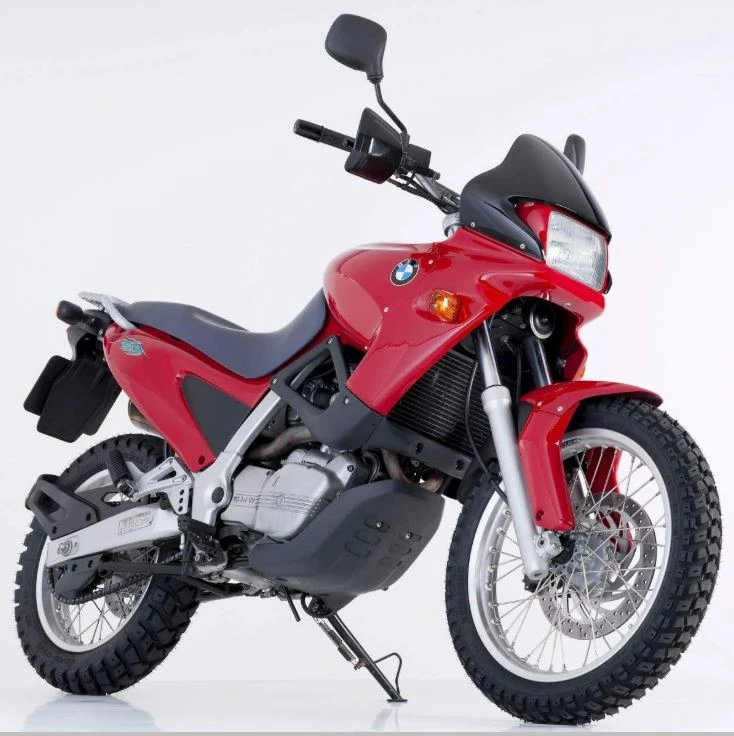

BMW F 650 Funduro (1994)

BMW F 650 Funduro (1994)

The BMW F 650 Funduro marks a significant departure for the legendary German marque, entering a new arena with an entry-level machine that’s as accessible as it is impressive. Powered by a potent four-stroke, single-cylinder engine with DOHC and 4 valves per cylinder, the Funduro’s character is defined by its smooth, rev-happy nature and impressive mid-range punch.

On the road, the F 650’s chassis reveals itself to be a masterclass in balance and poise, thanks to its steel frame and deltabox swing-arm. The suspension, with its generous 170mm of axle movement at the front and 165mm at the rear, provides a level of comfort and control that’s unmatched in its class.

While some may be tempted to take the Funduro off the beaten path, its true strengths lie on the asphalt, where its broad, dual-seat and built-in carrier make it an ideal companion for a day’s touring or commuting. With its affordable price point and impressive spec sheet, the BMW F 650 Funduro is an offer that’s impossible to refuse.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 4 valves per cylinder
Engine Capacity652 cc / 39.8 cub. in.
Max Power35 kw / 48 hp
Max Torque57 Nm / 5.8 kgf-m / 42 lb-ft. @ 5200 rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)412.3 lbs / 187 kg
Seat Height31.9 inches / 800 mm
BMW F 650 Funduro (1994)

All Specifications

Make & Model

ModelBMW F 650 Funduro
Year1994

Engine

Engine TypeFour stroke, single cylinder, DOHC, 4 valves per cylinder
Displacement652 cc / 39.8 cub. in.
Bore x Stroke100 x 83mm
Compression Ratio8.8:1
Max Horsepower35 kw / 48 hp
Max Torque57 Nm / 5.8 kgf-m / 42 lb-ft. @ 5200 rpm
Engine Management System2 x ∅33mm Mikuni carbs
Lubrication SystemDry sump

Performance

Top Speed165.2 km/h / 102.7 mph

Transmission

ClutchMulti plate in oil bath
Gearbox5 Speed
Gear Ratios1st 2.75 / 2nd 1.75 / 3rd 1.31 / 4th 1.05 / 5th 0.88: 1
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSingle loop tubular with bolt on trussing.
Front Suspension41mm Telescopic forks non adjustable.
Front Suspension Travel6.7 inches / 170 mm
Rear SuspensionRising rate monoshock preload adjustable, swingarm.
Rear Suspension Travel6.5 inches / 165 mm

Wheels & Brakes

Front Wheel/Rim Size2.5 x 19
Front Tire Size100/90 -19 57S
Rear Wheel/Rim Size3.0 x 17
Rear Tire Size130/80 -17 65S
Front BrakesSingle ∅300 mm disc 2 piston caliper
Rear BrakesSingle ∅210 mm disc 1 piston caliper

Dimension & Weights

Overall Length2180mm / 86.2 in.
Overall Width880 mm / 34.6 in.
Overall Height1220 mm / 48 in.
Seat Height31.9 inches / 800 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight412.3 lbs / 187 kg

Features

  • Four-stroke engine
  • Single cylinder engine
  • DOHC (dual overhead camshaft) engine
  • 4 valves per cylinder
  • Steel frame
  • Deltabox swing-arm
  • 170mm of front axle movement
  • 165mm of rear axle movement
  • Wide and clear mirrors
  • Broad dual-seat with built-in carrier
  • Pillion grab-handles
  • Four-gallon tank
  • Long-range capability (over 150 miles)
  • Suitable for road riding
  • Dual-purpose nature (on-road and off-road capable)
  • Entry-level machine
  • More affordable than previous BMWs (R1100RS)
