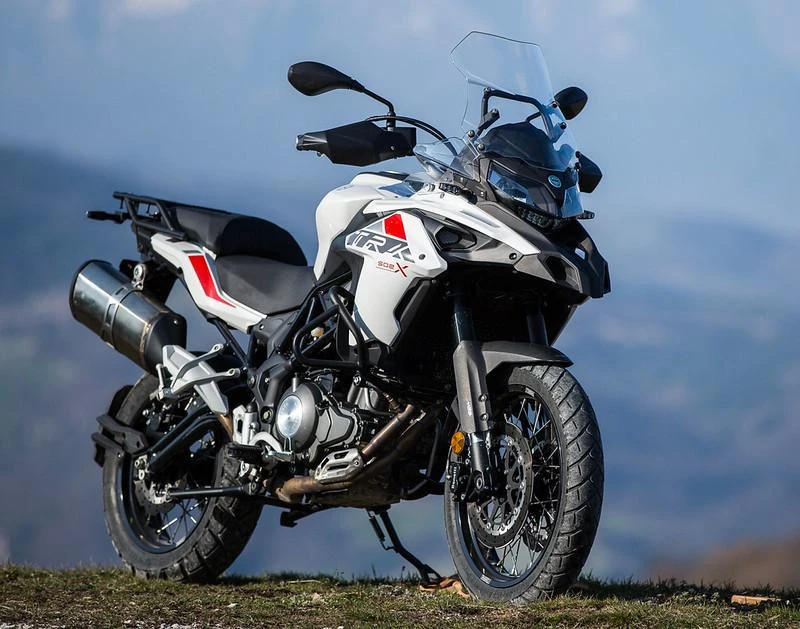

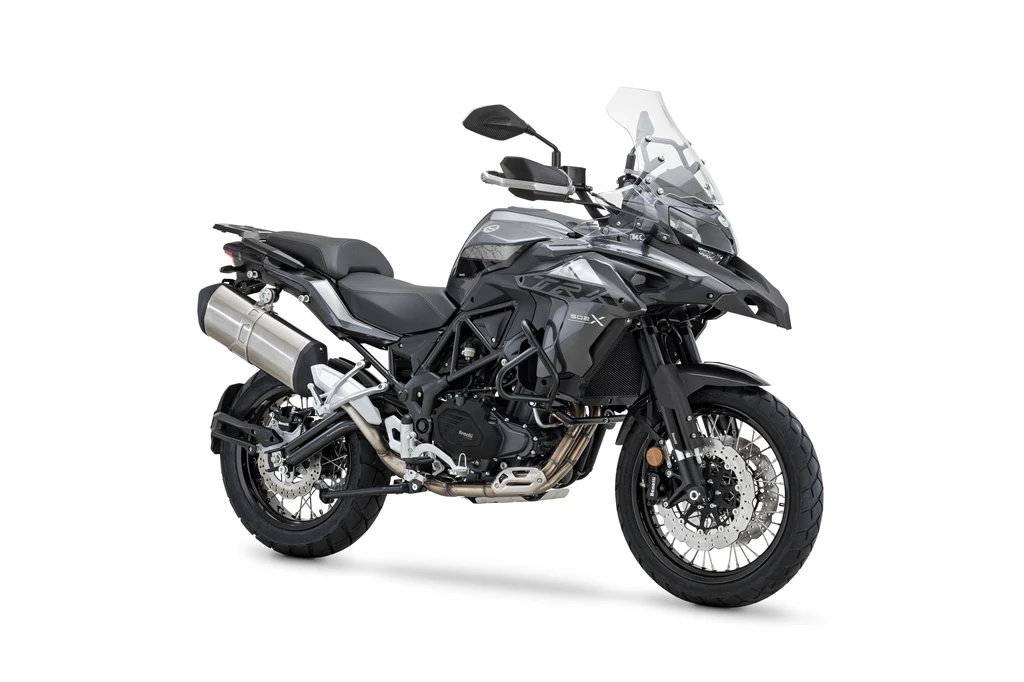

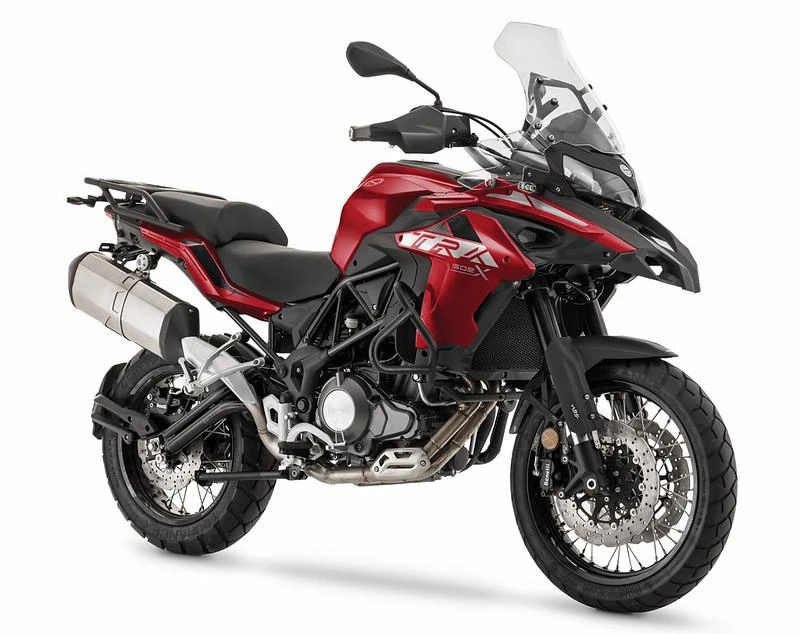

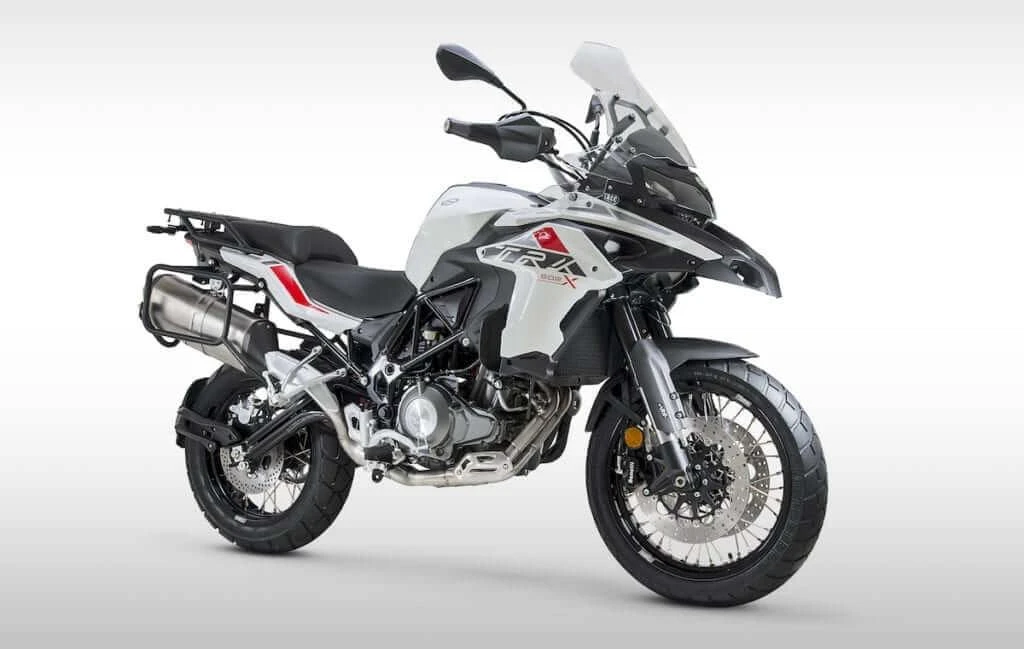

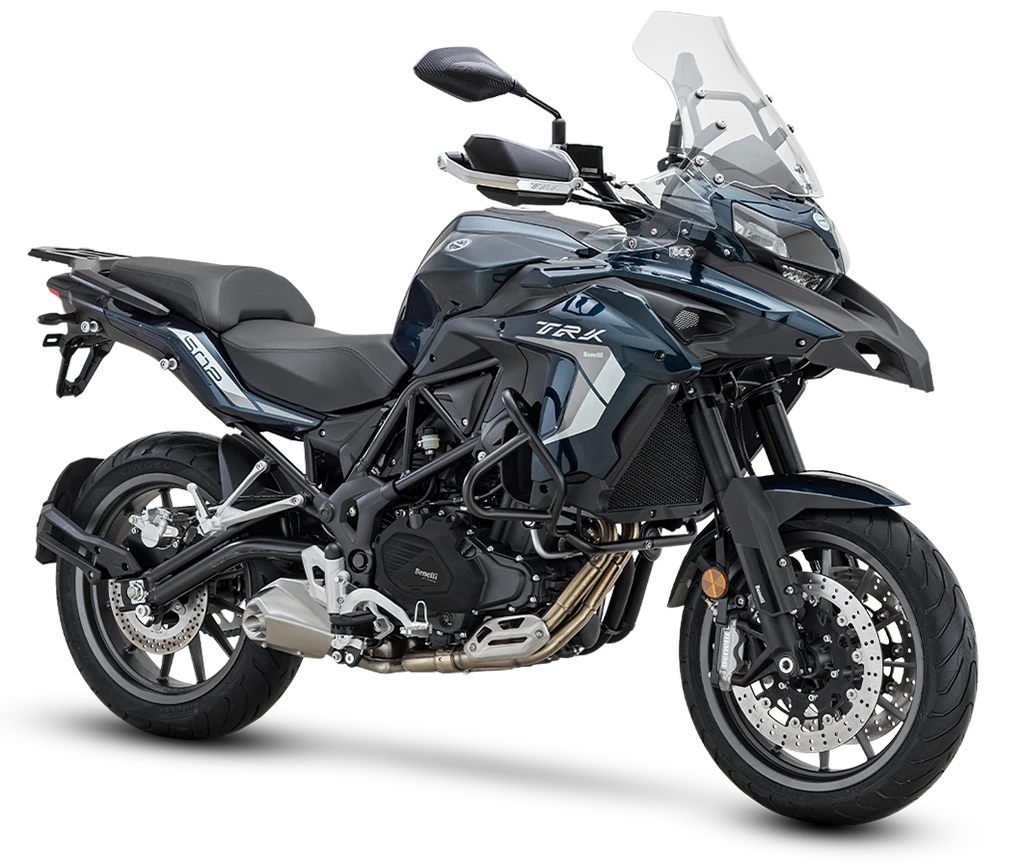

The Benelli TRK 502X is an aggressively styled adventure motorcycle that embodies the spirit of limitless travel. Its powerful liquid-cooled, double-cylinder engine produces a thrilling 47.6 horsepower and 45 Nm of torque, delivering exceptional performance on both paved roads and off-road terrain.
With its robust steel frame and advanced suspension system featuring 50mm upside-down forks, this bike provides agility and stability under all circumstances. The TRK 502X also boasts a large 20-liter fuel tank capacity, ensuring extended riding ranges without refueling interruptions.
The motorcycle’s safety features are equally impressive, with 19-inch front and 17-inch radial aluminum alloy rims shod in high-grip tires, providing enhanced traction on demanding terrain. Twin 320mm floating discs with ABS up front and a single 260mm disc with ABS at the rear ensure confident braking performance in all conditions.
The Benelli TRK 502X is a true adventure machine, designed to conquer any terrain with confidence and style, making it an ideal choice for riders seeking a thrilling riding experience.
Key Specifications
Engine Type
Parallel twin, DOHC, 8 valves
Engine Capacity
30.5 cubic inches / 499.6 cc
Max Torque
45 Nm / 4.59 kgf-m @ 5000 rpm
Fuel Tank Capacity
5.2 US gallons / 20.0 L
Seat Height
33 inches / 840 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Benelli TRK 502X
Year
2018 – 2019
Engine
Engine Type
Parallel twin, DOHC, 8 valves
Displacement
30.5 cubic inches / 499.6 cc
Bore x Stroke
69 x 66.8 mm
Compression Ratio
11.5:1
Max Torque
45 Nm / 4.59 kgf-m @ 5000 rpm
Engine Management System
EFI with 37 mm throttle body
Lubrication System
Forced with wet sump
Cooling System
Liquid cooled
Exhaust
With catalytic converter and oxygen sensors
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multidisc wet clutch
Gearbox
6-Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Steel tube trellis frame
Front Suspension
50 mm USD fork, adjustable
Rear Suspension
Rear swing arm with central shock absorber, spring preload, hydraulicrebound and compression setting adjustable
Wheels & Brakes
Front Wheel/Rim Size
Rim and hub in Aluminum alloy with iron spokes, 19 x 3.00 DOT D
Front Tire Size
110/80- R19 – M/C 59V
Rear Wheel/Rim Size
Rim and hub in Aluminum alloy with iron spokes, 17 x 4.25 DOT D
Rear Tire Size
150/70 – R17 M/C 69V
Front Brakes
Dual 320 mm floating discs, 4-piston calipers, ABS
Rear Brakes
Single 260 mm disc, 2-piston caliper, ABS
Dimension & Weights
Overall Length
2200 mm / 86.6 in
Overall Width
915 mm / 36 in
Overall Height
1490 mm / 58.6 in
Seat Height
33 inches / 840 mm
Wheelbase
60 inches / 1525 mm
Ground Clearance
220 mm / 8.6 in
Fuel Tank Capacity
5.2 US gallons / 20.0 L
Features
Steel trestle tubes and plates frame
Liquid cooled double cylinder engine
4-stroke, 4 valves per cylinder
47.6 hp (35 kW) at 8500 rpm
45 Nm (4.6 kgm) @ 5000 rpm
50 mm upside down forks
Swing arm with central shock absorber
Spring preload adjustable
Hydraulic rebound and compression setting adjustable
20 litre fuel tank capacity
19″ front aluminum alloy rim
110/80 tires (front)
17″ rear radial rims in aluminum alloy
150/70 tires (rear)
Twin 320 mm floating discs with 2 piston caliper brake at front with ABS
Single 260 mm disc with single piston caliper brake for rear with ABS
