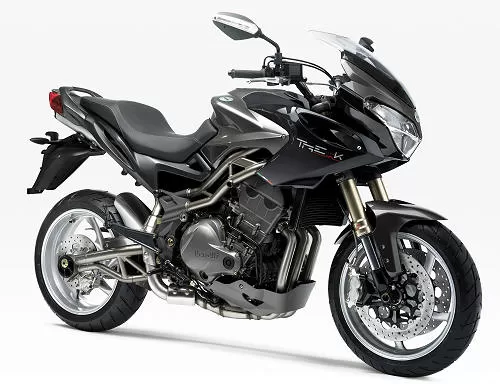

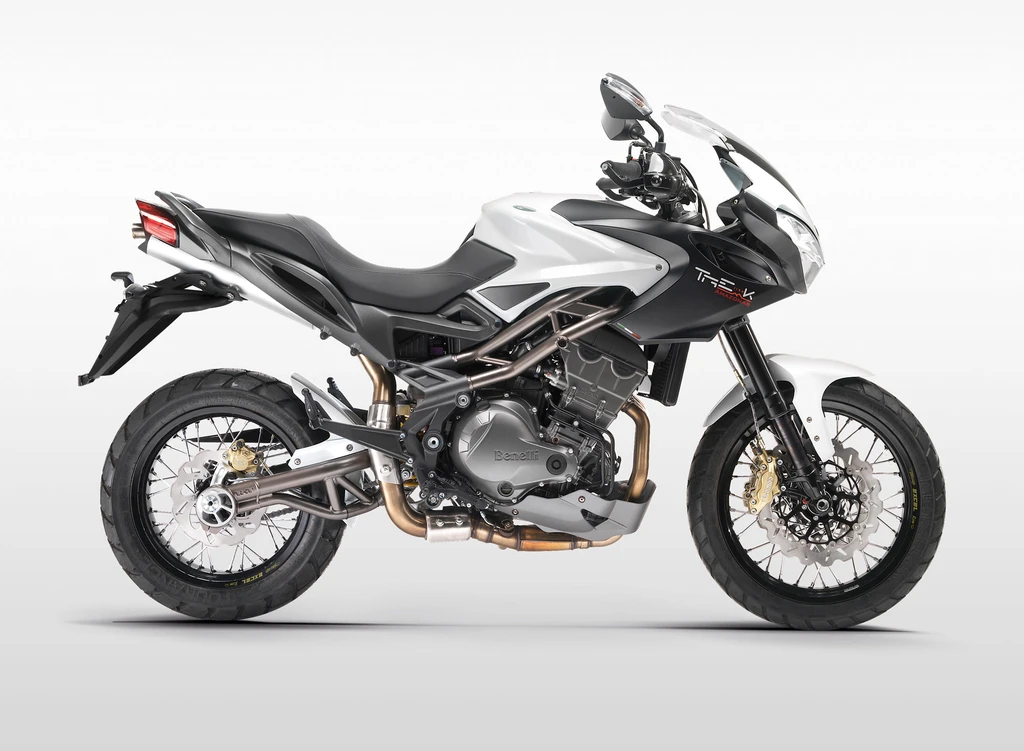

Benelli Tre-K 1130 (2010 – 2011)

Benelli Tre-K 1130 (2010 - 2011)

The Benelli Tre-K 1130 embodies a new era of riding, engineered to resist every shock in any situation with its advanced frame design. This sleek motorcycle features an aluminium alloy castings trellis front end, fastened to a boxed rear section, providing exceptional rigidity and stability.

Its Extreme Technology single shock absorber boasts adjustable rebound and spring preload, ensuring optimal suspension reaction and comfort, even in the most demanding off-road conditions.

At the heart of this machine lies its potent 1130cc three-cylinder engine, delivering a unique blend of power and character that’s unmatched in its class. With its agile handling and responsive steering, the Tre-K 1130 is an exhilarating ride, perfect for both on- and off-pavement adventures.

Built on Benelli’s new-generation chassis, the Tre-K 1130 represents a major step forward in innovation, marking the beginning of a new era in motorcycle design that sets a new benchmark for safety, performance, and riding experience.

Key Specifications

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity1130 cc / 69 cu in
Max Power92 kw / 123 hp
Max Torque115 Nm / 11.4 kgm / 67.9 lb-ft @ 6250 rpm
Fuel Tank Capacity4.8 US gallons / 18.0 L
Seat Height32.9 inches / 838 mm
Benelli Tre-K 1130 (2010 - 2011)

All Specifications

Make & Model

ModelBenelli Tre-K 1130
Year2010 – 2011

Engine

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement1130 cc / 69 cu in
Bore x Stroke88 x 62 mm
Compression Ratio11.5:1
Max Horsepower92 kw / 123 hp
Max Torque115 Nm / 11.4 kgm / 67.9 lb-ft @ 6250 rpm
Engine Management SystemElectronic injectionwith1injectorpercylinder
Lubrication SystemWet sump
Cooling SystemLiquid cooled
ExhaustWith catalytic converter and oxygen sensor

Performance

Top Speed221.4 km/h / 137.5 mph

Transmission

ClutchWet clutch with hydraulic command
Gearbox6 Speed
Gear Ratios1st 14/39 / 2nd 18/35 / 3rd 21/32 / 4th 23/30 / 5th 24/28 / 6th 26/27
Final DriveChain drive, ratio 16:37

Electrical & Electronics System

Chassis & Suspension

Frame TypeMixedsolution.Front:ASDsteeltubetrellis,fastenedtoboxedrearsection,aluminiumalloycastings.Subframe:aluminiumdie-cast.
Front SuspensionMarzocchi50mmupsidedownforkdamping, reboundandspringpre-loadadjustment.
Rear SuspensionASD steel tube trellis swingarm with Extreme Technology single shock absorber with adjustable rebound and spring preload.

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size180/55-17
Front Brakes2 x 320 mm , discs 4 piston caliper
Rear BrakesSingle 240 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2183 mm / 85.9 in
Overall Width850 mm / 37.4 in
Overall Height1320 mm / 51.9 in
Seat Height32.9 inches / 838 mm
Wheelbase59.6 inches / 1515 mm
Ground Clearance140 mm / 5.7 in
Fuel Tank Capacity4.8 US gallons / 18.0 L
Dry Weight205 kg / 451.9 lbs

Features

  • Steel tube trellis front end with aluminium alloy castings
  • Aluminium die-cast subframe
  • ASD steel tube trellis swingarm
  • Extreme Technology single shock absorber with adjustable rebound and spring preload
  • New radiator position for high thermal exchanges at low speeds and off-road use
  • Rear suspension designed for best stability, comfort, and suspension reaction
  • Unique features for a bike in this class: easy ride and ride neutrality
  • Massive triangulated tube-steel swingarm
  • Link-actuated shock absorber
  • Marzocchi 50mm inverted fork with adjustable rebound damping
  • Benelli Triple engine producing 125 hp at 9000 rpm, 82.6 ft.-lbs. of peak torque at 5000 rpm
  • Flexible and suitable for adventure-bike riding
  • Good wind protection from the TreK’s faring and windscreen
  • Claimed weight: 457 pounds
  • Wheelbase: 59.6 inches
  • Elegantly crafted seat with moderate height (31.9 inches)
  • Comfortable reach to the ground for riders over 5-foot-8
