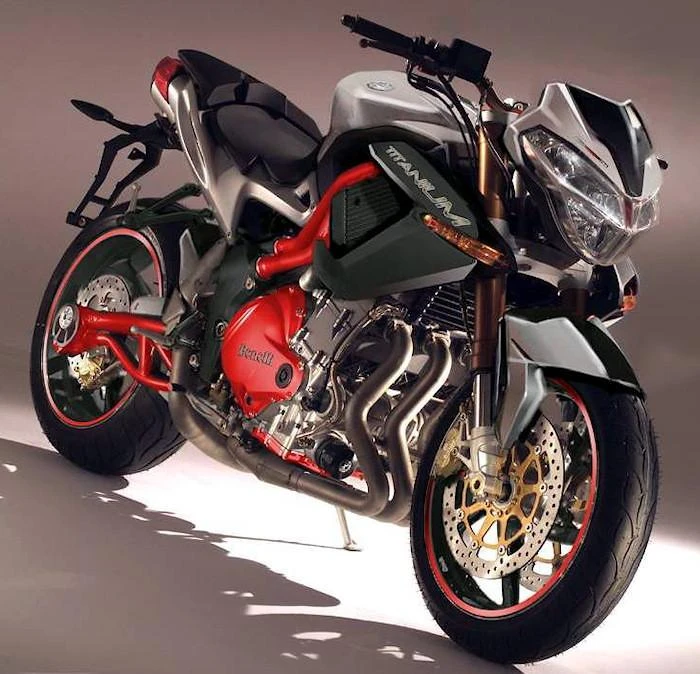

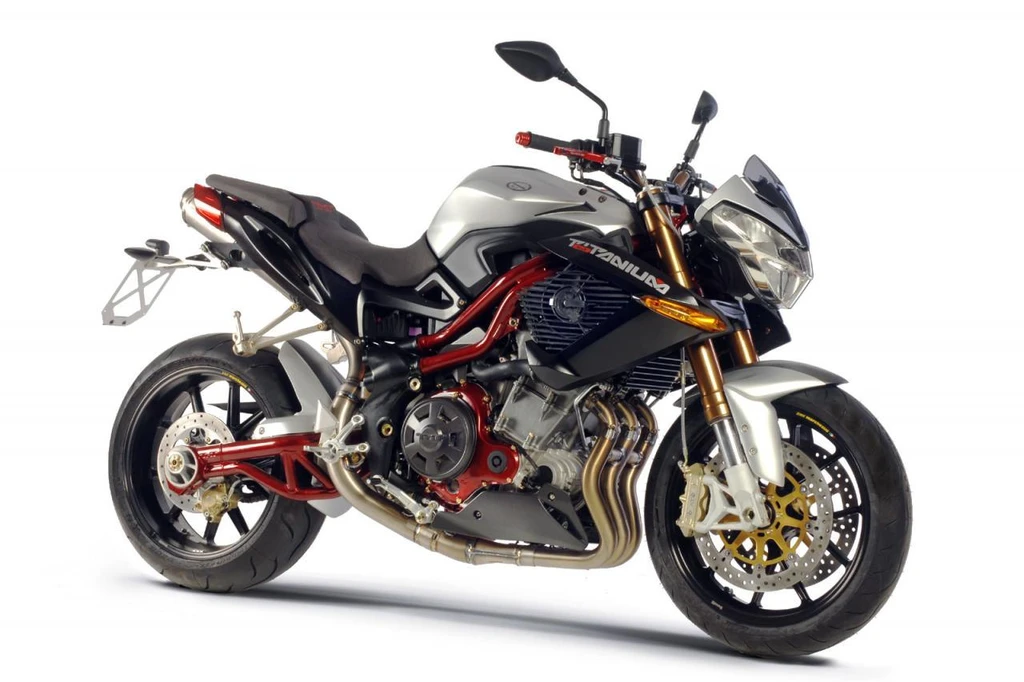

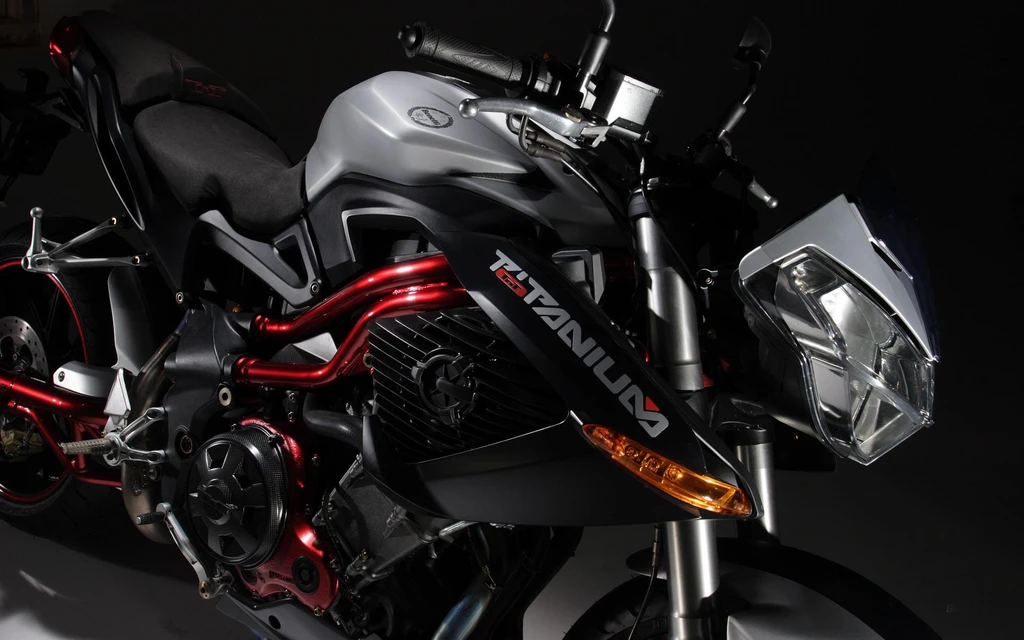

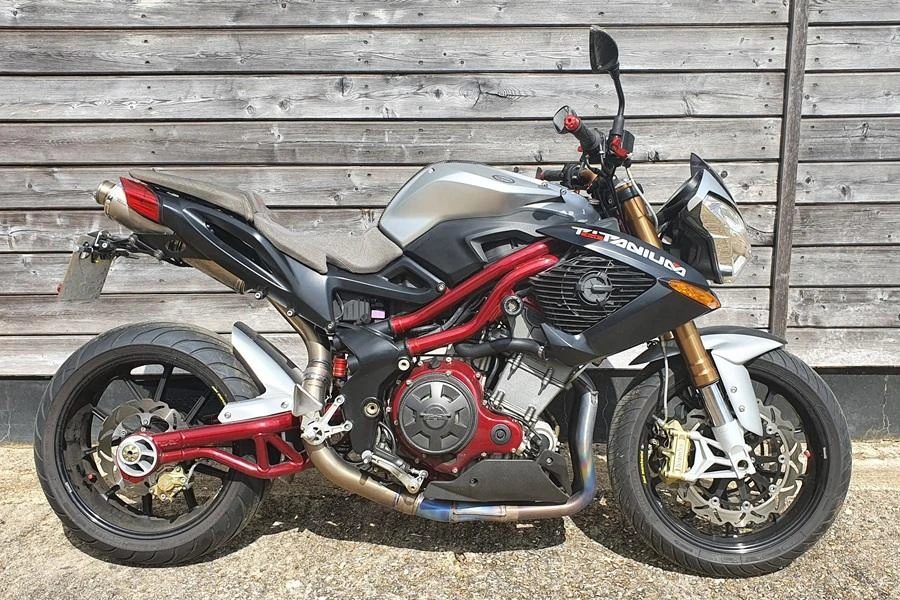

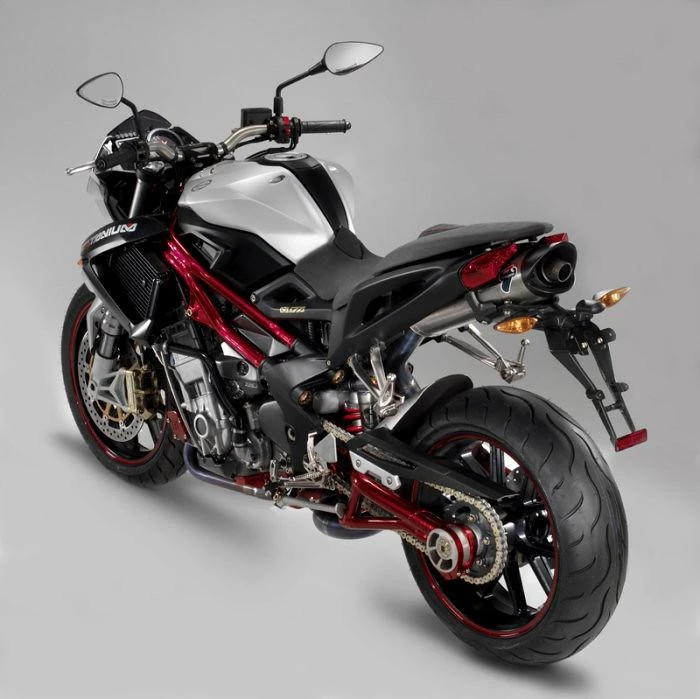

Benelli TNT Titanium (2009 – 2010)

Benelli TNT Titanium (2009 - 2010)

The Benelli TNT Titanium embodies the essence of a true racing bike, boasting an exceptional equipment package that redefines the riding experience.

Carbon fairings, a titanium exhaust system, fully adjustable suspensions, and a dry clutch come together to deliver unparalleled performance on the track. The bike’s sleek design is further enhanced by its unique color scheme and exclusive fabric seat.

At the heart of this powerhouse lies a versatile engine that adapts seamlessly to any riding condition. With the ability to switch between free power and controlled power modes at the touch of a button, riders can tailor their experience to suit their style. This innovative feature not only optimizes fuel efficiency but also provides greater control in poor traction conditions.

The TNT Titanium’s exceptional cycle is equally impressive, featuring a 50mm fork that’s completely adjustable for compression, extension, and spring preload. The rear shock absorber boasts an Ergal body, making it one of the lightest and most unique components in the world.

Key Specifications

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity1130 cc / 69 cu in
Max Power101 kw / 131.3 hp
Max Torque117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 6750 rpm
Fuel Tank Capacity4.2 US gallons / 16.0 L
Seat Height32.3 inches / 820 mm
Benelli TNT Titanium (2009 - 2010)

All Specifications

Make & Model

ModelBenelli TNT Titanium
Year2009 – 2010

Engine

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement1130 cc / 69 cu in
Bore x Stroke88 x 62 mm
Compression Ratio11.5:1
Max Horsepower101 kw / 131.3 hp
Max Torque117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 6750 rpm
Engine Management SystemElectronic injectionwith1injectorpercylinder
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeFrontASDsteeltubetrellis,fastenedwithdrawerscrewstoboxedrearsection,aluminium alloycastings.
Front SuspensionMarzocchi50mm upsidedownfork,ASDsteeltubetrellis,oscillatingmainfork
Rear SuspensionMonoshockabsorberwithadjustableextensionandspringload

Wheels & Brakes

Front Tire Size120/70-ZR17
Rear Tire Size190/50-ZR17
Front Brakes2 x 320 mm discs, 4 piston calipers
Rear BrakesSingle 240 mm disc, 2 piston caliper

Dimension & Weights

Seat Height32.3 inches / 820 mm
Fuel Tank Capacity4.2 US gallons / 16.0 L
Dry Weight193 kg / 426 lbs

Features

  • Carbon fairings
  • Titanium exhaust system
  • Totally adjustable suspensions at low and high speeds
  • Dry clutch
  • Forged wheels
  • Radial brake system
  • Eccentric system for complete footboard adjustment
  • Adjustable engine control unit with free power and controlled power modes
  • Exclusive fabric seat
  • Unique colour of the fairings and frame
  • 50 mm fork completely adjustable in compression, extension, and spring preload
  • Back shock absorber body made from Ergal material
  • Marchesini rims in forged and machined aluminium alloy
  • Brembo braking system with a 4 piston radial calliper and 320 mm diameter double disk at the front
