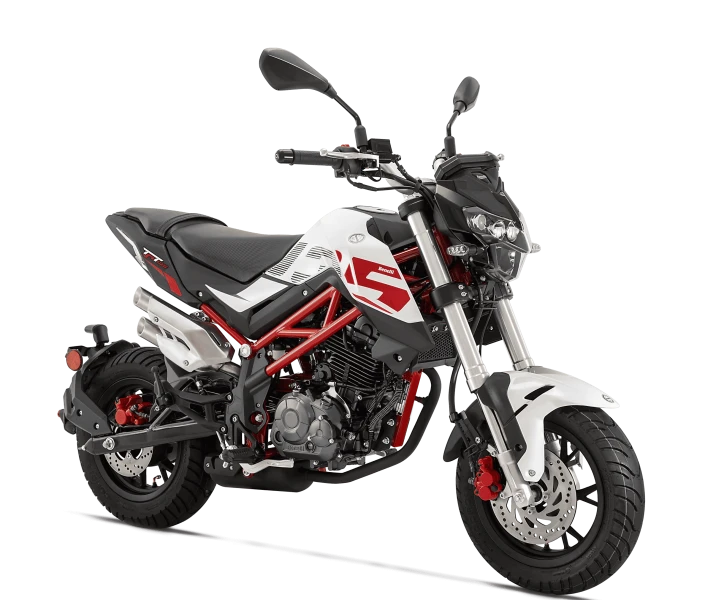

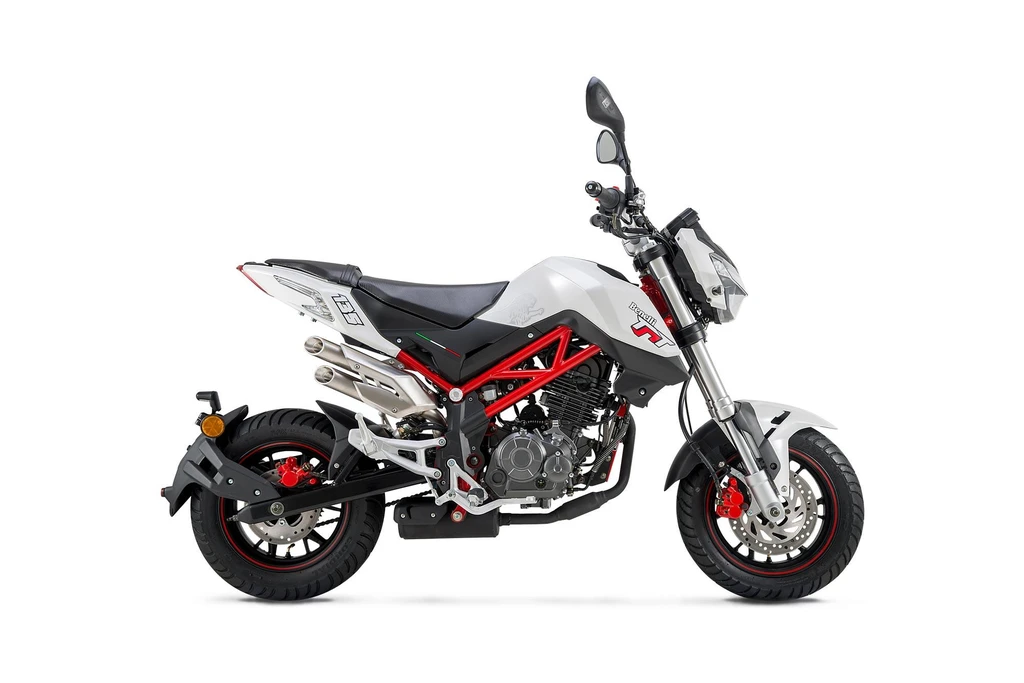

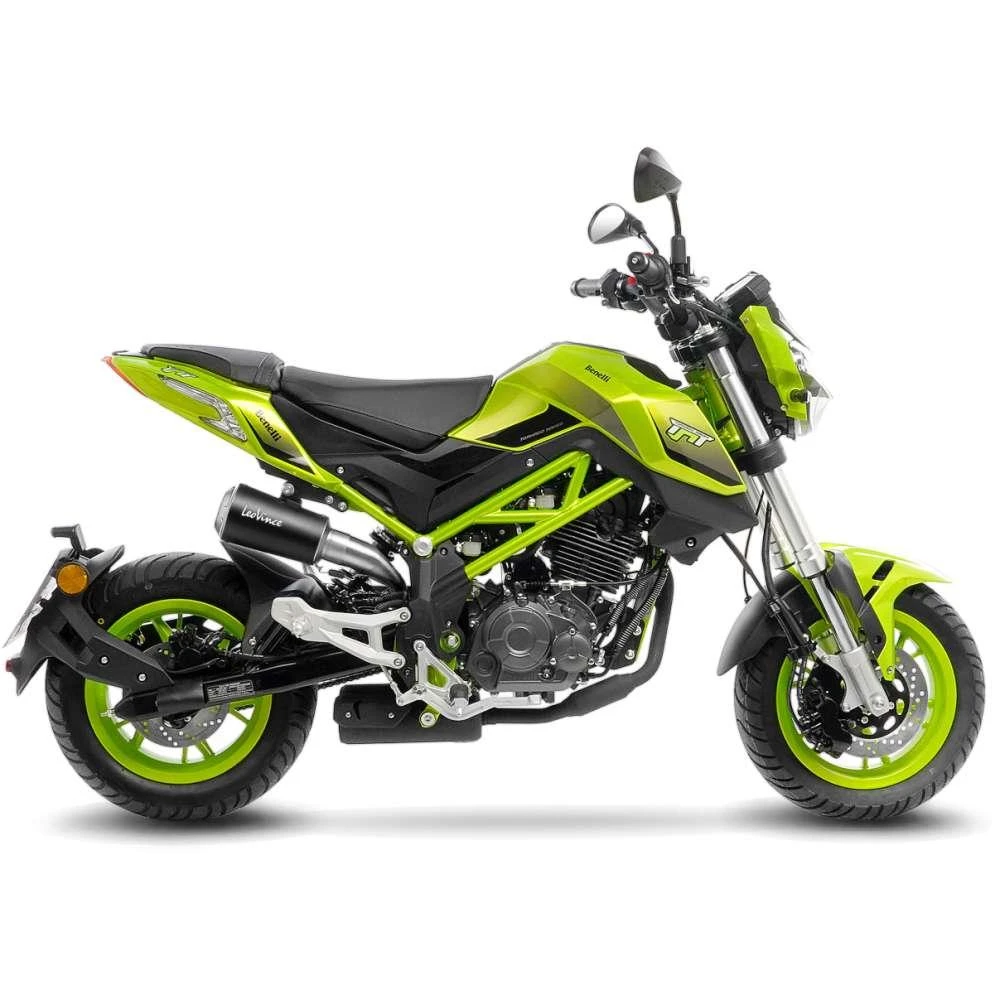

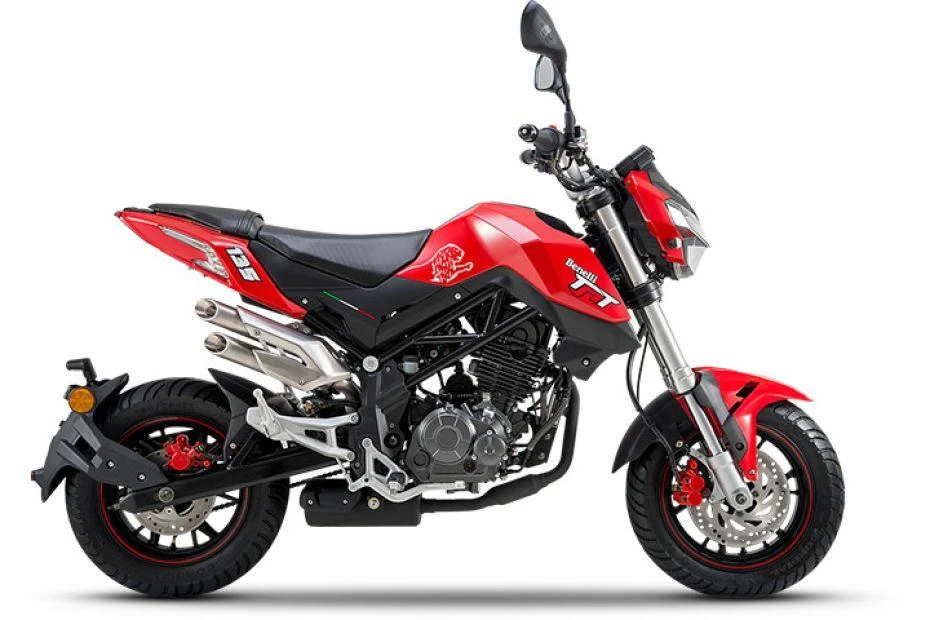

The Benelli TNT135 is a revelation in compact motorcycle design, boasting a potent 13-horsepower oil-cooled engine and a laundry list of advanced features that belie its diminutive size.
Electronic fuel injection with throttle body d.28 provides seamless power delivery, while the 4-Valve SOHC single-cylinder engine pumps out a satisfying 13 horsepower and 5 transmission speeds.
Racy, naked-bike styling and sporty ergonomics make it a blast to ride, whether navigating city streets or carving up twisties on an empty back road. The TNT135’s advanced suspension, alloy wheels with disc brakes, and grippy all-weather tires ensure a comfortable ride and stable performance.
From its lattice-steel frame to its super-strong rear shock design, the Benelli TNT135 is a masterclass in miniaturized motorcycle engineering.
Key Specifications
Engine Type
Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity
8.2 cubic inches / 134.7 cc
Max Power
5 kw / 13 hp
Max Torque
10,8 Nm / 1,0 kgm @ 7000 rpm
Fuel Tank Capacity
1.9 US gallons / 7.2 L
Weight (Wet/Kerb)
266.7 lbs / 121 kg
Seat Height
30.7 inches / 780 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Benelli TNT 135
Year
2017 –
Engine
Engine Type
Four stroke, single cylinder, SOHC, 4 valves
Displacement
8.2 cubic inches / 134.7 cc
Bore x Stroke
54 x 58.8 mm
Compression Ratio
9.8:1
Max Horsepower
5 kw / 13 hp
Max Torque
10,8 Nm / 1,0 kgm @ 7000 rpm
Engine Management System
Electronic fuel injection with throttle body d.28
Lubrication System
Wet sump
Cooling System
oil cooled
Exhaust
With catalytic converter and oxygen sensors
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiplate
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Trestle in steel tubes
Front Suspension
41 mm Inverted fork
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
swing arm with lateral shock absorber with spring pre-load adjustment
Wheels & Brakes
Front Wheel/Rim Size
Aluminium alloy rim,12 x MT 3.0 DOT
Front Tire Size
120/70-ZR12
Rear Wheel/Rim Size
Aluminium alloy rim,12 x MT 3.5 DOT
Rear Tire Size
130/70 – ZR12
Front Brakes
Single 220mm disc 2 piston caliper
Rear Brakes
Single 190mm disc 1 piston caliper
Dimension & Weights
Seat Height
30.7 inches / 780 mm
Ground Clearance
160 mm / 6.2 in
Fuel Tank Capacity
1.9 US gallons / 7.2 L
Wet (kerb/curb) Weight
266.7 lbs / 121 kg
Features
Electronic fuel injection
Throttle body d.28
135cc oil-cooled engine
13-horsepower output
5 transmission speeds
4-Valve Engine
Oil-cooled single cylinder engine
SOHC design
Advanced suspension system
Strong lattice steel frame
Alloy wheels with disc brakes
Grippy all-weather tires
Racy naked-bike styling
Adjustable single shock rear suspension
Inverted fork front suspension
12-inch alloy wheels
Fat, sticky tires for improved handling
