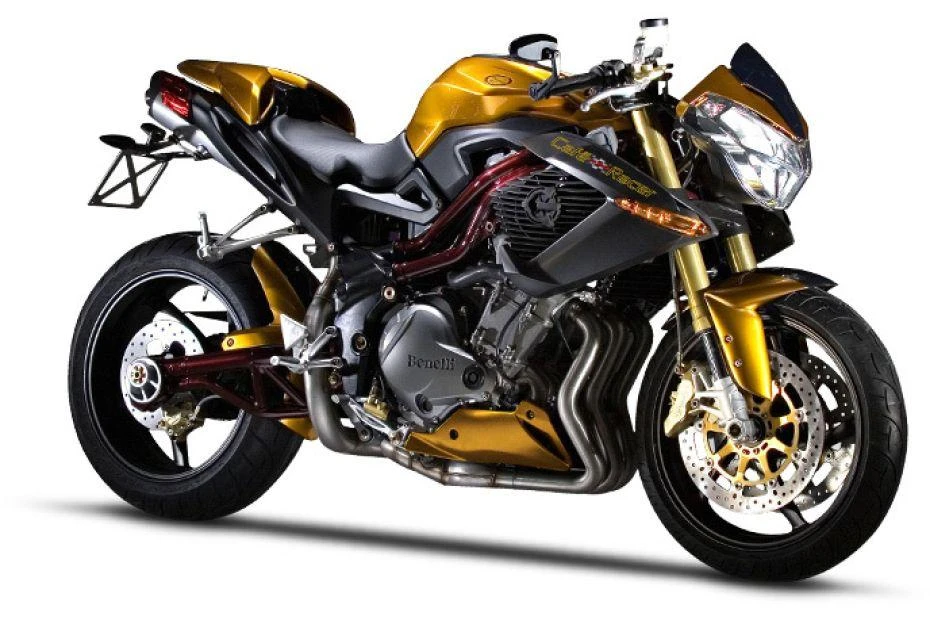

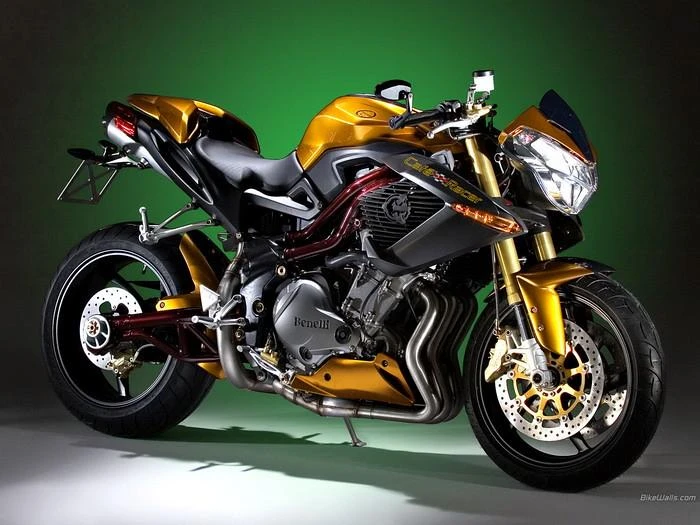

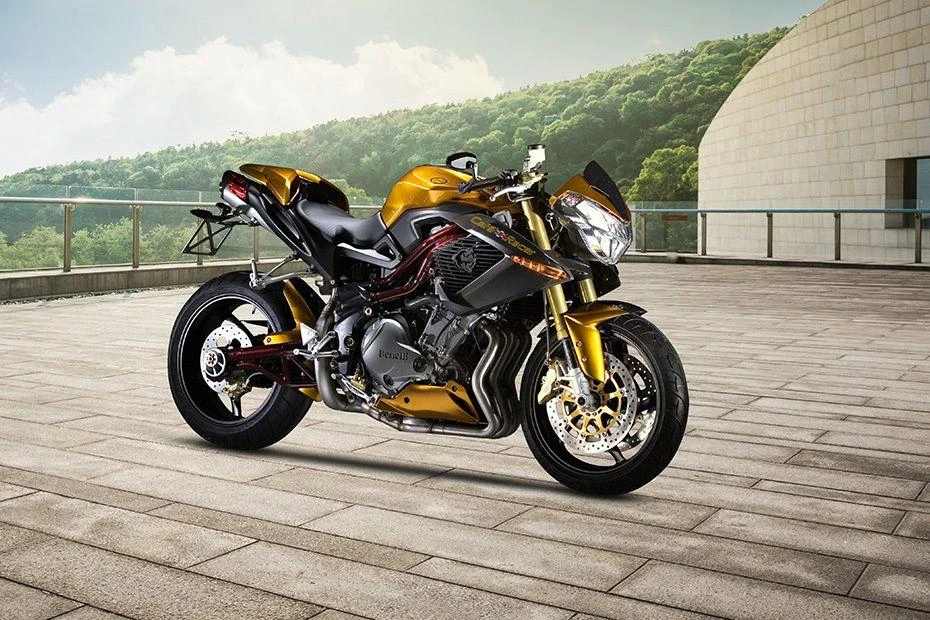

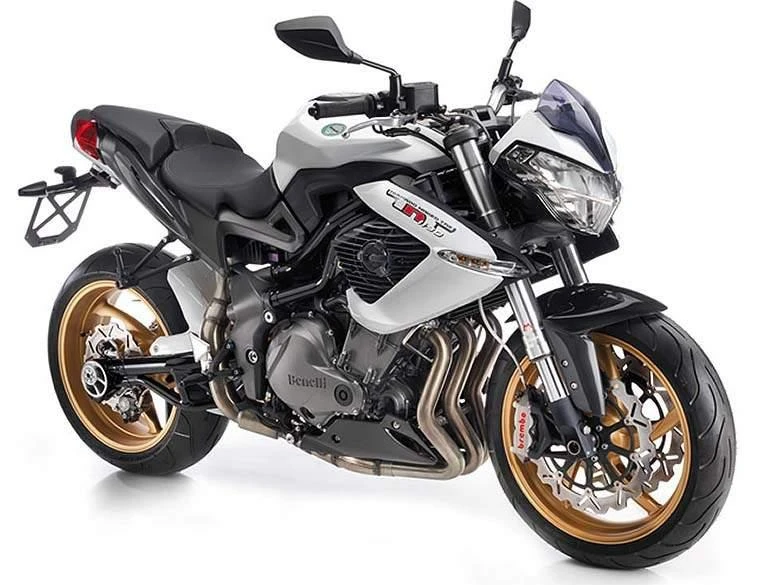

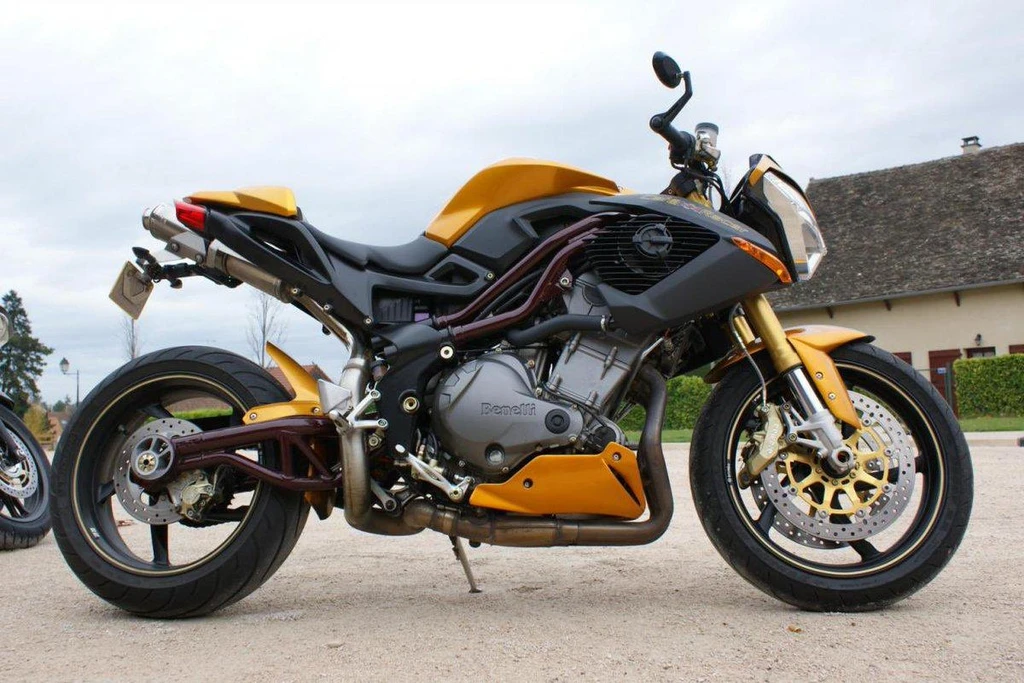

Benelli TNT 1130 Caf Racer (2013)

Benelli TNT 1130 Caf Racer (2013)

The Benelli TNT 1130 Caf Racer is a stunning machine that embodies the spirit of classic café culture. Its transverse three-cylinder engine roars to life, delivering exceptional power and torque thanks to its DOHC design with 4 valves per cylinder.

With its robust gear ratios – 2.786:1 first gear through to a rapid-fire 0.926:1 sixth gear – the TNT 1130 is perfectly suited for twisting mountain roads or carving up urban streets. Its Marzocchi fork and monoshock absorber work in harmony to provide exceptional handling and stability.

But it’s not just about performance – the Benelli TNT 1130 Caf Racer is a beautifully finished machine, with carbon fibre extras, machined alloy components, and striking Metallic Gold paint that turns heads wherever you go.

Key Specifications

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity1130 cc / 69 cu in
Max Power101 kw / 135 hp
Max Torque117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 7750 rpm
Fuel Tank Capacity16.5 L / 4.4 US gal
Weight (Wet/Kerb)474 lbs / 215 kg
Seat Height30.7 inches / 780 mm
Benelli TNT 1130 Caf Racer (2013)

All Specifications

Make & Model

ModelBenelli TNT 1130 Caf Racer
Year2013

Engine

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement1130 cc / 69 cu in
Bore x Stroke88 x 62 mm
Compression Ratio11.5:1
Max Horsepower101 kw / 135 hp
Max Torque117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 7750 rpm
Engine Management SystemElectronic injectionwith1injectorpercylinder
Lubrication SystemWet sump
Cooling SystemLiquid cooled
ExhaustWith catalytic converter and oxygen sensor

Performance

Top Speed269 km/h / 167 mph

Transmission

ClutchWet
Gearbox6 Speed
Gear Ratios1st 2.786 / 2nd 1.994 / 3rd 1.524 / 4th 1.304 / 5th 1.167 / 6th 0.926
Final DriveChain

Electrical & Electronics System

Battery12V, 10Ah
StarterElectric

Chassis & Suspension

Frame TypeFrontASDsteeltubetrellis,fastenedwithdrawerscrewstoboxedrearsection,aluminium alloycastings.
Front SuspensionMarzocchi50mmdiameterupsidedownforkASDsteeltubetrellisoscillatingmainfork
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionMonoshockabsorberwithadjustableextensionandspringload
Rear Suspension Travel4.5 inches / 115 mm
Rake25
Trail96 mm / 3.7 in

Wheels & Brakes

WheelsAluminium alloy, 10-spoke
Front Wheel/Rim Size3.5 x 17 in
Front Tire Size120/70-ZR17 (58W)
Rear Wheel/Rim Size6.0 x 17 in
Rear Tire Size190/55-ZR17 (73W)
Front Brakes2 x 320 mm discs, 4 piston calipers
Rear BrakesSingle 240 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2100 mm / 82.7 in
Overall Width790 mm / 31.1 in
Seat Height30.7 inches / 780 mm
Wheelbase56.8 inches / 1443 mm
Fuel Tank Capacity16.5 L / 4.4 US gal
Wet (kerb/curb) Weight474 lbs / 215 kg
Dry Weight205 kg / 452 lbs

Features

  • Four-stroke engine
  • Transverse three-cylinder design
  • DOHC cylinder head configuration
  • 4 valves per cylinder
  • Six-speed transmission
  • Front ASD steel tube trellis frame
  • Marzocchi 50mm diameter upside-down fork
  • Radial Block Brembo calipers
  • Italian made floating BRAKING brand rotors
  • Monoshock absorber with adjustable extension and spring load
  • Adjustable front fork
  • High torque, fast revving Italian triple engine
  • Aluminium alloy castings
  • Carbon fibre extras
  • Machined alloy components throughout
  • Metallic Gold paint scheme
