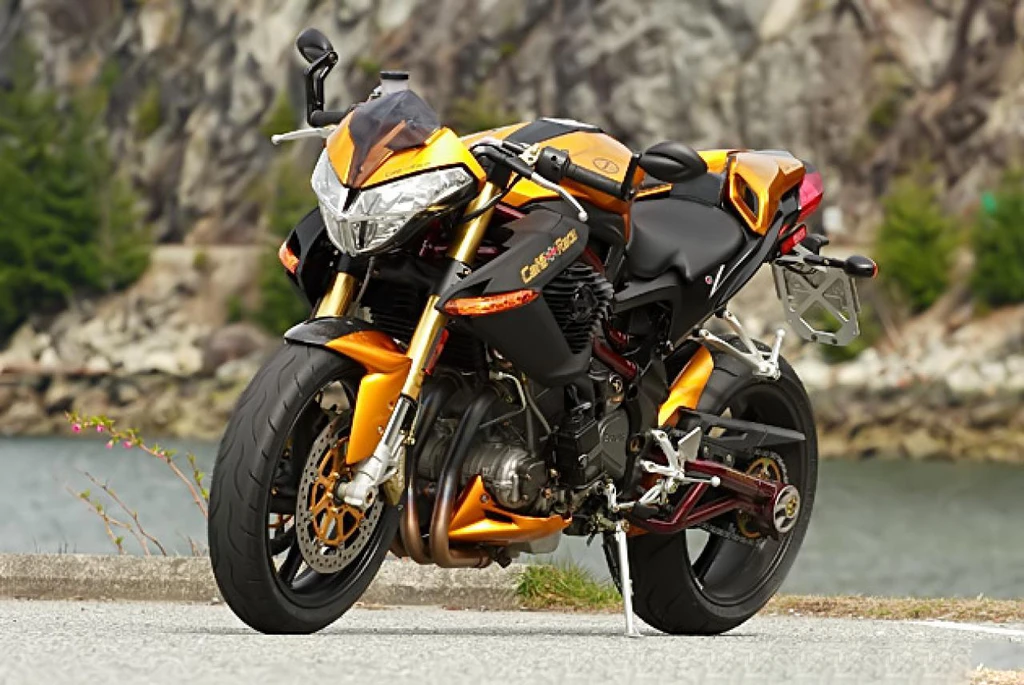

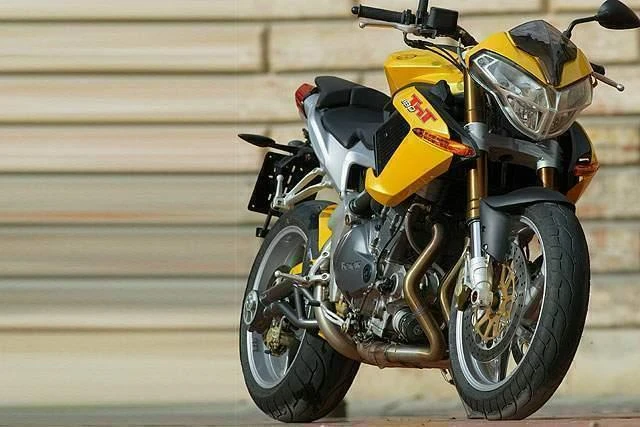

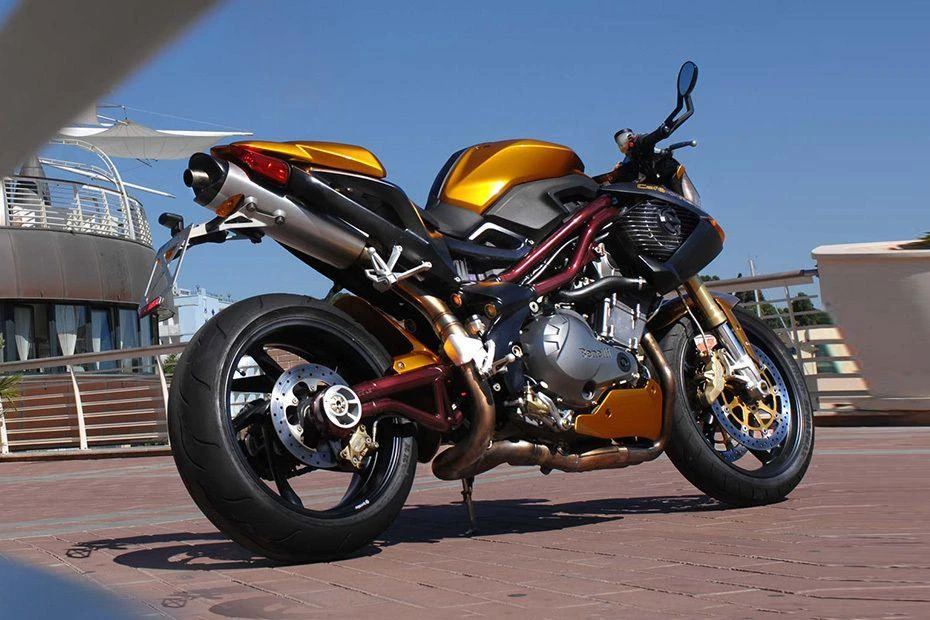

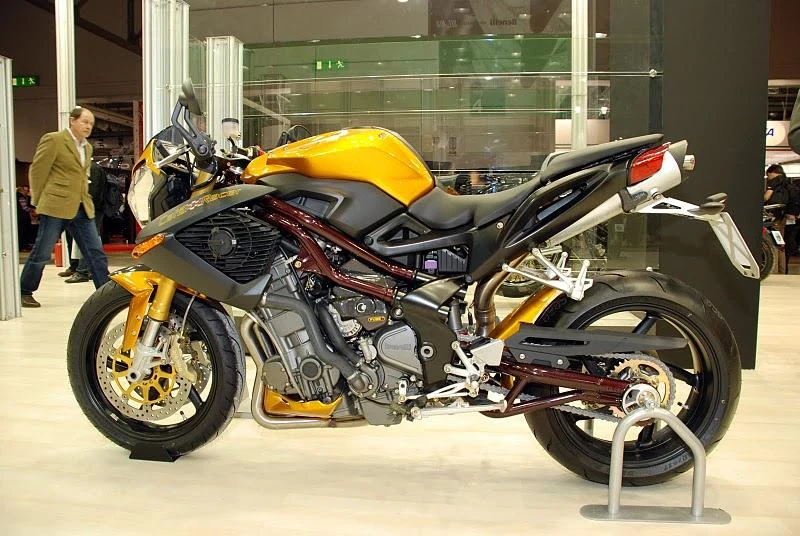

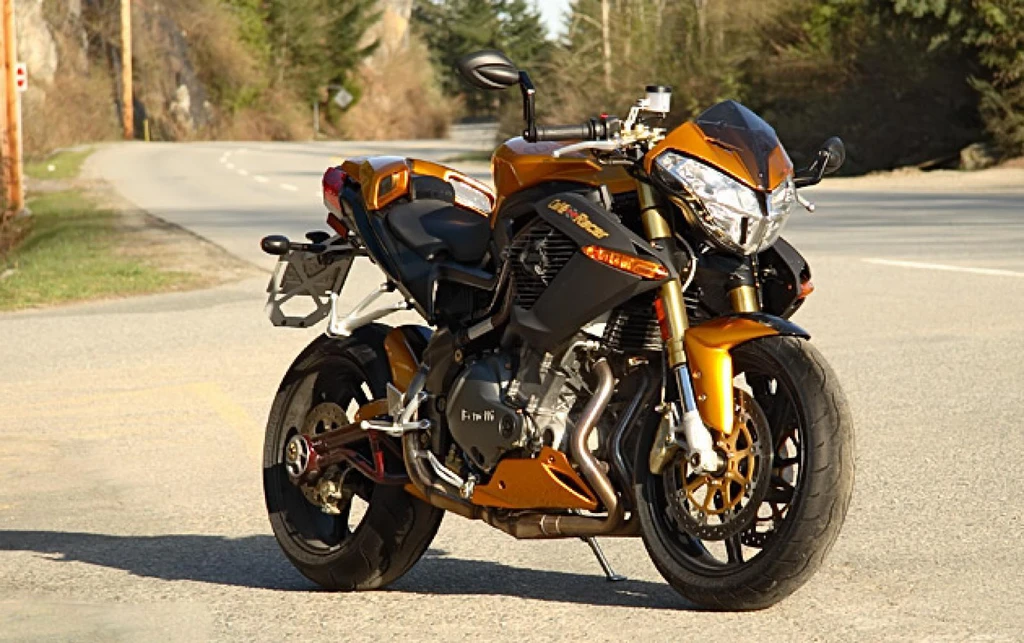

Benelli TNT 1130 Caf Racer (2011)

The Benelli TNT 1130 Caf Racer is a thrilling rebirth of the classic racing bikes of yesteryear. Its four-stroke, transverse three-cylinder engine is a marvel of modern engineering, delivering exceptional performance and riding comfort.

With its sleek design and attention to detail, this motorcycle exudes an aura of sophistication and exclusivity. The higher windscreen provides greater aerodynamic protection, while the lower clip-on handlebars in aluminium alloy create a more aggressive riding position.

The Caf Racer’s exceptional components include a monoshock absorber with adjustable extension and spring load, as well as eccentric footboard adjustment system, carbon parts, and seat support. The engine control unit offers two configurations: free power for maximum torque and motor power, or controlled power for easier handling in poor traction conditions.

This innovative feature not only enhances the riding experience but also reduces fuel consumption by 10-20% depending on driving style and road conditions. Whether carving through twisties or cruising through city streets, the Benelli TNT 1130 Caf Racer is an unforgettable ride that promises to leave a lasting impression.

Key Specifications

Engine Type	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity	1130 cc / 69 cu in
Max Power	101 kw / 135 hp
Max Torque	117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 7750 rpm
Fuel Tank Capacity	16.5 L / 4.4 US gal
Weight (Wet/Kerb)	474 lbs / 215 kg
Seat Height	30.7 inches / 780 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Benelli TNT 1130 Caf Racer
Year	2011

Engine

Engine Type	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement	1130 cc / 69 cu in
Bore x Stroke	88 x 62 mm
Compression Ratio	11.5:1
Max Horsepower	101 kw / 135 hp
Max Torque	117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 7750 rpm
Engine Management System	Electronic injectionwith1injectorpercylinder
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	With catalytic converter and oxygen sensor

Performance

Top Speed

269 km/h / 167 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet
Gearbox	6 Speed
Gear Ratios	1st 2.786 / 2nd 1.994 / 3rd 1.524 / 4th 1.304 / 5th 1.167 / 6th 0.926
Final Drive	Chain

Electrical & Electronics System

Battery	12V, 10Ah
Starter	Electric

Chassis & Suspension

Frame Type	FrontASDsteeltubetrellis,fastenedwithdrawerscrewstoboxedrearsection,aluminium alloycastings.
Front Suspension	Marzocchi50mmdiameterupsidedownforkASDsteeltubetrellisoscillatingmainfork
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Monoshockabsorberwithadjustableextensionandspringload
Rear Suspension Travel	4.5 inches / 115 mm
Rake	25
Trail	96 mm / 3.7 in

Wheels & Brakes

Wheels	Aluminium alloy, 10-spoke
Front Wheel/Rim Size	3.5 x 17 in
Front Tire Size	120/70-ZR17 (58W)
Rear Wheel/Rim Size	6.0 x 17 in
Rear Tire Size	190/55-ZR17 (73W)
Front Brakes	2 x 320 mm discs, 4 piston calipers
Rear Brakes	Single 240 mm disc, 2 piston caliper

Dimension & Weights

Overall Length	2100 mm / 82.7 in
Overall Width	790 mm / 31.1 in
Seat Height	30.7 inches / 780 mm
Wheelbase	56.8 inches / 1443 mm
Fuel Tank Capacity	16.5 L / 4.4 US gal
Wet (kerb/curb) Weight	474 lbs / 215 kg
Dry Weight	205 kg / 452 lbs

Features

Four-stroke transverse three-cylinder engine
DOHC with 4 valves per cylinder
Variable valve timing: 2.786 / 1.994 / 1.524 / 1.304 / 1.167 / 0.926 inches
Front ASD steel tube trellis frame
Rear swingarm with boxed section and aluminium alloy castings
Marzocchi 50mm diameter upside-down fork
Adjustable main fork with compression, extension, and spring preload
Monoshock absorber with adjustable extension and spring load
Higher windscreen for greater aerodynamic protection
Lower clip-on handlebars in aluminium alloy
Single seat bellypan and tailpiece
Eccentric footboard adjustment system
Carbon parts and seat support
Engine control unit with free power and controlled power configurations
Adjustable engine performance through button on dash support
Fuel consumption decrease of 10-20% depending on driving style and road conditions
Marchesini forged and machined aluminium alloy rims
Brembo braking system with 4-piston radial calliper and 320mm diameter double disk at front
