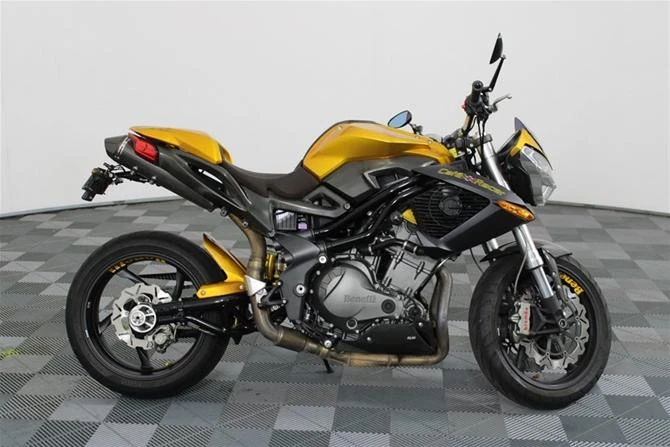

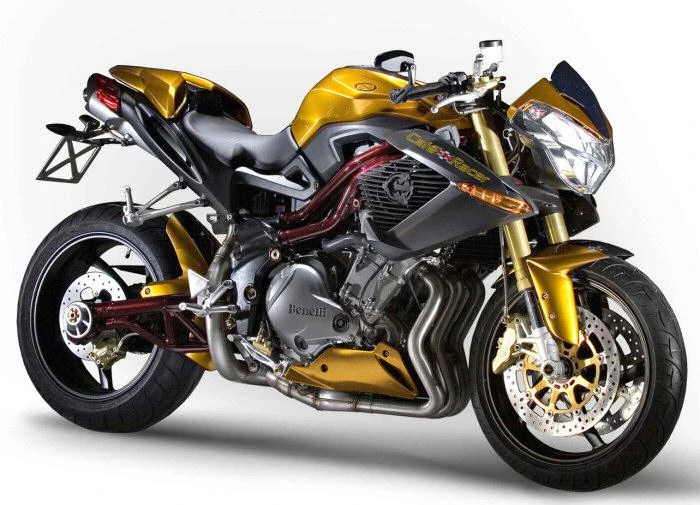

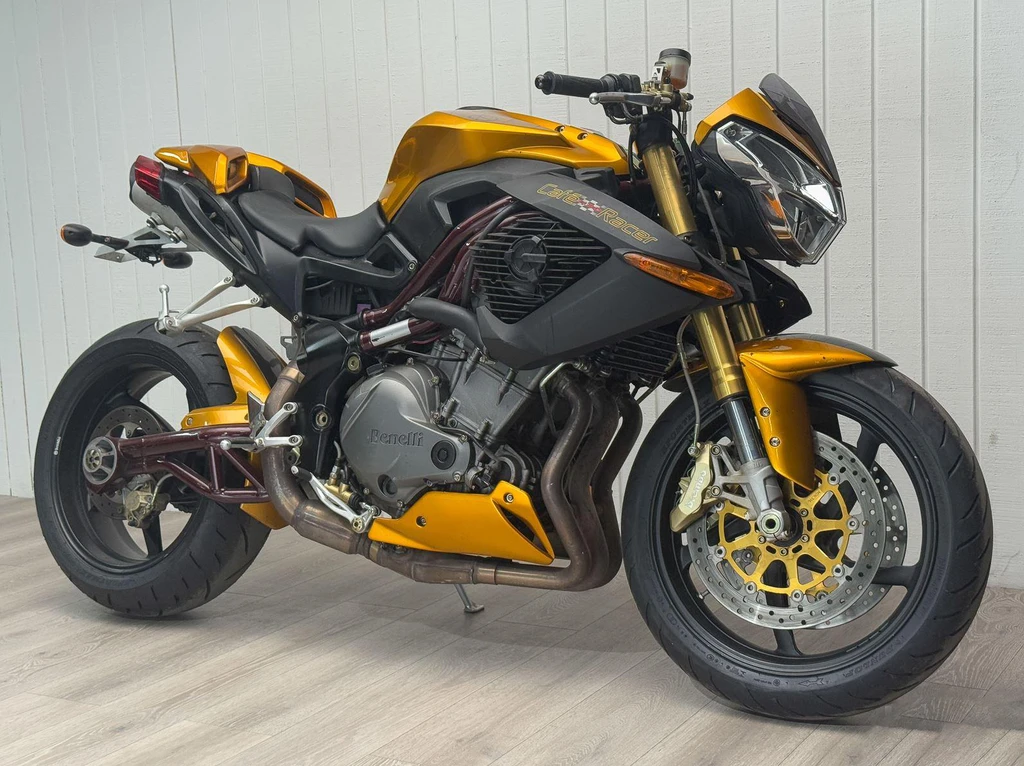

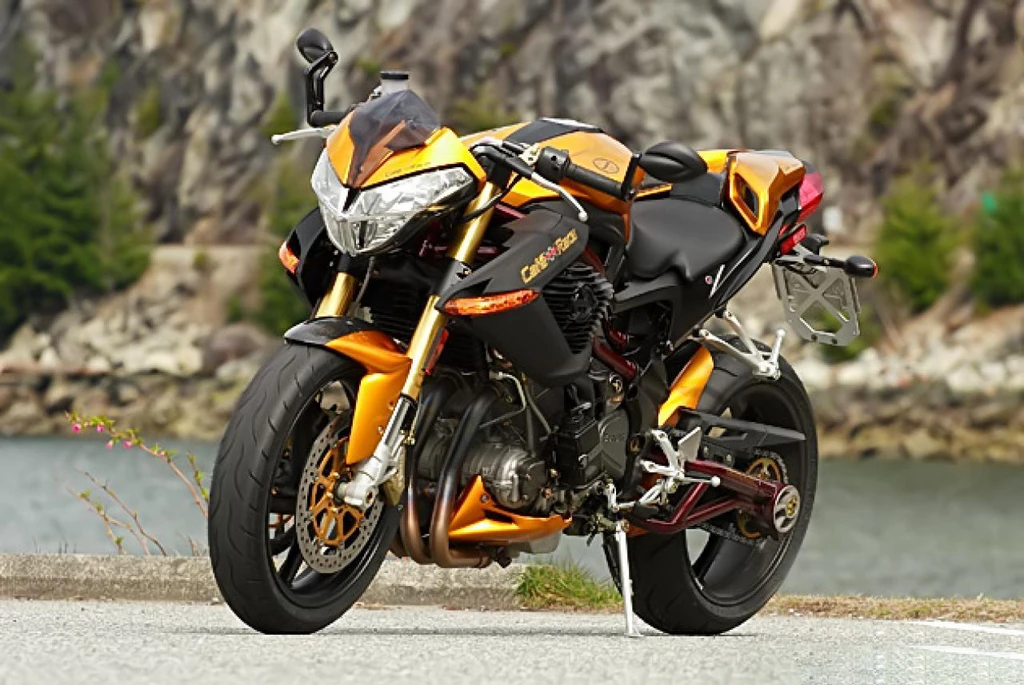

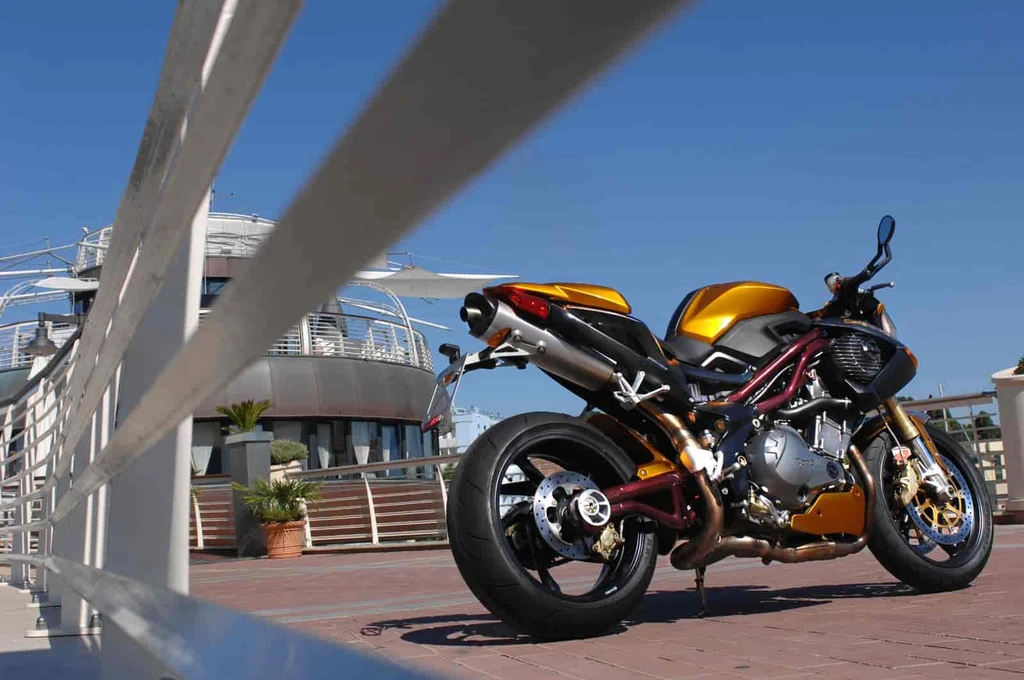

Benelli TNT 1130 Caf Racer (2008 – 2009)

Benelli TNT 1130 Caf Racer (2008 - 2009)

The Benelli TNT 1130 Caf Racer is a true throwback to the racing bikes of yesteryear, yet infused with modern sophistication and cutting-edge technology.

Its transverse three-cylinder engine produces an incredible amount of torque and power, making it a thrill to ride on both twisty roads and open highways. With its DOHC design and 4 valves per cylinder, this bike is a real performer that will put a smile on the face of any rider.

But it’s not just about raw power – the Caf Racer also boasts exceptional components such as a high windscreen, lower clip-on handlebars, and a single seat setup that invites riders to experience the thrill of riding a true racer alone. The result is a motorcycle with an extraordinary personality that offers both comfort and extreme performance.

And with its innovative engine control system, riders can switch between free power and controlled power at the touch of a button, making it possible to enjoy the bike’s full potential or optimize fuel consumption in real-world riding conditions. Whether you’re carving up mountain roads or cruising through city streets, the Benelli TNT 1130 Caf Racer is an absolute blast to ride – one that will leave you grinning from ear to ear.

Key Specifications

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity1130 cc / 69 cu in
Max Power101 kw / 135 hp
Max Torque117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 7750 rpm
Fuel Tank Capacity16.5 L / 4.4 US gal
Weight (Wet/Kerb)474 lbs / 215 kg
Seat Height30.7 inches / 780 mm
Benelli TNT 1130 Caf Racer (2008 - 2009)

All Specifications

Make & Model

ModelBenelli TNT 1130 Caf Racer
Year2008 – 2009

Engine

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement1130 cc / 69 cu in
Bore x Stroke88 x 62 mm
Compression Ratio11.5:1
Max Horsepower101 kw / 135 hp
Max Torque117 Nm / 11.9 kgf-m / 86.3 lb-ft @ 7750 rpm
Engine Management SystemElectronic injectionwith1injectorpercylinder
Lubrication SystemWet sump
Cooling SystemLiquid cooled
ExhaustWith catalytic converter and oxygen sensor

Performance

Top Speed269 km/h / 167 mph

Transmission

ClutchWet
Gearbox6 Speed
Gear Ratios1st 2.786 / 2nd 1.994 / 3rd 1.524 / 4th 1.304 / 5th 1.167 / 6th 0.926
Final DriveChain

Electrical & Electronics System

Battery12V, 10Ah
StarterElectric

Chassis & Suspension

Frame TypeFrontASDsteeltubetrellis,fastenedwithdrawerscrewstoboxedrearsection,aluminium alloycastings.
Front SuspensionMarzocchi50mmdiameterupsidedownforkASDsteeltubetrellisoscillatingmainfork
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionMonoshockabsorberwithadjustableextensionandspringload
Rear Suspension Travel4.5 inches / 115 mm
Rake25
Trail96 mm / 3.7 in

Wheels & Brakes

WheelsAluminium alloy, 10-spoke
Front Wheel/Rim Size3.5 x 17 in
Front Tire Size120/70-ZR17 (58W)
Rear Wheel/Rim Size6.0 x 17 in
Rear Tire Size190/55-ZR17 (73W)
Front Brakes2 x 320 mm discs, 4 piston calipers
Rear BrakesSingle 240 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2100 mm / 82.7 in
Overall Width790 mm / 31.1 in
Seat Height30.7 inches / 780 mm
Wheelbase56.8 inches / 1443 mm
Fuel Tank Capacity16.5 L / 4.4 US gal
Wet (kerb/curb) Weight474 lbs / 215 kg
Dry Weight205 kg / 452 lbs

Features

  • Four stroke transverse three cylinder engine
  • DOHC with 4 valves per cylinder
  • Six-speed gearbox
  • Front ASD steel tubular trellis frame
  • Boxed rear section with aluminium alloy castings
  • Marzocchi 50mm diameter upside down fork
  • Monoshock absorber with adjustable extension and spring load
  • Higher windscreen for aerodynamic protection
  • Lower clip-on handlebars in aluminium alloy
  • Single seat bellypan and tailpiece
  • Eccentric foot board adjustment system
  • Carbon parts
  • Adjustable engine control unit
  • Free power or controlled power motor configuration
  • Powerful 50mm fork with hardened surface
  • Ergal back shock absorber body
  • Marchesini rims in forged and machined aluminium alloy
  • Brembo braking system with 4 piston radial calliper
  • 320mm diameter double disk at the front
