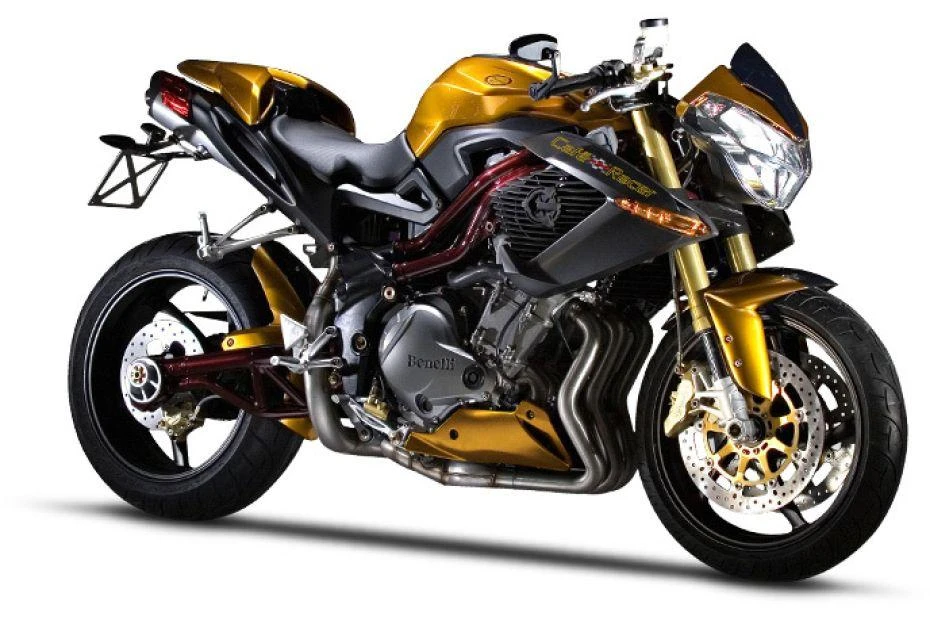

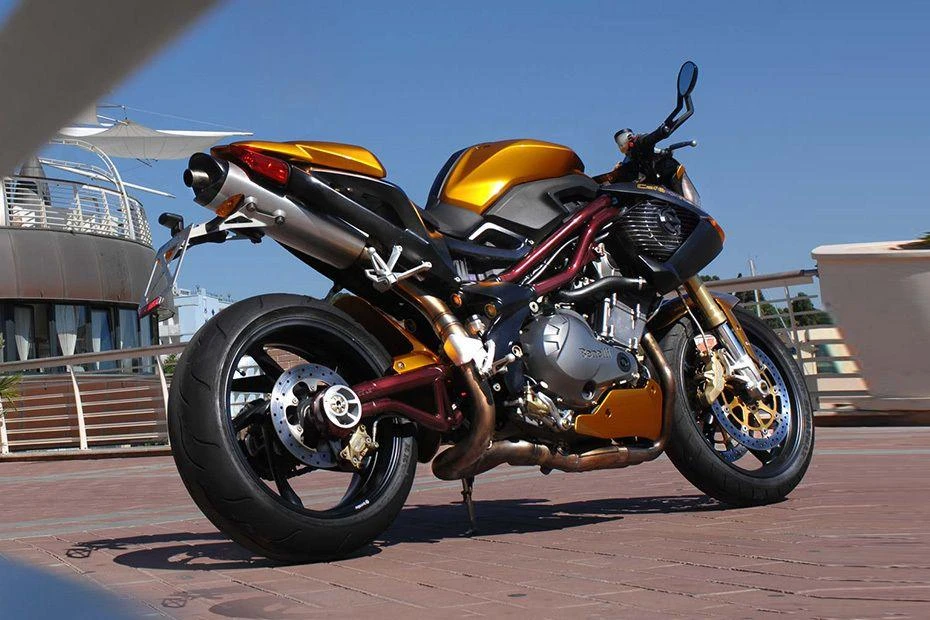

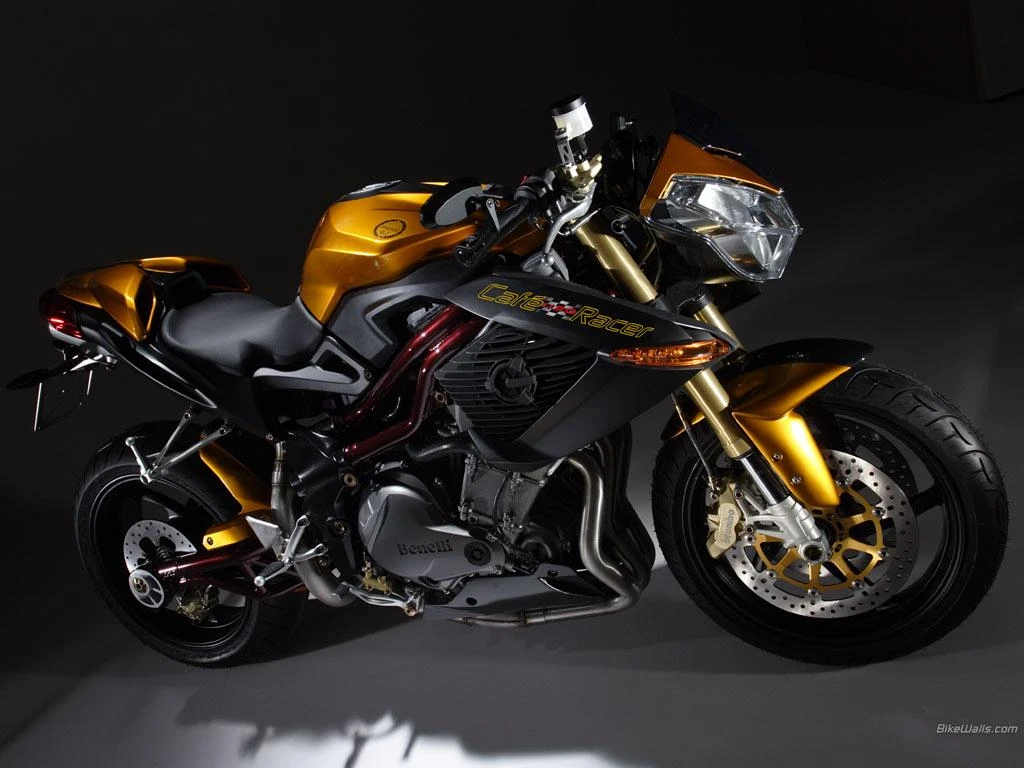

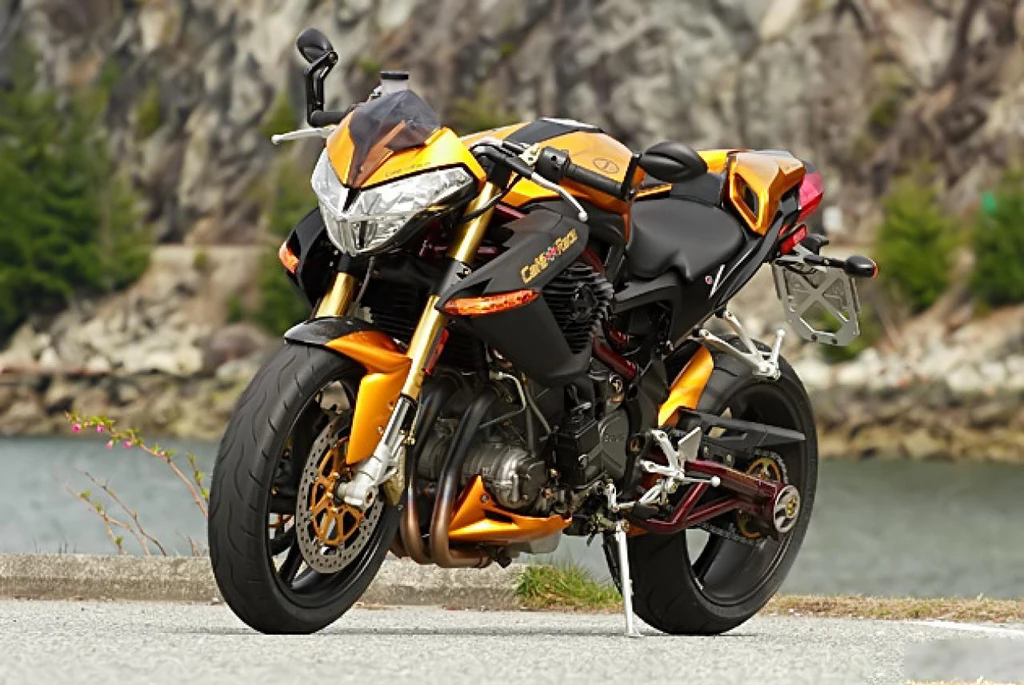

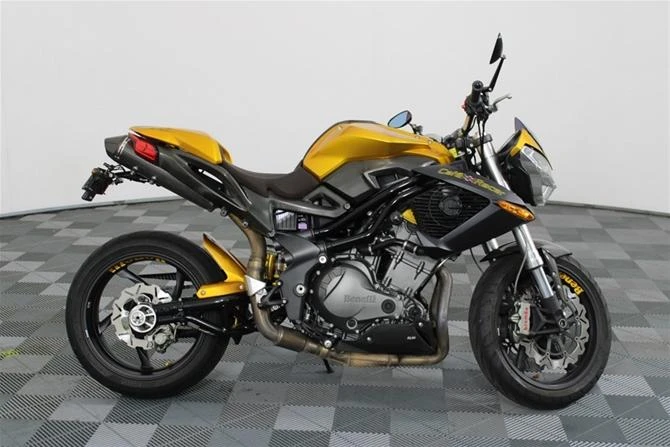

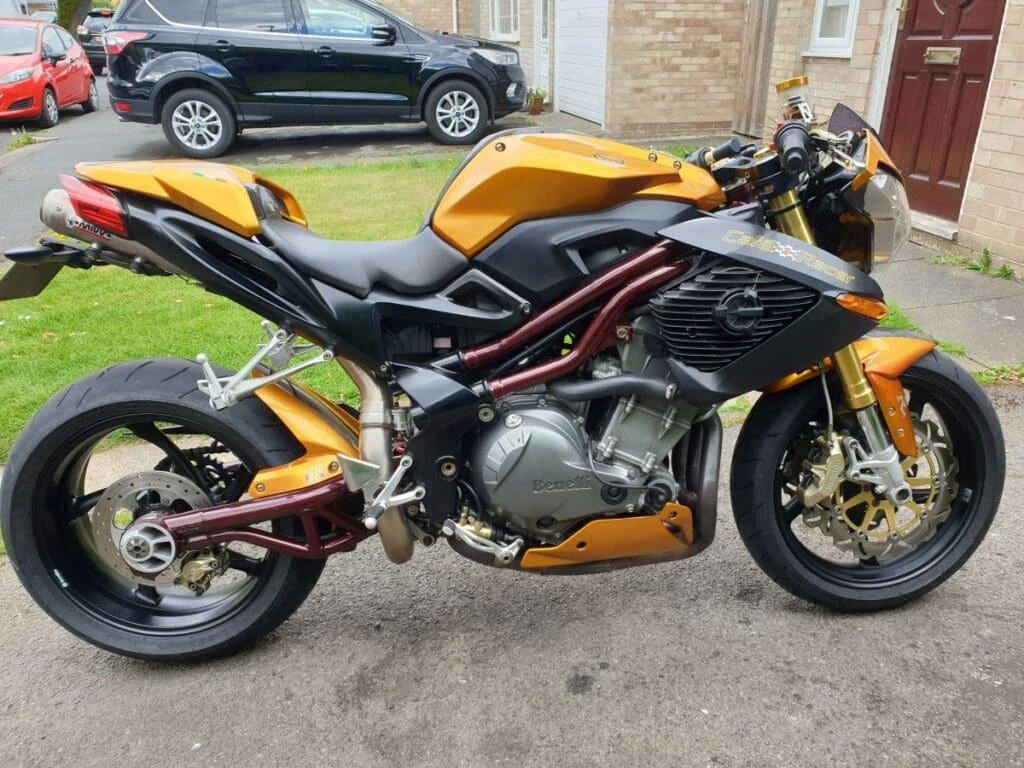

Benelli TNT 1130 Caf Racer (2004)

Benelli TNT 1130 Caf Racer (2004)

The Benelli TNT 1130 Caf Racer is an uncompromising tribute to the racing heritage of yesteryear. Its transverse three-cylinder engine, boasting DOHC and 4 valves per cylinder, unleashes a torrent of power that’s matched only by its exceptional handling.

A ride on this modern classic reveals an extraordinary balance between comfort and performance, thanks in large part to its premium components. The high windscreen, low clip-on handlebars, and eccentric footboard adjustment system all contribute to an immersive experience.

But what truly sets the Benelli TNT 1130 Caf Racer apart is its innovative engine control unit. With a simple press of a button on the dash support, riders can switch between free power and controlled power modes, allowing for optimal performance in any situation. Whether carving up mountain roads or navigating city streets, this remarkable bike delivers unparalleled thrills with every twist of the throttle.

Key Specifications

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity1130 cc / 69 cu in
Max Power101 kw / 135 hp
Max Torque110 Nm / 11.2 kgf-m / 81.1 lb-ft @ 7750 rpm
Fuel Tank Capacity16.5 L / 4.4 US gal
Weight (Wet/Kerb)474 lbs / 215 kg
Seat Height30.7 inches / 780 mm
Benelli TNT 1130 Caf Racer (2004)

All Specifications

Make & Model

ModelBenelli TNT 1130 Caf Racer
Year2004

Engine

Engine TypeFour stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement1130 cc / 69 cu in
Bore x Stroke88 x 62 mm
Compression Ratio11.5:1
Max Horsepower101 kw / 135 hp
Max Torque110 Nm / 11.2 kgf-m / 81.1 lb-ft @ 7750 rpm
Engine Management SystemElectronic injectionwith1injectorpercylinder
Lubrication SystemWet sump
Cooling SystemLiquid cooled

Performance

Top Speed243 km/h / 151 mph

Transmission

ClutchWet
Gearbox6 Speed
Gear Ratios1st 2.786 / 2nd 1.994 / 3rd 1.524 / 4th 1.304 / 5th 1.167 / 6th 0.926
Final DriveChain

Electrical & Electronics System

Battery12V, 10Ah
StarterElectric

Chassis & Suspension

Frame TypeFrontASDsteeltubetrellis,fastenedwithdrawerscrewstoboxedrearsection,aluminium alloycastings.
Front SuspensionMarzocchi50mmdiameterupsidedownforkASDsteeltubetrellisoscillatingmainfork
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionMonoshockabsorberwithadjustableextensionandspringload
Rear Suspension Travel4.5 inches / 115 mm
Rake23.5
Trail100 mm / 3.9 in

Wheels & Brakes

WheelsAluminium alloy, 10-spoke
Front Wheel/Rim Size3.5 x 17 in
Front Tire Size120/70-ZR17 (58W)
Rear Wheel/Rim Size6.0 x 17 in
Rear Tire Size190/55-ZR17 (73W)
Front Brakes2 x 320 mm discs, 4 piston calipers
Rear BrakesSingle 240 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2100 mm / 82.7 in
Seat Height30.7 inches / 780 mm
Wheelbase55.9 inches / 1419 mm
Fuel Tank Capacity16.5 L / 4.4 US gal
Wet (kerb/curb) Weight474 lbs / 215 kg
Dry Weight205 kg / 452 lbs

Features

  • Four stroke engine
  • Transverse three cylinder design
  • DOHC configuration
  • 4 valves per cylinder
  • Six-speed transmission
  • Front ASD steel tube trellis frame
  • Marzocchi 50mm diameter upside-down fork
  • Monoshock absorber with adjustable extension and spring load
  • Higher windscreen for aerodynamic protection
  • Lower clip-on handlebars in aluminium alloy
  • Single seat and tailpiece design
  • Eccentric foot board adjustment system
  • Carbon parts and seat support
  • Engine control unit with free power and controlled power mode switch
  • 10-20% fuel consumption reduction with controlled power mode
  • Adjustable compression, extension, and spring preload on front fork
  • Ergal back shock absorber body
  • Marchesini forged and machined aluminium alloy rims
  • Brembo braking system with 4 piston radial calliper
