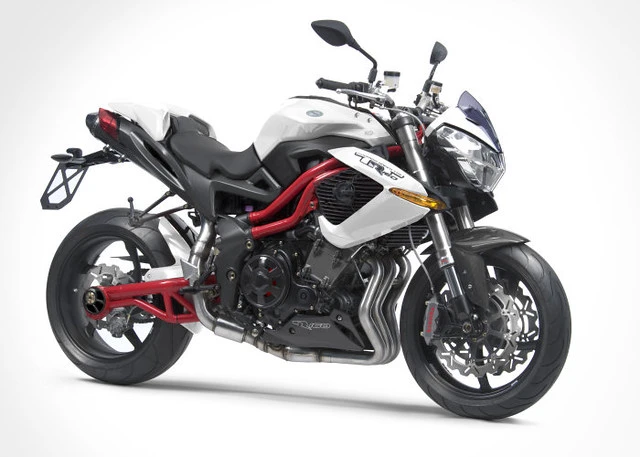

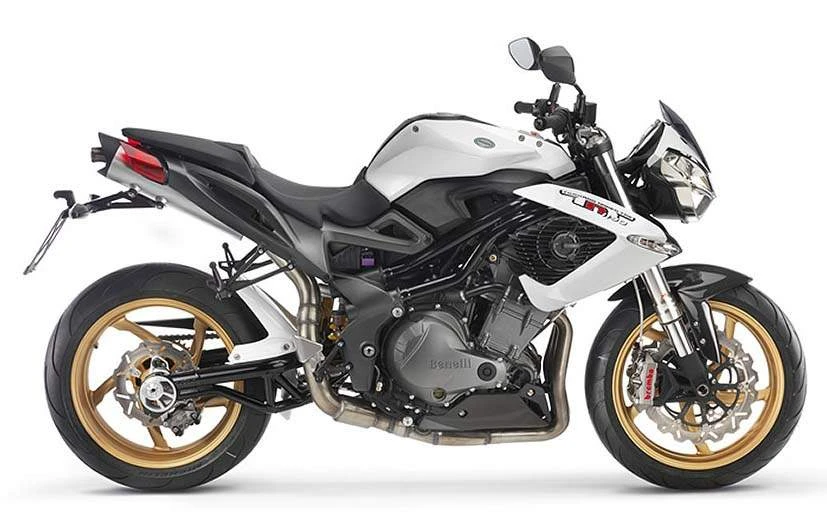

Benelli TNT 1130 (2013)

The Benelli TNT 1130 is a rebellious sports motorcycle that defies compromise. Its aggressive design, complete with a white and black or red and black color scheme, exudes an aura of unapologetic performance.

Underneath its edgy exterior lies a potent in-line triple engine, which delivers a maximum power output of 129 horsepower at 8,500 rpm and 110 Nm of torque at 5,250 rpm. This impressive powerplant is complemented by a fully adjustable fork and a hydraulic spring preload rear absorber, allowing the rider to tailor the bike’s handling to their preferences.

The result is an exceptional riding experience, with the TNT 1130 capable of unleashing its full potential on any road or track.

Key Specifications

Engine Type	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Engine Capacity	1130
Max Power	95 kw / 129 hp
Max Torque	110 Nm / 11.2 kgm / 81.1 lb-ft @ 5250 rpm
Fuel Tank Capacity	4.2 US gallons / 16.0 L
Weight (Wet/Kerb)	474 lbs / 215 kg
Seat Height	32.7 inches / 830 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Benelli TNT 1130
Year	2013

Engine

Engine Type	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Displacement	1130
Bore x Stroke	88 x 62 mm
Compression Ratio	11.2:1
Max Horsepower	95 kw / 129 hp
Max Torque	110 Nm / 11.2 kgm / 81.1 lb-ft @ 5250 rpm
Engine Management System	Electronic injectionwith1injectorpercylinder
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	With catalytic converter and oxygen sensor

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet clutch with hydraulic command
Gearbox	6 Speed
Gear Ratios	1st 14/39 / 2nd 18/35 / 3rd 21/32 / 4th 23/30 / 5th 24/28 / 6th 26/27
Final Drive	Chain drive, ratio 16:37

Electrical & Electronics System

Chassis & Suspension

Frame Type	Decomposable, front steel trestle, rear aluminium alloy casting
Front Suspension	50 mm upside-down fork, with hydraulic extension, compression and spring preload adjustments
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Steel tube trestle swingarm, rear dumper with hydraulic adjustment (extension, high and low speed compression) and spring preload assembled with progressive link
Rear Suspension Travel	4.7 inches / 120 mm

Wheels & Brakes

Front Tire Size	120/70-17
Rear Tire Size	190/50-17
Front Brakes	2 x 320 mm discs, 4 piston caliper
Rear Brakes	Single 240 mm disc, 2 piston caliper

Dimension & Weights

Overall Length	2000 mm / 78.7 in
Overall Width	790 mm / 31.1 in
Overall Height	1050 mm / 41.3 in
Seat Height	32.7 inches / 830 mm
Wheelbase	55.9 inches / 1419 mm
Ground Clearance	135 mm / 5.3 in
Fuel Tank Capacity	4.2 US gallons / 16.0 L
Wet (kerb/curb) Weight	474 lbs / 215 kg
Dry Weight	205 kg / 452 lbs

Features

Front steel trestle
Rear aluminium alloy casting Steel tube trestle swingarm
Hydraulic adjustment (extension, high and low speed compression) rear dumper
Spring preload assembled with progressive link rear dumper
790 mm width
31.1 in width
1050 mm height
41.3 in height
129 hp max power @ 8500 rpm
95 kW max power @ 8500 rpm
110 Nm torque @ 5250 rpm
Fully adjustable fork
Preload hydraulic spring rear absorber
ZF Sachs fully adjustable rear absorber
Carbon muffler available as accessory
Front and rear carbon mudguards available as accessory
Carbon belly pans available as accessory
Carbon chain casing available as accessory
Adjustable brake/clutch levers in ergal available as accessory
