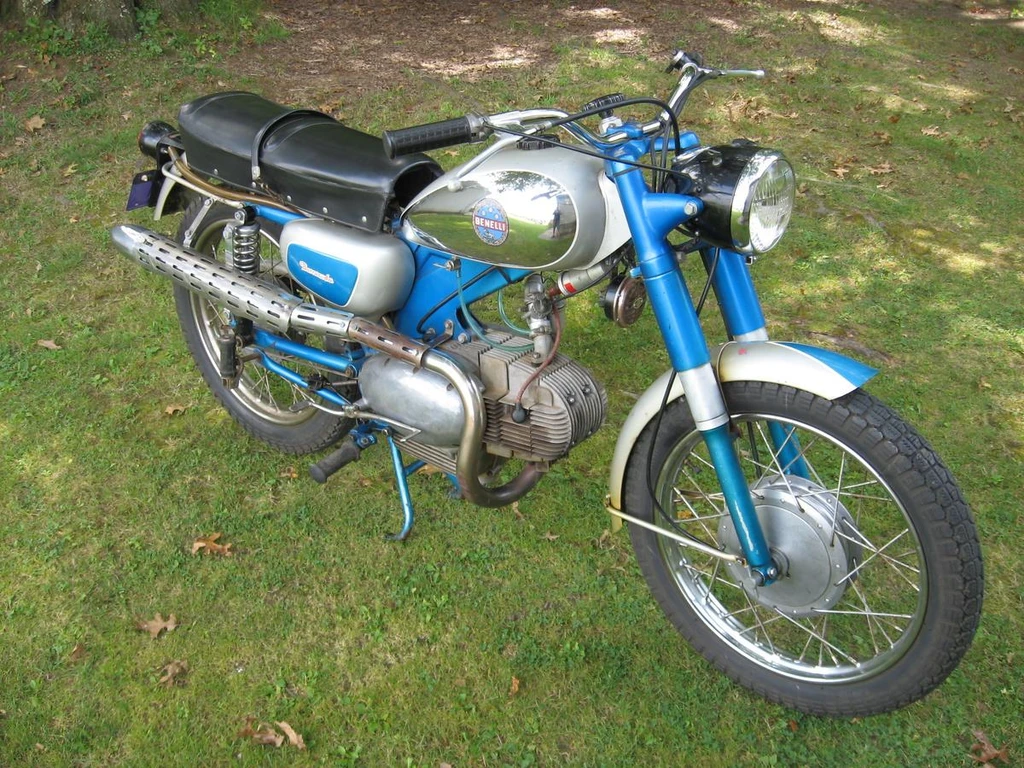

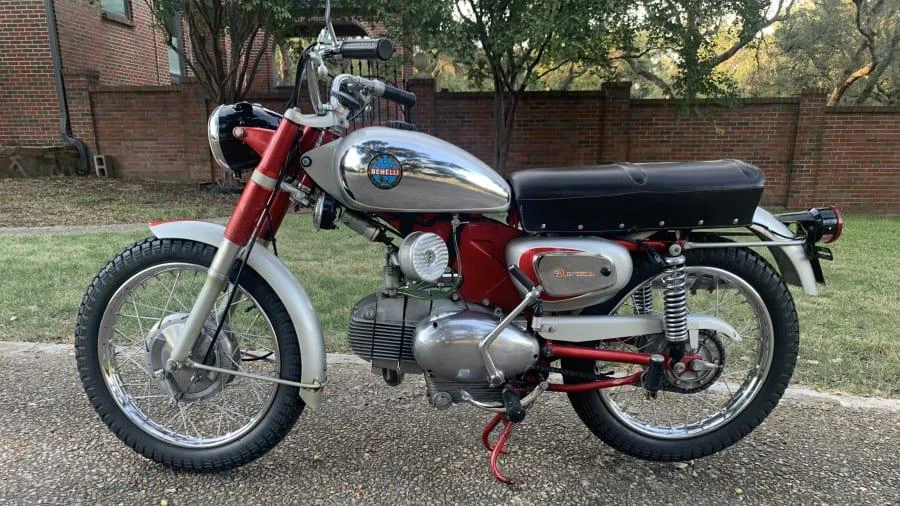

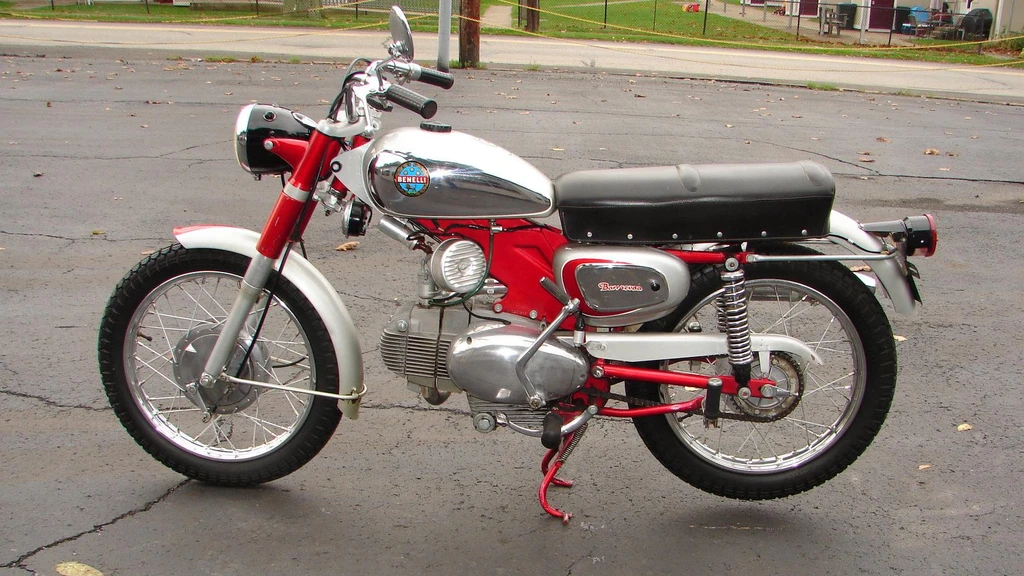

The Benelli 250 Barracuda is a rugged and reliable motorcycle that embodies the spirit of the American mountain man. With its horizontal single cylinder engine and OHV double action hydraulic telescopic fork, this bike is built for endurance rather than speed.
Its handling is good, but not exceptional, making it an ideal choice for those who prioritize reliability over raw power. The brakes are decent, but not outstanding, suggesting that the Barracuda is designed to get you from point A to point B safely and efficiently.
Despite its unassuming nature, the Benelli 250 Barracuda is a handsome machine with a sculpted steel gas tank and swing-arm suspension. It’s an attractive alternative for those who value substance over style.
Key Specifications
Engine Type
Four stroke, a horizontal single cylinder, OHV
Engine Capacity
245 cc / 15 cu in
Max Power
17.9 kw / 24 hp
Fuel Tank Capacity
3.0 US gallons / 11.5 L
Weight (Wet/Kerb)
248 lbs / 113 kg
Seat Height
30.0 inches / 762 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Benelli 250 Barracuda
Year
1965 – 70
Engine
Engine Type
Four stroke, a horizontal single cylinder, OHV
Displacement
245 cc / 15 cu in
Bore x Stroke
74 x 57 mm
Compression Ratio
8.5:1
Max Horsepower
17.9 kw / 24 hp
Engine Management System
24 mm, Bs2 Dell’Orto
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiplate
Gearbox
4 or 5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick start
Chassis & Suspension
Frame Type
Pressed and tubular steel, open cradle
Front Suspension
Double action hydraulic telescopic fork with steering damper
Rear Suspension
Swinging arm, hydraulic shocks with springs
Wheels & Brakes
Front Tire Size
3.00-18
Rear Tire Size
3.25-18
Front Brakes
176 x 31 mm Drum, single leading shoe
Rear Brakes
158 x 38 mm Drum, single trailing shoe
Dimension & Weights
Seat Height
30.0 inches / 762 mm
Ground Clearance
178 mm / 7 in
Fuel Tank Capacity
3.0 US gallons / 11.5 L
Wet (kerb/curb) Weight
248 lbs / 113 kg
Dry Weight
105 kg / 232 lbs
Features
Four-stroke engine
Horizontal single cylinder
OHV Double action hydraulic telescopic fork with steering damper
Road bike design
Attractive sculptured steel gas tank
3.5 gallon fuel capacity
Excellent riding position
Good balance and feeling of oneness with the bike
Pirelli Universals tires (3.00 x 18 front; 3.25 x 18 rear)
245cc single cylinder engine
Bore: 74mm, stroke: 57mm
24 bhp at 8200 rpm
