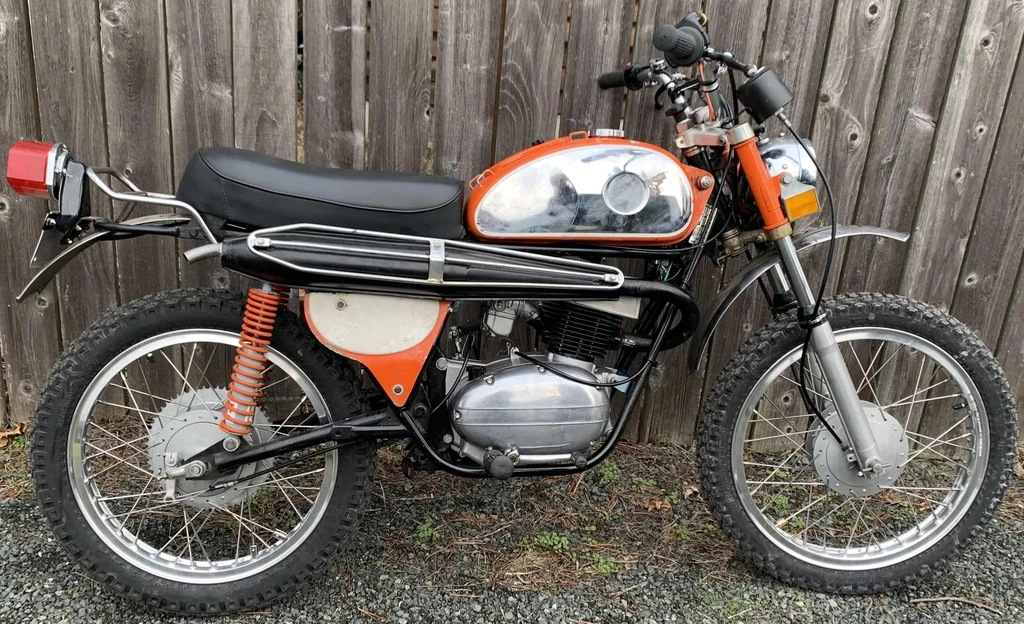

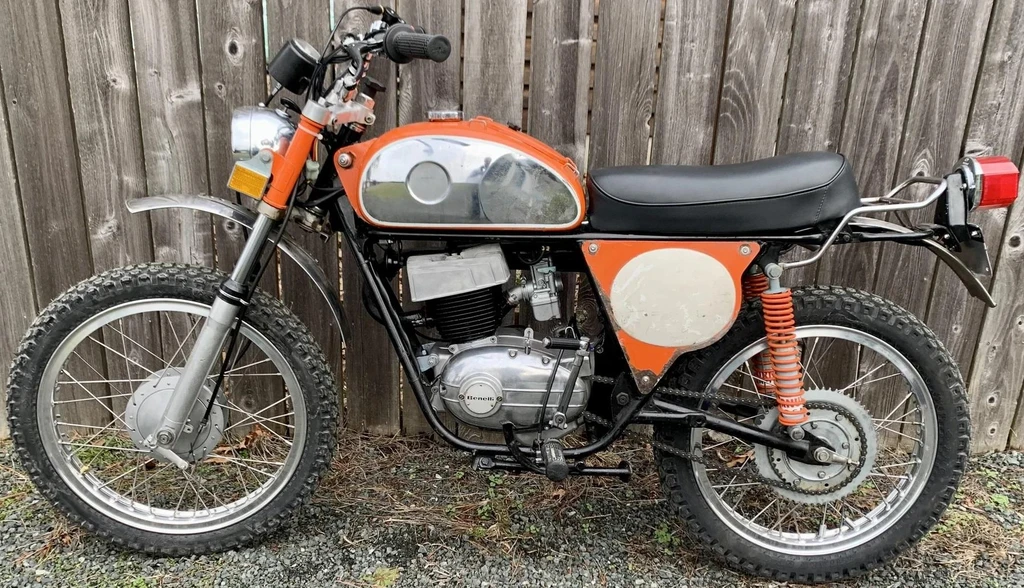

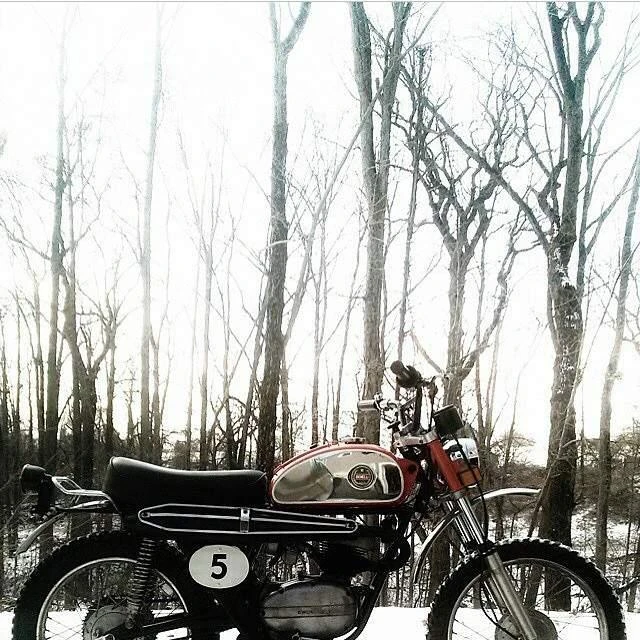

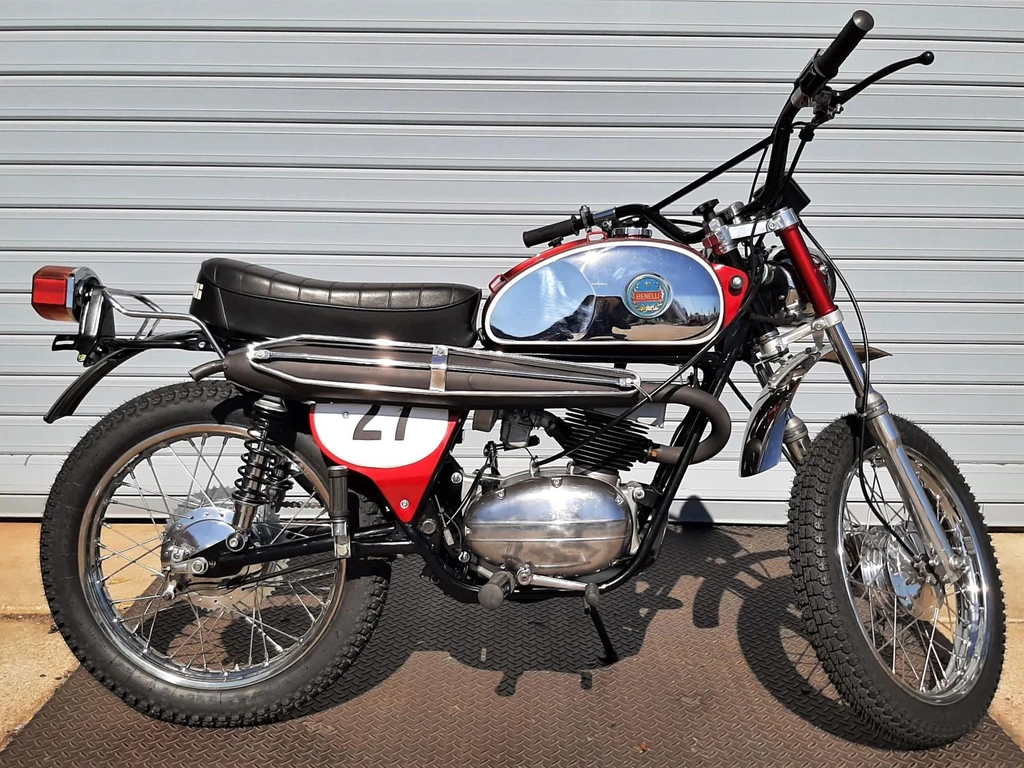

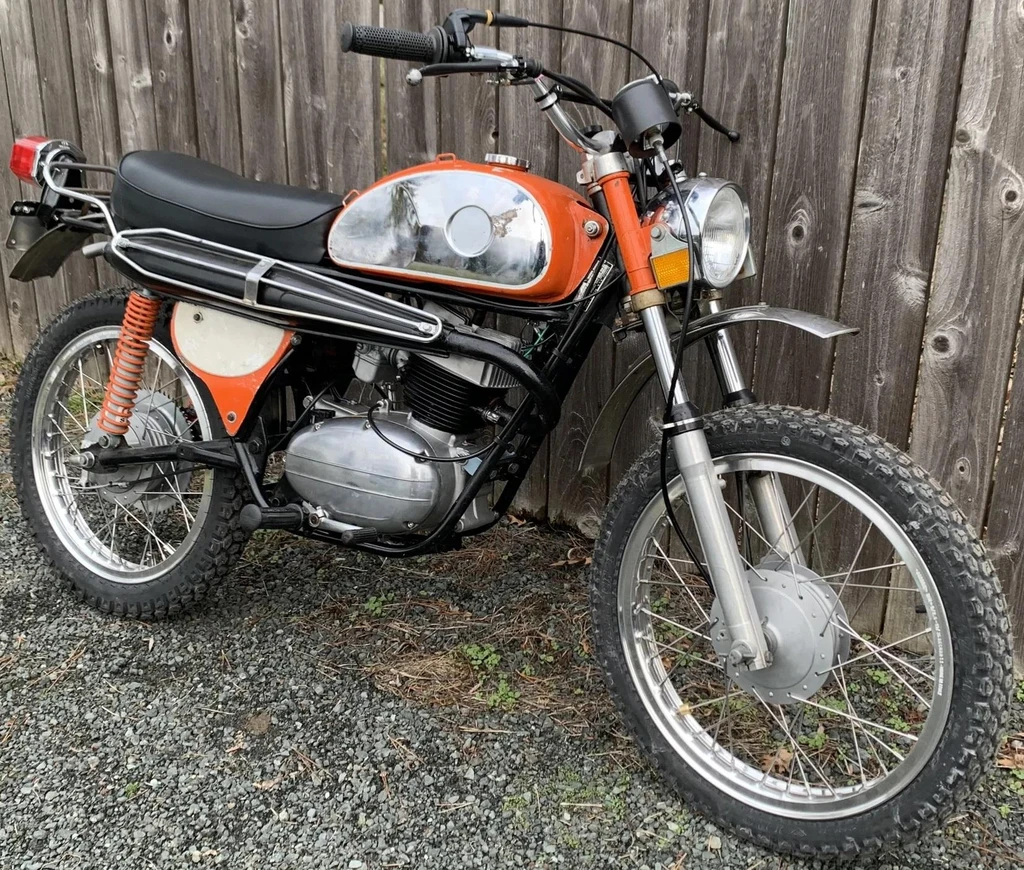

The Benelli 175 Enduro: a testament to Italian ingenuity in building functional machinery that defies conventional norms. Measuring just 50 inches from axle to axle, this diminutive dual-purpose bike boasts an ultra-rigid double steel tube cradle-type frame assembly, partially due to its all-welded construction and shortness. The result is a machine capable of tackling the toughest off-road terrain with ease, thanks in part to its impressive ground clearance of 9.25 inches.
Its diminutive stature belies a potent engine character, as the Benelli’s 175cc powerplant propels riders into the fray with confidence-inspiring acceleration and agility. Riding the Benelli Enduro is an immersive experience, with every bump, twist, and turn transmitted directly to the rider through its ultra-rigid frame.
The Italian touch is evident throughout, from the beautifully finished fenders with rolled edges and polished chromium plating, to the classic 2 1/4-gallon fuel tank that’s as much a work of art as it is a practical innovation.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
169.65 cc /10.3 cu in
Fuel Tank Capacity
10 L / 2.6 US gal
Seat Height
32 inches / 812 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Benelli 175 Enduro
Year
1972
Engine
Engine Type
Two stroke, single cylinder
Displacement
169.65 cc /10.3 cu in
Bore x Stroke
60 x 60 mm
Compression Ratio
8.0:1
Engine Management System
22 mm Dell’Orto carburetor
Performance
Top Speed
80 km/h / 50 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Battery
6V
Starter
Kick start
Chassis & Suspension
Frame Type
Duplex tubular steel
Front Suspension
Marzocchi telescopic fork
Rear Suspension
Twin Marzocchi shocks
Wheels & Brakes
Front Tire Size
2.75 -19
Rear Tire Size
3.00 -19
Front Brakes
Drum
Rear Brakes
Drum
Dimension & Weights
Seat Height
32 inches / 812 mm
Wheelbase
50 inches / 1270 mm
Ground Clearance
235 mm / 9.25 in
Fuel Tank Capacity
10 L / 2.6 US gal
Features
Short wheelbase for easy handling in tight spaces
Rigid steel tube cradle-type frame assembly
All-welded construction for added strength
Low ground clearance (91/4 inches) with a side stand jut-out point
11-inch clearance to the skid plate protecting the engine bottom
Small, high-mounted front fender for maximum cooling and aesthetics
Flat rear fender serving as a taillight attachment point
Nicely finished with rolled edges and polished chromium plating
Classic Italian-style tool compartment in the fuel tank
No crossover tube to connect the two panniers of the tank
Single, hard-to-find shut-off valve feeding the carburetor
6-volt battery hidden under the seat with number plates on both sides
Soft and well-proportioned seat
Comfortable seating position with handlebars not too wide and footrests located ahead of the nose of the seat
Good proximity to brake pedal and shift lever
