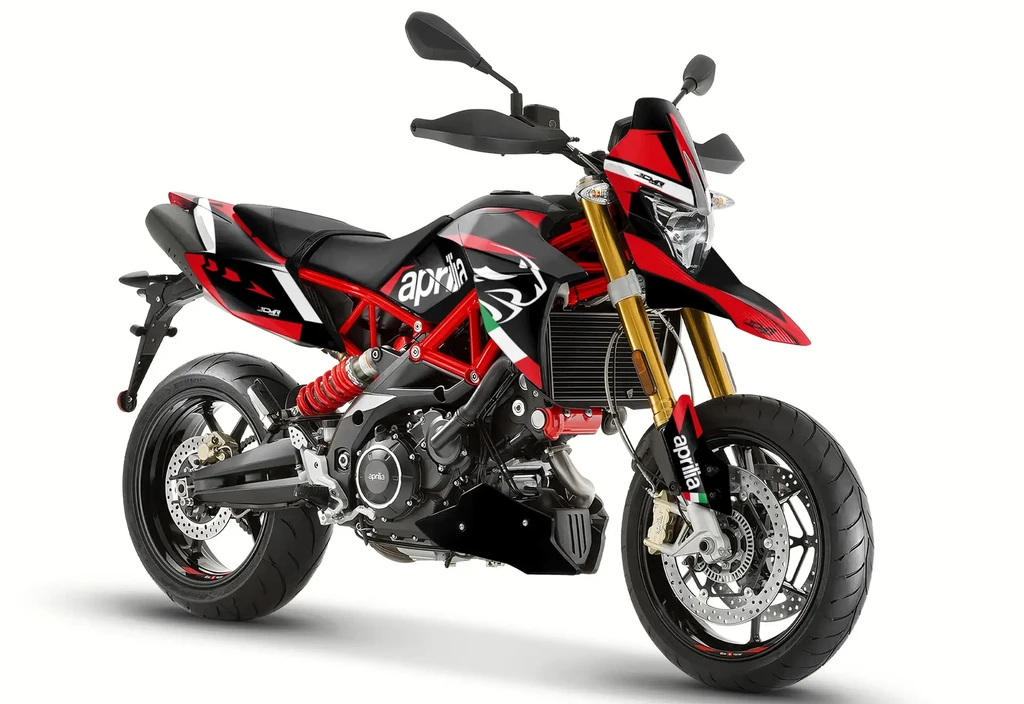

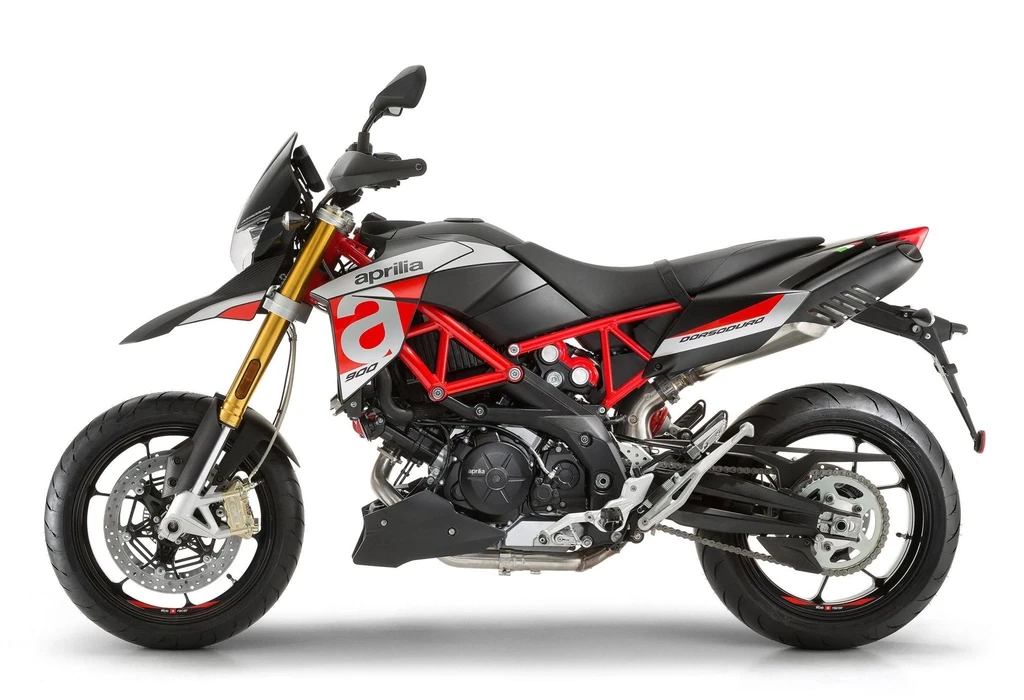

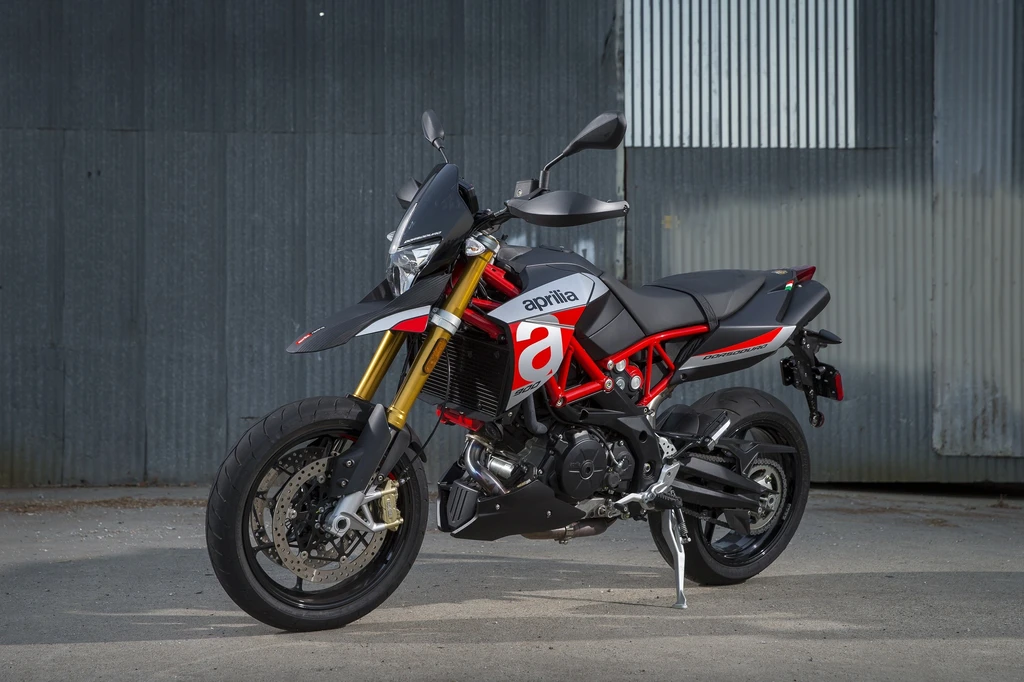

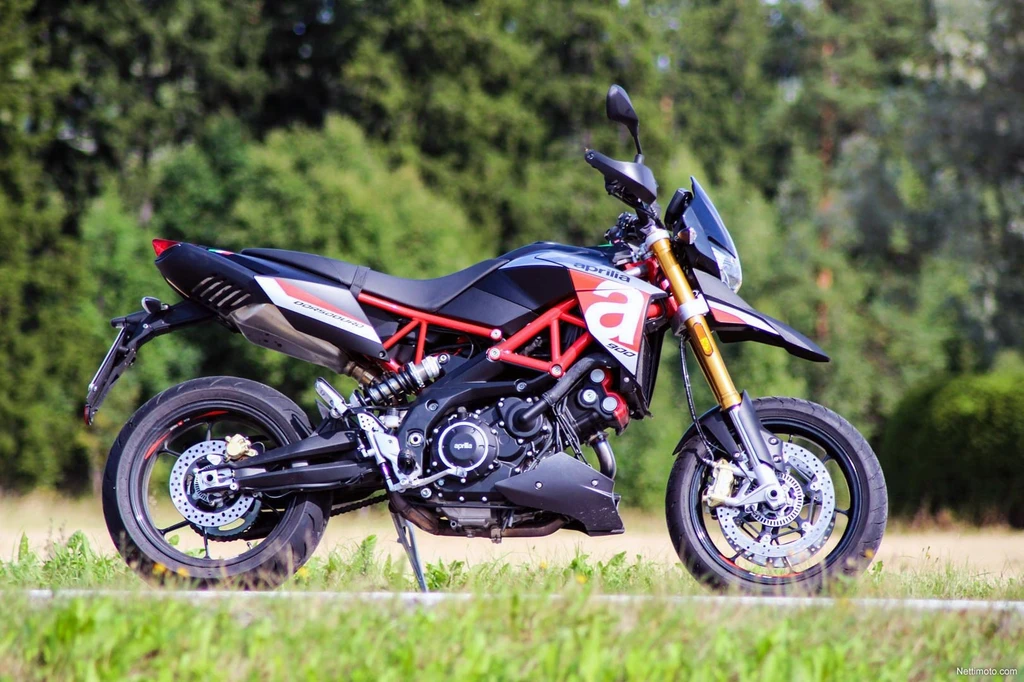

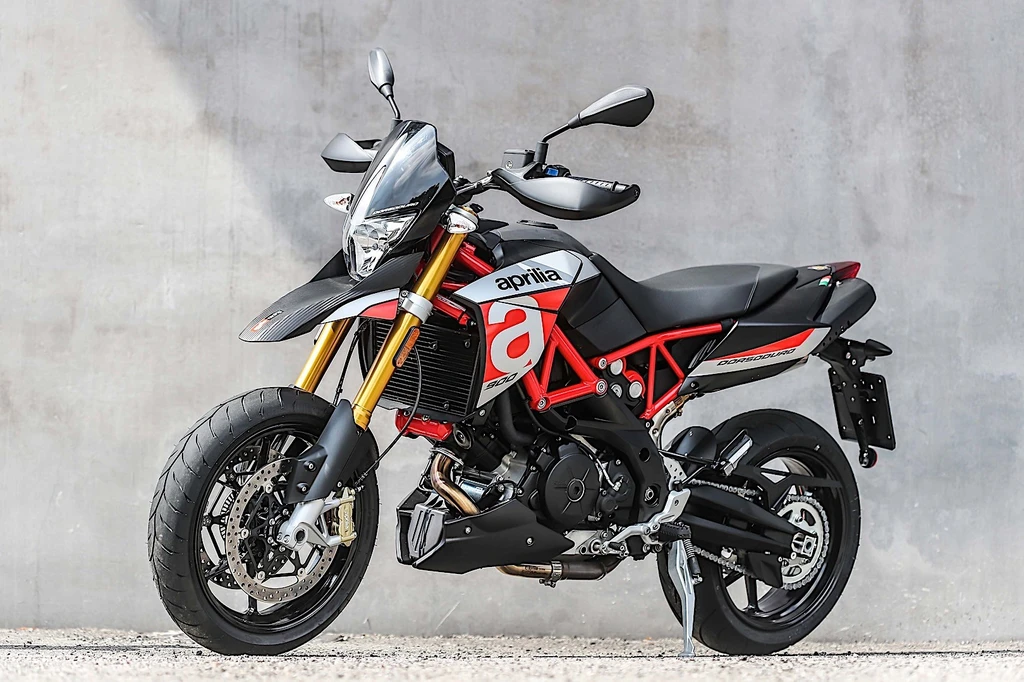

Aprilia SMV 900 Dorsoduro (2020)

Aprilia SMV 900 Dorsoduro (2020)

The Aprilia SMV 900 Dorsoduro is a thrilling supermotard that redefines road riding fun.

With its sleek and minimalist design, the Dorsoduro puts performance at the forefront of its focus. The result is a bike that embodies maximum riding pleasure, where every element has been carefully curated to deliver an exhilarating experience.

At its heart lies the revamped 900cc twin-cylinder engine, boasting 90nm of torque and a punchy response at low and medium rpms. This powerhouse is perfectly complemented by a refined chassis architecture and cutting-edge technology, ensuring razor-sharp handling and agility.

Full multi-map ride-by-wire, traction control, and ABS come together to create a technical package that’s unparalleled in its class. The outcome is a bike that embodies the perfect blend of sportiness and playfulness, where every twist of the throttle unleashes a smile-inducing grin on your face.

Key Specifications

Engine TypeFour stroke, longitudinal 90V twin, DOHC,with mixed gear/chain timing system,4 valves per cylinder
Engine Capacity54.6 cubic inches / 896.1 cc
Max Power70.0 kw / 95.2 hp
Max Torque90.0 Nm / 9.17 kg-m @ 6500 rpm
Fuel Tank Capacity3.17 US gallons / 12.0 L
Aprilia SMV 900 Dorsoduro (2020)

All Specifications

Make & Model

ModelAprilia SMV 900 Dorsoduro
Year2020

Engine

Engine TypeFour stroke, longitudinal 90V twin, DOHC,with mixed gear/chain timing system,4 valves per cylinder
Displacement54.6 cubic inches / 896.1 cc
Bore x Stroke92 x67.4 mm
Compression Ratio11.0:1
Max Horsepower70.0 kw / 95.2 hp
Max Torque90.0 Nm / 9.17 kg-m @ 6500 rpm
Engine Management SystemIntegrated engine management system. Injection with 3-map Ride- by-wire throttle valve opening management (Sport, Touring, Rain)
Lubrication SystemWet sump
Cooling SystemLiquid cooled
Exhaust100% stainless steel 2-in-1 with 3-way catalytic converter and oxygen sensor

Performance

Top Speedn/a

Transmission

ClutchMultiplate wet clutch, hydraulically operated
Gearbox6 Speed
Gear Ratios1st 14/36 (2.57) 2nd 17/32 (1.88) 3rd 20/30 (1.5) 4th 22/28 (1.27)5th 23/26 (1.13) 6th 24/25 (1.04)
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeModular tubular steel frame fastened to aluminum side plates by high strength bolts. Dismountable rear frame
Front SuspensionUpside-down fork, stanchions 41 mm. Adjustable hydraulic rebound damping and spring preload.
Front Suspension Travel6.3 inches / 160 mm
Rear SuspensionAluminum alloy swingarm. Hydraulic shock absorber with adjustable extension and spring preload
Rear Suspension Travel6.3 inches / 160 mm
Rake26
Trail108 mm / 4.2 in

Wheels & Brakes

WheelsAluminium alloy
Front Wheel/Rim Size3.5 x 17
Front Tire Size120/70ZR17
Rear Wheel/Rim Size6.00 x 17
Rear Tire Size180/55ZR17
Front Brakes2 x 320 mm discs,stainless floating discs. Radial, four-piston callipers. Metal braided brake hose
Rear BrakesSingle 240 mm disc,Single piston calliper. Metal braided line.

Dimension & Weights

Overall Length2210 mm /  87.0 in
Overall Width905 mm / 35.6 in
Overall Height1100 mm / 43.3 in
Wheelbase59.0 inches / 1500 mm
Fuel Tank Capacity3.17 US gallons / 12.0 L
Dry Weight186 kg / 409 lbs

Features

  • 2210 mm length
  • 905 mm width
  • 1100 mm height
  • 750 cc 90 V-twin engine base
  • New 900 cc twin-cylinder engine
  • 90 nm of torque at low-medium rpms
  • Full multimap ride-by-wire
  • Traction control
  • ABS
  • Mixed steel trellis/aluminium plates frame
  • Excellent handling and tight cornering characteristics
  • Revamped chassis architecture
  • High performance powerplant
  • Collaboration with Aprilia Racing Department
  • 54 world titles in difficult competitions
  • World Supermoto championship experience
  • Original and innovative technical choices
  • Maximum torque and power
  • Fine electronic management
