The Aprilia RSV-4 Factory represents the culmination of two decades of racing success, with 33 championships and 254 MotoGP wins to its name. Developed from the same technical expertise that has propelled Aprilia to global supremacy, this supersport boasts an innovative 65-degree V-four engine, producing a potent 194 horsepower.
This technological tour-de-force is the product of a collaborative effort between Aprilia’s engineers and its renowned Race Division, resulting in a machine that distills the essence of competition. The RSV-4 Factory embodies the company’s philosophy of innovation, with state-of-the-art electronics and an unwavering commitment to performance.
As we take the RSV-4 Factory for a ride, its razor-sharp handling and blistering acceleration become immediately apparent. The engine’s distinctive character – a potent blend of smooth power delivery and screaming rev-happiness – sets it apart from its peers. With its exceptional ergonomics and intuitive controls, this is a bike that invites the rider to push its limits, to test their mettle against the track. And as we settle into a rhythm on the RSV-4 Factory, one thing becomes crystal clear: this is the ultimate Superbike experience.
Key Specifications
Engine Type
Four stroke,longitudinal65 V four , DOHC, 4 valves per cylinder
Engine Capacity
999.6 cc / 61 cu in
Max Power
132 kw / 180 hp
Max Torque
115 Nm / 11.7 kgf-m / 84.8 lb-ft @ 10000 rpm
Weight (Wet/Kerb)
453 lbs / 205 kg
Seat Height
33.3 inches / 845 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

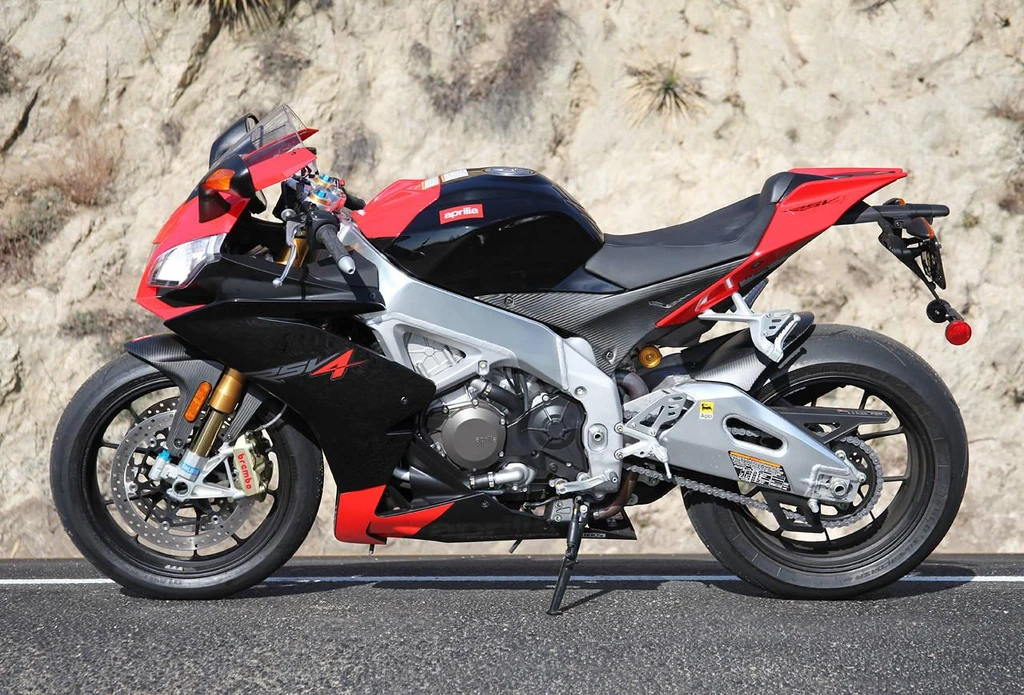

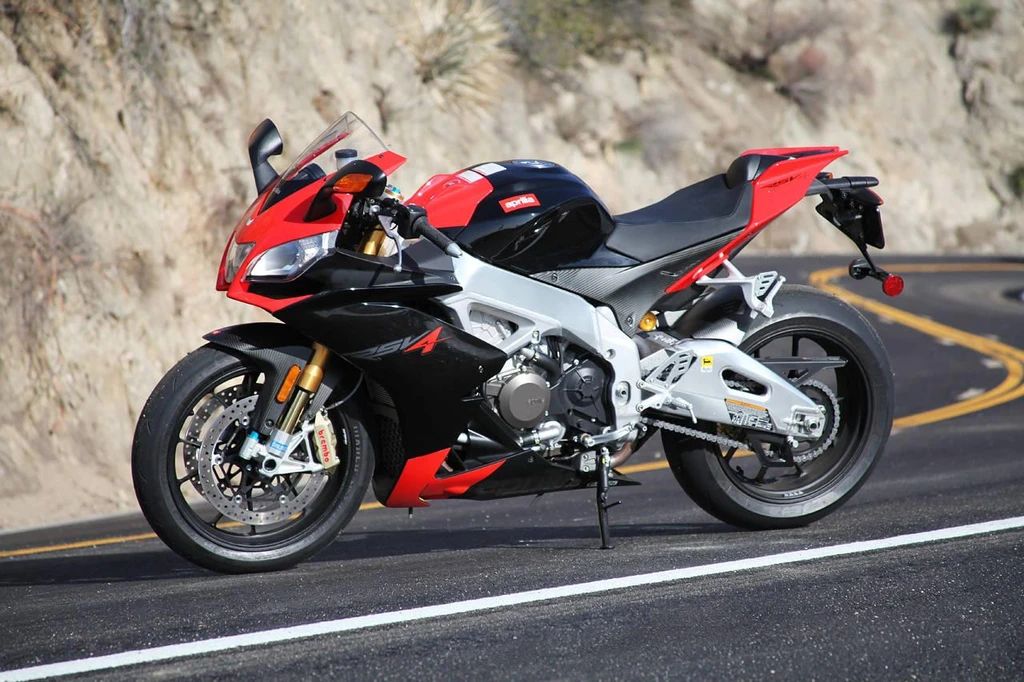

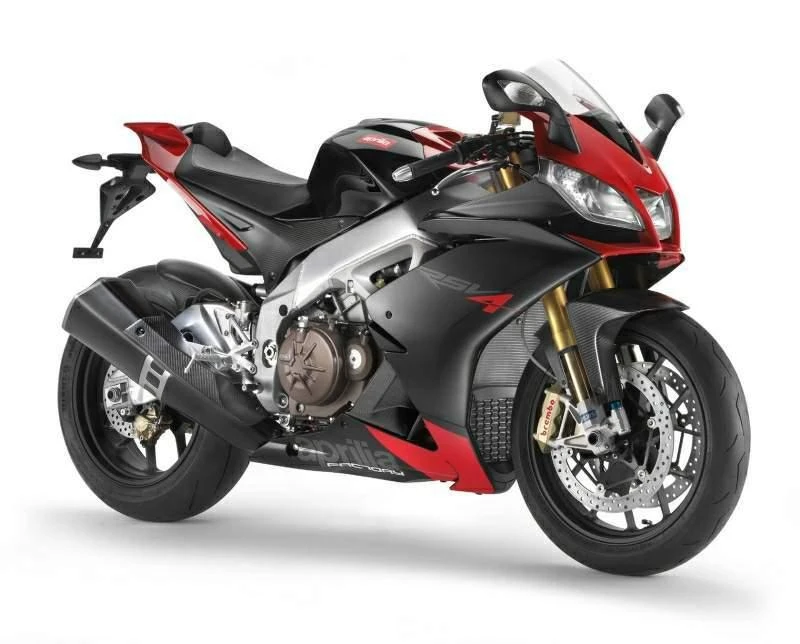

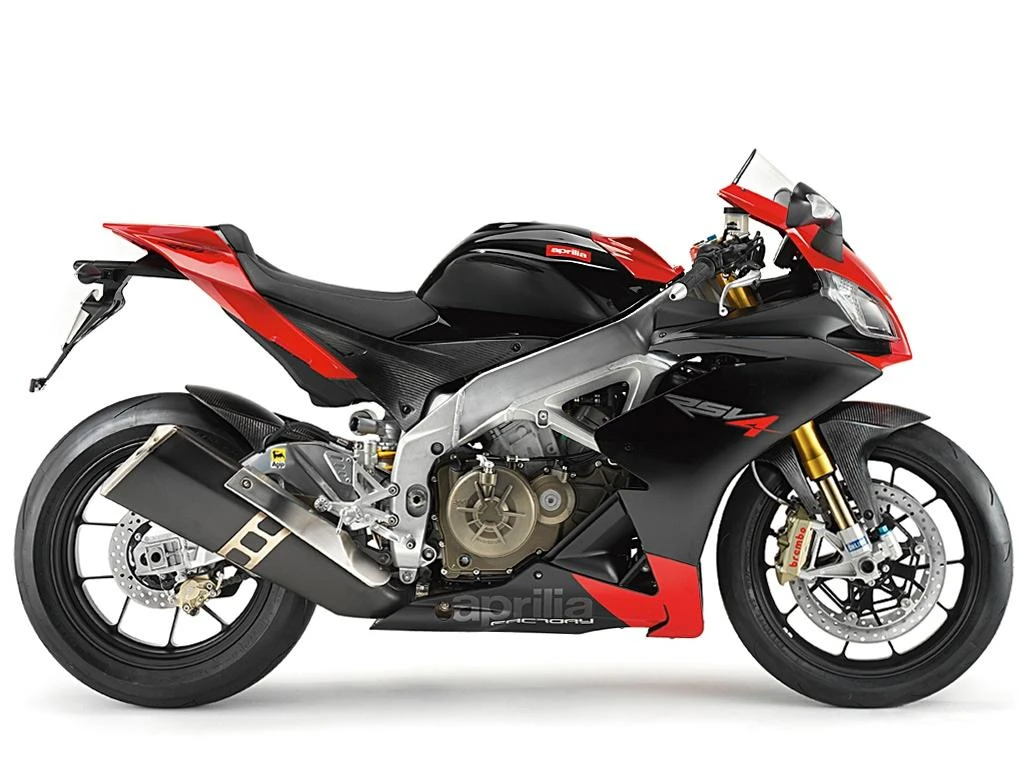

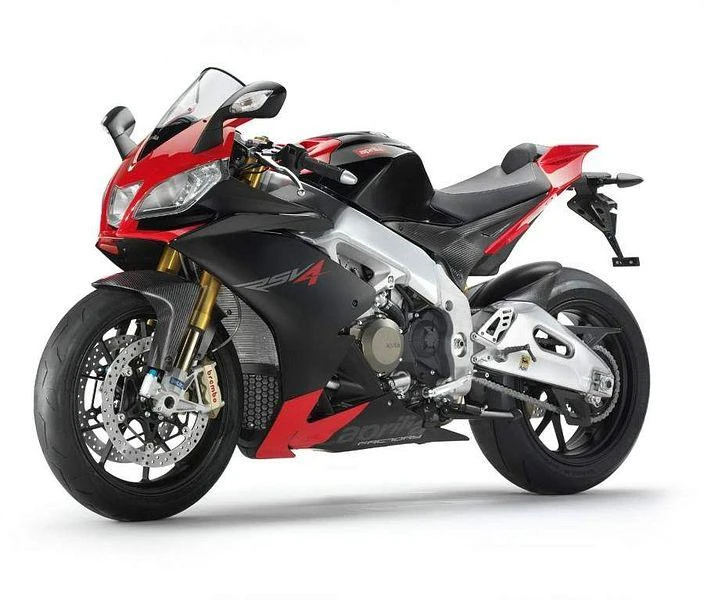

Aprilia RSV-4 Factory
Year
2010
Engine
Engine Type
Four stroke,longitudinal65 V four , DOHC, 4 valves per cylinder
Displacement
999.6 cc / 61 cu in
Bore x Stroke
78 x 52.3 mm
Compression Ratio
12.8:1
Max Horsepower
132 kw / 180 hp
Max Torque
115 Nm / 11.7 kgf-m / 84.8 lb-ft @ 10000 rpm
Engine Management System
Variable height intake trumpets. Airbox with aerodynamic side intakes. 4 Throttle bodes, 8 injectors, ride-by-wire fuel management. Multi-mapping
Lubrication System
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Cooling System
Liquid cooled
Exhaust
4 into 2 into 1. Lambda probe oxygen sensor. Single lateral silencer. Integrated exhaust valve and catalytic converter. (Euro 3.)
Twin beam aluminium frame with mixed cast and pressed sheet sections. Adjustments for headstock position and angle, engine height, swingarm pivot height.
Front Suspension
hlins 43 mm upside-down fork. Lower fork bottoms for radial calipers. Adjustment for preload, compression and rebound.
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Double arch aluminium swingarm; mixed thin-wall casting and pressed sheet construction. hlins monoshock with piggy-back cylinder. Adjustments for compression, rebound, spring preload and length. APS rising rate linkages.
Rear Suspension Travel
5.1 inches / 130 mm
Trail
105 mm / 4.1 in
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
190/55 ZR17
Front Brakes
2 x 320 mm lightweight stainless steel floating discs, Brembo monobloc radial calipers with 4 opposed pistons. Sintered pads. Radial master cylinder. Metal braided brake line.
Rear Brakes
Single 220 mm disc. Brembo floating caliper with 2 insulated pistons. Sintered pads. Master cylinder with integral reservoir. Metal braided brake line.
Dimension & Weights
Overall Length
2040 mm / 80.3 in
Overall Width
735 mm / 28.9 in (at the handlebar)
Overall Height
1120 mm / 44.1 in
Seat Height
33.3 inches / 845 mm
Ground Clearance
130 mm / 5.1 in
Wet (kerb/curb) Weight
453 lbs / 205 kg
Dry Weight
179 Kg/ 395 lbs
Features
999.6 cc 65 V-four cylinder engine
180 CV maximum power
Ride by Wire multimap technology
Triple map Ride by Wire system
Electronic injection system with two injectors
Adjustable height ducts
Super compact design
State-of-the-art electronics
Light weight and extreme compactness
Adjustable geometry chassis
Headstock position and inclination adjustable
Swingarm pin height adjustable
Engine adjustment features
Racing motorcycle level chassis
Designed for the racetrack
High performance engine management system
Two injectors electronic injection system
