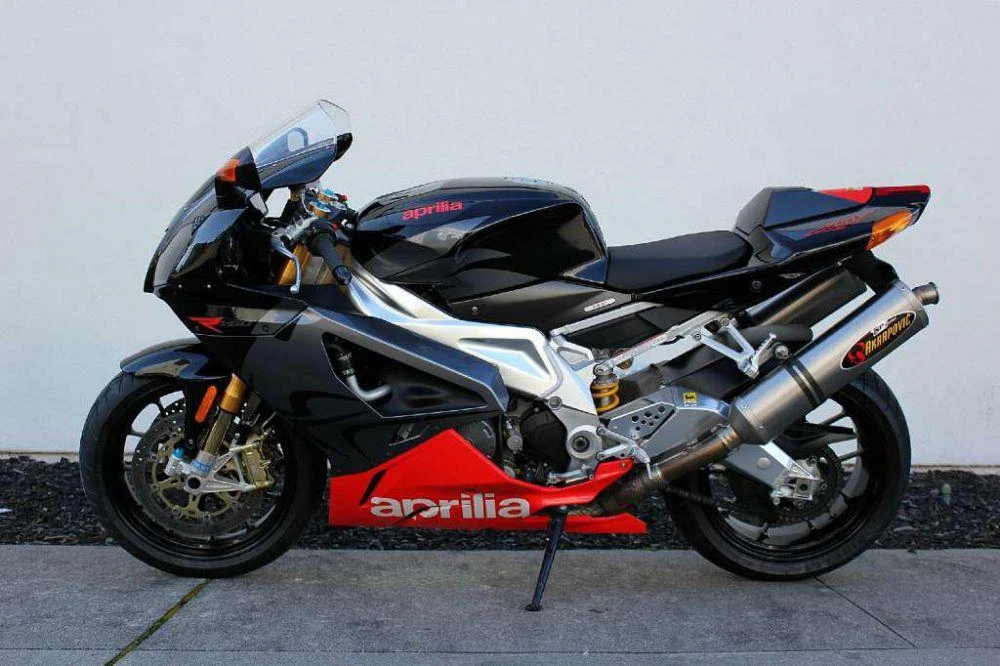

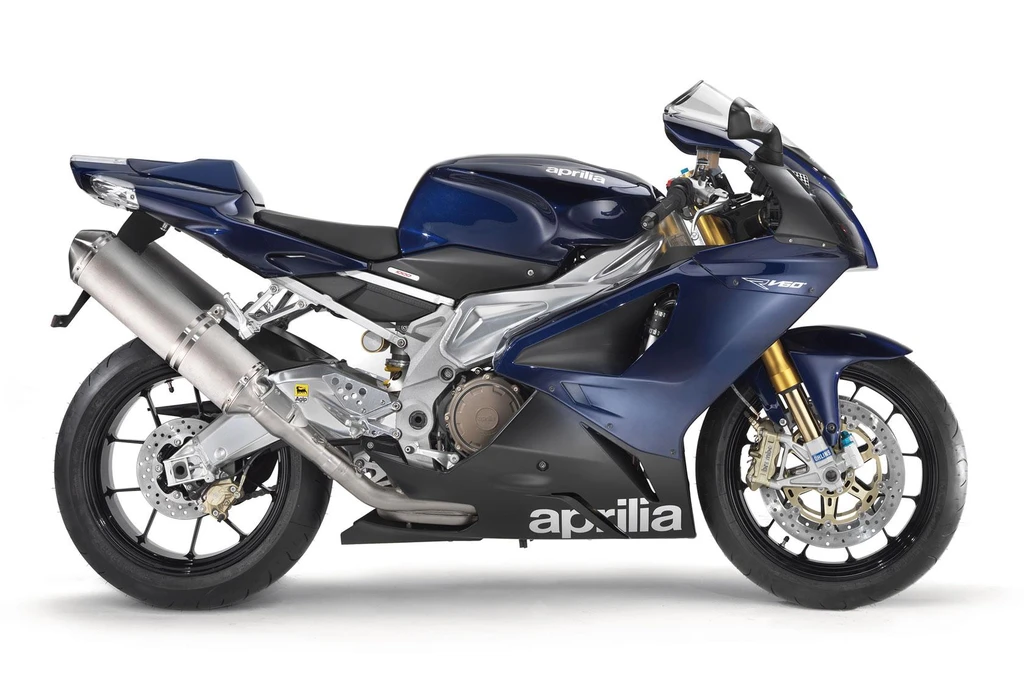

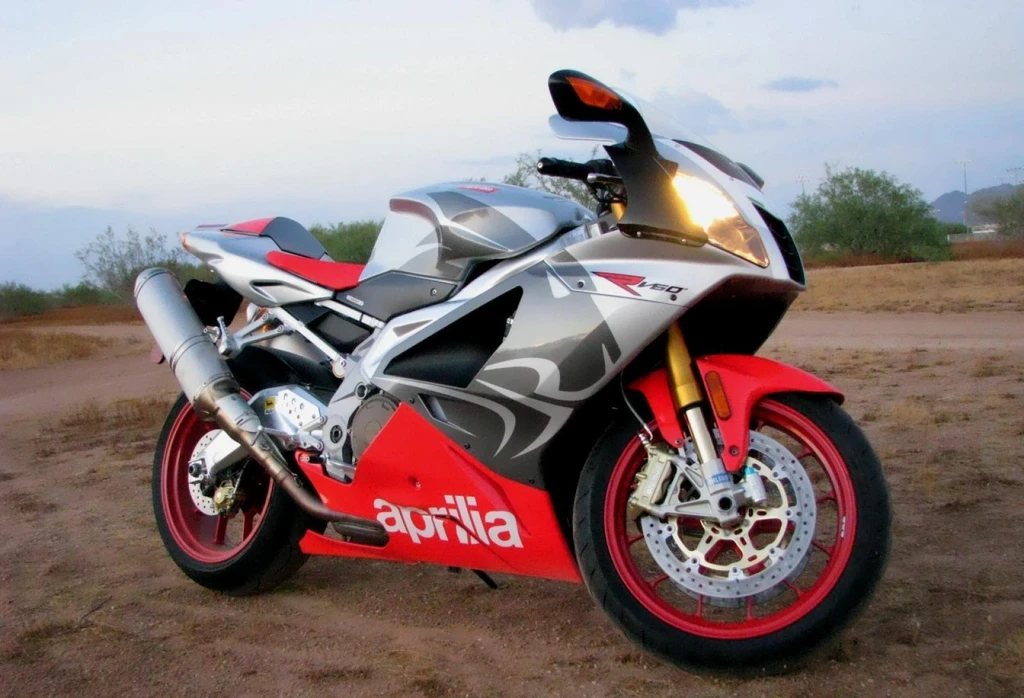

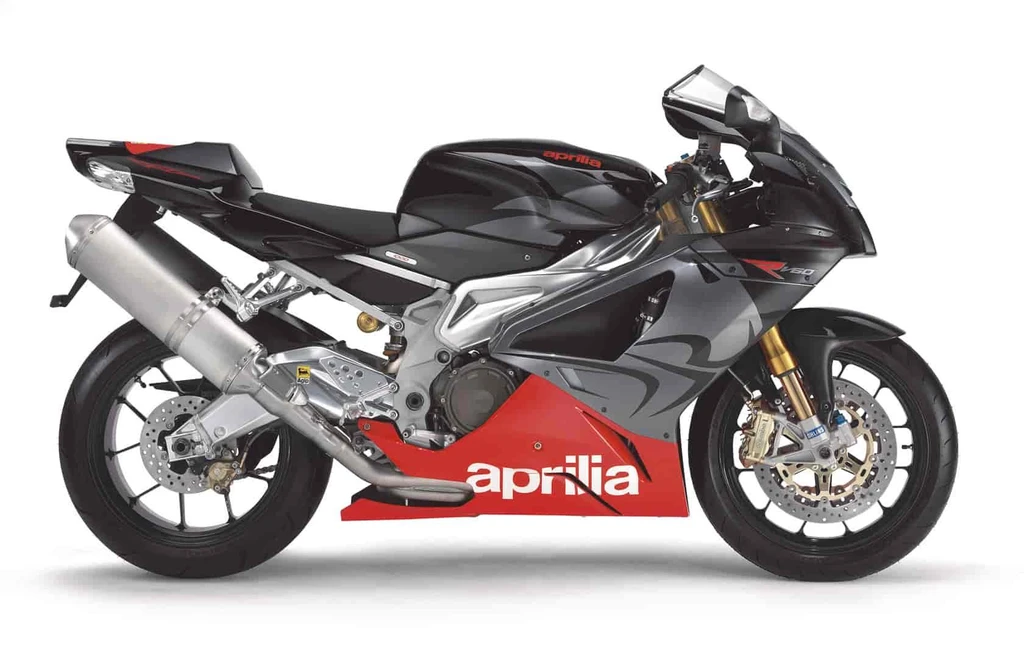

Aprilia RSV 1000R (2009)

Aprilia RSV 1000R (2009)

The Aprilia RSV 1000 R remains the undisputed king of supersport motorcycles, boasting an unparalleled combination of handling, performance, and reliability. Its impressive credentials include a string of victories in world endurance racing, where it has consistently outshone its four-cylinder rivals.

Its advanced technology and exceptional engineering make it the bike to beat on both road and track. The latest generation V60 Magnesium engine is a masterpiece of power delivery, with its 33mm exhaust valves and larger diameter exhaust headers providing an intoxicating rush of acceleration.

But what truly sets the RSV 1000 R apart is its ease of riding, allowing even the most novice of riders to feel instantly confident and relaxed at the limits of their abilities. With its carefully calibrated suspension and exceptional handling, the Aprilia RSV 1000 R is the ultimate tool for motorcyclists who demand the very best from themselves and their machine. And as such, it remains unbeatable on both road and track.

Key Specifications

Engine TypeFour stroke, longitudinal 60V twin, DOHC, 4 valves per cylinder
Engine Capacity60.9 cubic inches / 997.6 cc
Max Power105.2 kw / 143 hp
Max Torque107 Nm / 10.9 kgf-m / 78.9 lb-ft @ 7500 rpm
Fuel Tank Capacity4.8 US gallons / 18.0 L
Seat Height31.9 inches / 810 mm
Aprilia RSV 1000R (2009)

All Specifications

Make & Model

ModelAprilia RSV 1000R
Year2009

Engine

Engine TypeFour stroke, longitudinal 60V twin, DOHC, 4 valves per cylinder
Displacement60.9 cubic inches / 997.6 cc
Bore x Stroke97 x 67.5 mm
Compression Ratio11.8:1
Max Horsepower105.2 kw / 143 hp
Max Torque107 Nm / 10.9 kgf-m / 78.9 lb-ft @ 7500 rpm
Engine Management SystemIntegrated electronic engine management system. Indirect multipoint electronic injection. Throttle body diameter 57mm.
Lubrication SystemDry sump with separate oil tank
Cooling SystemLiquid cooled

Performance

Top Speed278.0 km/h / 172.74 mph

Transmission

ClutchMultiple disk in oil bath with patented PPC Claimed Horsepower: -assisted hydraulic control.
Gearbox6 Speed
Primary Drive Ratio60/31 (1.935)
Gear Ratios1st 34/15 (2.27), 2nd 31/19 (1.63), 3th 26/20 (1.3), 4th 24/22 (1.091), 5th 24/25 (0.96), 6th 23/26 (0.88)
Final DriveChain, 40/16 (2.5)

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeType: Box section sloping twin-spar aluminium alloy frame Two-chamber adjustable Ohlins Racing steering damper with one-piece mounting.
Front Suspensionhlins43 mm diameter upside-down fork with adjustable compression rebound and preload
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionAluminium alloy double banana swing arm, APS progressive system linkage.Sachs hydraulic shock-absorber with adjustable rebound, compression, preload and length
Rear Suspension Travel5.2 inches / 133 mm
Rake25
Trail102mm / 4.0 in

Wheels & Brakes

Front Tire Size120/70ZR17
Rear Tire Size190/50ZR17
Front Brakes2 x 320mm discs, 4 piston calipers
Rear BrakesSingle 220 mm disc, 2 piston caliper

Dimension & Weights

Seat Height31.9 inches / 810 mm
Wheelbase55.7 inches / 1415 mm
Fuel Tank Capacity4.8 US gallons / 18.0 L
Dry Weight189 Kg/ 417 lbs

Features

  • Aluminium alloy double banana swing arm
  • APS progressive system linkage
  • Sachs hydraulic shock-absorber with adjustable rebound, compression, preload, and length
  • Hlins Racing fork with TiN (Titanium Nitride) coated stanchions and radial caliper mountings
  • Latest generation V60 Magnesium engine with 33 mm exhaust valves
  • Larger diameter exhaust headers
  • External catalytic converters, installed nearer to the header pipes for improved efficiency and respect for the environment
  • Euro 3 homologation
  • Hydraulic clutch operation
  • Radial master cylinder calipers
  • Titanium alloy handlebars
  • Carbon fibre rear subframe
