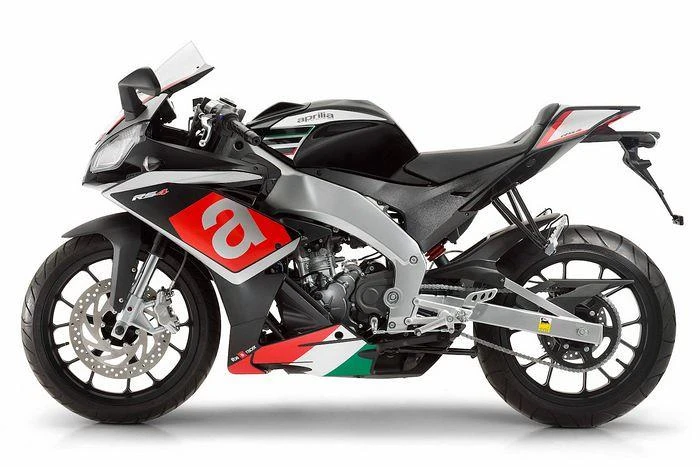

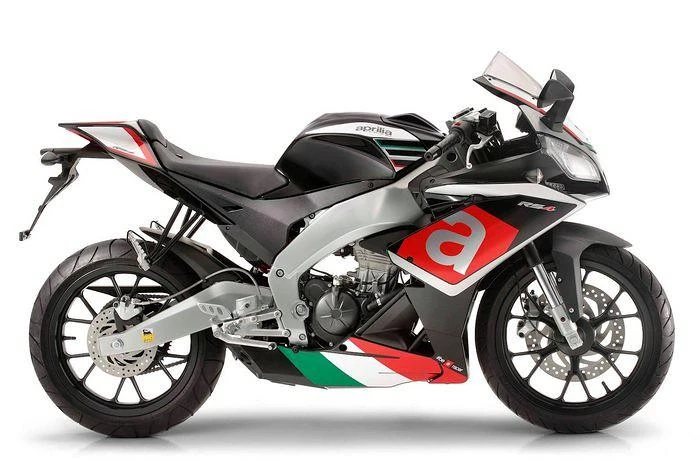

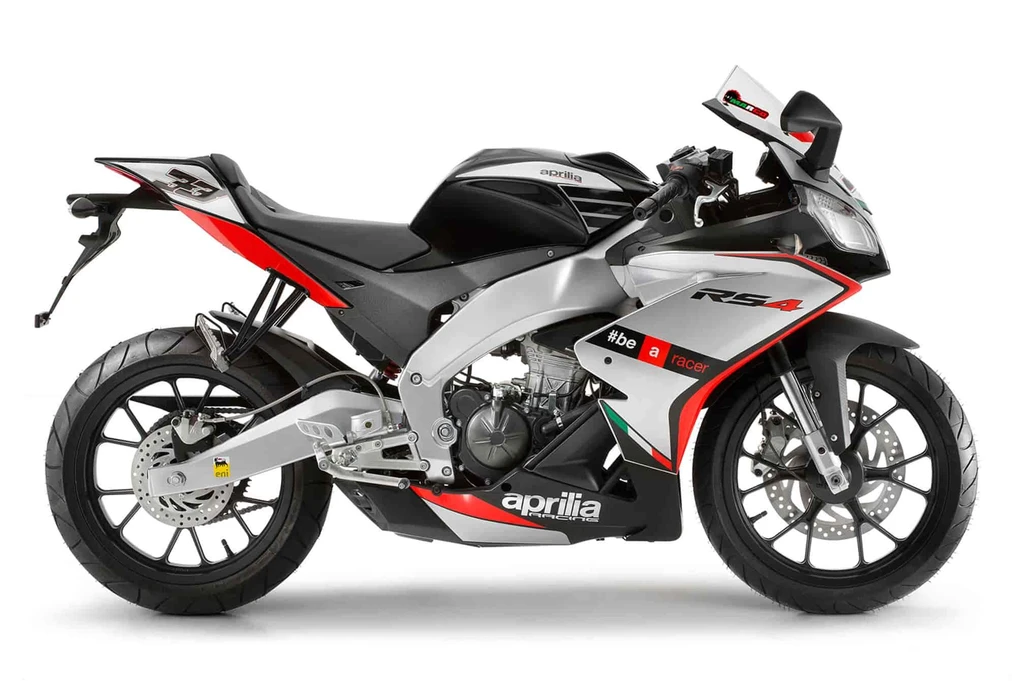

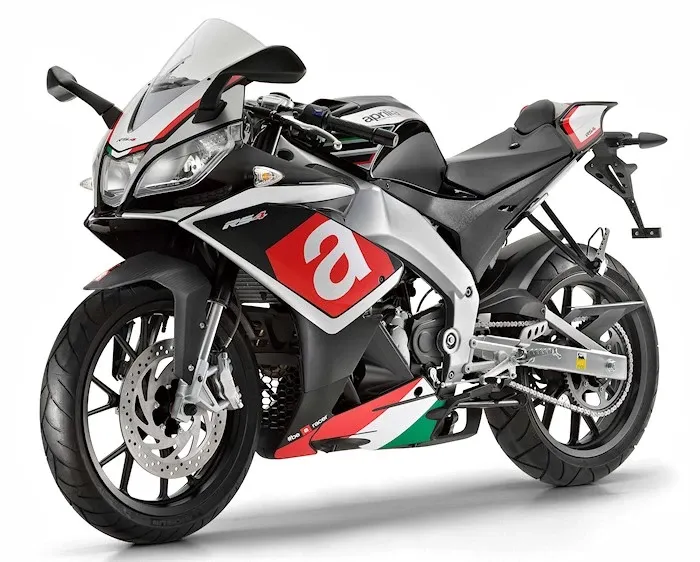

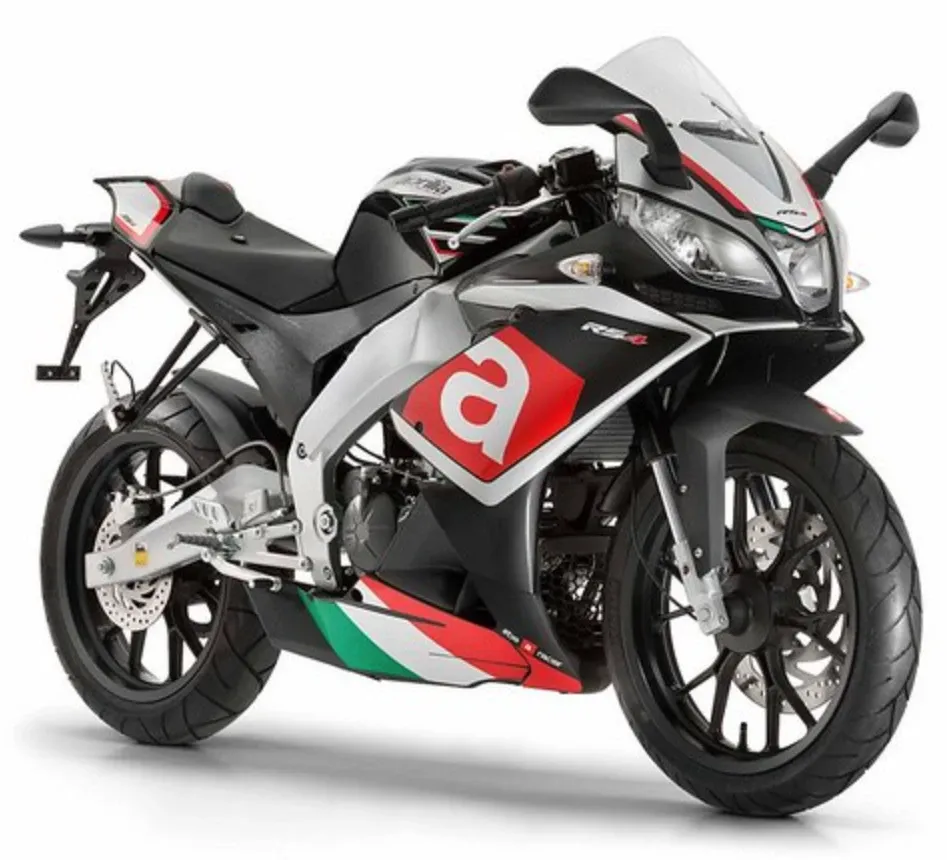

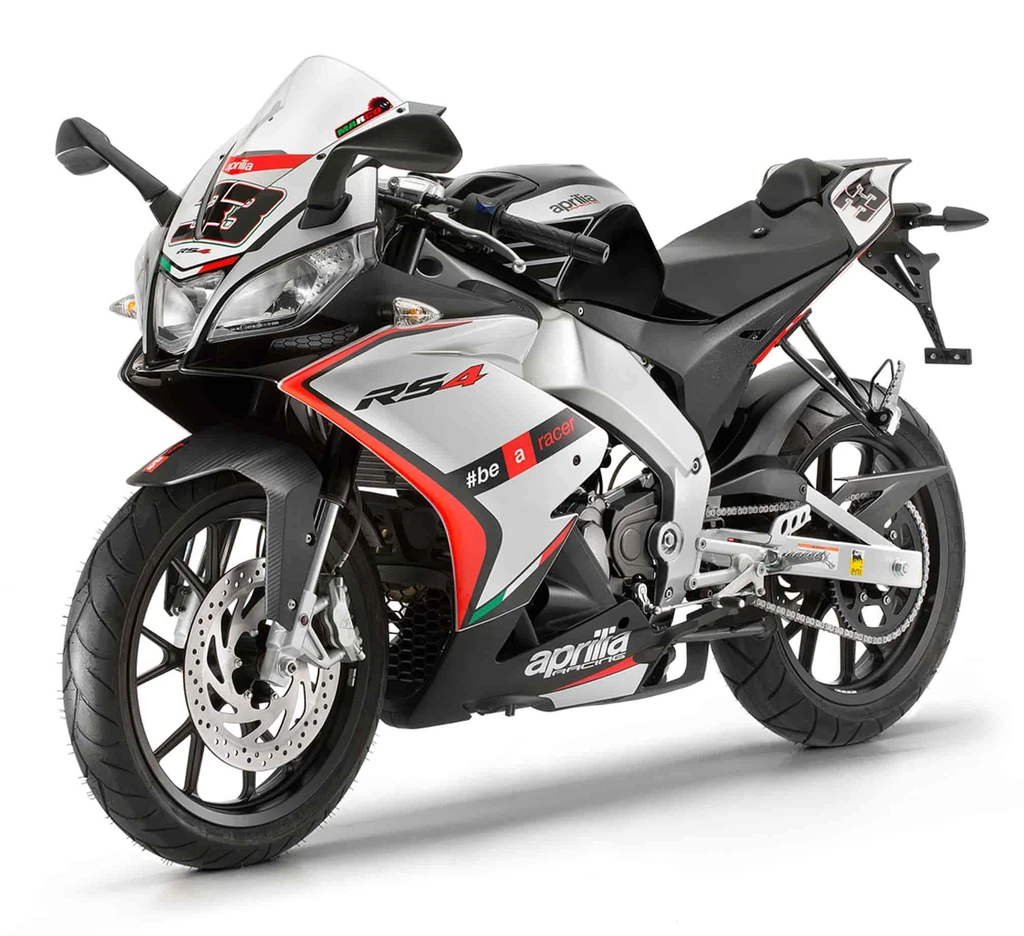

Aprilia RS4 125 (2016)

The Aprilia RS4 125 is a testament to the Italian manufacturer’s prowess in crafting high-performance motorcycles. Its sleek design, inspired by Grand Prix racing, exudes a sporty and aggressive aura, while its GP-inspired tail and distinctive crossed spoke wheels add to its visual appeal.

At the heart of this superbike lies a potent single-cylinder, two-stroke engine that combines advanced technology with fuel efficiency. Featuring a crankcase reed valve intake, liquid cooling, anti-vibration balancer shaft, and automatic mixing system, this engine not only meets Euro 3 emission standards but also delivers exceptional performance.

As the undisputed leader in 125cc supersports, the Aprilia RS4 125 has set new benchmarks for its class. With a rich legacy of innovation and technological expertise forged through years of GP racing success, this motorcycle offers an unbeatable riding experience that’s both thrilling and refined.

Key Specifications

Engine Type	Four stroke,single cylinder, DOHC, 4 valves
Engine Capacity	124.8 cc / 7.6 cu in
Max Power	11.7 kw / 16 hp
Max Torque	11 Nm / 1.12 kgf-m / 8.1 ft/lb @ 8500 rpm
Fuel Tank Capacity	14.5 Liters / 3.8 US gal
Seat Height	32.3 inches / 820 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Aprilia RS4 125
Year	2016

Engine

Engine Type	Four stroke,single cylinder, DOHC, 4 valves
Displacement	124.8 cc / 7.6 cu in
Bore x Stroke	58 X 47 mm
Compression Ratio	12.5 0.5:1
Max Horsepower	11.7 kw / 16 hp
Max Torque	11 Nm / 1.12 kgf-m / 8.1 ft/lb @ 8500 rpm
Engine Management System	Electronic injection
Cooling System	Liquid cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiple discs, in oil bath
Gearbox	6 Speed
Gear Ratios	1st 11/33 (0.33) / 2nd 15/30 (0.50) / 3rd 18/27 (0.67) / 4th 20/24 (0.83) / 5th 25/27 (0.92) / 6th 23/22 (1.05)
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Aluminum perimeter frame
Front Suspension	41 mm Upside down fork
Front Suspension Travel	4.3 inches / 110 mm
Rear Suspension	Asymmetric swingarm with monoshock
Rear Suspension Travel	5.1 inches / 130 mm

Wheels & Brakes

Front Tire Size	110/80 17
Rear Tire Size	130/70 17
Front Brakes	Single 300 mm disc, 4 piston caliper
Rear Brakes	Single 218 mm disc, 1 piston caliper

Dimension & Weights

Overall Length	1953 mm / 76.8 in
Overall Width	740 mm / 29.1 in
Overall Height	1138 mm / 44.6 in
Seat Height	32.3 inches / 820 mm
Wheelbase	53.1 inches / 1350 mm
Fuel Tank Capacity	14.5 Liters / 3.8 US gal
Dry Weight	122 kg / 269 lbs

Features

Sharp lines for a sporty and aggressive look
GP inspired tail
Crossed spoke wheels
Single cylinder, two stroke engine
Crankcase reed valve intake
Liquid cooling
Anti-vibration balancer shaft
Automatic mixing system
Catalytic converter
Precision carburation
Euro 3 emission standards compliance
Sophisticated technology from GP racing experience
Super-rigid aluminium frame and swingarm
Upside down fork
Front brake with radial caliper and four opposed pistons
RSV 1000 R style fairing, windshield and tail
Analog/digital instrument panel with multi-functional computer
Forged steering yoke
Oval section racing silencer with riveted end plates
Twin halogen headlight
