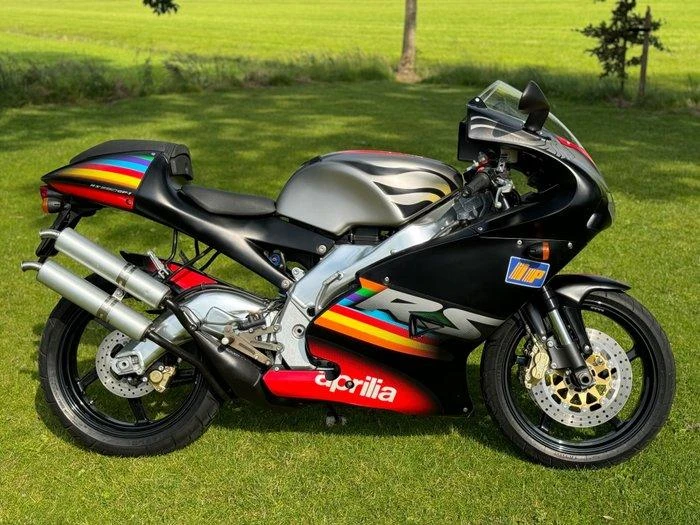

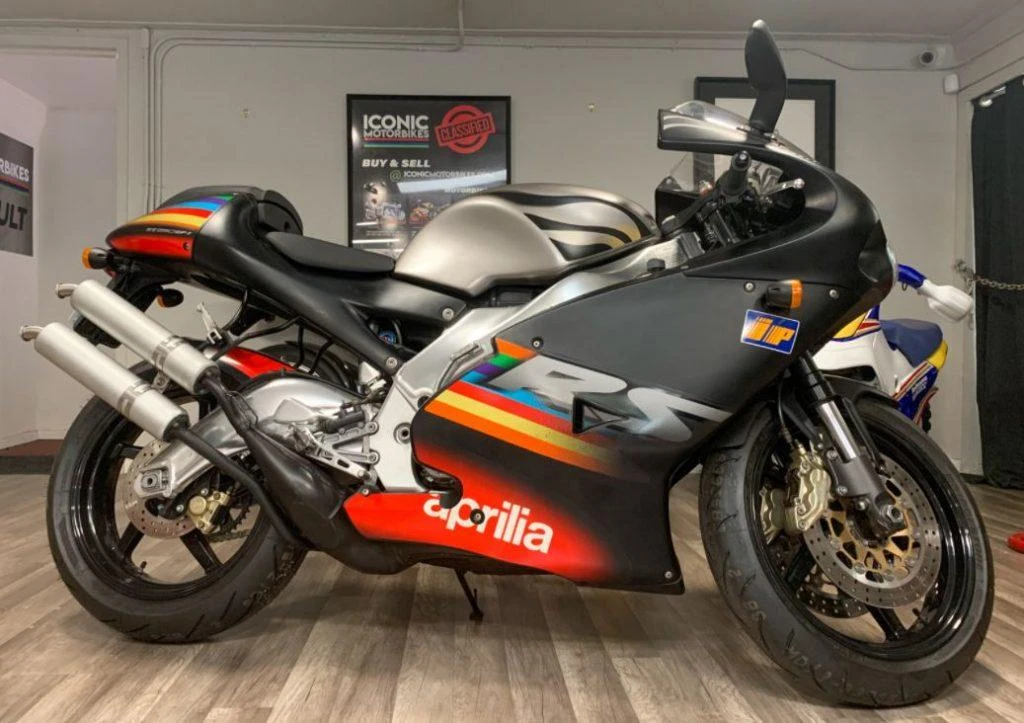

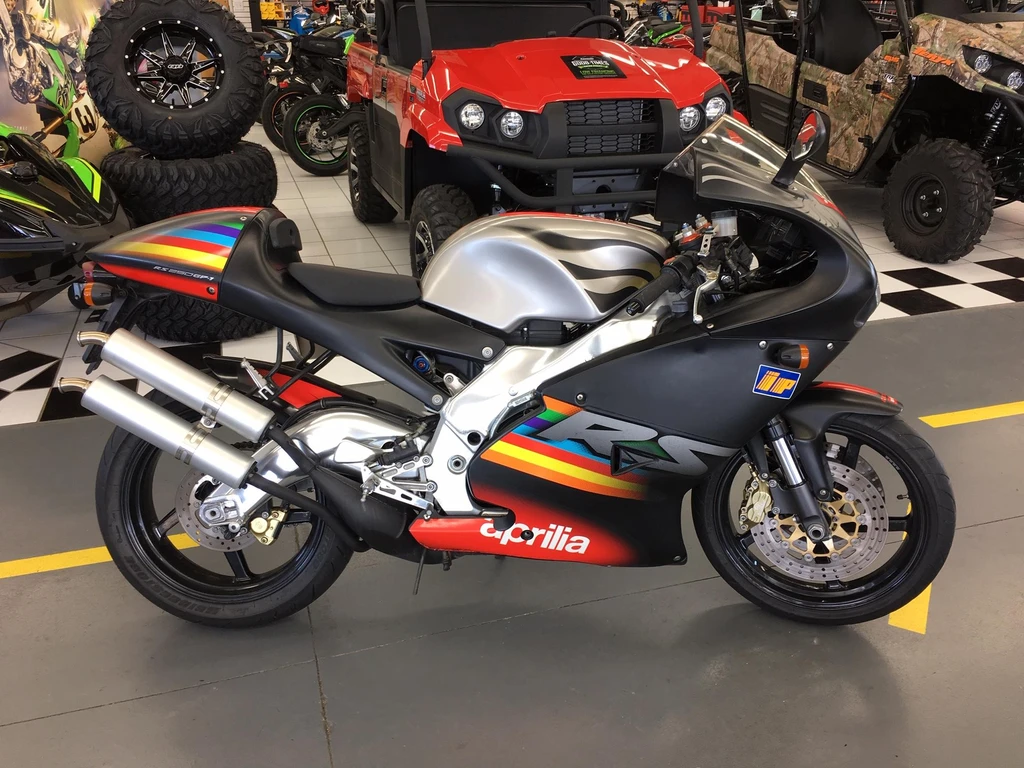

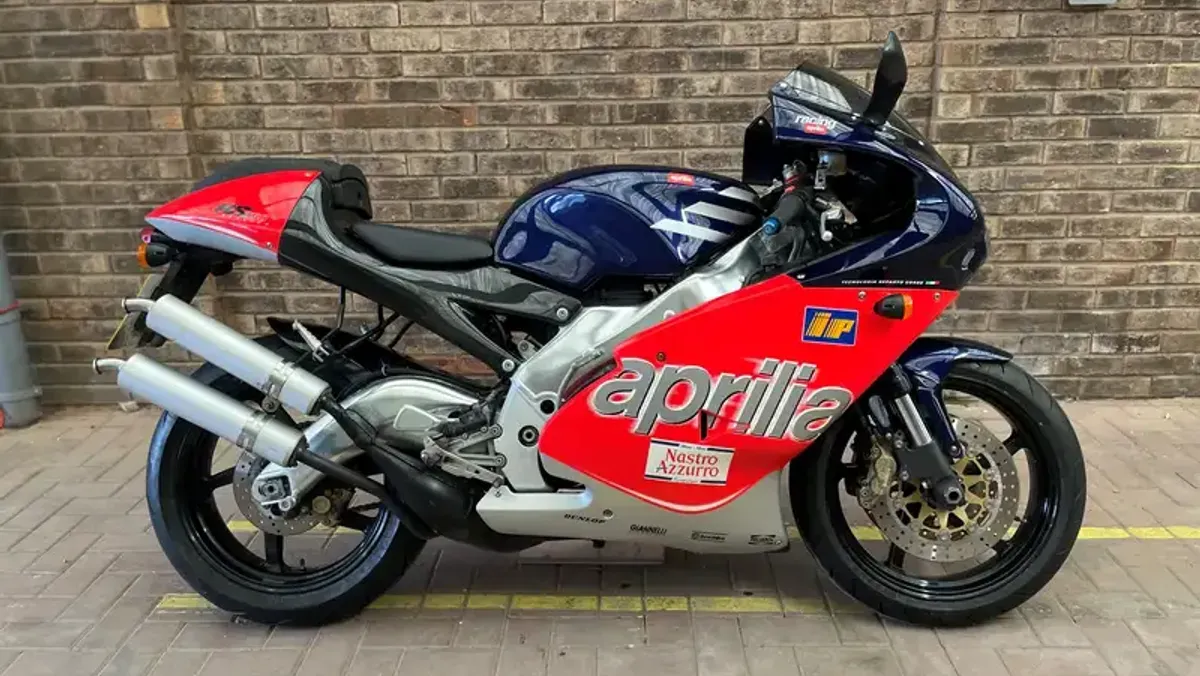

Aprilia RS 250 (2002 - 2003)

The Aprilia RS 250 is a relic of a bygone era, a testament to the raw power and agility that defined the two-stroke era. Its reed-valve motor, a direct descendant of the 1993 250GP winner, produces a sweet perfume-like sound that’s music to the ears.

Built around a near-perfect chassis, the RS 250 is a handling machine par excellence. With its upside-down forks, banana swingarm, and Brembo four-piston brakes, it’s a combination of talent that’s unmatched in the world of motorcycling.

The single crank V-twin stroker engine may require some finesse to extract its full potential, but when you hit perfect pitch at 10,500rpm, delivering 55bhp with a sweet punch, it’s pure riding nirvana.

Key Specifications

Engine Type	Two stroke, 90 V twin-cylinder, with laminar suction and exhaust valve. Separate lubrication with variable automatic mixer
Engine Capacity	249 cc / 15.2 cu in
Max Power	52.9 kw / 72.5 hp
Max Torque	40 Nm / 4.08 kgf-m / 29.5 lb/ft @ 10750 rpm
Fuel Tank Capacity	4.4 US gallons / 16.5 L
Weight (Wet/Kerb)	368 lbs / 167 kg
Seat Height	31.9 inches / 810 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Aprilia RS 250
Year	2002 – 2003

Engine

Engine Type	Two stroke, 90 V twin-cylinder, with laminar suction and exhaust valve. Separate lubrication with variable automatic mixer
Displacement	249 cc / 15.2 cu in
Bore x Stroke	56 x 50.6 mm
Compression Ratio	12.0:1 (+/- 0.7)
Max Horsepower	52.9 kw / 72.5 hp
Max Torque	40 Nm / 4.08 kgf-m / 29.5 lb/ft @ 10750 rpm
Engine Management System	2 x 34 mm Mikuni 34 SS flat side carburetors
Lubrication System	Oil pump with separate circuit
Cooling System	Liquid cooled

Performance

Top Speed

209.5 km/h / 130.2 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Oil bath, multiple-disc, with lever control on handlebars
Gearbox	6 Speed, direct drive
Gear Ratios	1st 11:27 (1:2.454) / 2nd 16:26 (1:1.625) / 3rd 17:21 (1:1.235) / 4th 22:23 (1:1.045) / 5th 24:22 (1:0.916) / 6th 25:21 (1:0.840)
Final Drive	Chain, sealed, jointless, DID 520 V6

Electrical & Electronics System

Battery	12V 4Ah
Starter	Kick

Chassis & Suspension

Front Suspension	40 mm Inverted fork with adjustable rebound and compression damping.
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading.
Rear Suspension Travel	5.1 inches / 130 mm
Rake	25

Wheels & Brakes

Front Wheel/Rim Size	3.50 x 17
Front Tire Size	120/60-17
Rear Wheel/Rim Size	4.50 x 17
Rear Tire Size	150/60-17
Front Brakes	2 x 298 mm discs, 4 piston calipers
Rear Brakes	Single 220 mm disc, 2 piston caliper

Dimension & Weights

Overall Length	1880 mm / 74.0 in
Overall Width	690 mm / 27.2 in
Overall Height	1080 mm / 42.5 in
Seat Height	31.9 inches / 810 mm
Wheelbase	53.9 inches / 1370 mm
Ground Clearance	135 mm / 5.3 in
Fuel Tank Capacity	4.4 US gallons / 16.5 L
Wet (kerb/curb) Weight	368 lbs / 167 kg
Dry Weight	141 kg / 309 lbs

Features

Reed-valve motor
Single crank V-twin stroker engine
55bhp at 10,500rpm
Fully-synthetic two-stroke oil required for engine life
New piston kit every 6000 miles (approx.)
Thin seat pads
No electric start
Pillion provision is minimal
Gear shift light
Upside-down forks
Banana swingarm
Brembo four-piston brakes
Supernatural composure and handling

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
