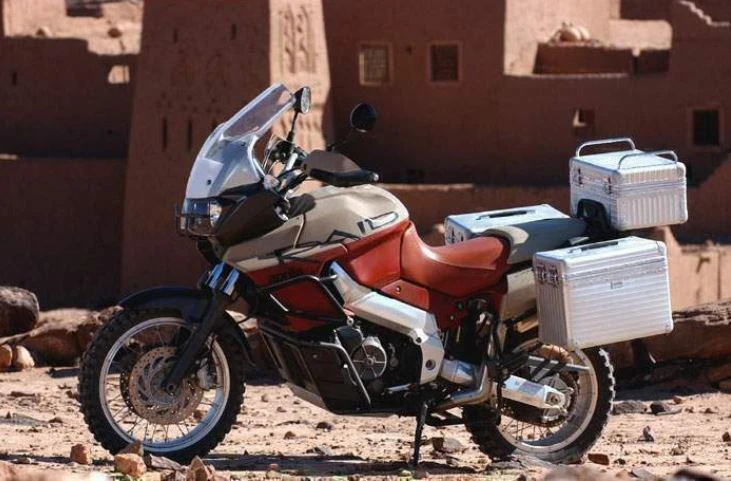

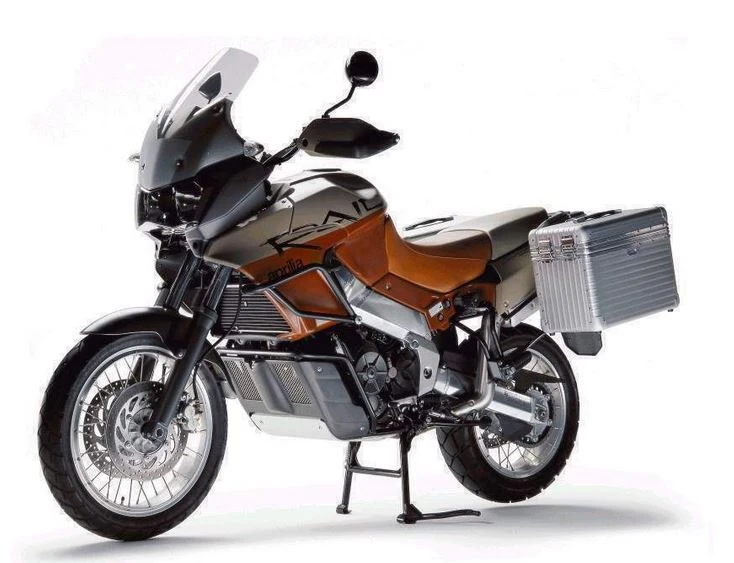

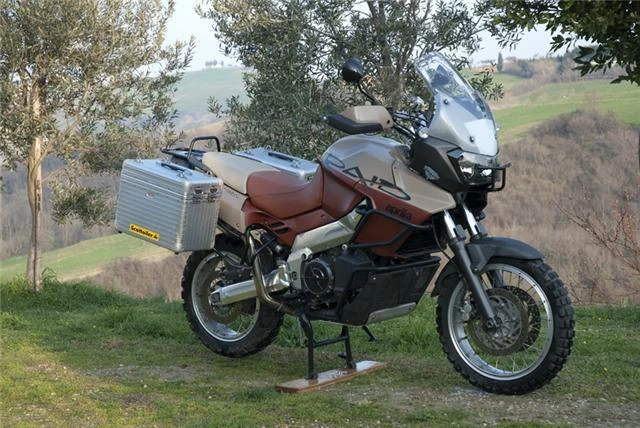

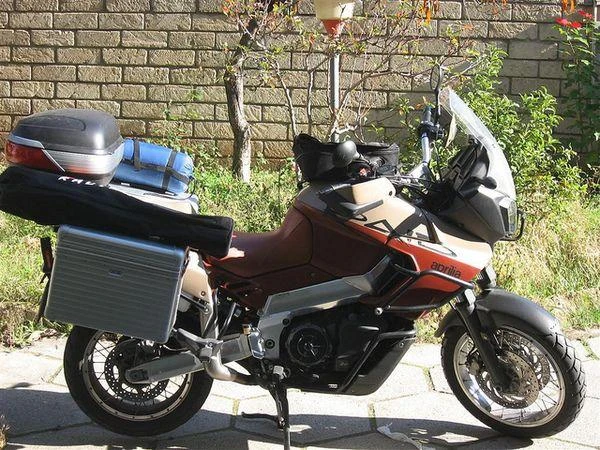

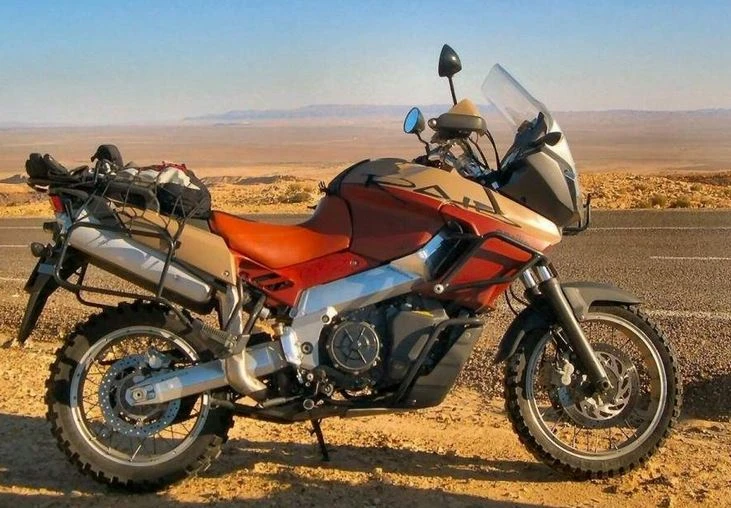

Aprilia ETV 1000 Caponord Rally Raid (2003)

The Aprilia ETV 1000 Caponord Rally Raid: a motorcycle that defies categorization. Powered by a potent four-stroke, longitudinal 60 V-twin engine, this machine embodies the perfect blend of performance and versatility.

With its aluminium-magnesium frame and advanced suspension system, the Caponord Rally Raid tackles any terrain with ease, effortlessly transitioning from paved roads to rugged off-road tracks. Its powerful 1000cc V-twin engine delivers a thrilling riding experience, while the sleek and aggressive styling turns heads wherever it goes.

The ultimate touring machine has just been perfected, with a comprehensive package of features that make it equally at home in town or on a long-haul adventure. The Caponord Rally Raid: the ultimate no-limits motorcycle, designed to take you anywhere, anytime.

Key Specifications

Engine Type	Four stroke, longitudinal 60 V-twin, DOHC, 4 valves per cylinder
Engine Capacity	997.6 cc / 60.9 cu in
Max Power	72 kw / 98 hp
Max Torque	97 Nm / 9.88 kgf-m / 71.5 bl-ft @ 6250 rpm.
Fuel Tank Capacity	6.6 US gallons / 25.0 L
Weight (Wet/Kerb)	558 lbs / 253 kg
Seat Height	32.3 inches / 820 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Aprilia ETV 1000 Caponord Rally Raid
Year	2003

Engine

Engine Type	Four stroke, longitudinal 60 V-twin, DOHC, 4 valves per cylinder
Displacement	997.6 cc / 60.9 cu in
Bore x Stroke	97 x 67.5 mm
Compression Ratio	10.4:1
Max Horsepower	72 kw / 98 hp
Max Torque	97 Nm / 9.88 kgf-m / 71.5 bl-ft @ 6250 rpm.
Engine Management System	Fuel injection
Cooling System	Liquid cooled

Performance

Top Speed

214.4 km/h / 133 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multiple discs, cable operated
Gearbox	6 Speed
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Wave twin beam in box-type aluminium-magnesium alloy, highly-resistant removable steel rear subframe
Front Suspension	Marzocchi hydraulic fork, 50 mm
Front Suspension Travel	6.9 inches / 175 mm
Rear Suspension	Aluminium alloy swing arm, progressive linkage. Sachs hydraulic shock absorber, rebound and preload adjustable.
Rear Suspension Travel	7.3 inches / 185 mm
Trail	129 mm / 5.1 in

Wheels & Brakes

Front Tire Size	110/80 VR19
Rear Tire Size	150/70 VR17
Front Brakes	2 x 300 mm discs, 2 piston calipers with ABS
Rear Brakes	Single 270 mm disc, 2 piston caliper with ABS

Dimension & Weights

Overall Length	2310 mm / 90.9 in
Overall Width	876 mm / 34.5 in
Overall Height	1436 mm / 56.5 in
Seat Height	32.3 inches / 820 mm
Fuel Tank Capacity	6.6 US gallons / 25.0 L
Wet (kerb/curb) Weight	558 lbs / 253 kg
Dry Weight	215 kg / 474 lbs

Features

Four-stroke 60 V-twin engine
DOHC with 4 valves per cylinder
Digital electronic ignition with two spark plugs per cylinder
Aluminium alloy swing arm with progressive linkage
Sachs hydraulic shock absorber with rebound and preload adjustment
Aluminium-magnesium frame
1000 cc V twin engine
Three-way catalyser exhaust system with Lambda probe oxygen sensor
Euro 2 compliant emissions standards
New brakes
New sump
Engine guards
New suspensions
Riding position designed for comfort and ergonomics
Touring luggage
Digital electronic ignition
