In the late 1980s, Aprilia unveiled a revolutionary motorcycle that would change the face of the 125cc sportbike market forever: the Sintesi Replica. As its name suggests, this bike was designed to be a comprehensive encapsulation of Aprilia’s technical and sporting prowess.
With its all-aluminum frame, 38mm upside-down forks, monoshock rear suspension, and APS (Anti-Dive System) technology, the Sintesi Replica boasted cutting-edge engineering that set it apart from its competitors. The bike’s heart was a 123cc Rotax engine featuring Aprilia’s innovative RAVE 2 valve system.
The riding experience on the Sintesi Replica is characterized by smooth, linear power delivery and exceptional handling, thanks to its balanced weight distribution and sophisticated suspension system. Its distinctive styling, inspired by the legendary Honda RC30 endurance racer, features a unique combination of analog headlights, a monoshock rear end, and a sleek, aerodynamic bodywork.
The Aprilia AF1 125 Sintesi Replica is an engineering marvel that embodies the spirit of Italian motorcycle design and innovation.
Key Specifications
Engine Type
Two stroke, single cylinder, light alloy, barrel with Gilnisil coating
Engine Capacity
124.7 cc / 7.6 cu in
Max Power
21.4 kw / 28.66 hp
Max Torque
18.6 Nm / 1.9 kgf-m / 13.7 lb-ft @ 10000 rpm
Fuel Tank Capacity
20 L / 5.3 US gal
Weight (Wet/Kerb)
289 lbs / 131 kg
Seat Height
31.5 inches / 800 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

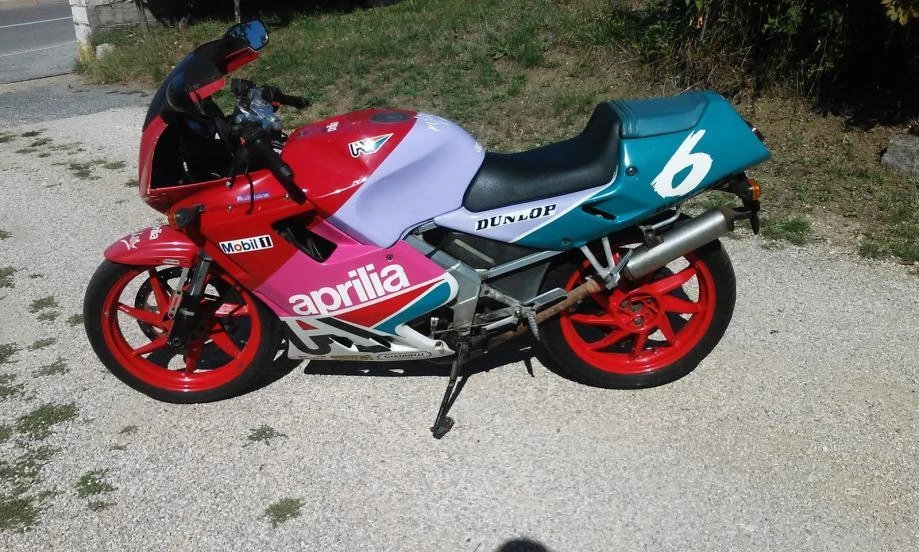

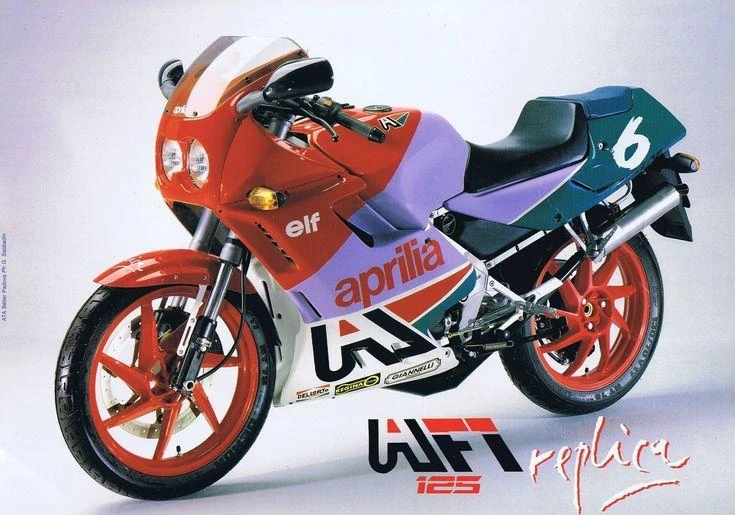

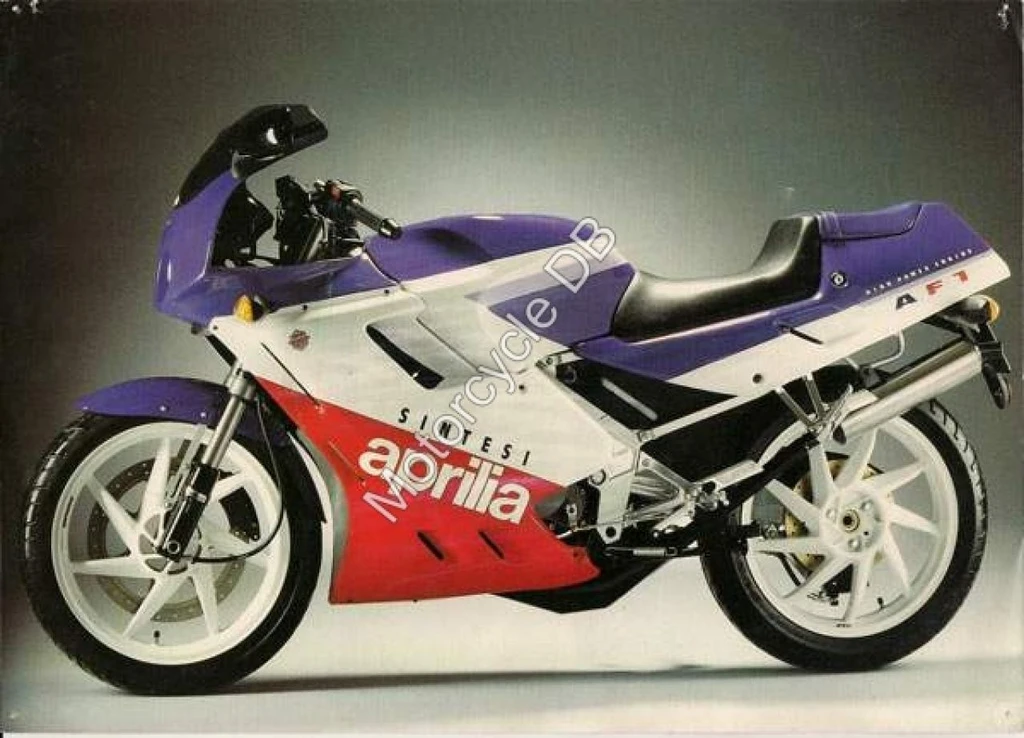

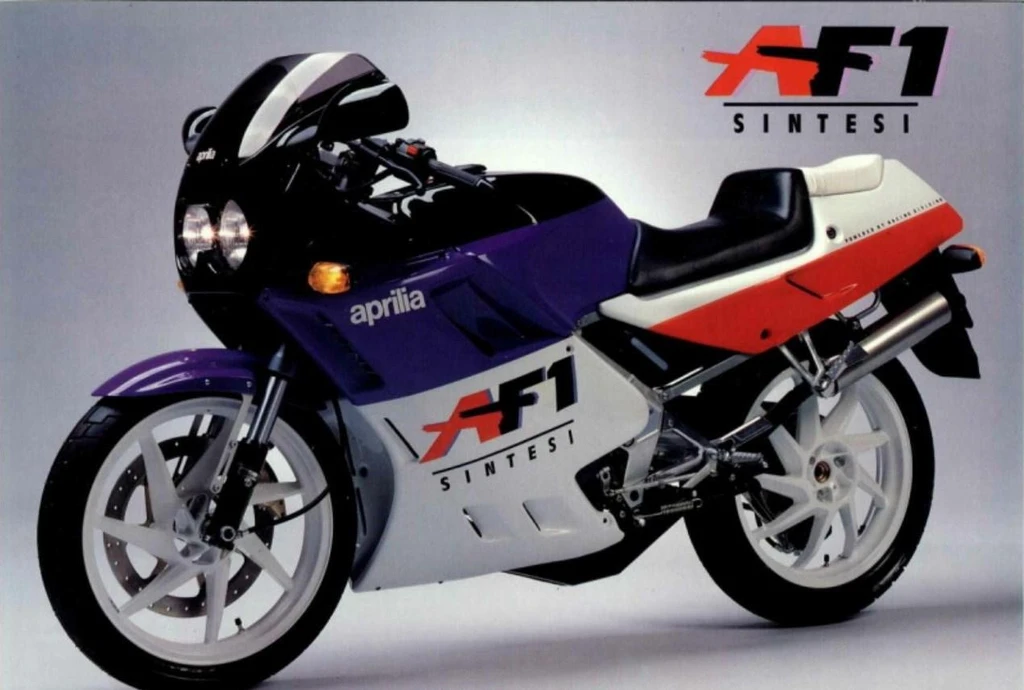

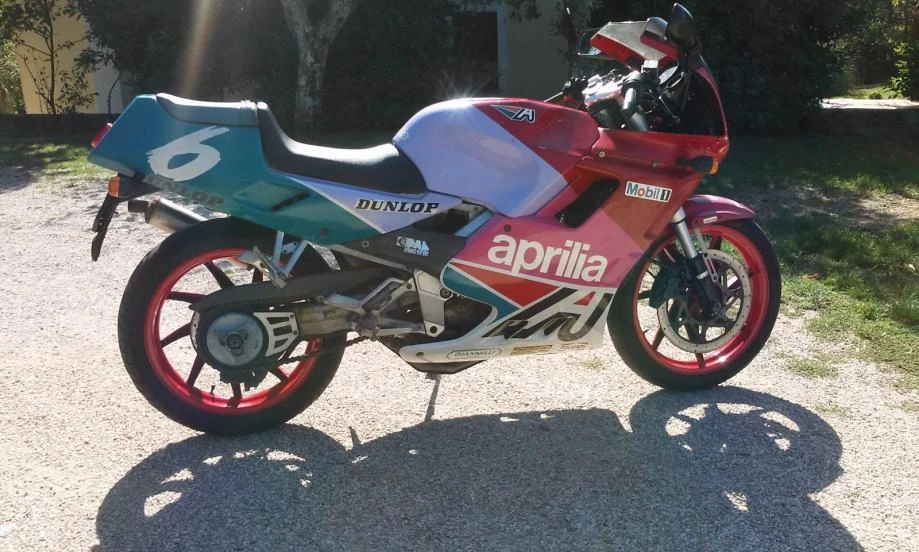

Aprilia AF1 125 Sintesi Replica
Year
1989
Engine
Engine Type
Two stroke, single cylinder, light alloy, barrel with Gilnisil coating
Displacement
124.7 cc / 7.6 cu in
Bore x Stroke
54 x 54.5 mm
Compression Ratio
15.1:1
Max Horsepower
21.4 kw / 28.66 hp
Max Torque
18.6 Nm / 1.9 kgf-m / 13.7 lb-ft @ 10000 rpm
Engine Management System
Dell’Orto carburetor, 28 mm
Cooling System
Liquid cooled
Performance
Top Speed
169.1 km/h / 103.3 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic fork, 38 mm
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Aprilia progressive mono shock system, Sebach
Rear Suspension Travel
4.7 inches / 120 mm
Wheels & Brakes
Front Tire Size
100/80-17
Rear Tire Size
130/70-17
Front Brakes
Single 320 mm floating disc, 4 piston caliper, Brembo
Rear Brakes
Single 240mm disc, 2 piston caliper
Dimension & Weights
Seat Height
31.5 inches / 800 mm
Fuel Tank Capacity
20 L / 5.3 US gal
Wet (kerb/curb) Weight
289 lbs / 131 kg
Features
Telaio in alluminio
Forcella upside-down da 38mm
Forcellone monobraccio
Sospensione APS
Ruote da 17 pollici
Freno a disco anteriore flottante da 320mm con pinza a quattro pistoncini
Motore Rotax 123
Valvola RAVE 2
Avviamento elettrico incluso nel prezzo
Carenatura in tecnopolimero perfezionata nella galleria del vento
Sellaper posteriore in tinta con codone
Sella passeggero protetta da serratura
Vano porta-attrezzi accessibile sollevando la sella passeggero
Serbatoio ribaltabile e facilmente accessibile
Batteria collocata in posizione a ridosso del canotto di sterzo
Impianto frenante generoso
Strumentazione completa prodotta in Giappone
Comandi elettrici CEV
